Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

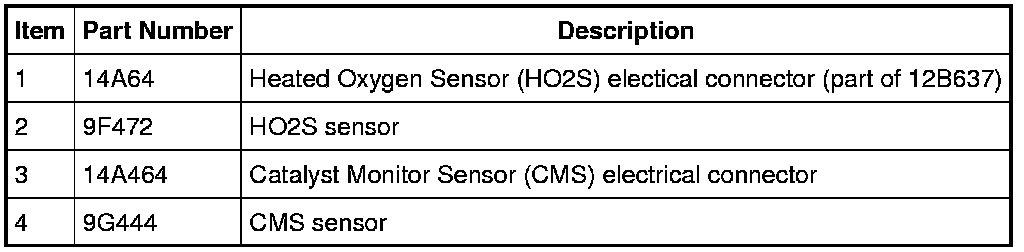

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

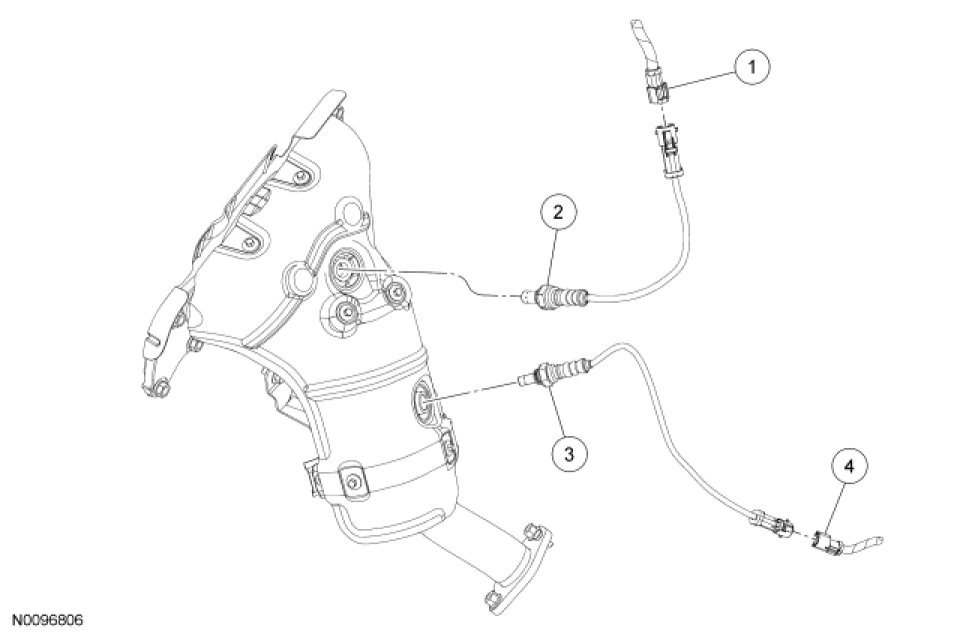

Non-Partial Zero Emissions Vehicle (PZEV)

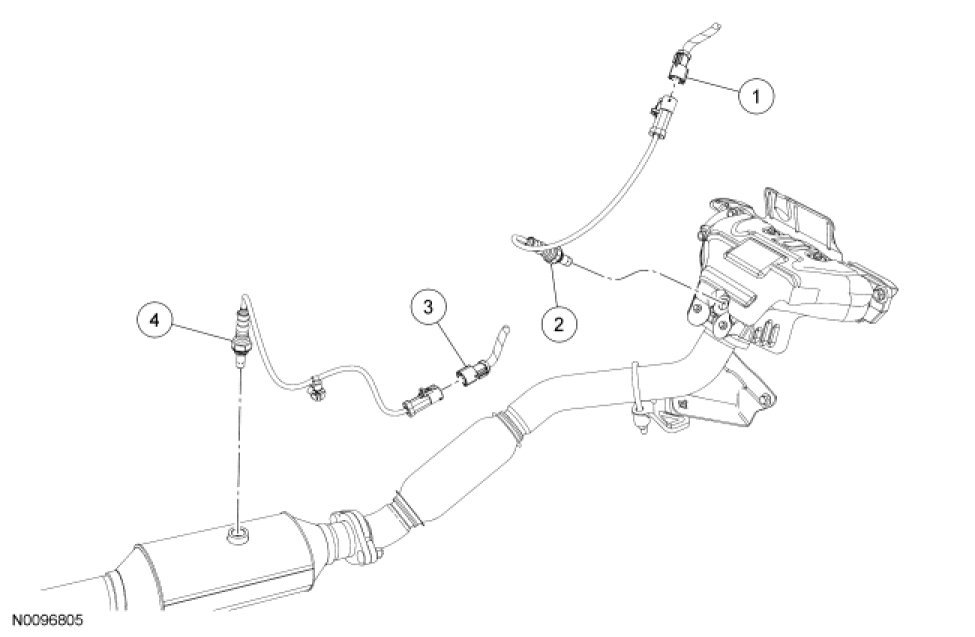

Partial Zero Emissions Vehicle (PZEV)
