Flexplate, Flywheel And Crankshaft Rear Seal - Exploded View

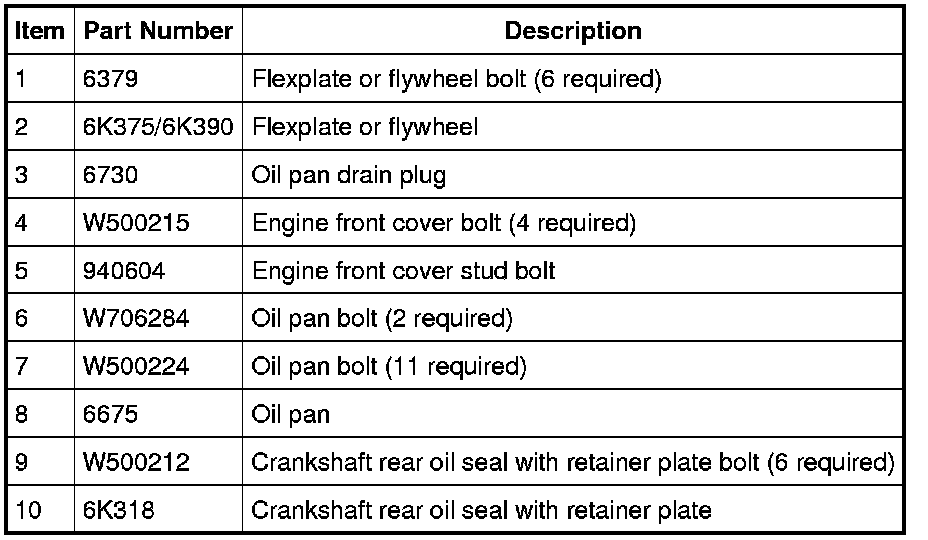

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal
