Oil Pressure Sender: Service and Repair

Engine Oil Pressure (EOP) Switch













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. If equipped, remove the 6 screws and the underbody shield.

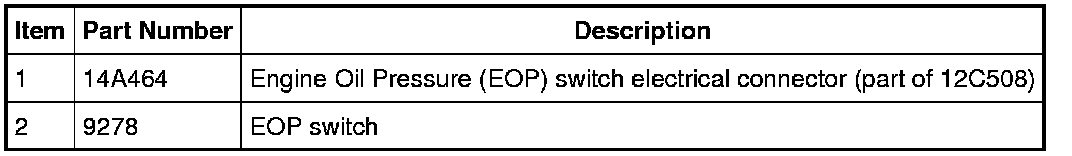

3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

4. Remove the EOP switch.
- To install, tighten to 18 Nm (159 lb-in).

5. To install, reverse the removal procedure.

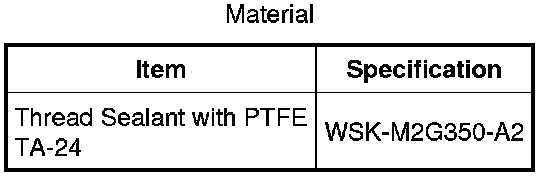

- Apply thread sealant with PTFE to the EOP switch threads prior to installation.
