Part 2

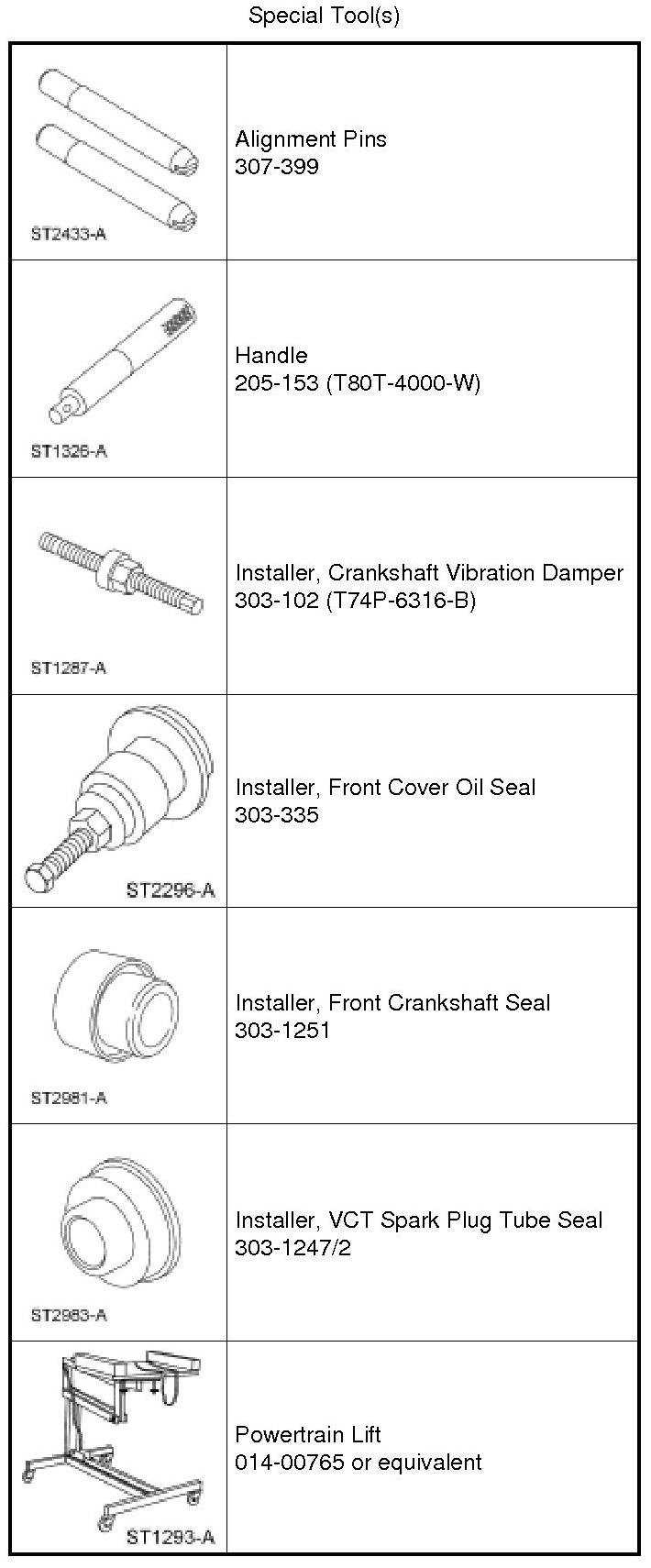

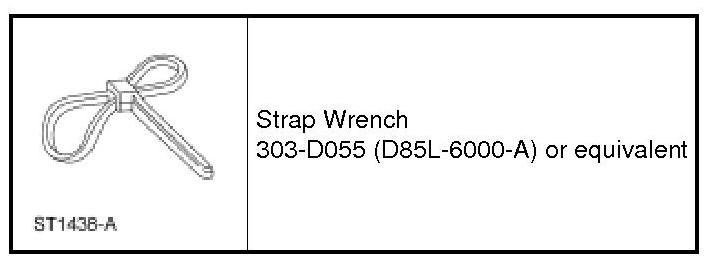

Engine Front Cover
All vehicles
NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTICE: Early build engines have 11 fastener valve covers, late built engines have 9 fastener valve covers. Do not attempt to install bolts in the 2 empty late build valve cover holes or damage to the valve cover will occur.
51. NOTE: LH shown, RH similar.
Install the 2 rear subframe nuts.
- Tighten to 150 Nm (111 lb-ft).
52. NOTE: LH shown, RH similar.
Tighten the 2 subframe bracket-to-body bolts to 103 Nm (76 lb-ft).
53. NOTE: LH shown, RH similar.
Install the stabilizer bar links and nuts to the struts.
54. NOTE: LH shown, RH similar.
Install the tie-rod ends and nuts.
- Tighten to 48 Nm (35 lb-ft).
- Install new cotter pins.

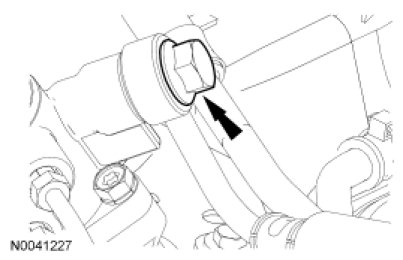

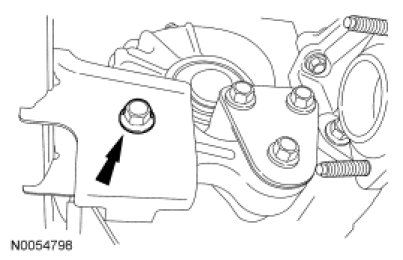

55. Install the engine roll restrictor-to-subframe through bolt.
- Tighten to 90 Nm (66 lb-ft).
AWD vehicles
56. Line up the index marks on the rear driveshaft to the index marks on the PTU flange made during removal and install the 4 new bolts (3 shown).
- Tighten to 70 Nm (52 lb-ft).
All vehicles

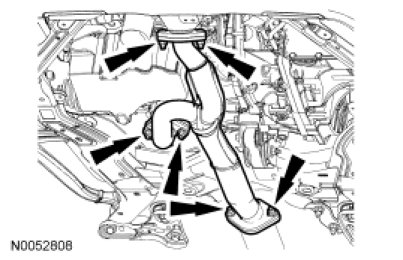

57. Using new gaskets, install the Y-pipe assembly and the 6 new nuts.
- Tighten to 40 Nm (30 lb-ft).
58. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.
Install a new engine oil filter.
- Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

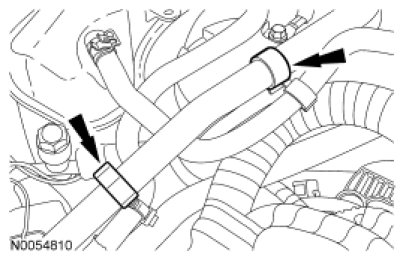

59. Connect the 2 transmission fluid cooler hoses.
60. Connect the power steering cooler tube.

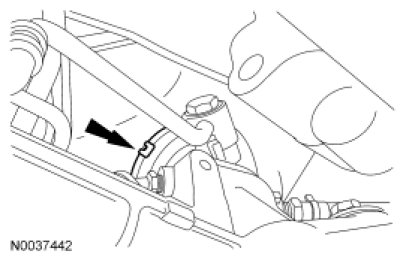

61. Slide the steering gear-to-dash seal onto the steering gear and engage the 4 retaining clips into the body.
- From under the vehicle, verify that the seal is correctly installed on the steering gear and the retaining clips are fully engaged into the body.
62. If equipped, install the underbody shield and the 6 screws.
63. Install the LH splash shield and the 6 pin-type retainers (4 shown).
64. Position the LH fender splash shield and install the 4 screws.
65. NOTE: Align the index marks made during removal.

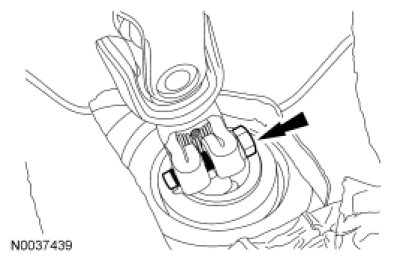

Install the steering intermediate shaft onto the steering gear and install a new bolt.
- Tighten to 25 Nm (18 lb-ft).
66. Install the steering joint cover and the 2 nuts.

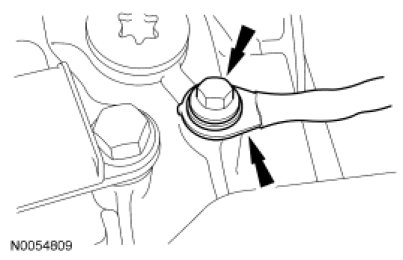

67. Using a new banjo bolt and 2 new seals, install the PSP tube onto the steering gear.
- Tighten to 37 Nm (27 lb-ft).

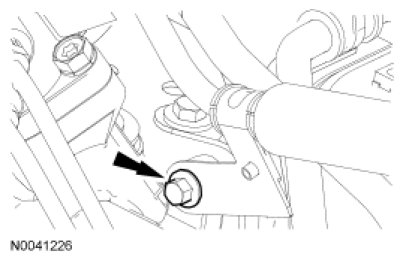

68. Install the PSP tube bracket and bolt.
- Tighten to 10 Nm (89 lb-in).

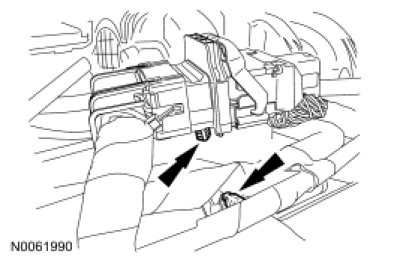

69. Connect the PCM connectors and pin-type retainers.

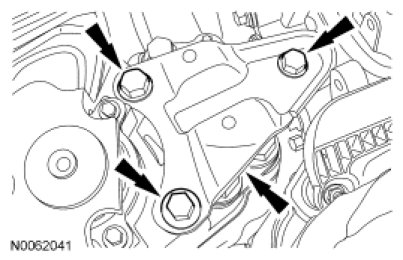

70. Install the engine mount brace and the 3 bolts.
- Tighten to 25 Nm (18 lb-ft).

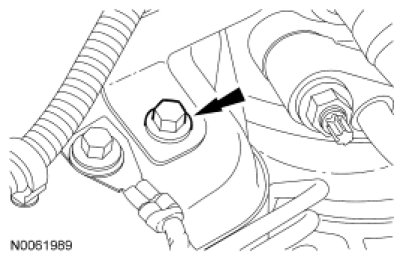

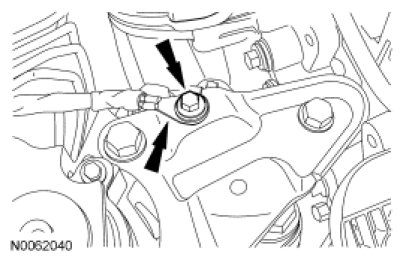

71. Install the ground wire and the bolt.
- Tighten to 10 Nm (89 lb-in).

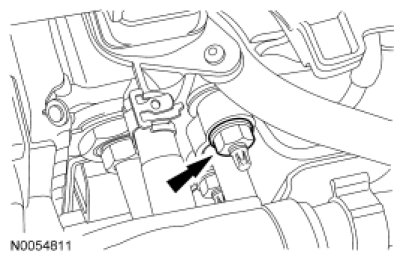

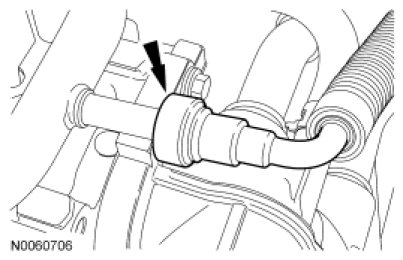

72. Connect the fuel supply tube to the fuel rail. For additional information, refer to Fuel Delivery and Air Induction.
73. Attach the power steering reservoir onto the cowl.

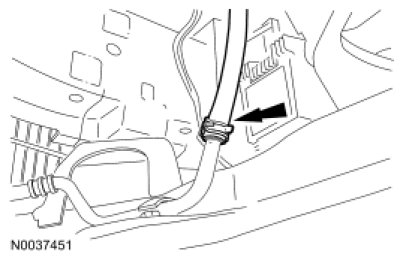

74. Connect the hose to the power steering reservoir.
- Attach the pin-type retainer to the engine mount brace.
75. Install the oil level indicator.

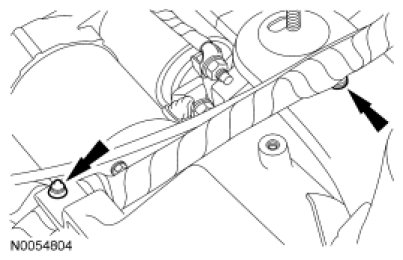

76. Attach the 2 wiring harness retainers to the LH valve cover stud bolts.

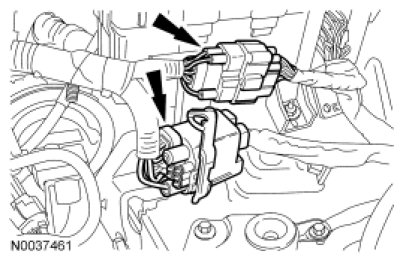

77. Connect the 2 engine wiring harness electrical connectors.

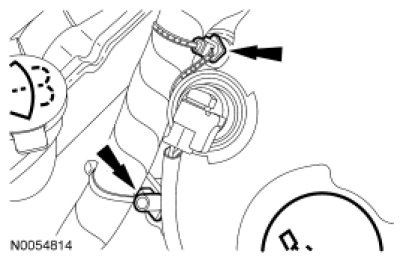

78. Attach the 2 wiring harness retainers.
79. Using new O-ring seals, connect the A/C tubes and install the 2 nuts.
- Tighten to 8 Nm (71 lb-in).
80. Install the A/C tube bracket bolt.
- Tighten to 8 Nm (71 lb-in).

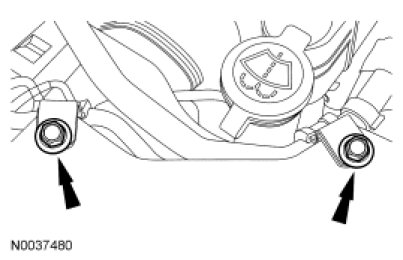

81. Install the 2 A/C tube retaining clamp bolts.
- Tighten to 10 Nm (89 lb-in).
82. Using a new O-ring seal, connect the A/C tube to the condenser and install the nut.
- Tighten to 8 Nm (71 lb-in).
83. Attach the coolant tube retainer clips to the A/C tube.
84. If equipped, attach the engine block heater harness to the radiator support, power steering hose, A/C tube and the engine wiring harness.
85. Install the ground wire and bolt.
- Tighten to 12 Nm (106 lb-in).
86. Position the transaxle control cable bracket in place and install the 3 nuts.
- Tighten to 12 Nm (106 lb-in).
87. Connect the transaxle control cable to the control lever.

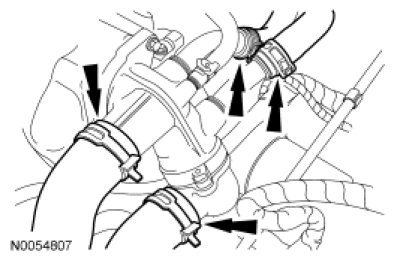

88. Connect the upper radiator hose, lower radiator hose and 2 heater hoses to the thermostat housing.

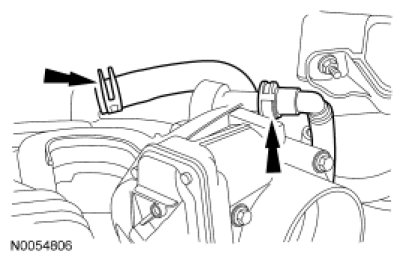

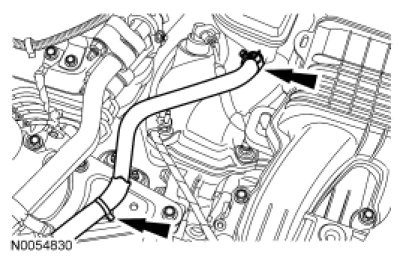

89. Connect the vacuum hose and the Evaporative Emission (EVAP) tube to the upper intake manifold.
90. Install the ground wire and the bolt.
- Tighten to 12 Nm (106 lb-in).

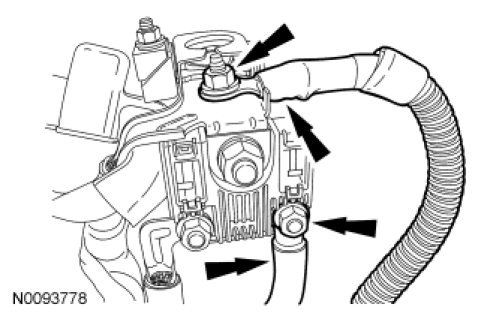

91. Install the 2 battery cables to the positive battery cable and the 2 nuts.
- Tighten to 9 Nm (80 lb-in).
92. Attach the 2 wiring harness retainers to the transmission mount and the battery tray bracket.

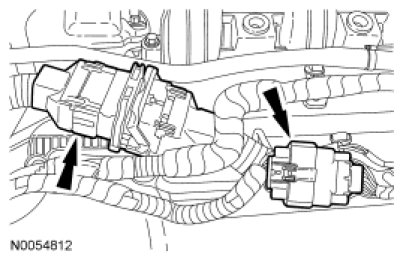

93. Connect the 2 engine wiring harness electrical connectors.
94. Install the battery tray. For additional information, refer to Battery.
95. Install the engine Air Cleaner (ACL) and the ACL outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

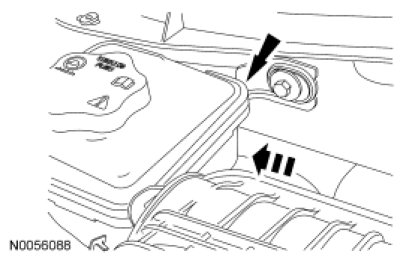

96. Install the degas bottle. For additional information, refer to Cooling System &/or Engine Block Heater.
97. Install the LH halfshaft and the intermediate shaft. For additional information, refer to Drive Axles, Bearings and Joints.
98. Install the accessory drive belt and the power steering belt. For additional information, refer to Drive Belts, Mounts, Brackets and Accessories.

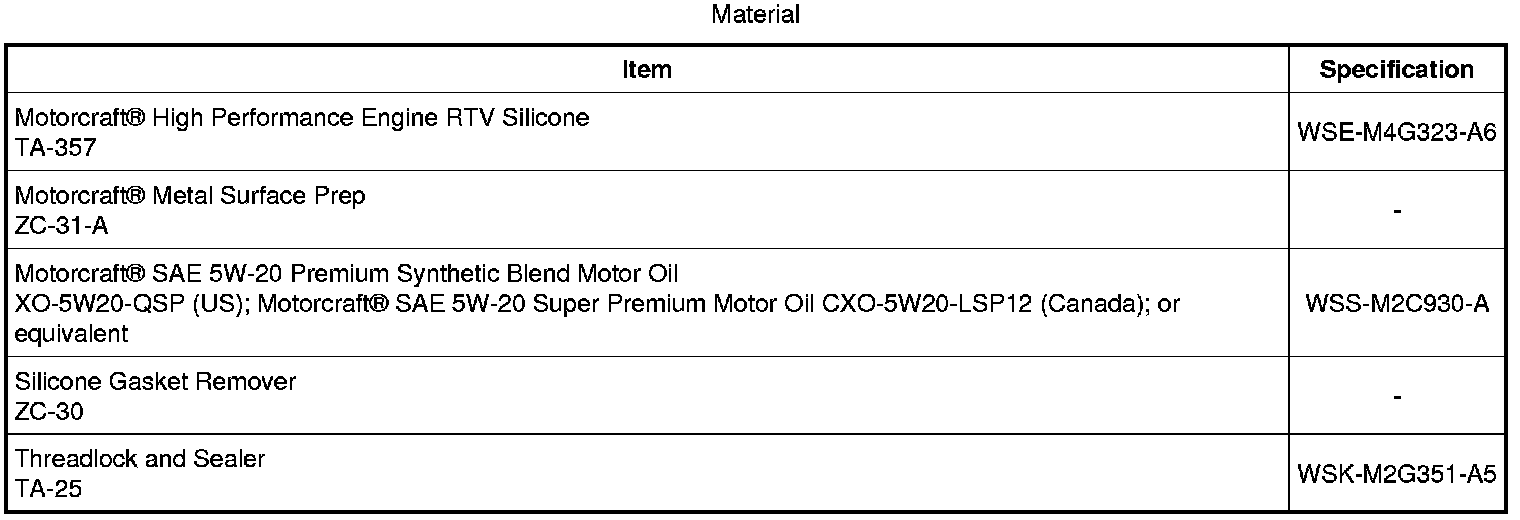

99. NOTICE: Do not expose the Motorcraft High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.
Fill the engine with clean engine oil.
100. Fill and bleed the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.
101. Fill the power steering system. For additional information, refer to Steering.
102. Check the transaxle fluid and add fluid if necessary. For additional information, refer to the Transmission Fluid Drain and Refill procedure in Automatic Transmission/Transaxle &/or Transmission Control Systems.
103. Recharge the A/C system. For additional information, refer to Heating and Air Conditioning.
