Part 2

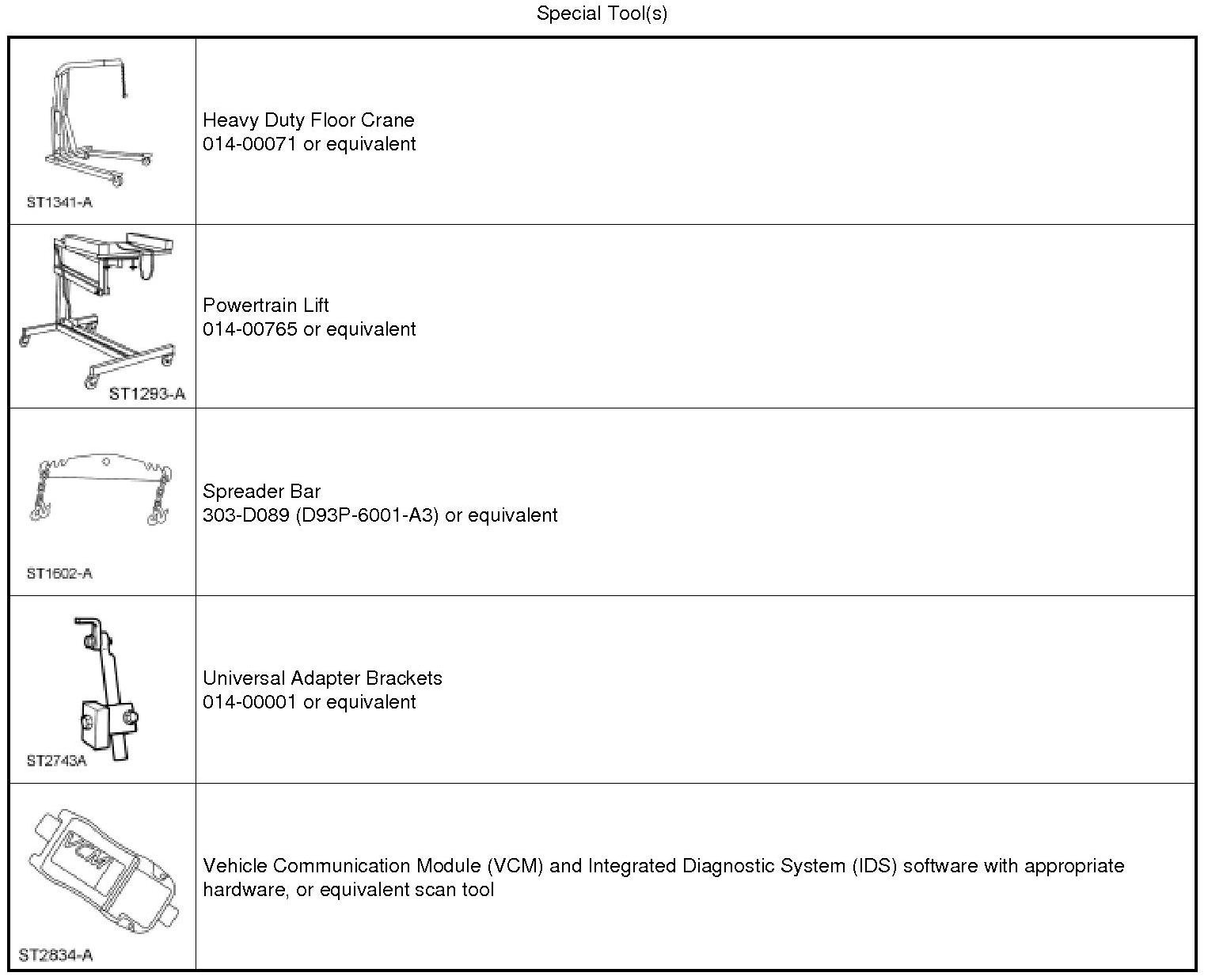

Engine










51. Install the ground wire and the bolt.
- Tighten to 10 Nm (89 lb-in).





52. Connect the fuel supply tube from the fuel rail. For additional information, refer to Fuel Delivery and Air Induction.





53. Attach the power steering reservoir onto the cowl.





54. Connect the hose to the power steering reservoir.
- Attach the pin-type retainer to the engine mount brace.





55. Install the oil level indicator.





56. Attach the 2 wiring harness retainers to the LH valve cover stud bolts.





57. Connect the 2 engine wiring harness electrical connectors.





58. Attach the 2 wiring harness retainers.





59. Using new O-ring seals, connect the A/C tubes and install the 2 nuts.
- Tighten to 8 Nm (71 lb-in).





60. Install the A/C tube bracket bolt.
- Tighten to 8 Nm (71 lb-in).





61. Install the 2 A/C tube bracket bolts.
- Tighten to 10 Nm (89 lb-in).





62. Using a new O-ring seal, connect the A/C tube to the condenser and install the nut.
- Tighten to 8 Nm (71 lb-in).





63. Attach the coolant tube retainer clips to the A/C tube.





64. If equipped, attach the engine block heater harness to the radiator support, power steering hose, A/C tube and the engine wiring harness.

65. Install the ground wire and bolt.
- Tighten to 12 Nm (106 lb-in).





66. Position the transaxle control cable bracket in place and install the 3 nuts.
- Tighten to 12 Nm (106 lb-in).





67. Connect the transaxle control cable to the control lever.





68. Connect the upper radiator hose, lower radiator hose and 2 heater hoses to the thermostat housing.





69. Connect the vacuum hose and the Evaporative Emission (EVAP) tube to the upper intake manifold.





70. Install the ground wire and the bolt.
- Tighten to 12 Nm (106 lb-in).





71. Install the 2 battery cables to the positive battery cable and the 2 nuts.
- Tighten to 9 Nm (80 lb-in).





72. Attach the 2 wiring harness retainers to the transmission mount and the battery tray bracket.





73. Connect the 2 engine wiring harness electrical connectors.





74. Install the battery tray. For additional information, refer to Battery.

75. Install the engine Air Cleaner (ACL) and the ACL outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

76. Install the degas bottle. For additional information, refer to Cooling System &/or Engine Block Heater.

77. Install the LH halfshaft and the intermediate shaft. For additional information, refer to Drive Axles, Bearings and Joints.

78. Install the accessory drive belt and the power steering belt. For additional information, refer to Drive Belts, Mounts, Brackets and Accessories.

79. Fill the engine with clean engine oil.

80. Fill and bleed the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.

81. Fill the power steering system. For additional information, refer to Steering.

82. Check the transaxle fluid and add fluid if necessary. For additional information, refer to the Transmission Fluid Drain and Refill procedure in Automatic Transmission/Transaxle &/or Transmission Control Systems.

83. Recharge the A/C system. For additional information, refer to Heating and Air Conditioning.

84. If the engine was disassembled, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions
