Part 3

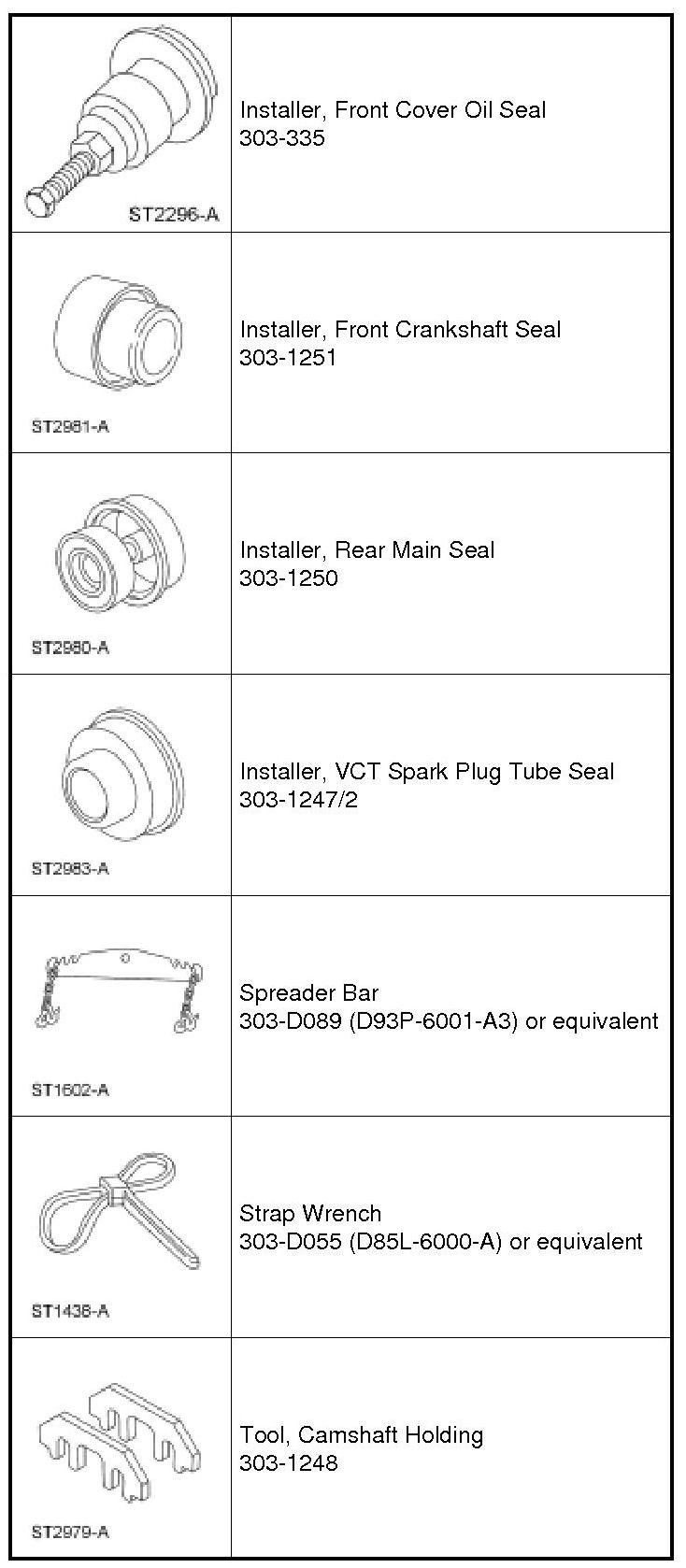

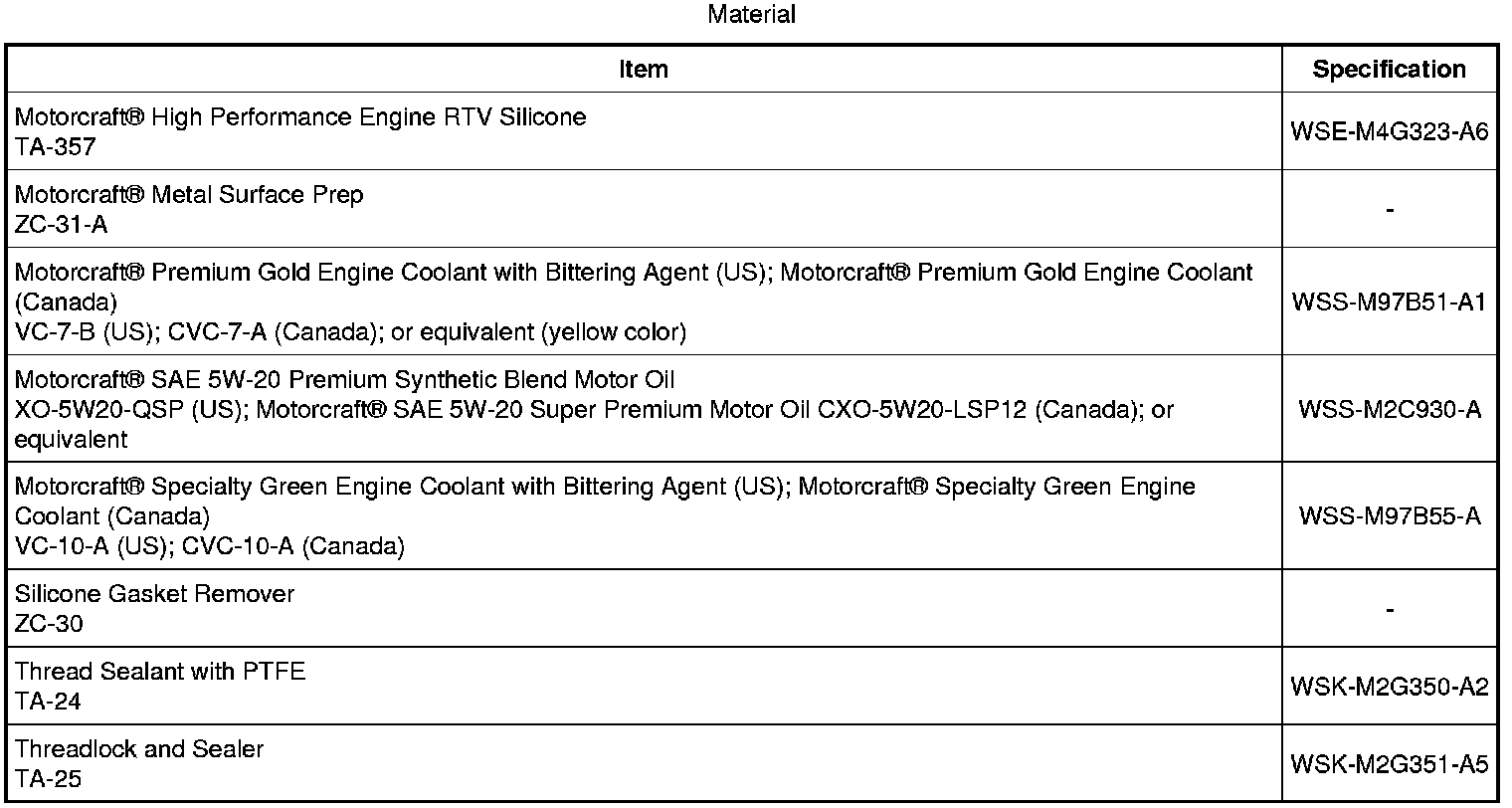

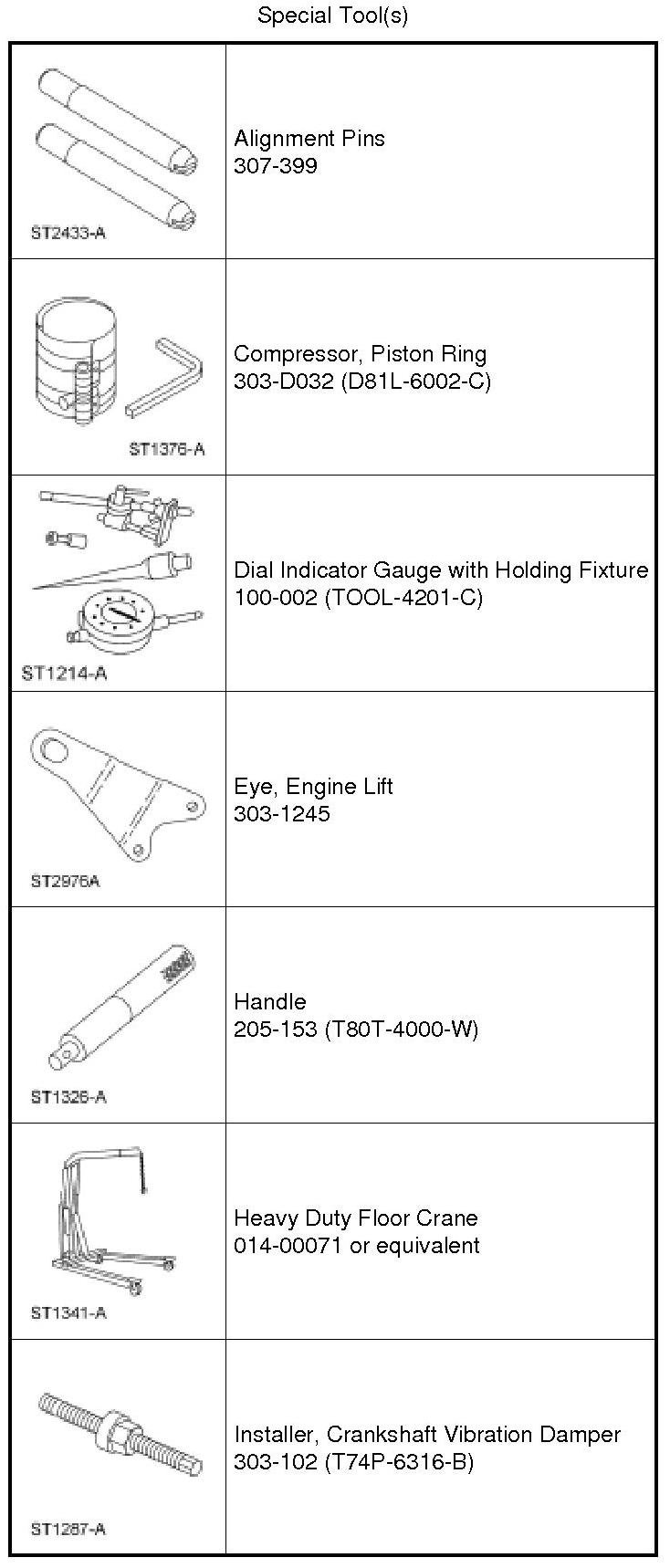

Engine

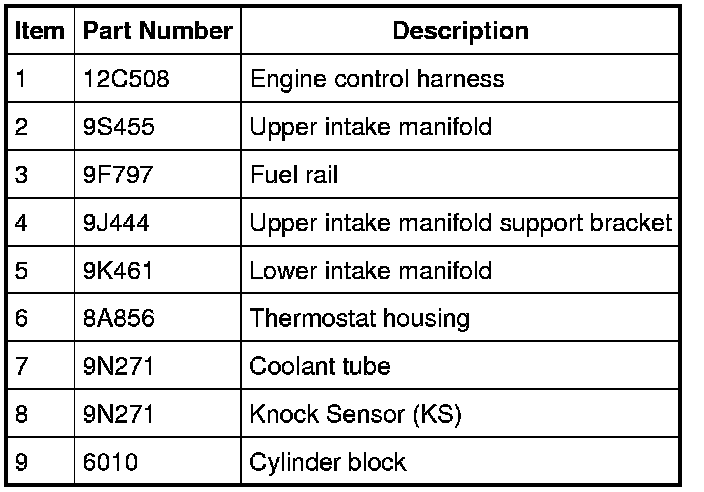

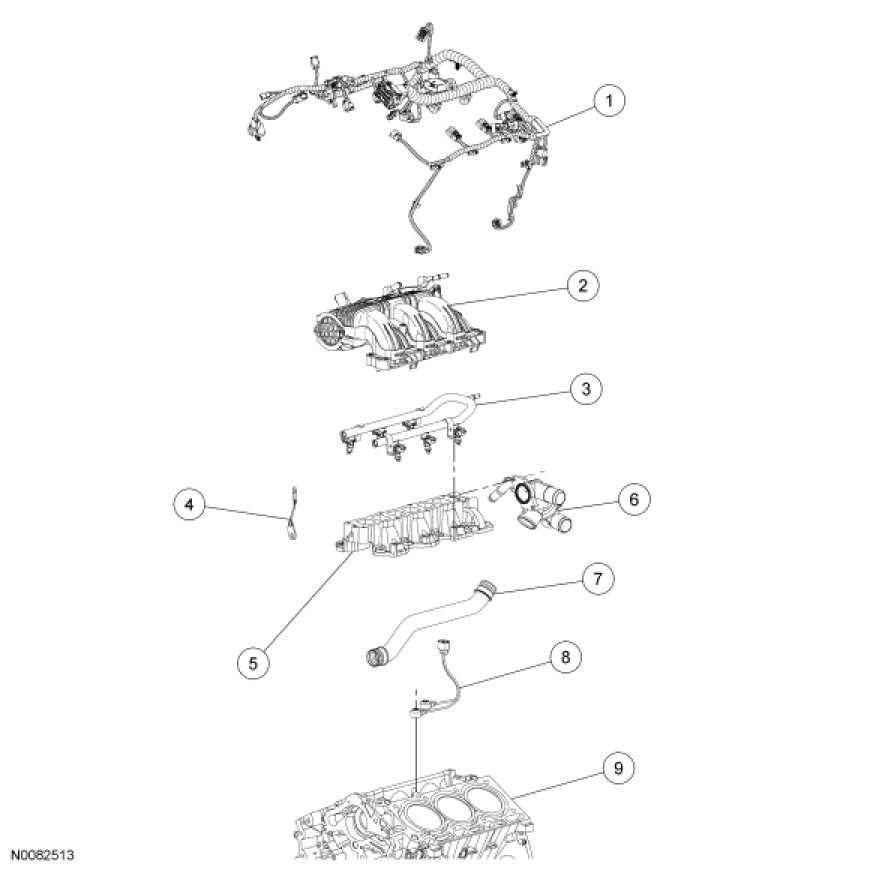

Engine Upper

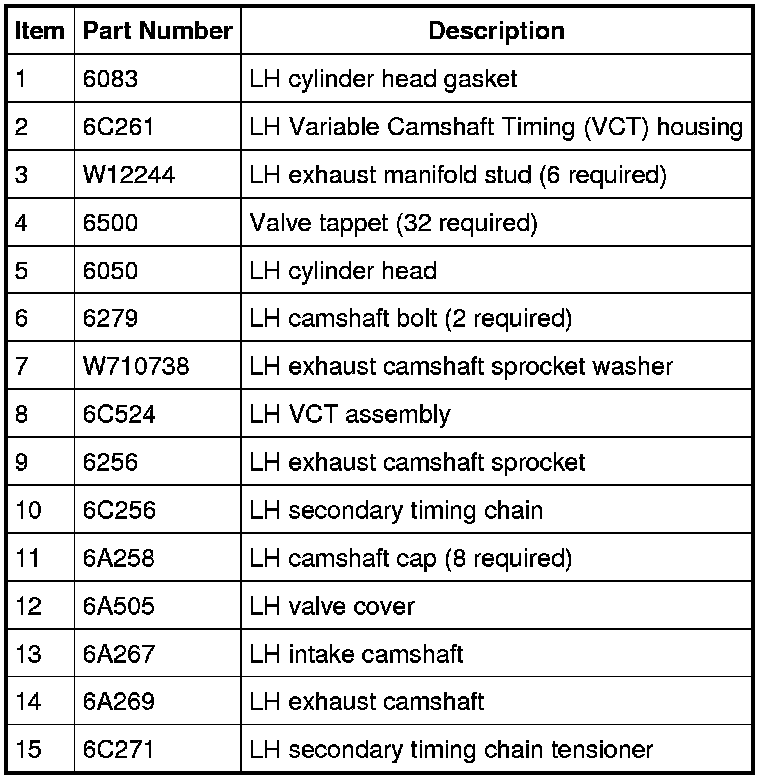

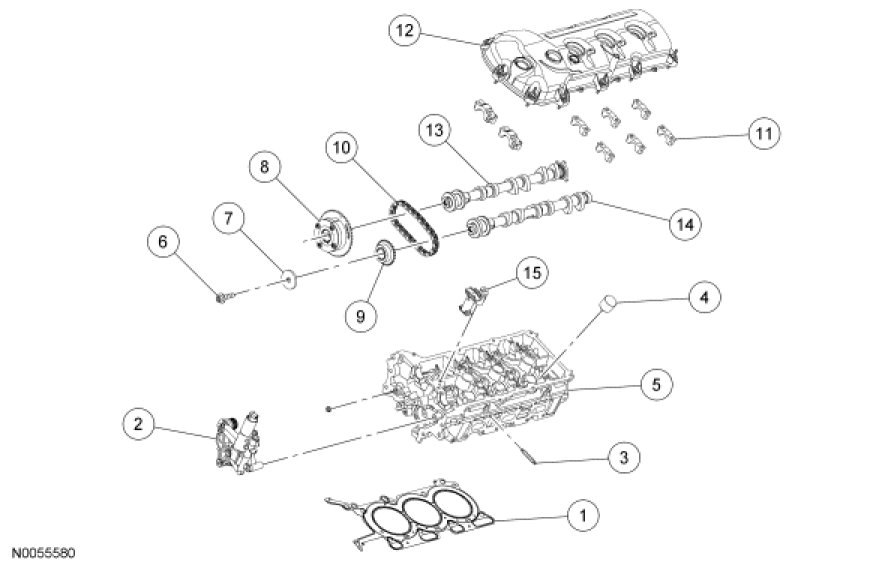

Engine Upper - LH Cylinder Head

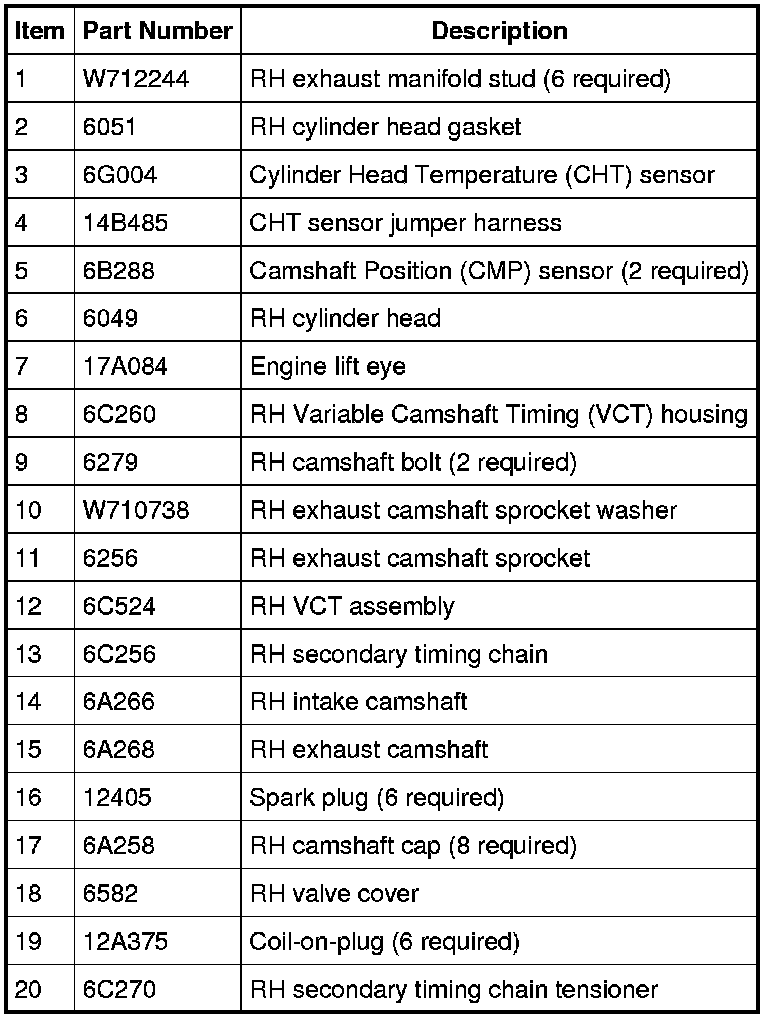

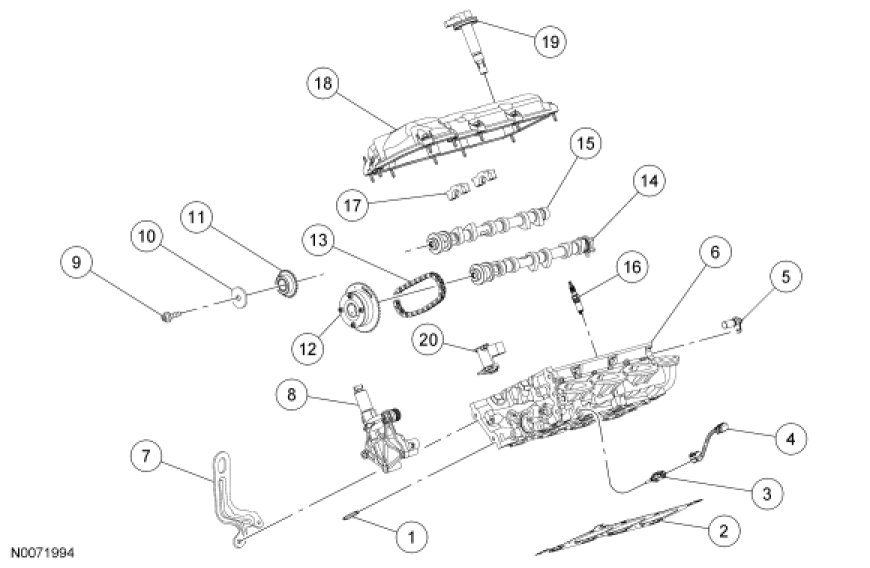

Engine Upper - RH Cylinder Head

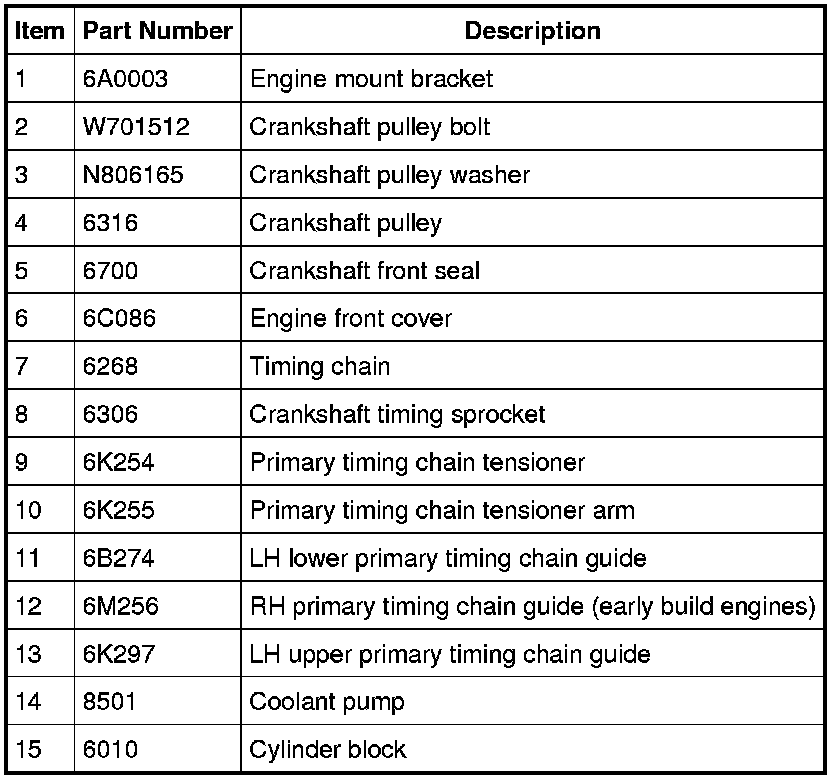

Engine Front

NOTE: Early build engine shown, late build similar.

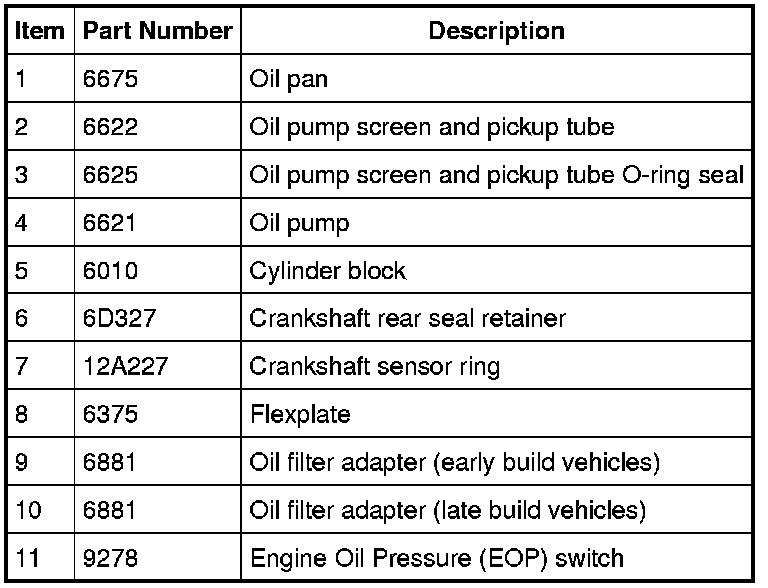

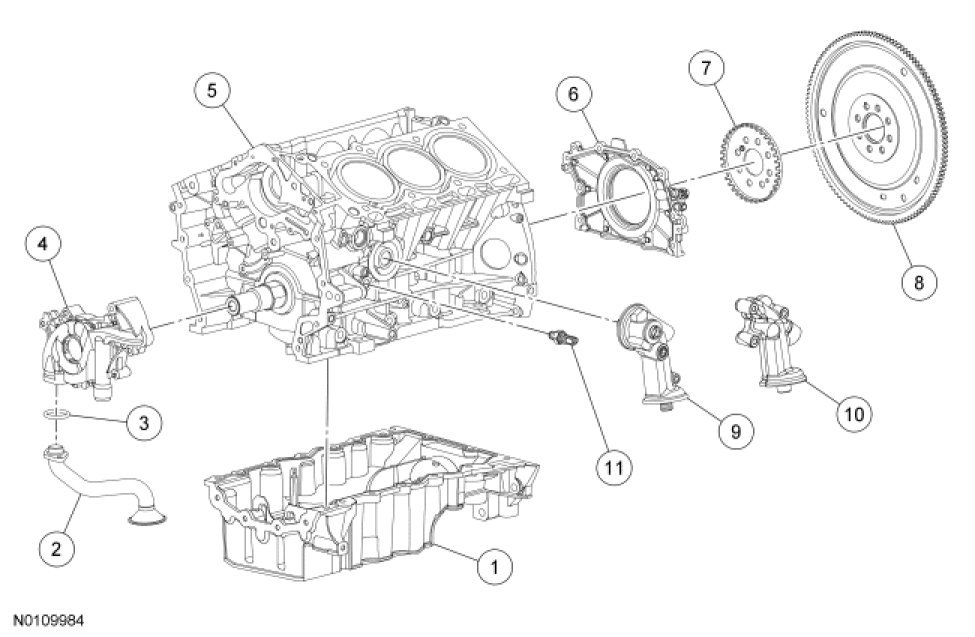

Engine Lower (View 1)











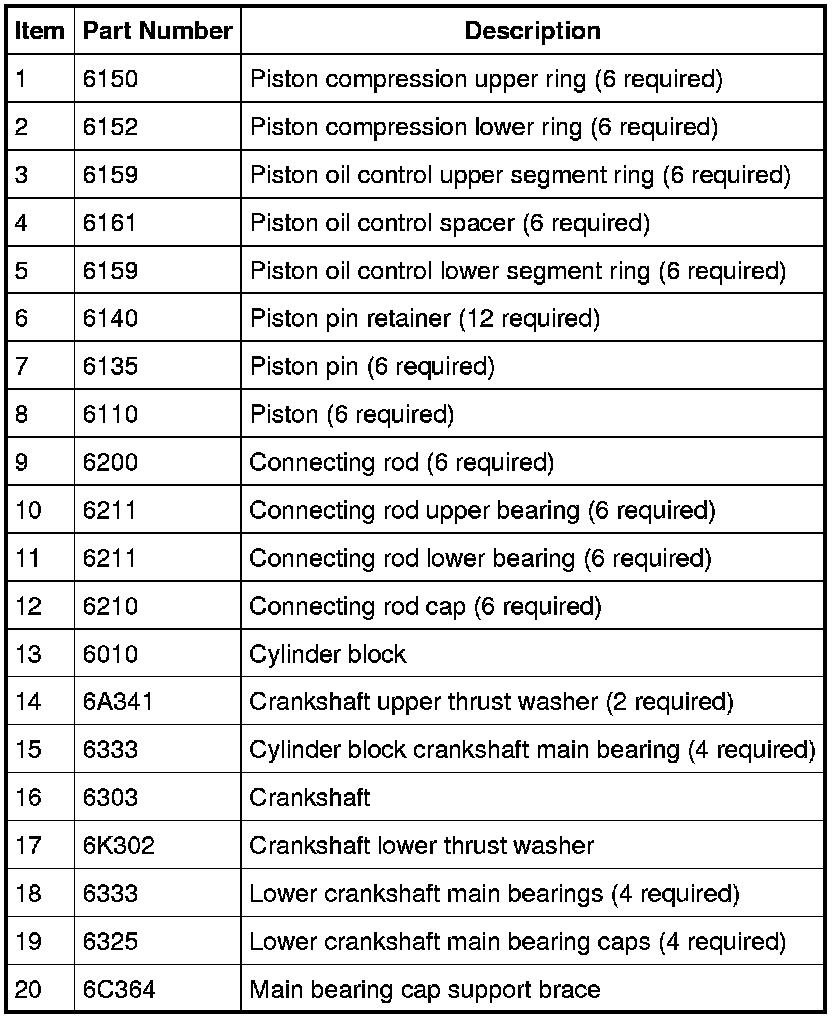

Lower Engine Block (View 2)









NOTICE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTICE: Early build vehicle (built before July 6, 2009) cooling systems are filled with Motorcraft(R) Premium Gold Engine Coolant. Late build vehicle (built on or after July 6, 2009) cooling systems are filled with Motorcraft(R) Specialty Green Engine Coolant. Mixing coolant types degrades the corrosion protection of the coolant. Do not mix coolant types. Failure to follow these instructions may result in engine or cooling system damage.

NOTICE: Early build engines have 11 fastener valve covers, late built engines have 9 fastener valve covers. Do not attempt to install bolts in the 2 empty late build valve cover holes or damage to the valve cover will occur.

NOTE: On early build engines, the timing chain rides on the inner side of the RH timing chain guide. Late build engines are equipped with a different design RH timing chain guide that requires the timing chain to ride on the outer side of the RH timing chain guide. For service, all replacement RH timing chain guides will be the late build design.

NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, refer to Engine.

101. Install LH Camshaft Position (CMP) sensor and the bolt.
- Tighten to 10 Nm (89 lb-in).





102. Install and connect the Cylinder Head Temperature (CHT) sensor jumper harness.





103. NOTICE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Using new gaskets, install the lower intake manifold and the 10 bolts.

- Tighten in the sequence shown to 10 Nm (89 lb-in).





104. Using a new gasket, install the thermostat housing and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

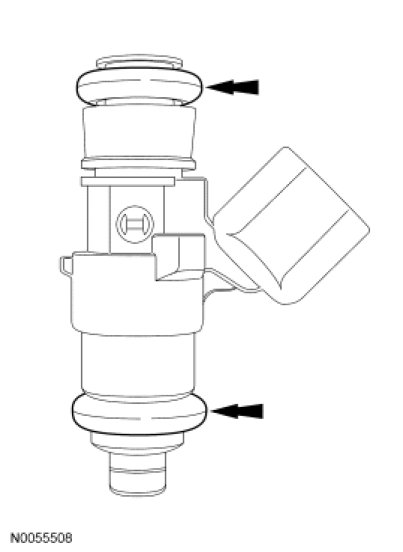

105. NOTICE: Use O-ring seals that are made of special fuel-resistant material. The use of ordinary O-rings may cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: The upper and lower O-ring seals are not interchangeable.

Install new fuel injector O-ring seals.

- Remove the retaining clips and separate the fuel injectors from the fuel rail.

- Remove and discard the O-ring seals.

- Install new O-ring seals and lubricate with clean engine oil.

- Install the fuel injectors and the retaining clips onto the fuel rail.





106. Install the fuel rail and injectors as an assembly and install the 4 bolts.
- Tighten to 10 Nm (89 lb-in).





All-Wheel Drive (AWD) vehicles

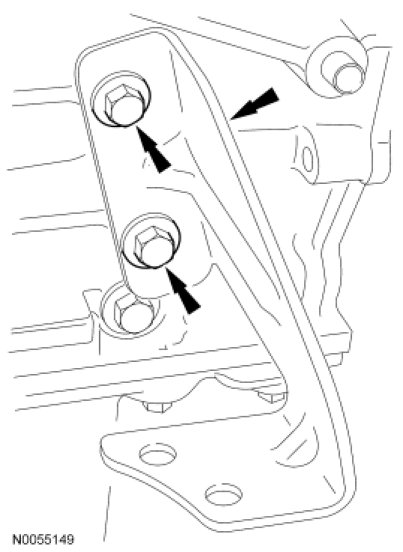

107. Install the catalytic converter bracket and the 2 bolts.
- Tighten to 40 Nm (30 lb-ft).





All vehicles

108. Install the RH CMP sensor and the bolt.
- Tighten to 10 Nm (89 lb-in).





109. Install the engine lifting eye and the 2 bolts.
- Tighten to 24 Nm (18 lb-ft).





110. Install the cover and the pin-type retainer.





111. Install the LH cylinder block drain plug.
- Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.





112. Install the RH cylinder block drain plug or, if equipped, the block heater.
- Tighten to 40 Nm (30 lb-ft).





113. Install 6 new RH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).





114. NOTICE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

Using a new gasket, install the RH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown:

- Stage 1: Tighten to 20 Nm (177 lb-in).

- Stage 2: Tighten to 25 Nm (18 lb-ft).





Front Wheel Drive (FWD) vehicles

115. Using a new gasket, install the RH catalytic converter and the 4 new nuts.
- Tighten to 40 Nm (30 lb-ft).
