Analysis Of Leakage

Power Transfer Unit (PTU)

Analysis of Leakage

The PTU may leak different color fluids, red oil leak for automatic transmission fluid and brown/black gear lube for PTU fluid. The PTU seals prevent these types of fluids from leaking. It is important to note which color of fluid is leaking to determine the most appropriate service procedure.

PTU Leaks From the RH Side

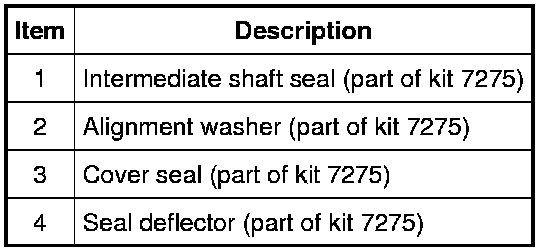

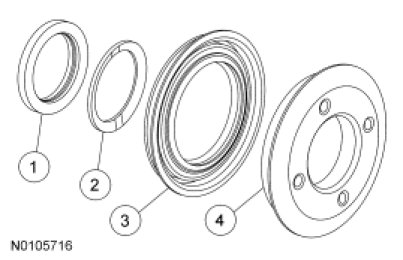

NOTICE: Remove and replace leaking seals using the information found in the Intermediate Shaft Seal and Deflector Intermediate Shaft Seal and Deflector or Cover Seal Cover Seal replacement procedure. The specified tools called out in this procedure will allow seal replacement without causing damage to the Power Transfer Unit (PTU) casing/drive gear.

If the leak is red automatic transmission fluid, this indicates the differential seals in the transaxle are also leaking and need to be replaced along with the intermediate shaft seal. Refer to Automatic Transmission/Transaxle &/or Transmission Control Systems (3.5L with Aisin AWF21 only) to replace the differential seals before replacing the intermediate shaft seal. Refer to the Intermediate Shaft Seal and Deflector Intermediate Shaft Seal and Deflector procedure to replace the intermediate seal.

If the leak is brown/black gear lube, then the PTU larger cover seal needs replacement. This is located on the PTU cover behind the deflector. Refer to the Cover Seal Cover Seal procedure.










PTU Leaks From the LH Side

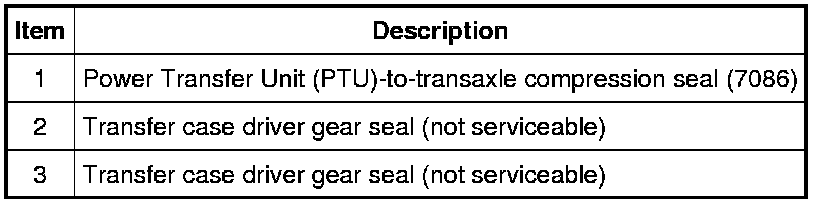

If the leak is red automatic transmission fluid, the compression seal needs replacement. This is between the PTU and transmission. Refer to Power Transfer Unit (PTU) Transfer Case - Power Transfer Unit (PTU) - Removal in the Removal portion.

If the leak is brown/black gear lube, the PTU is overfilled and venting fluid from the top of the PTU. Flush and fill the PTU. Refer to Power Transfer Unit (PTU) Draining and Filling Procedures.
