Clutch Pedal Assembly: Service and Repair

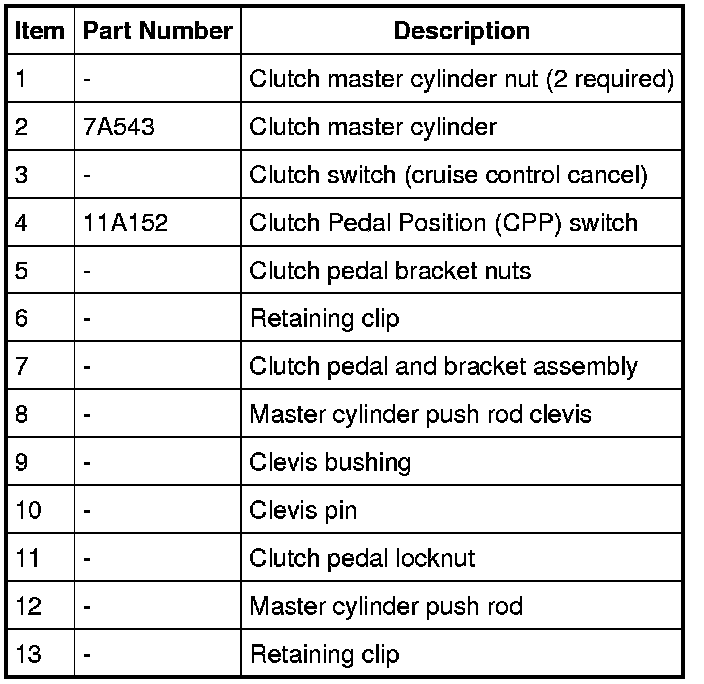

Clutch Pedal













Removal

1. Remove the battery and the battery tray. For additional information, refer to Battery.

2. Remove the PCM.

1. Disconnect the electrical connectors.

2. Remove the 2 PCM bolts.





3. Remove the 3 PCM bracket nuts and the bracket.





4. Remove the clutch master cylinder nut.





5. Working under the instrument panel, disconnect the clutch switch (cruise control cancel) electrical connector.

6. Disconnect the Clutch Pedal Position (CPP) electrical connector.

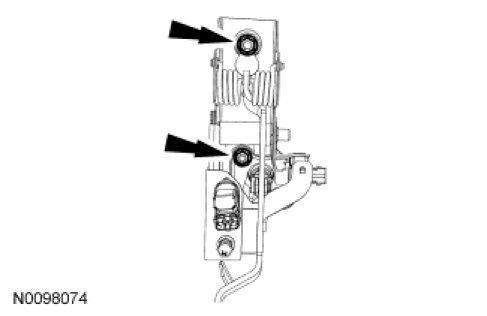

7. Remove the clutch master cylinder nut and the clutch pedal bracket nut.

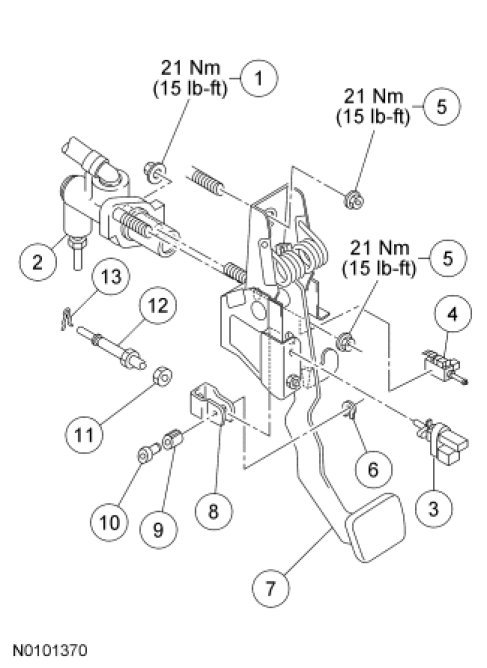

8. Remove the clutch pedal and bracket assembly.

Installation

1. NOTE: Make sure to align the push rod into the clutch master cylinder piston as the pedal assembly is installed.

Install the clutch pedal and bracket assembly

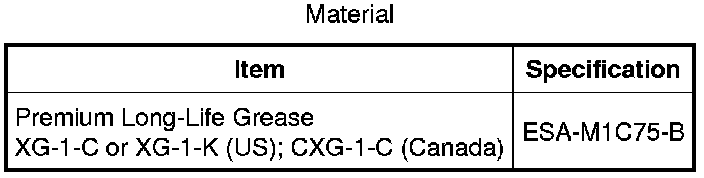

- Apply a small amount of grease to the:
- clevis bushing.

- end of the clutch switch.

- end of the master cylinder push rod.

2. Working under the instrument panel, connect the clutch switch (cruise control cancel) electrical connector.

3. Install the clutch master cylinder nut and the clutch pedal bracket nut.
- Tighten to 21 Nm (15 lb-ft).





4. Connect the CPP electrical connector.

5. Install the clutch master cylinder nut.
- Tighten to 21 Nm (15 lb-ft).





6. Install the PCM bracket and the 3 PCM bracket nuts.
- Tighten to 10 Nm (89 lb-in).





7. Install the PCM.

1. Install the 2 PCM bolts.
- Tighten to 10 Nm (89 lb-in).

2. Connect the electrical connectors.





8. Install the battery tray and the battery. For additional information, refer to Battery.
