Aisin AW21 - Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor

Removal

1. Remove the main control valve body. For additional information, refer to Main Control Valve Body Aisin AW21 - Main Control Valve Body.

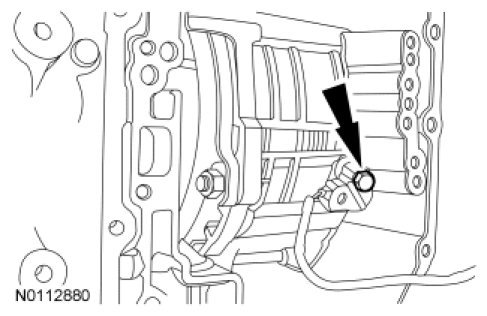

2. Remove the bolt and the Turbine Shaft Speed (TSS) sensor.





Installation

1. Lubricate the O-ring with clean automatic transmission fluid and install the TSS sensor.
- Tighten to 12 Nm (106 lb-in).





2. Install the main control valve body. For additional information, refer to Main Control Valve Body Aisin AW21 - Main Control Valve Body.
