Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor













Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

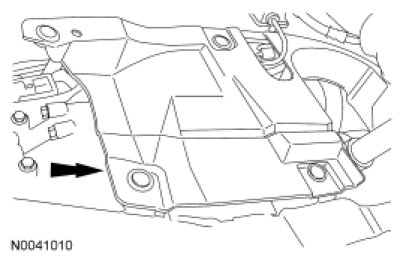

2. Remove the 6 pin-type retainers and the LH front structure-to-subframe splash shield.

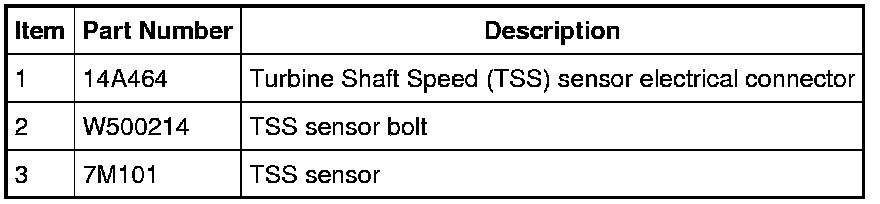

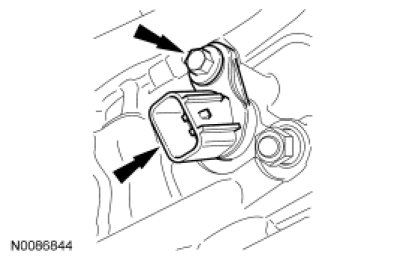

3. Disconnect the Turbine Shaft Speed (TSS) sensor electrical connector.





4. Remove the bolt and the TSS sensor.





Installation

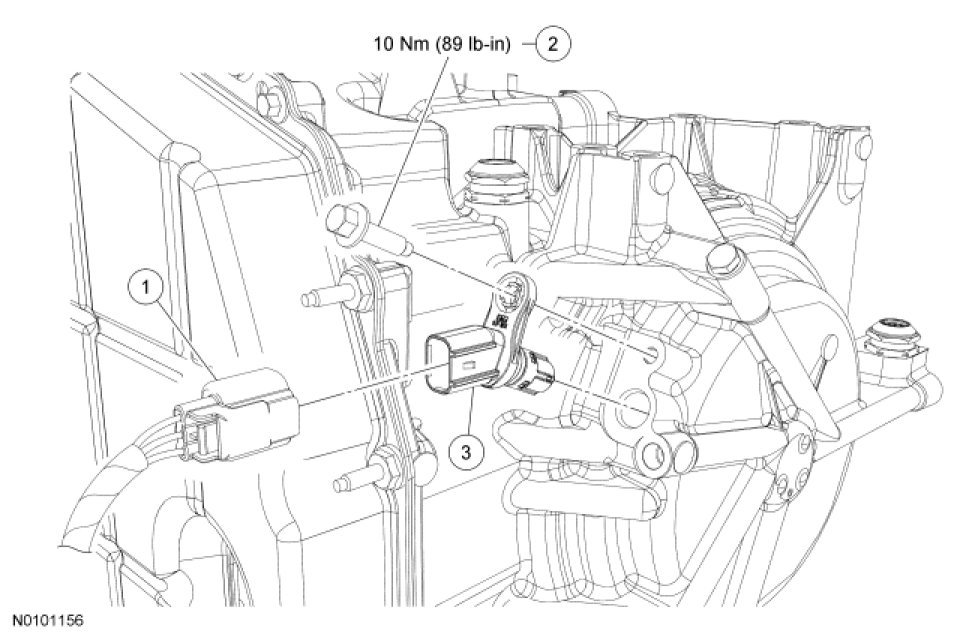

1. Install the TSS sensor and the bolt.
- Tighten to 10 Nm (89 lb-in).





2. Connect the TSS sensor electrical connector.





3. Install the LH front structure-to-subframe splash shield and the 6 pin-type retainers.

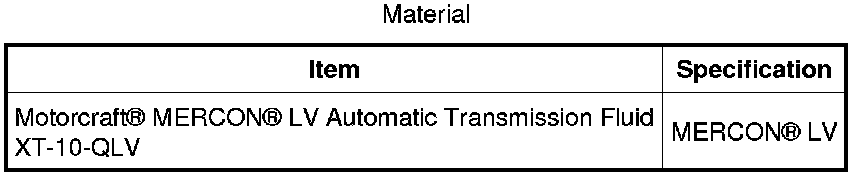

4. Fill the transaxle with clean transmission fluid.





5. Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Check the transmission fluid level, making sure that the transmission fluid is at the correct level.
