6F35
>>
Diagnostic Routines
>>
Shift Concerns: 210/310 - 249/349
>>
211/311, Timing - Early/Late
211/311, Timing - Early/Late
Diagnostic Routines
Shift Concerns: Timing - Early/Late

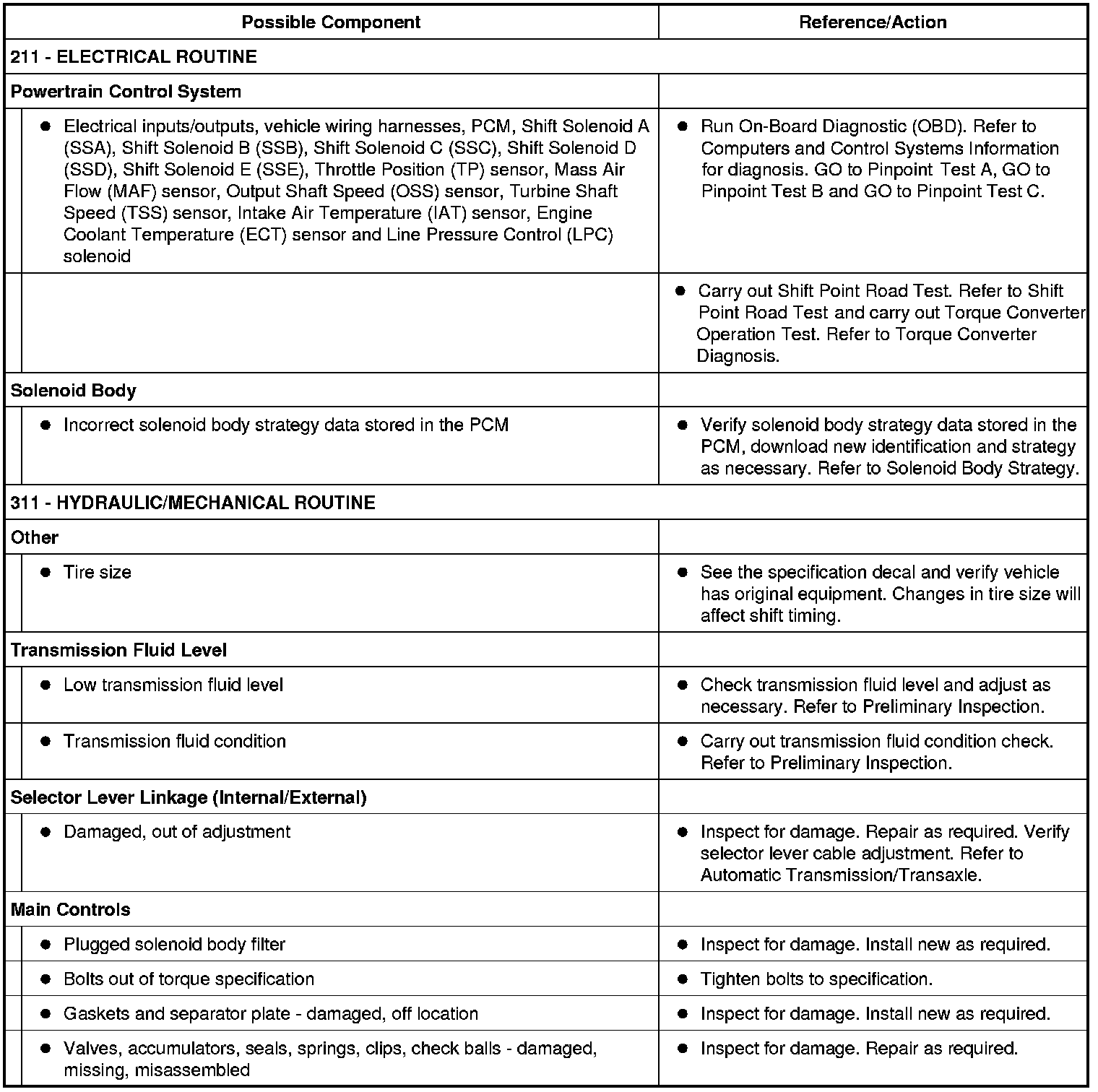

211/311, Timing - Early/Late (Part 1):

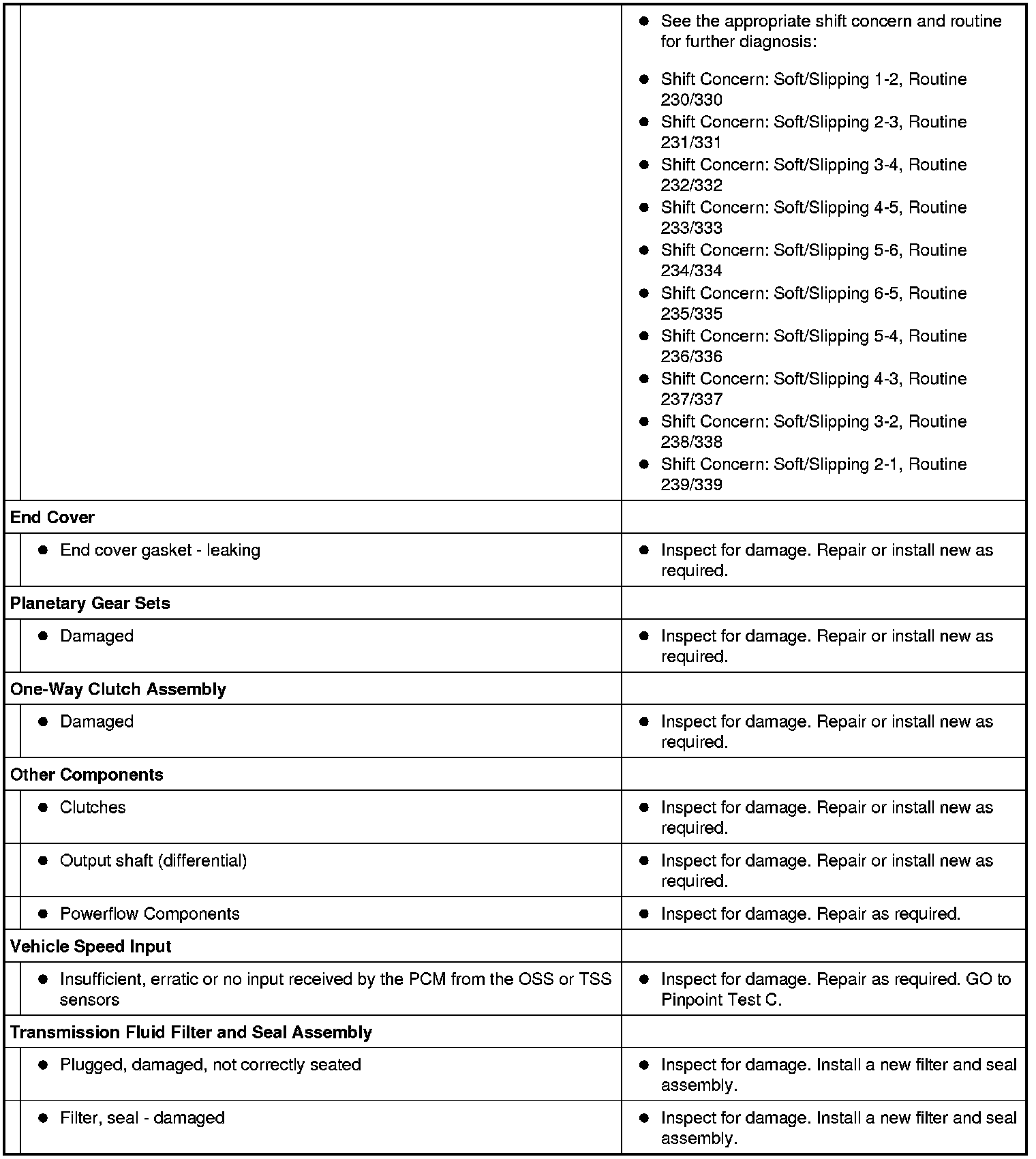

211/311, Timing - Early/Late (Part 2):
