Home >> Ford >> 2010 >> Fusion AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 6F35 >> Diagnostic Routines >> Engagement Concern: 201/301 - 209/309 >> 204/304, Harsh Forward

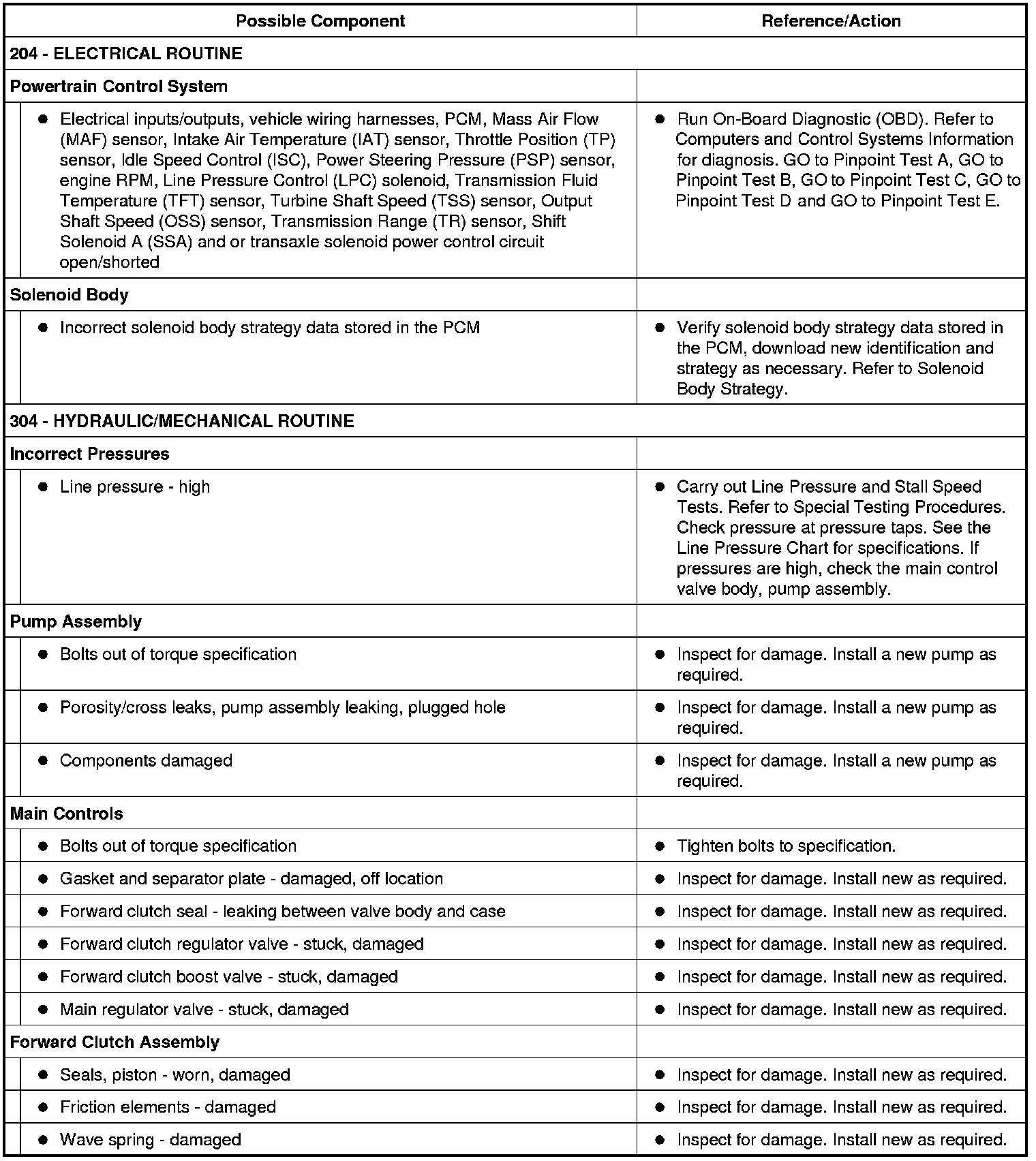

204/304, Harsh Forward

Diagnosis By Symptom

Diagnostic Routines

Engagement Concern: Harsh Forward

204/304, Harsh Forward:
