6F35 - Diagnostic Trouble Code (DTC) Charts

Diagnostic Trouble Code (DTC) Charts





DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure type code. The failure type code provides information about specific fault conditions such as opens or shorts to ground. Continuous Memory Diagnostic Trouble Codes (CMDTCs) have an additional 2-character DTC status code suffix to assist in determining DTC history.

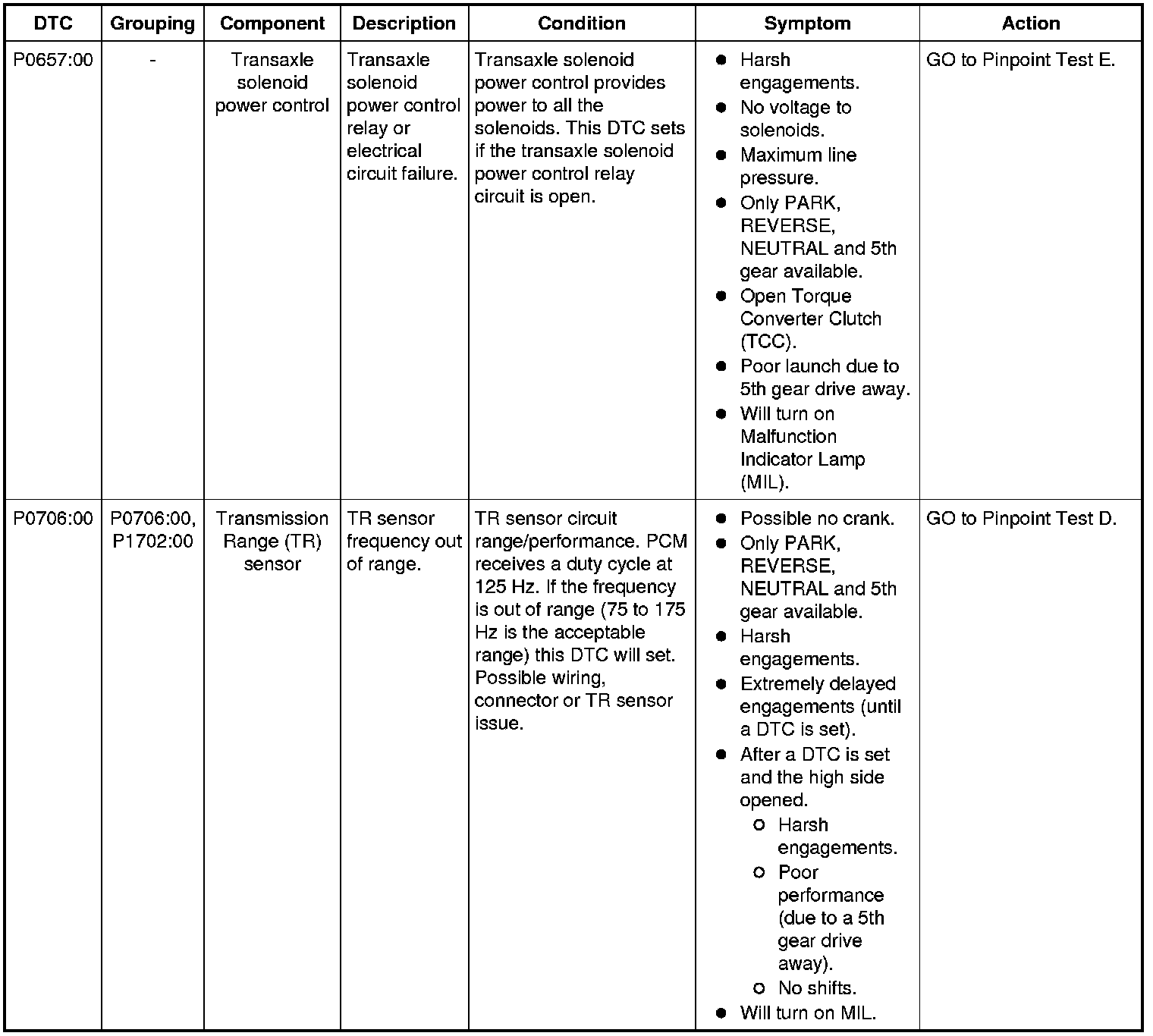

P0657:00-P0706:00:

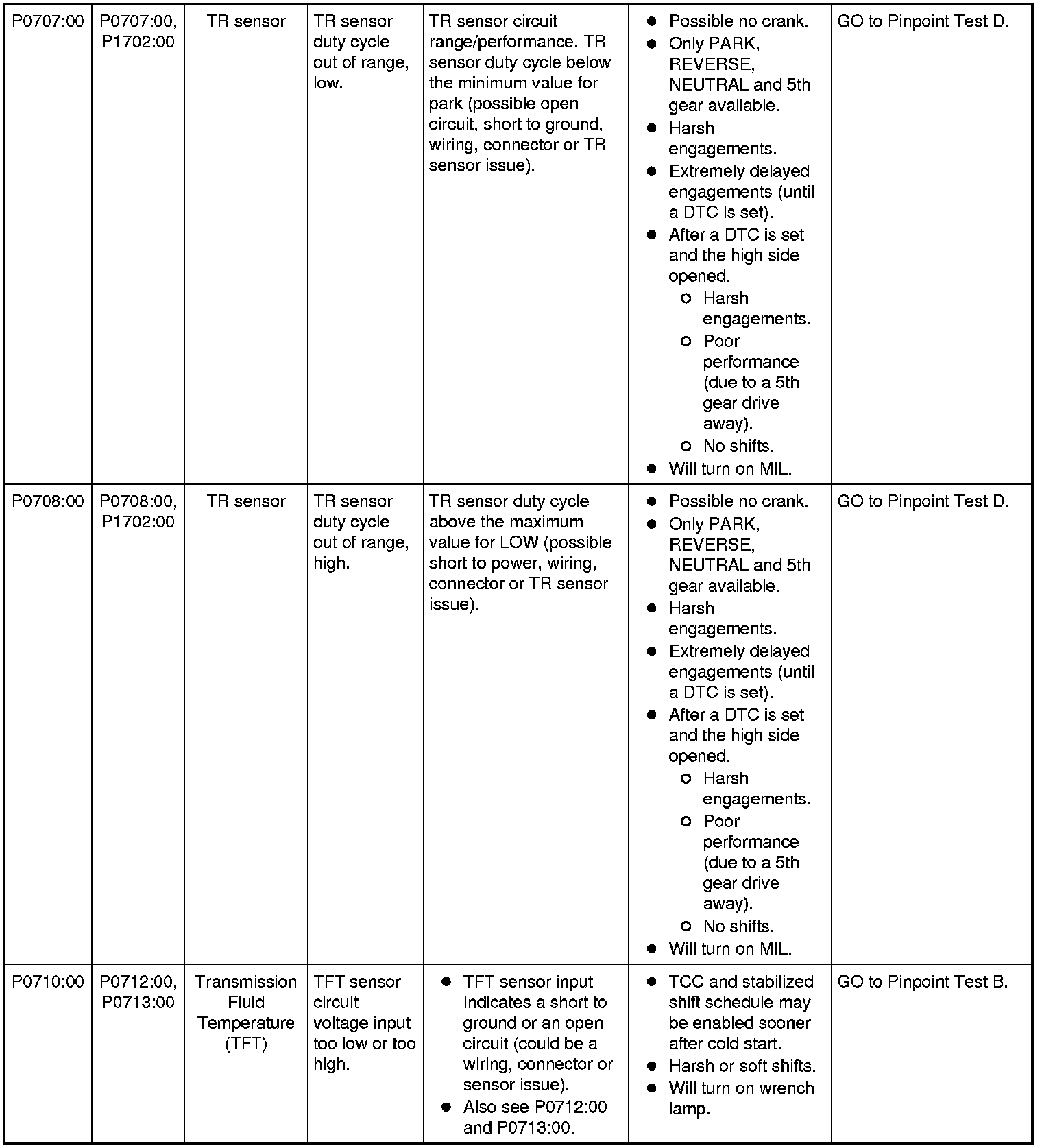

P0707:00-P0710:00:

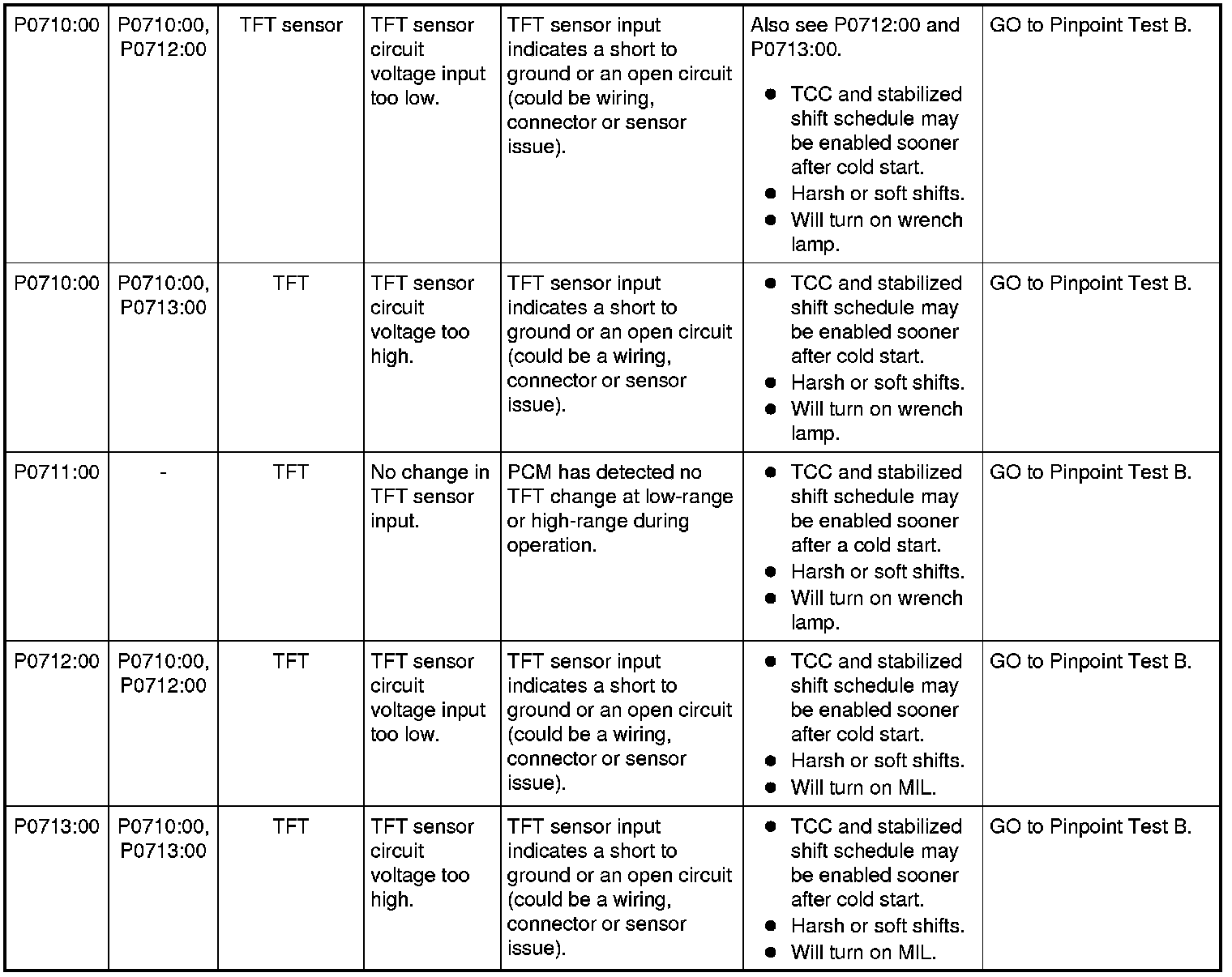

P0710:00-P0713:00:

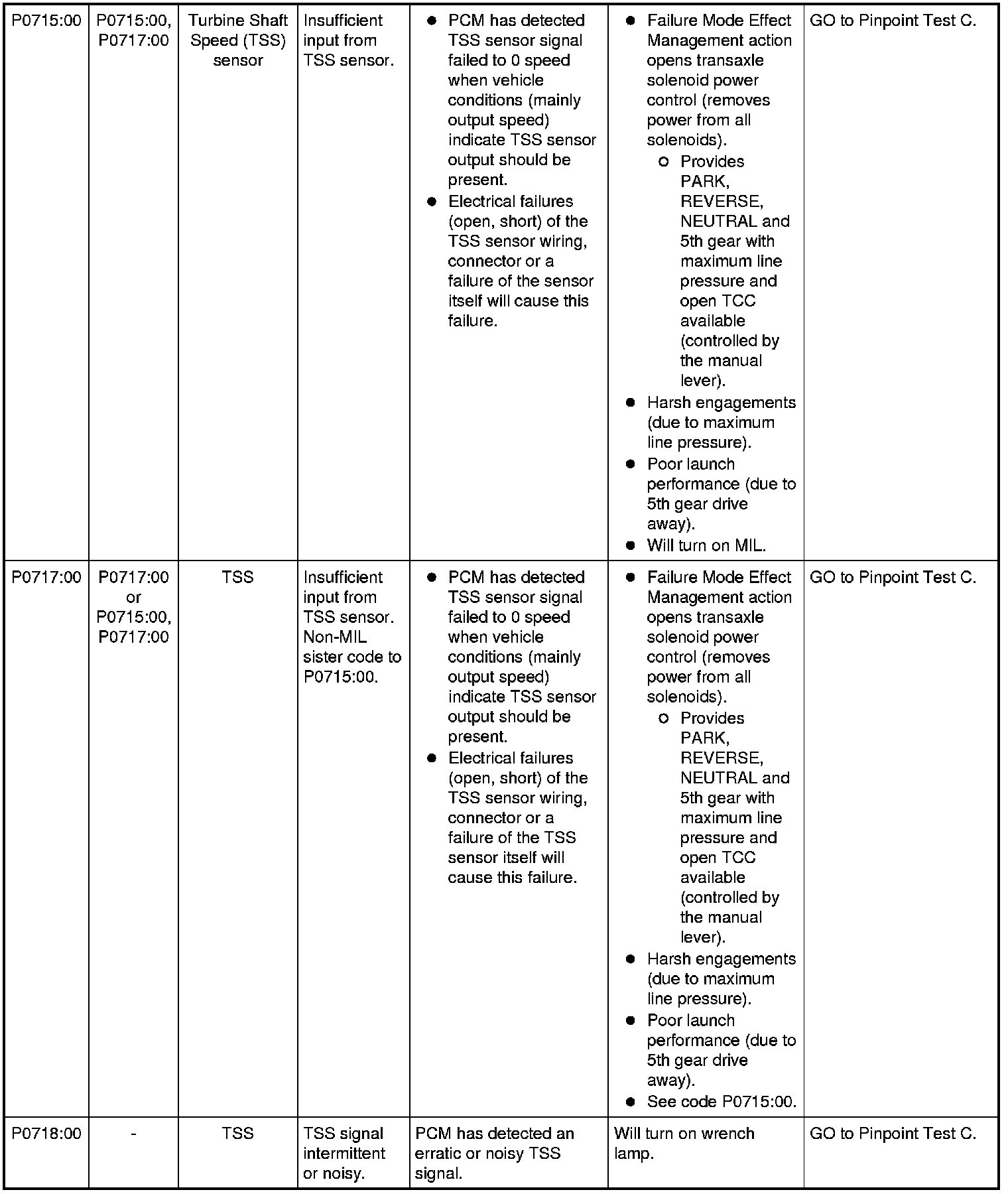

P0715:00-P0718:00:

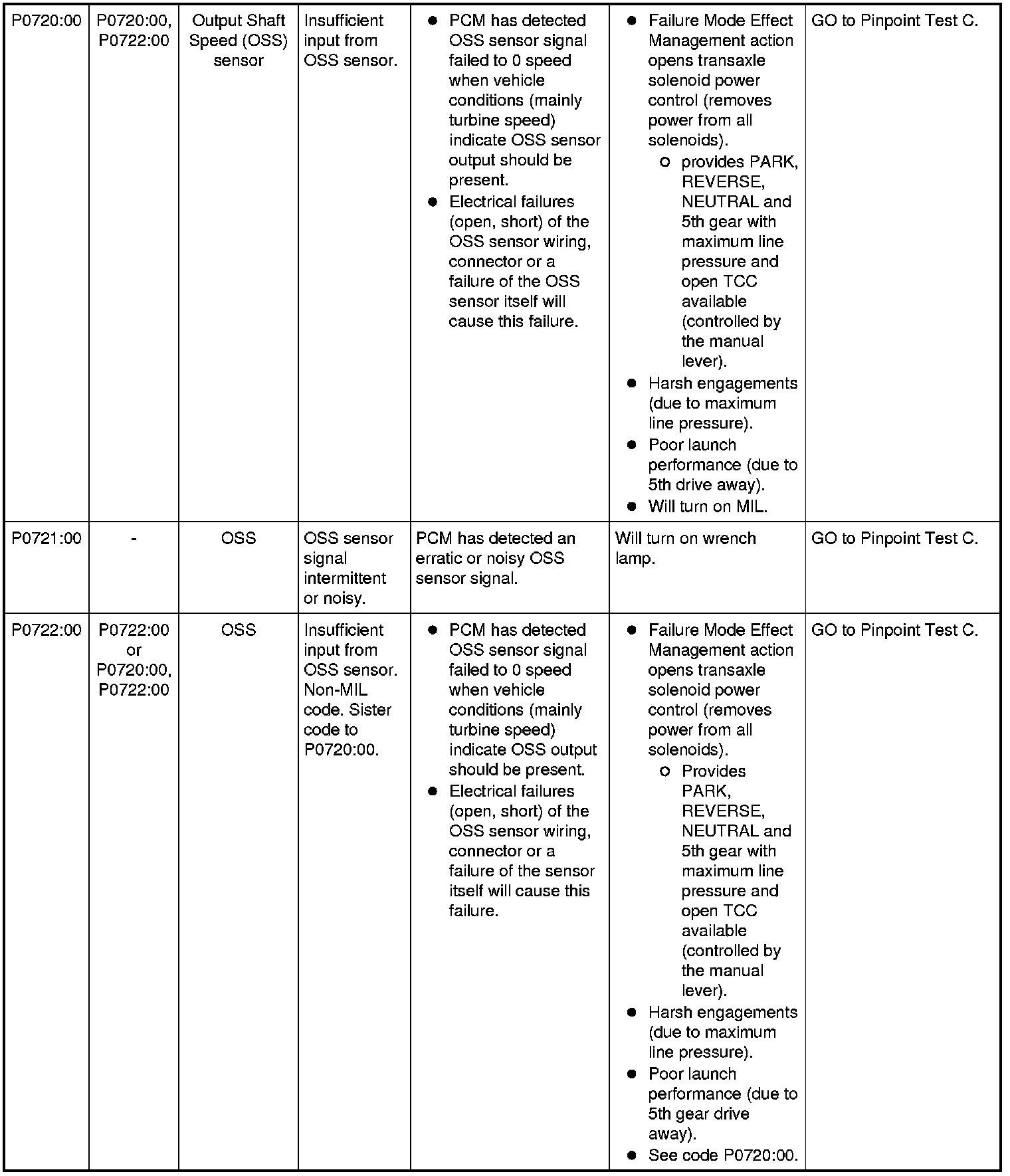

P0720:00-P0722:00:

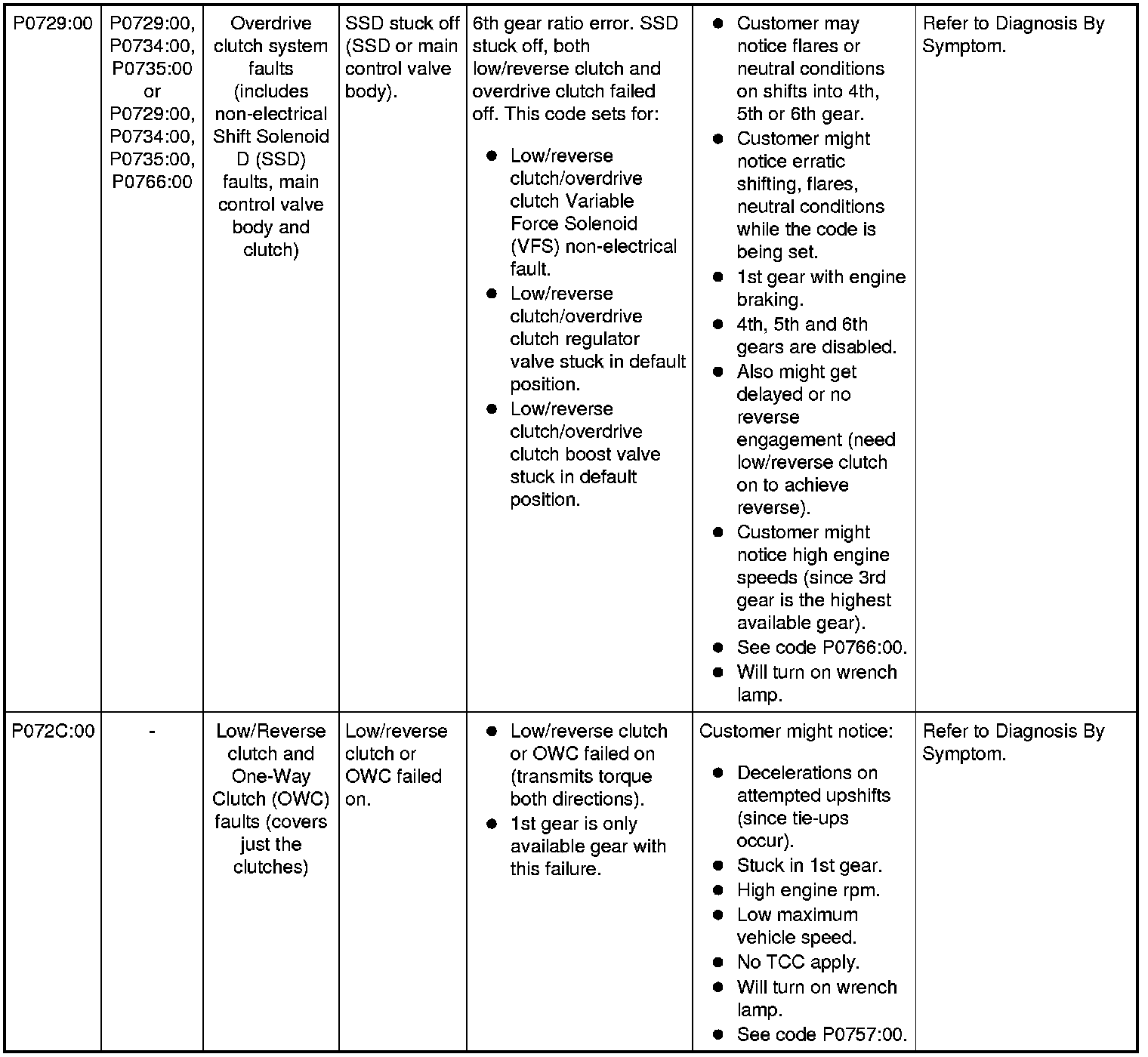

P072C:00-P0729:00:

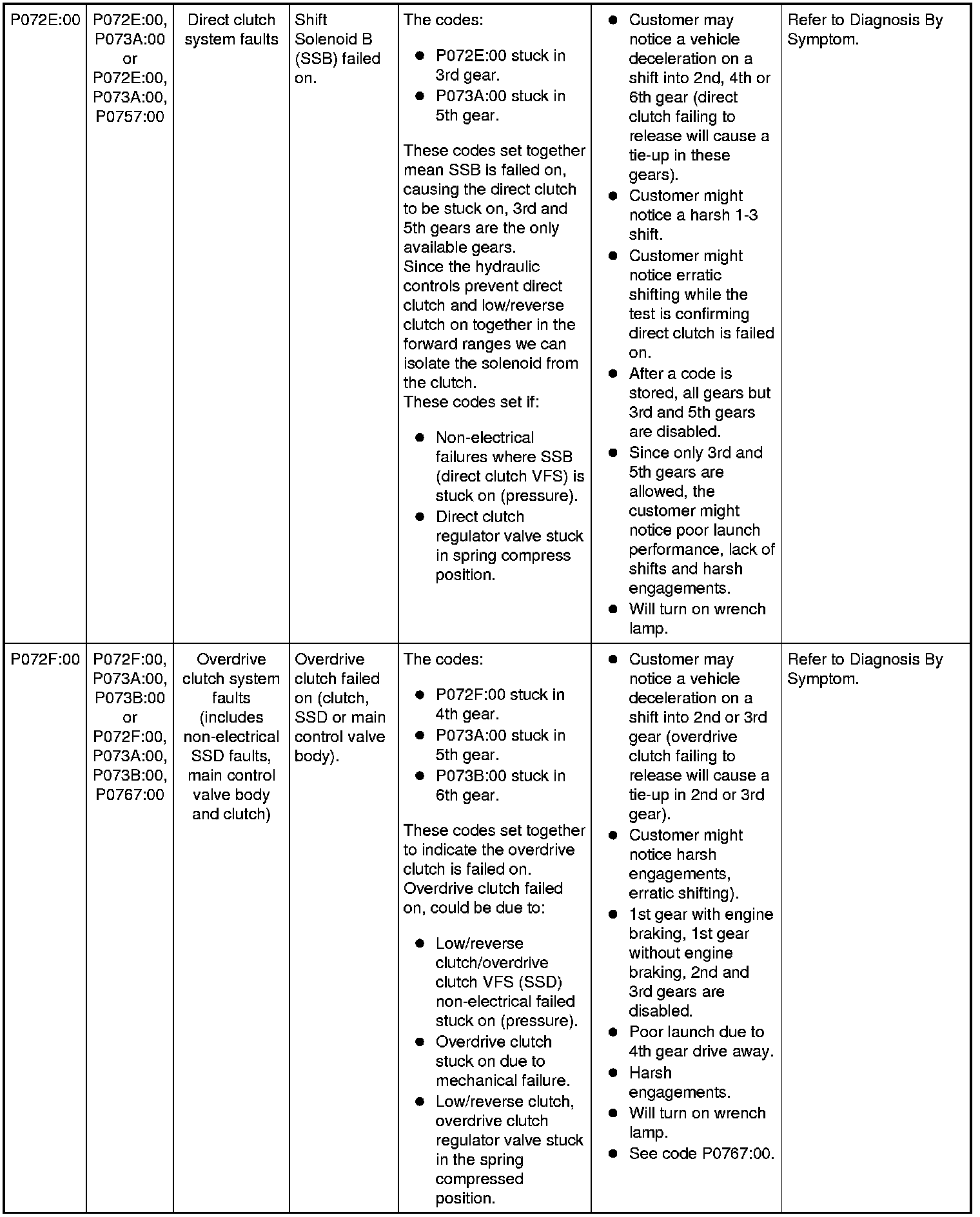

P072E:00-P072F:00:

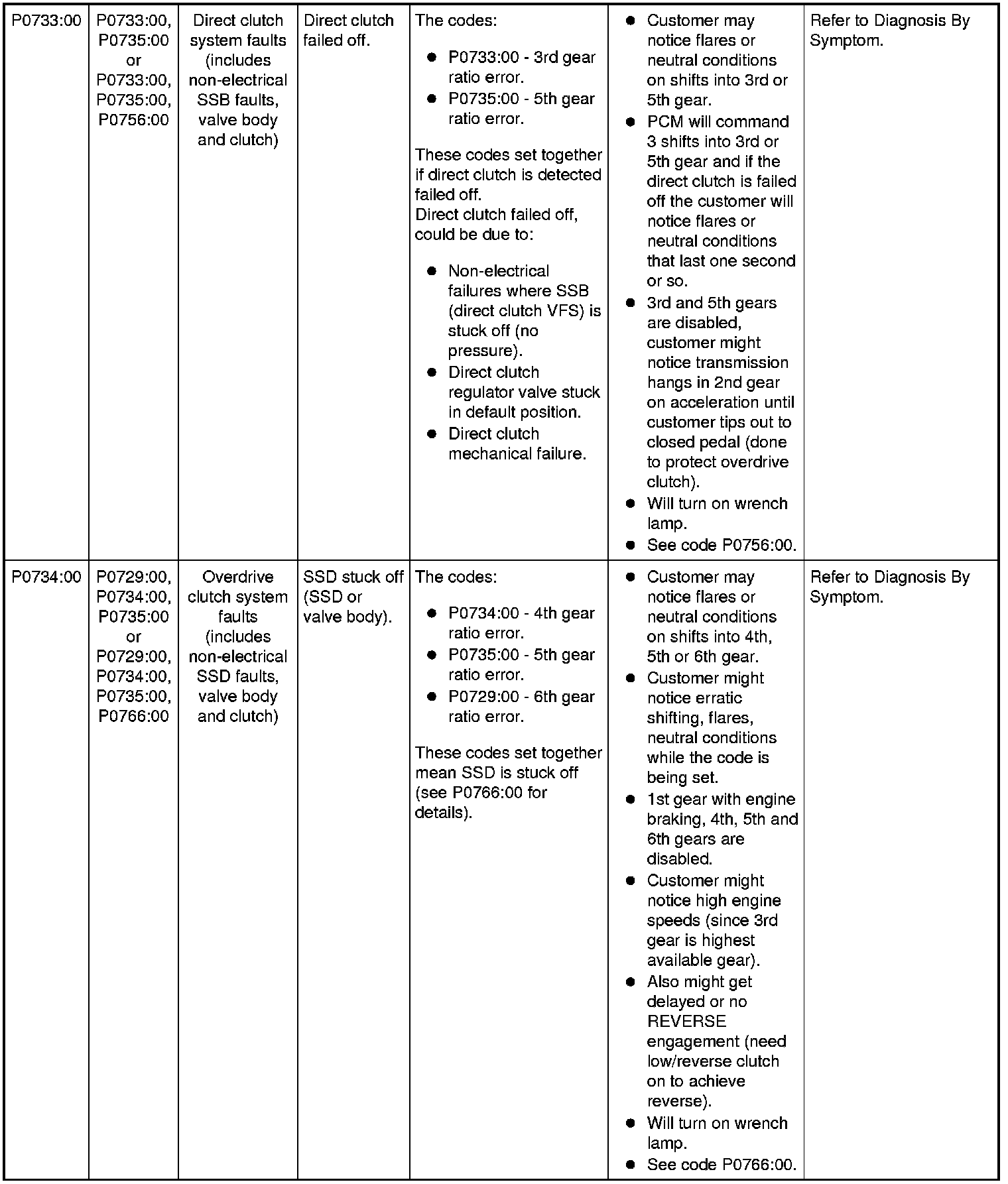

P0733:00-P0734:00:

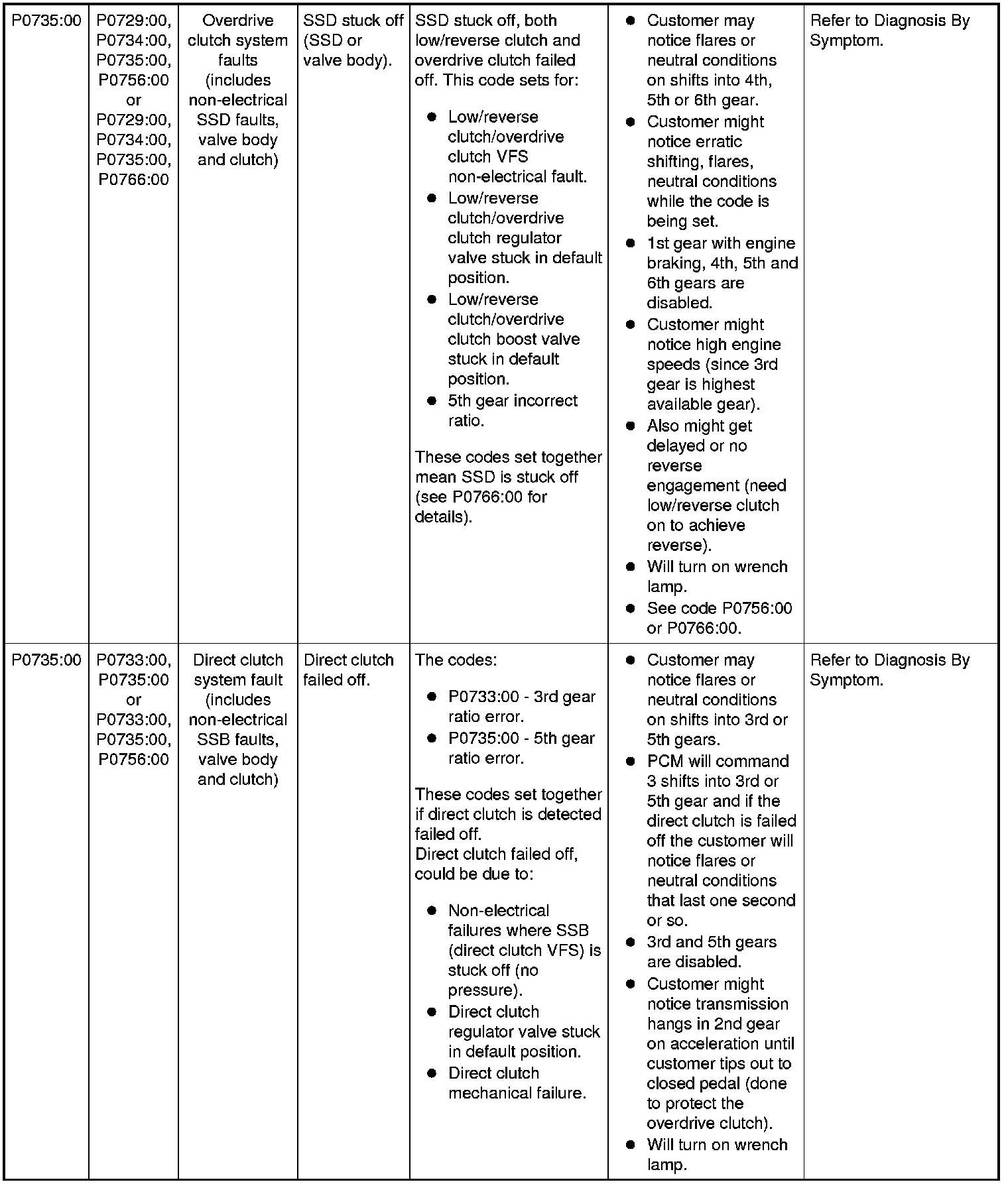

P0735:00:

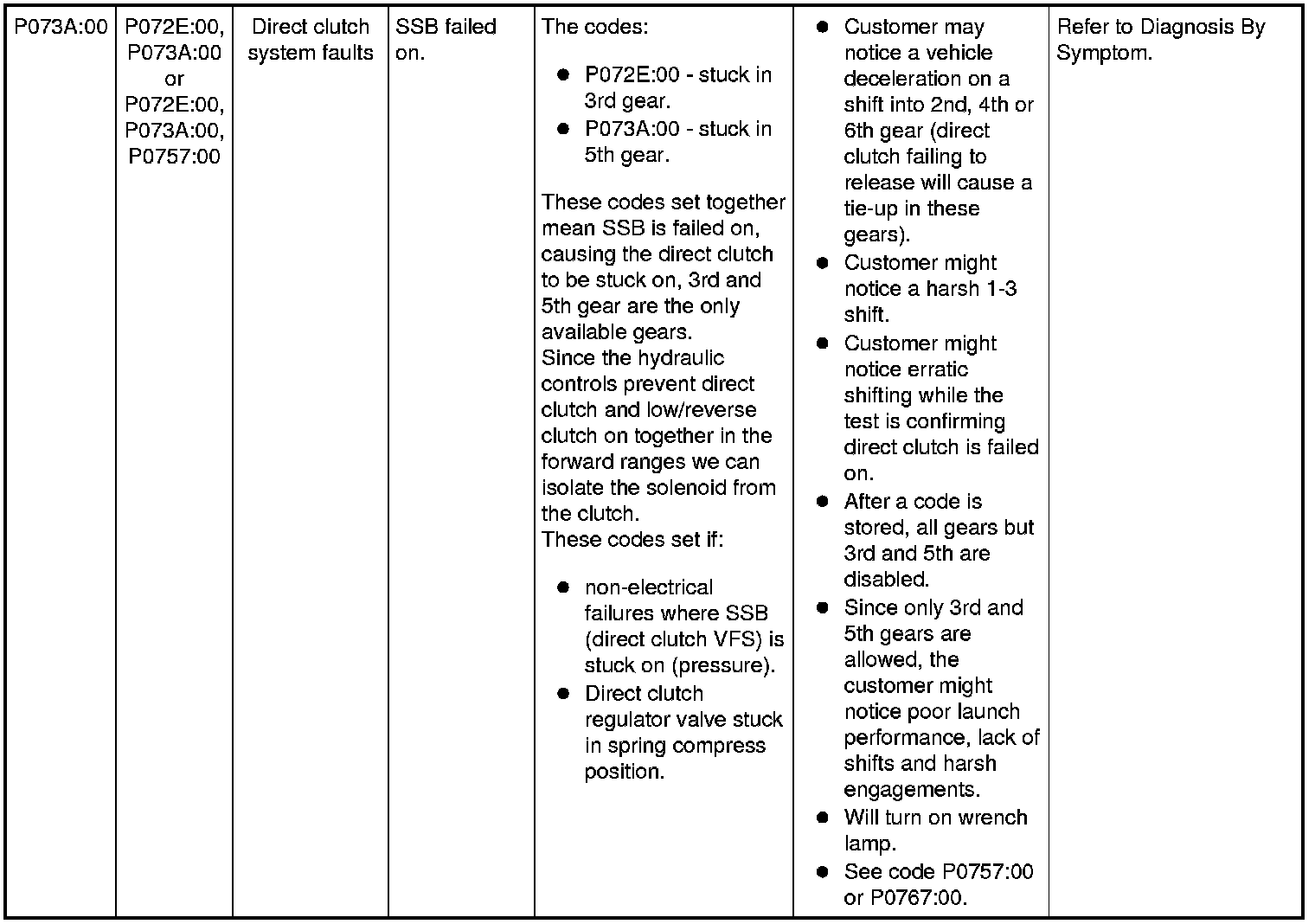

P073A:00:

P073A:00:

P073B:00-P0740:00:

P0741:00-P0743:00:

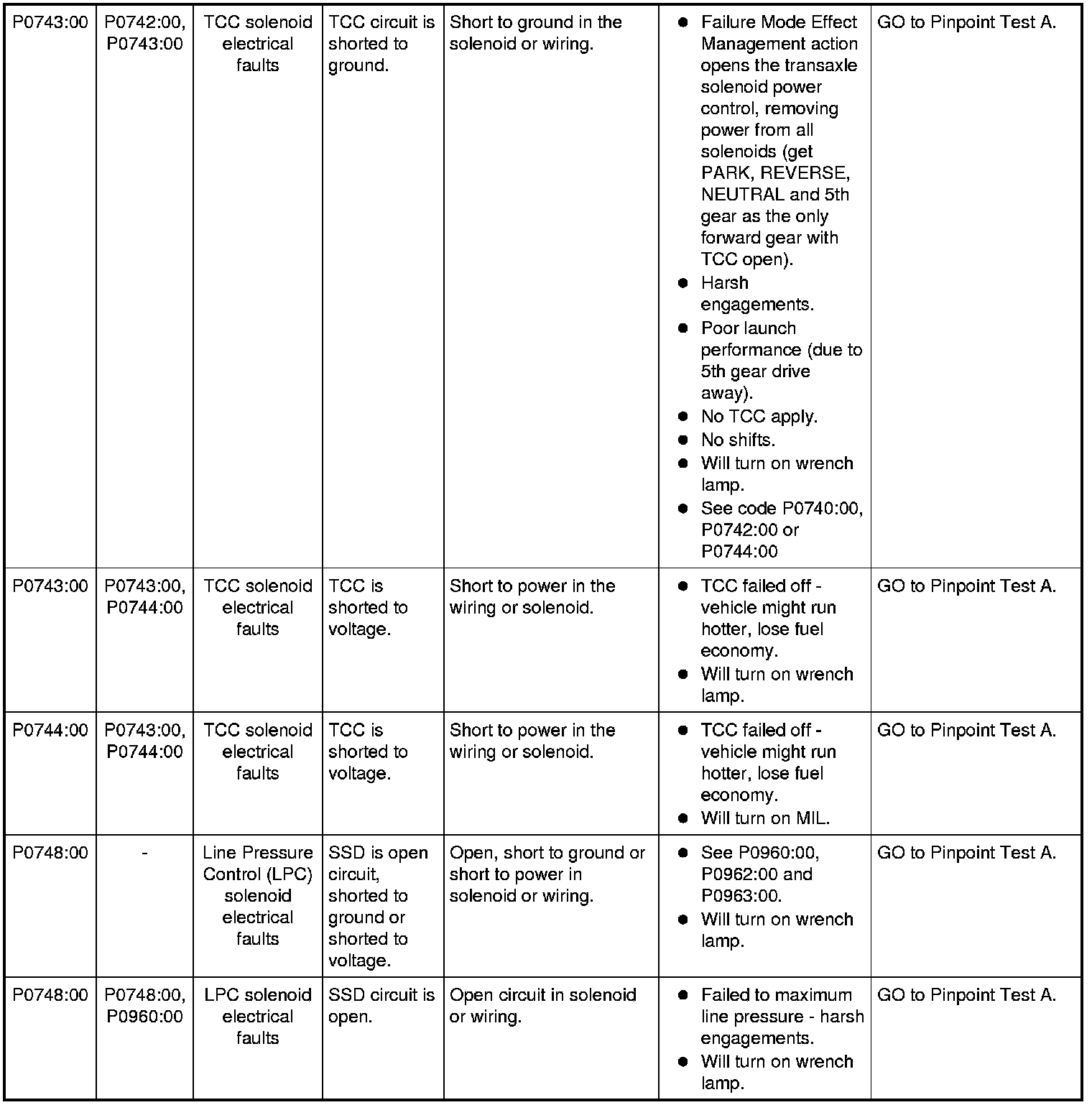

P0743:00-P0748:00:

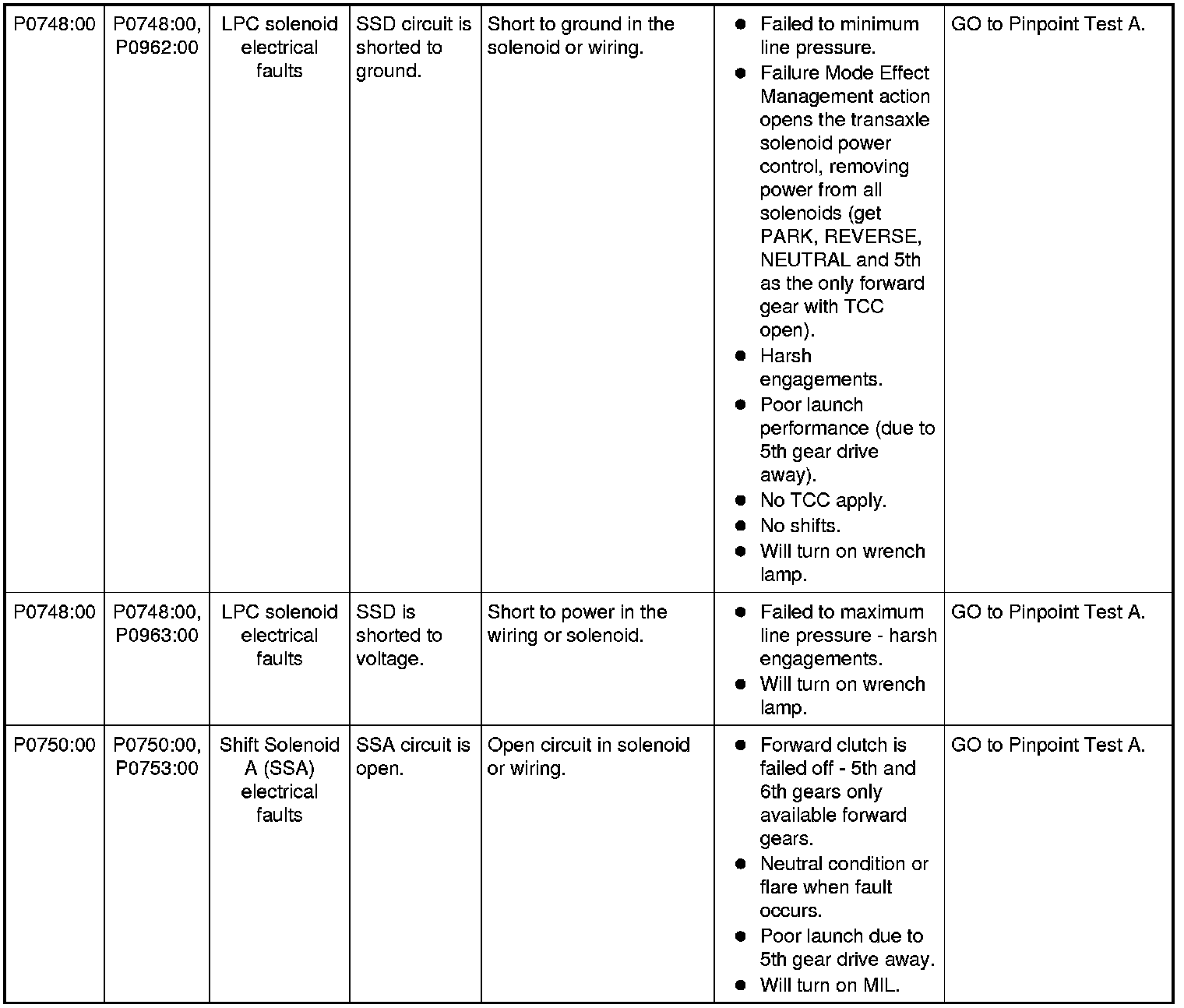

P0748:00-P0750:00:

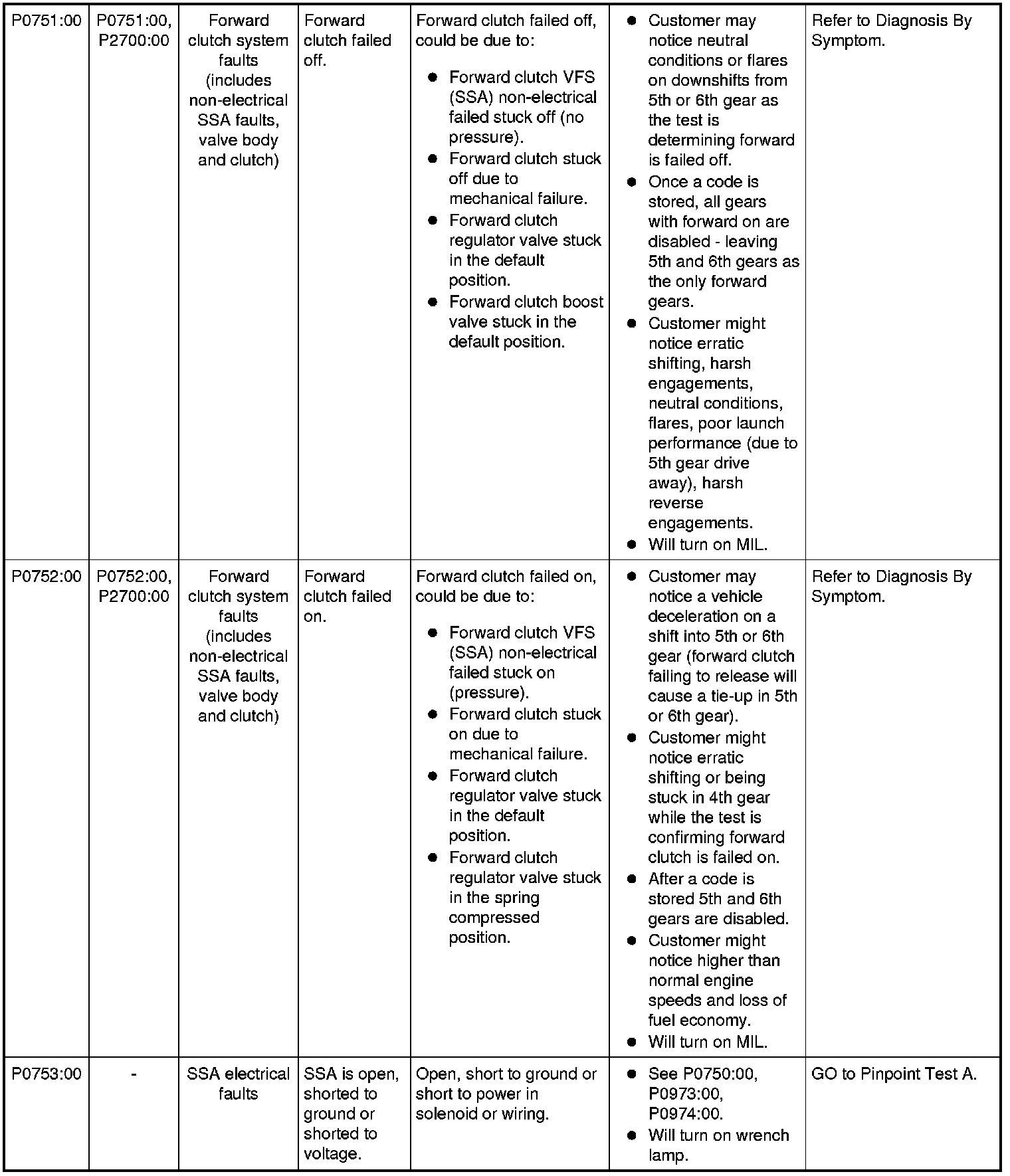

P0751:00-P0753:00:

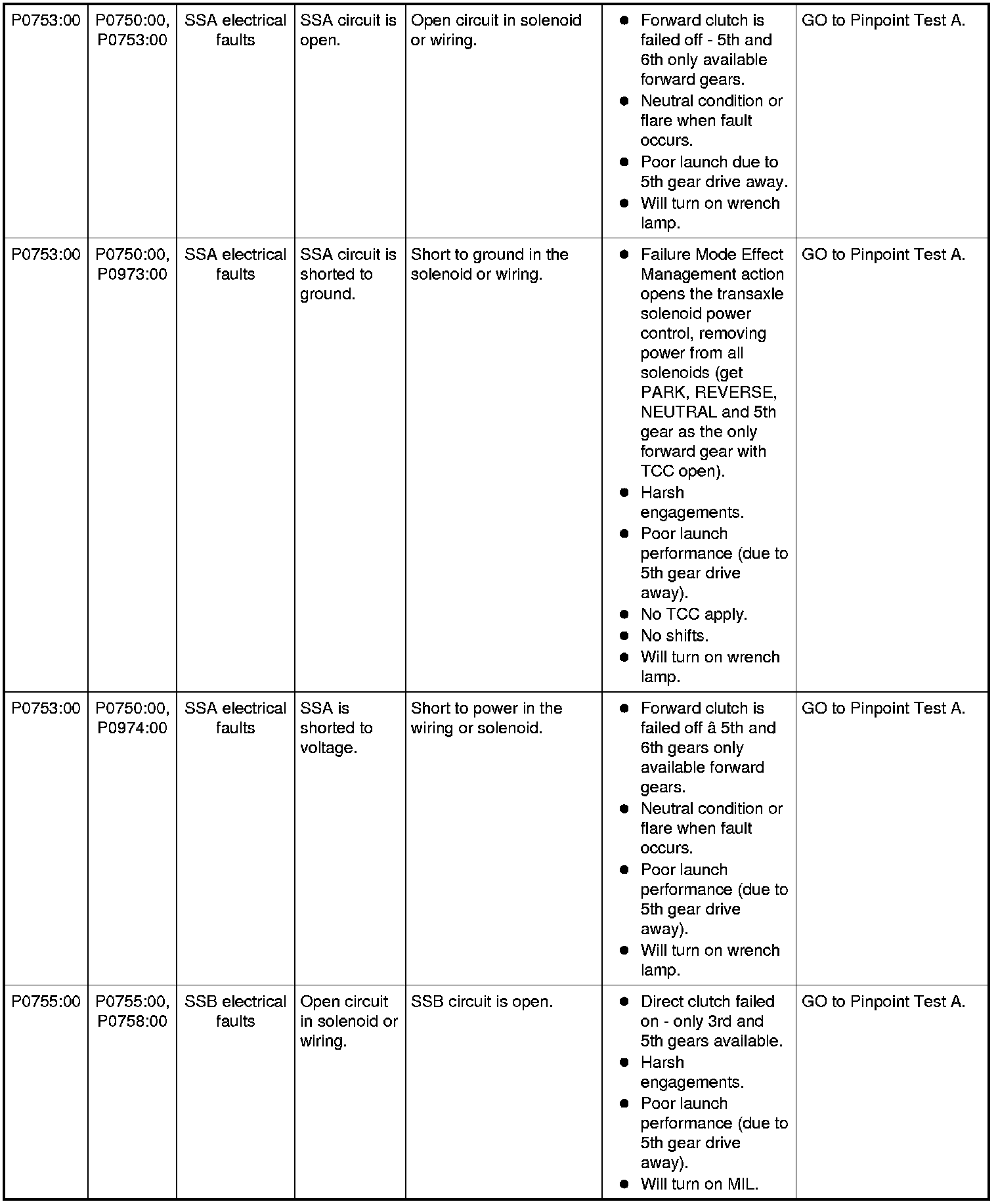

P0753:00-P0755:00:

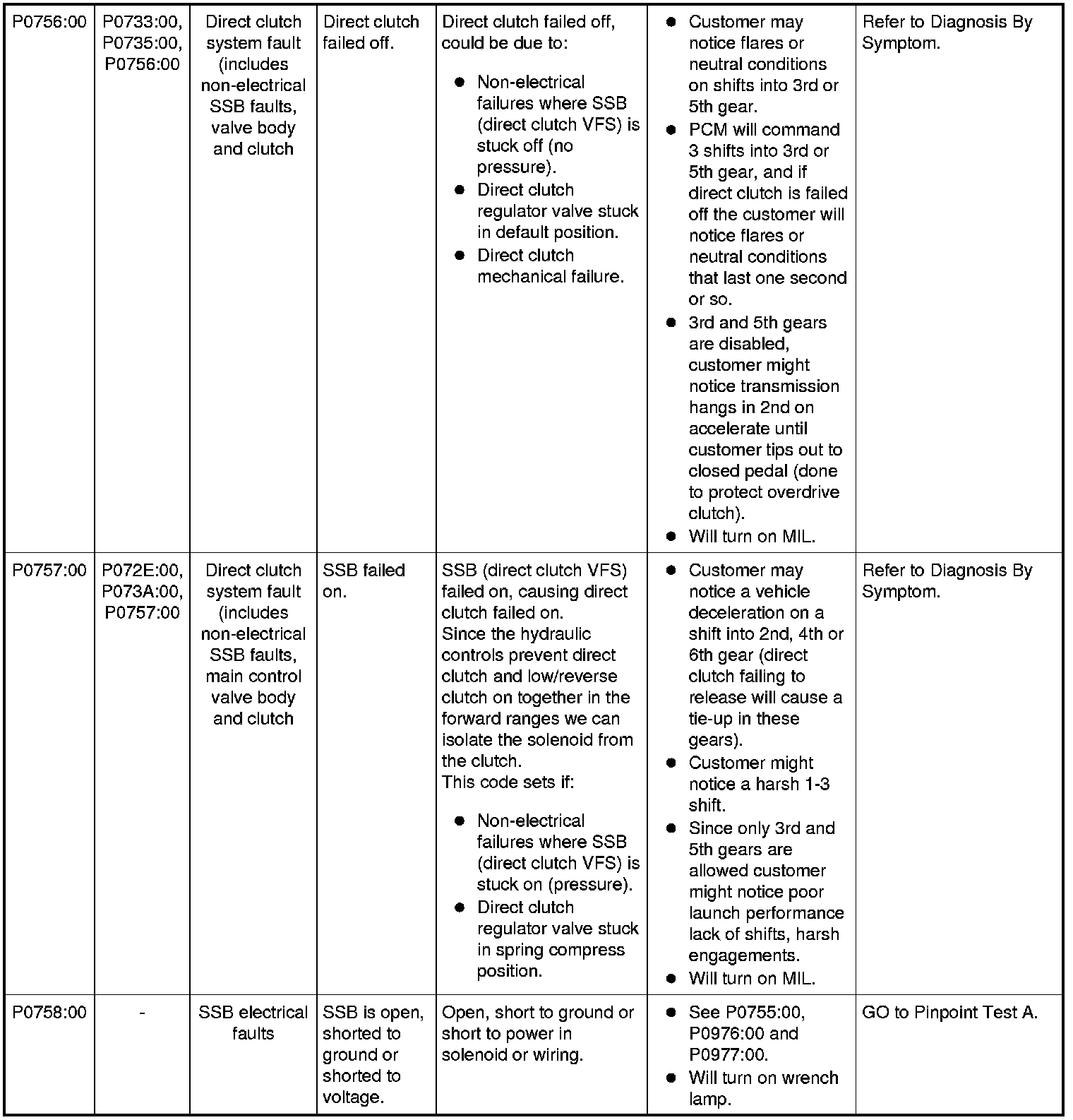

P0756:00-P0758:00:

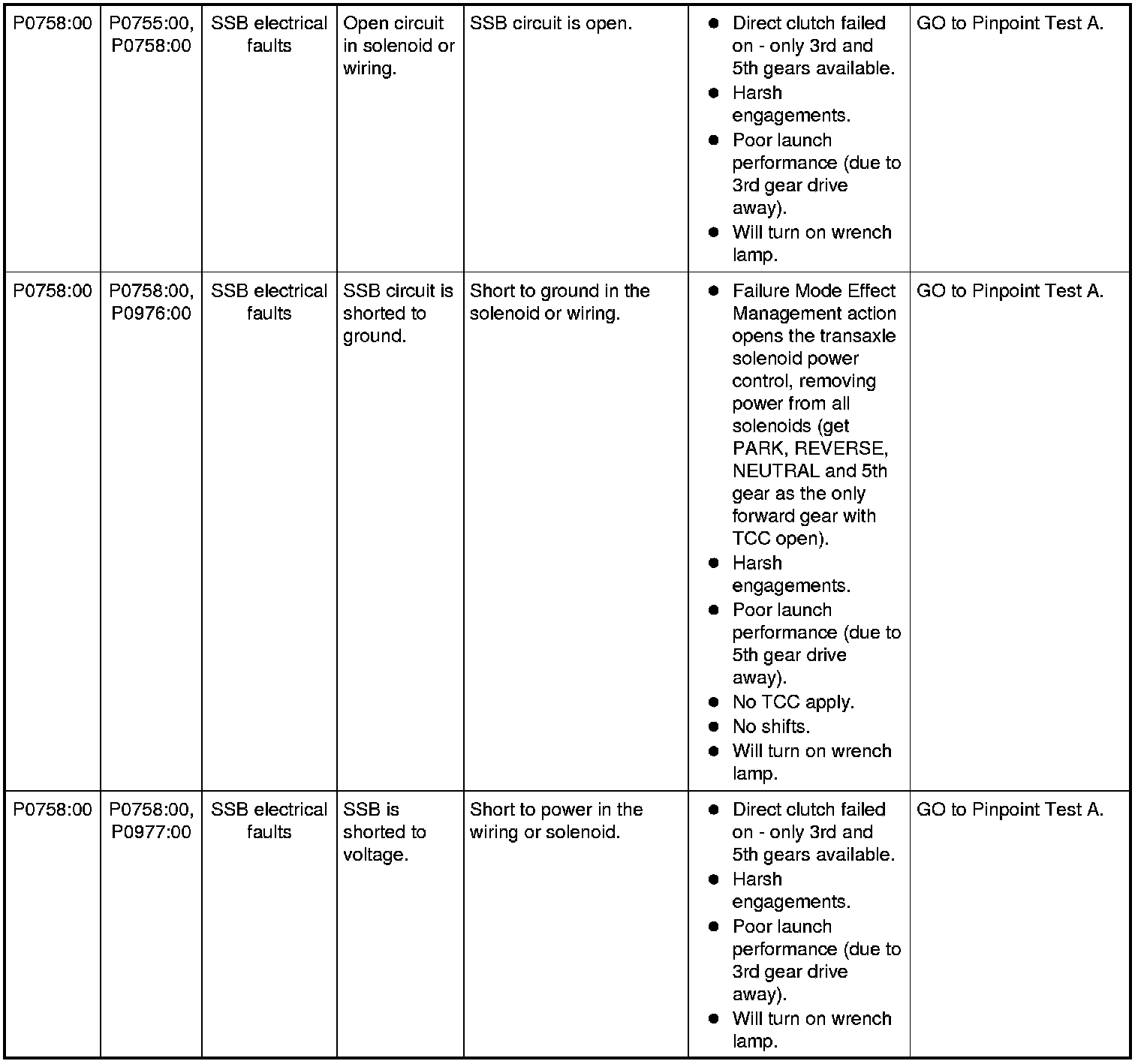

P0758:00:

P0760:00-P0761:00:

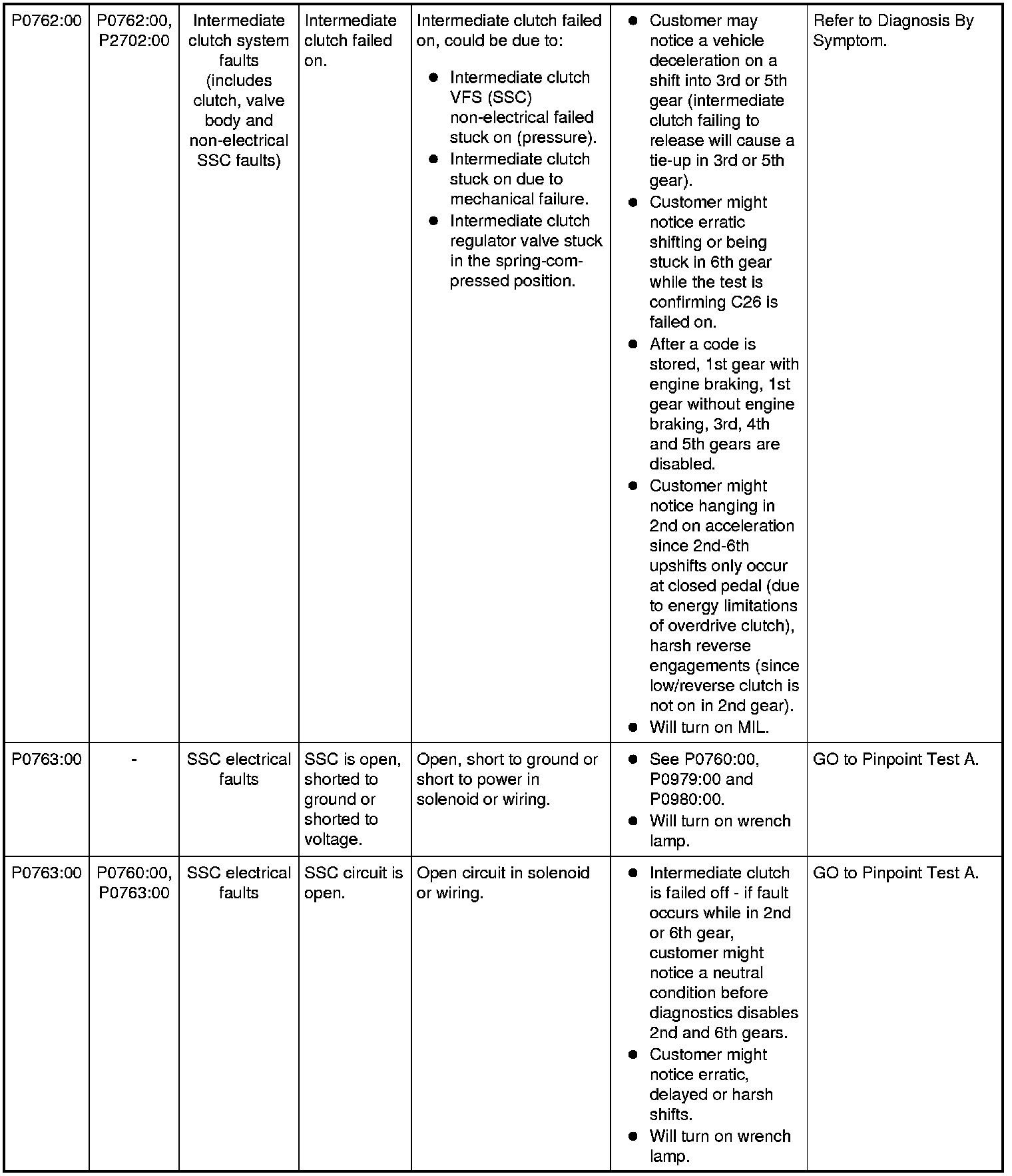

P0762:00-P0763:00:

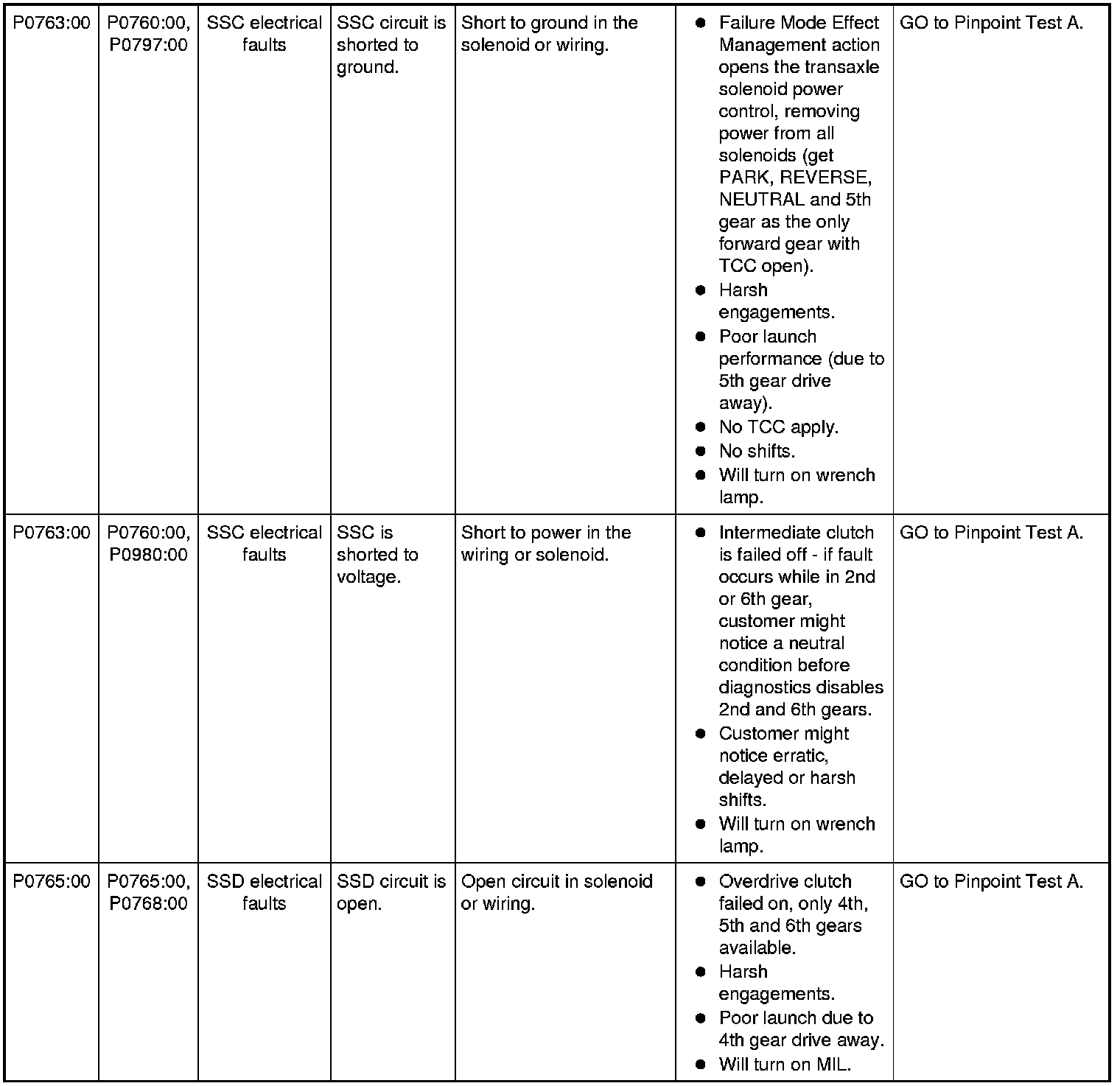

P0763:00-P0765:00:

P0766:00-P0768:00:

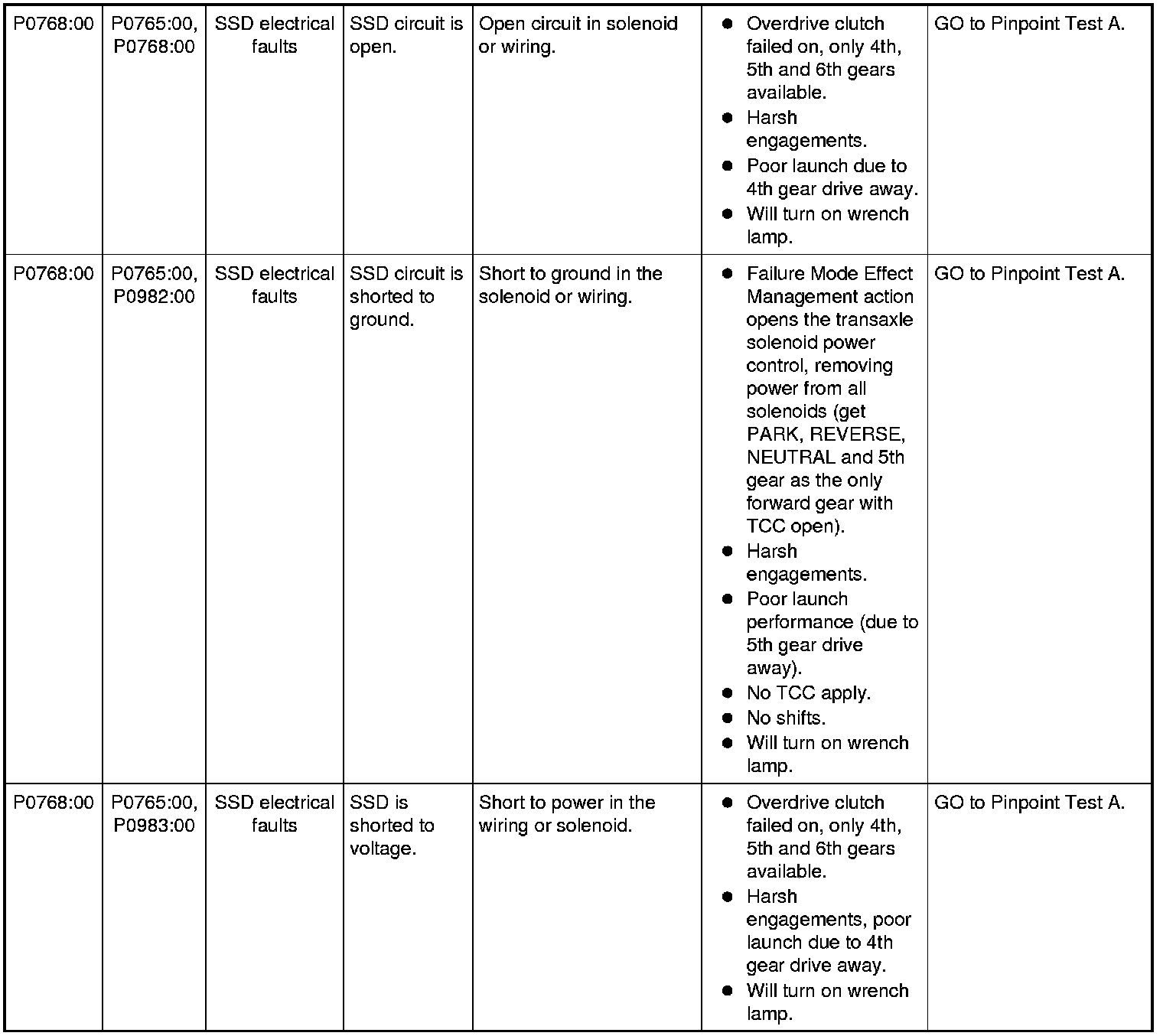

P0768:00:

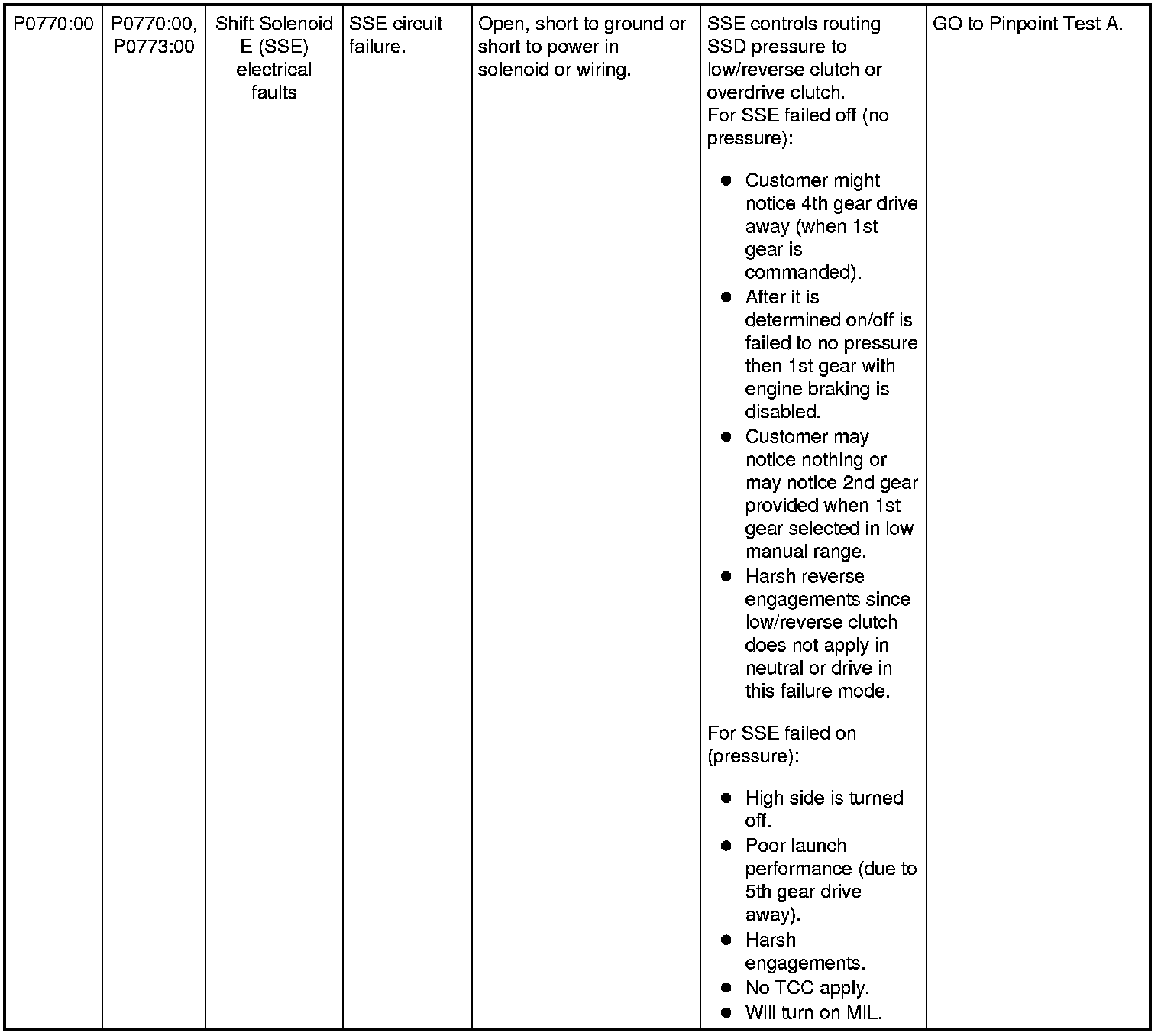

P0770:00:

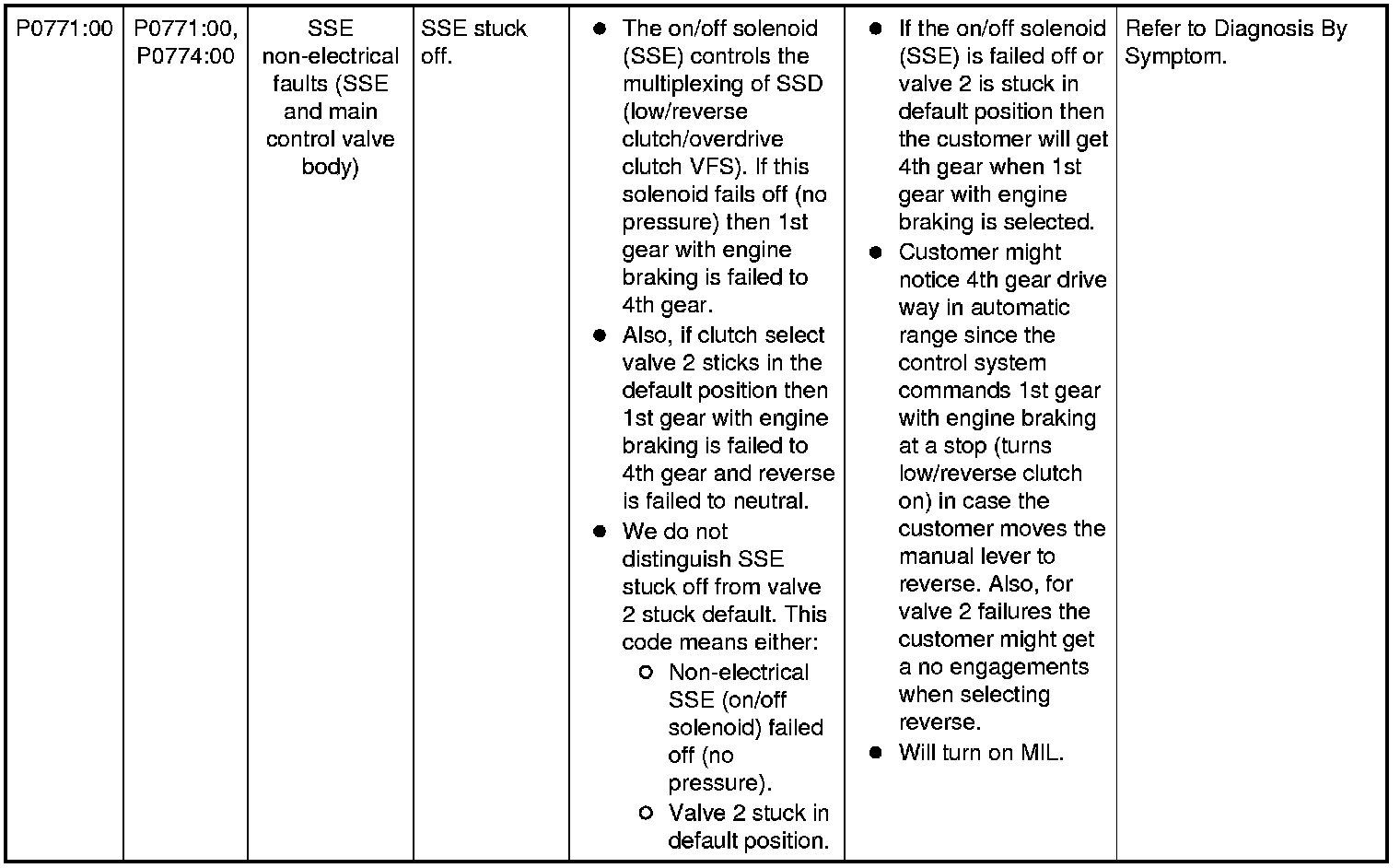

P0771:00:

P0772:00:

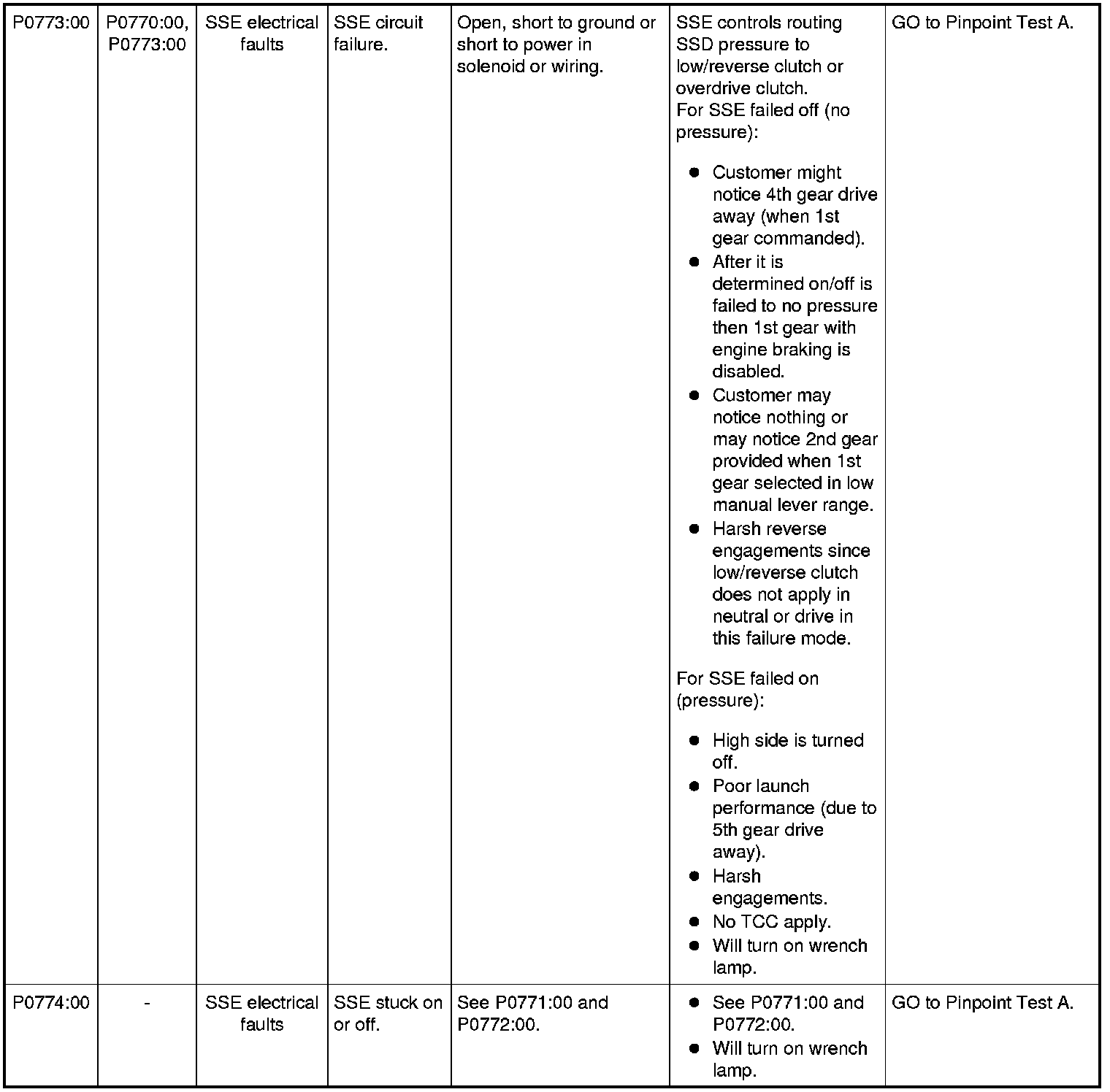

P0773:00-P0774:00:

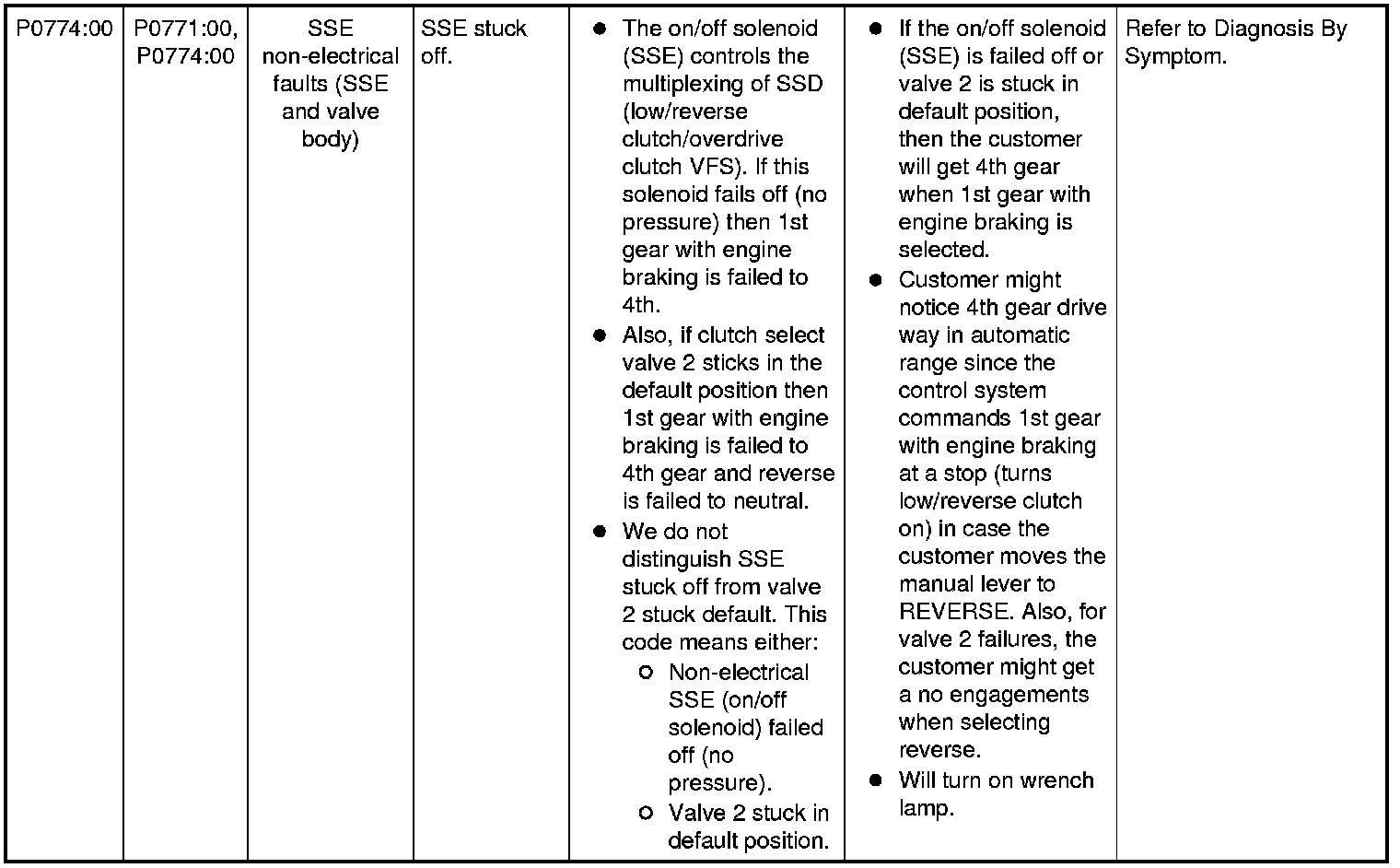

P0774:00:

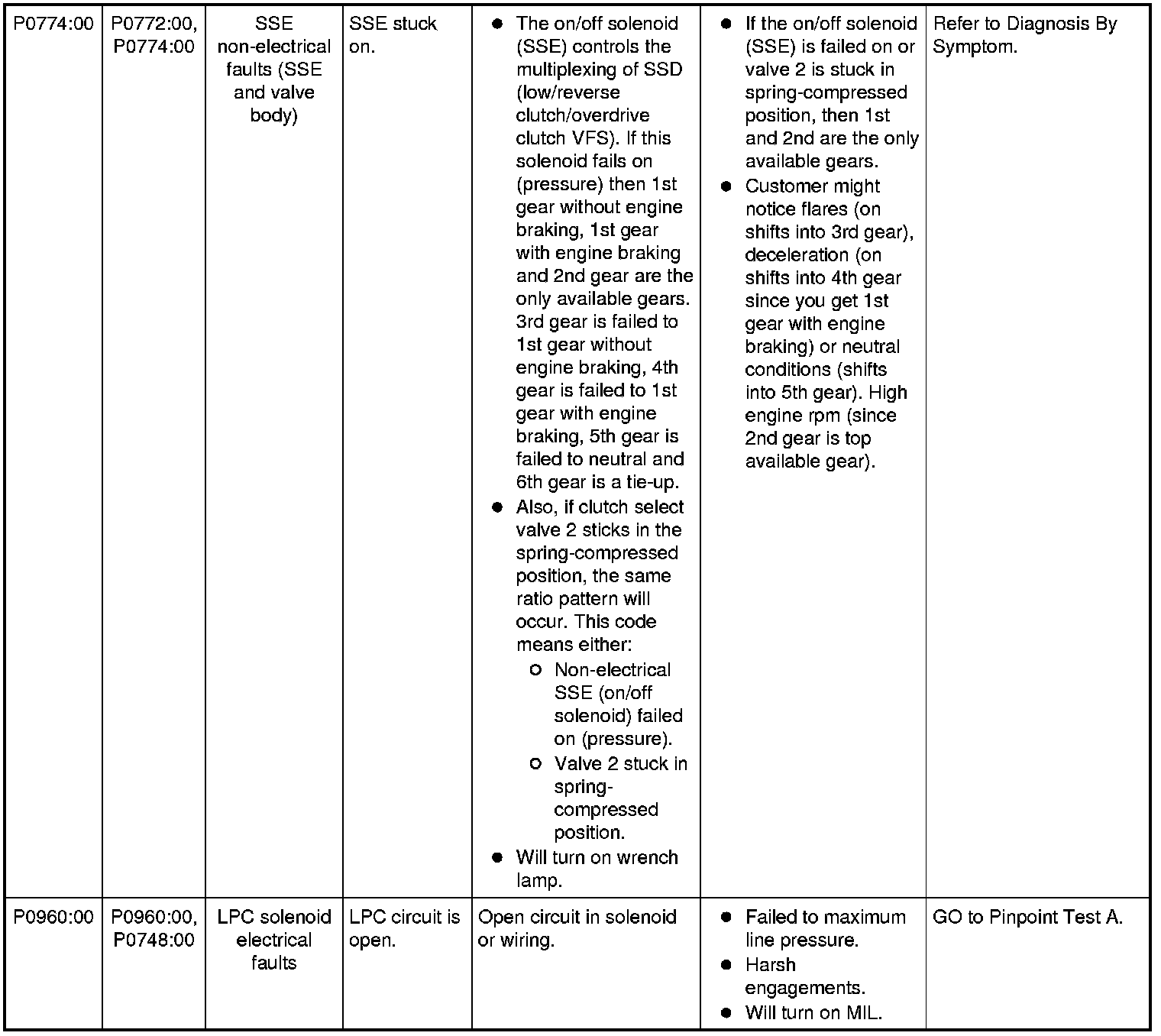

P0774:00-P0960:00:

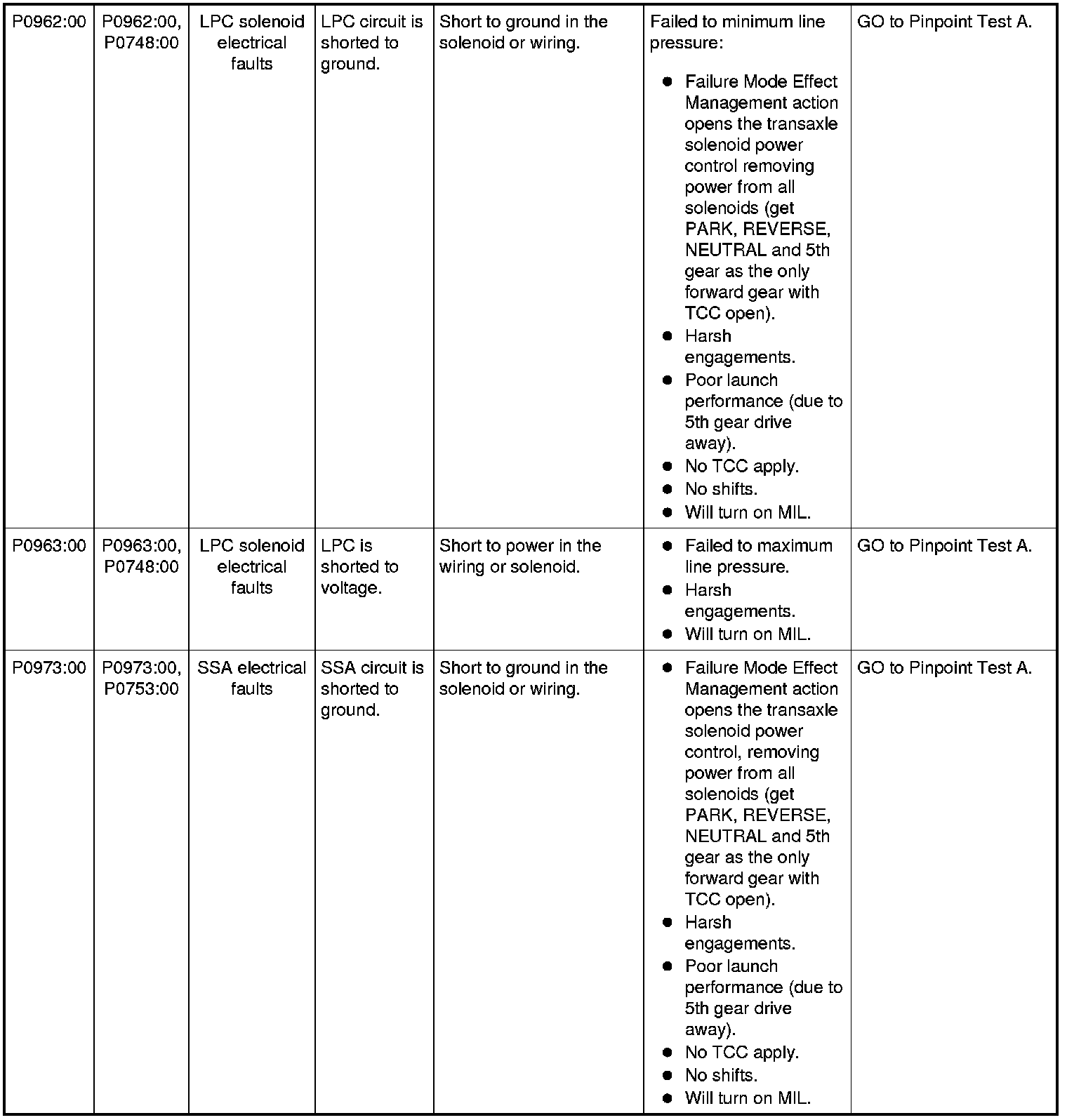

P0962:00-P0973:00:

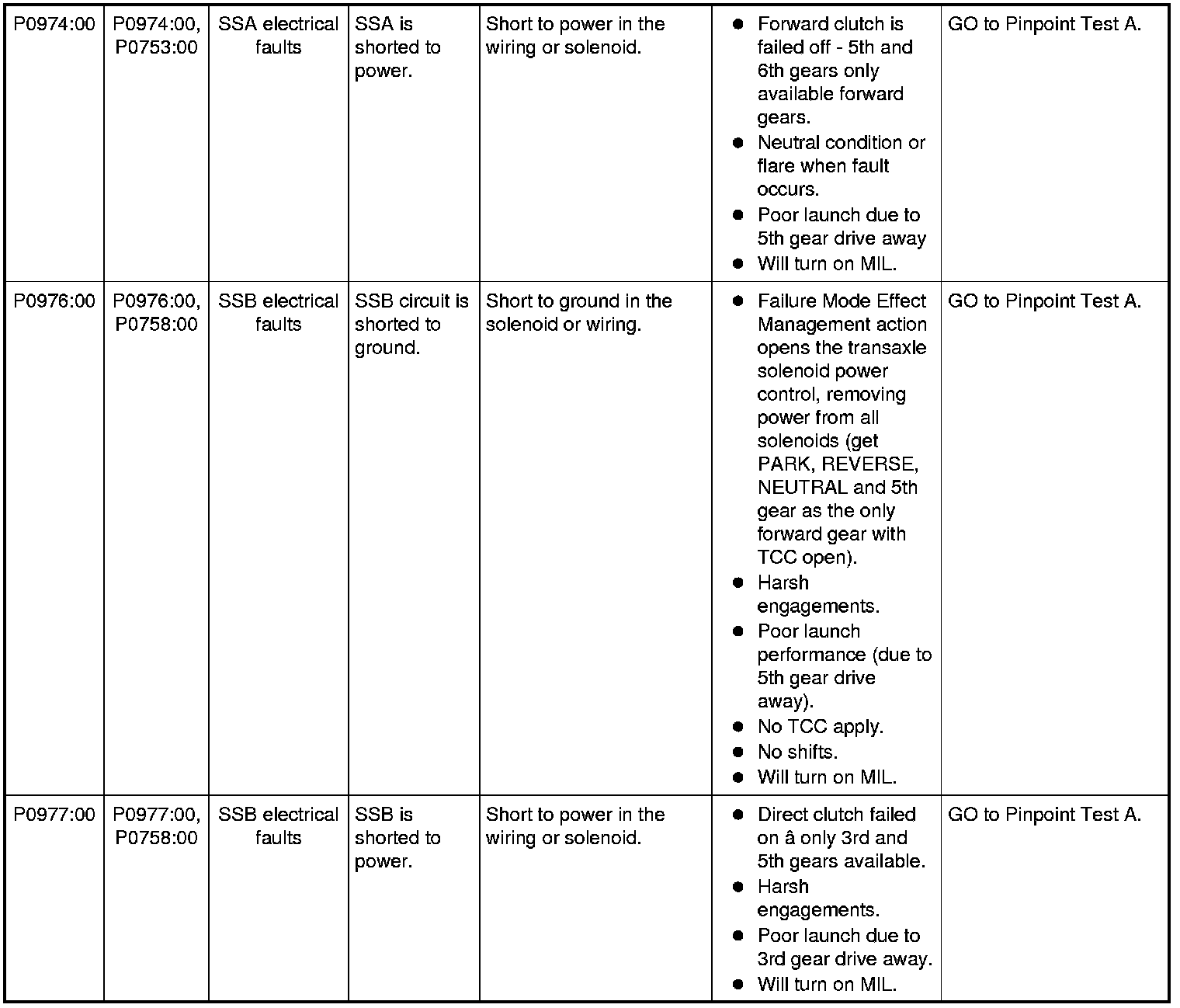

P0974:00-P0977:00:

P0979:00-P0982:00:

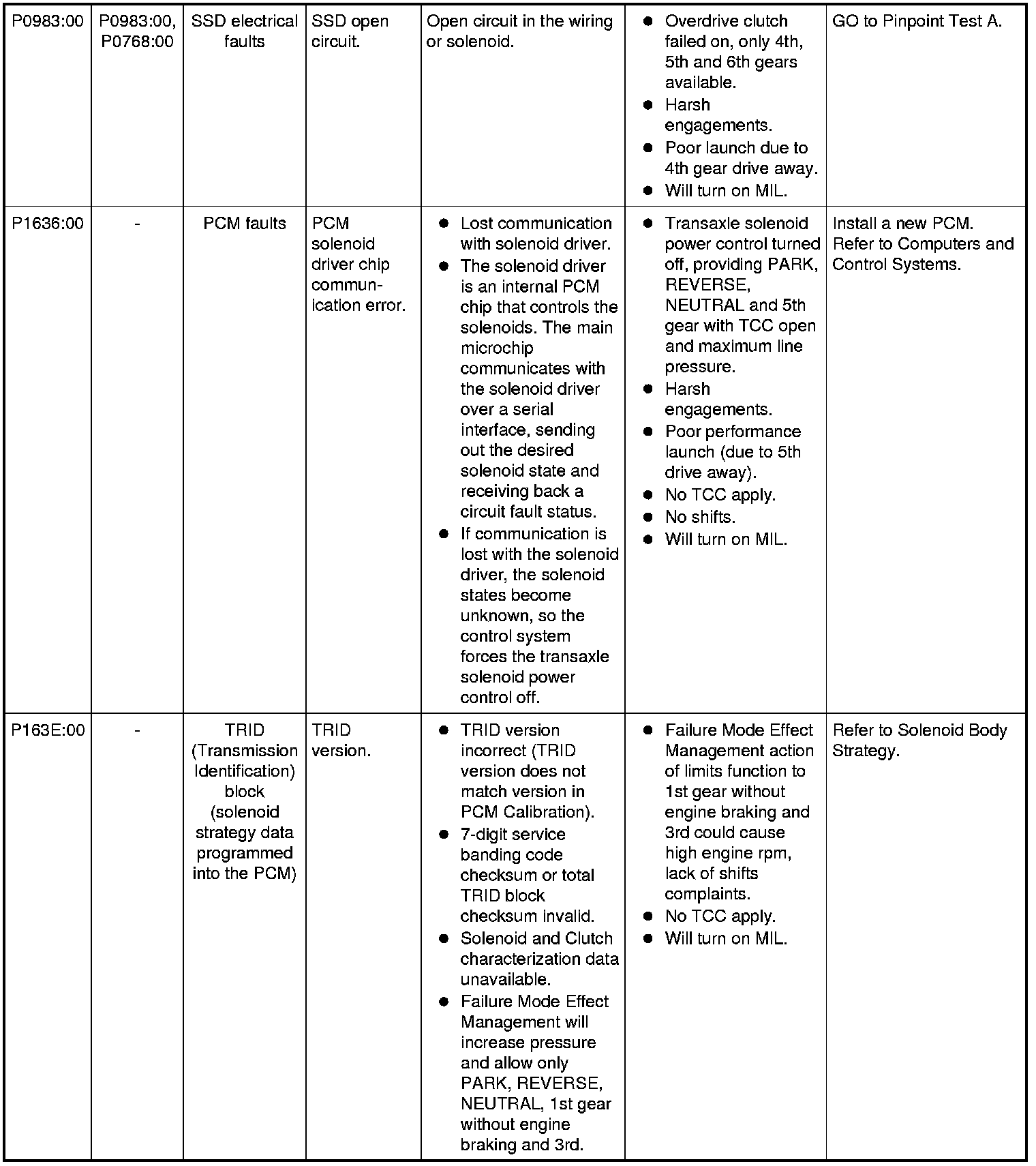

P163E:00-P1636:00:

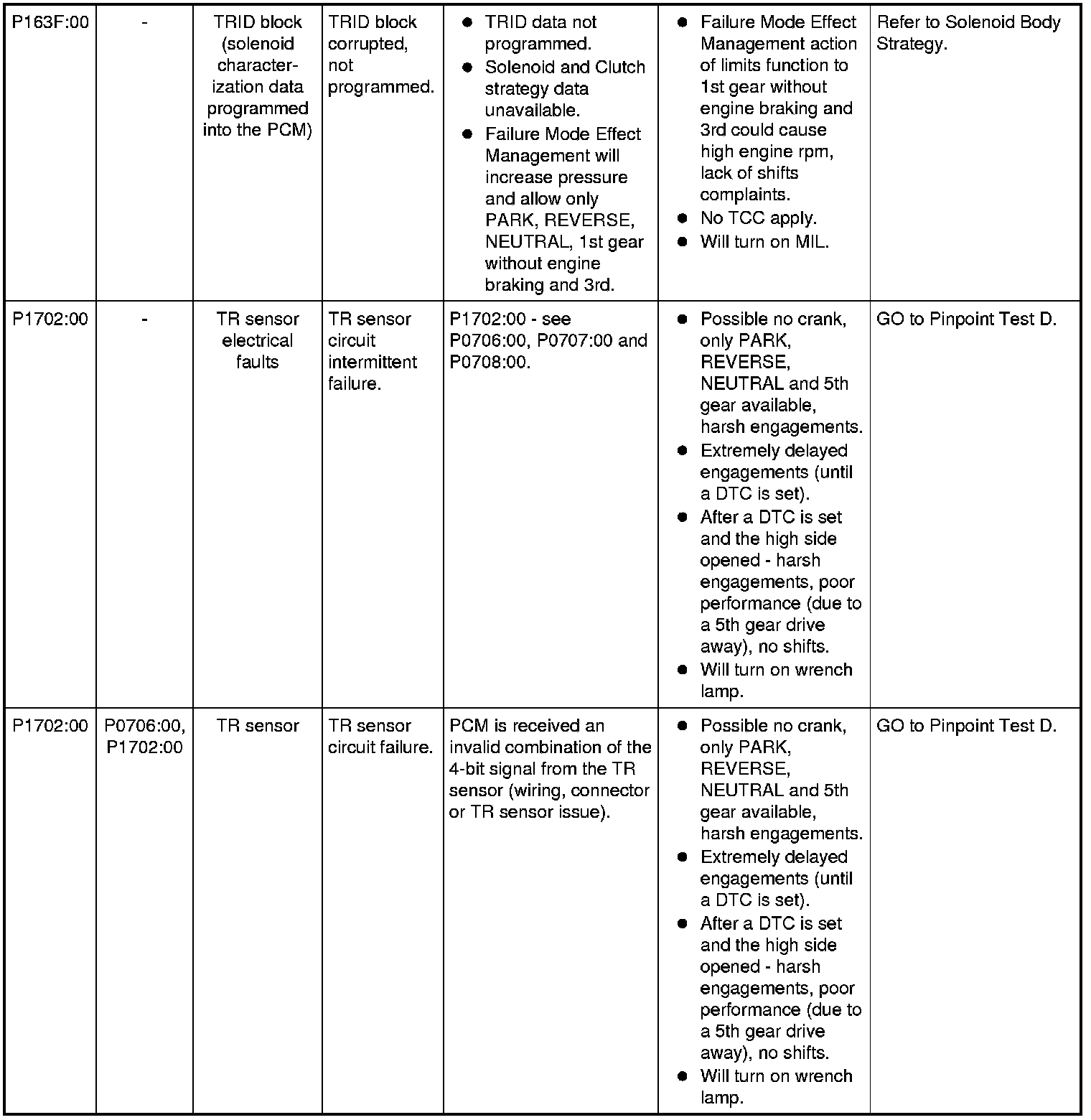

P163F:00-P1702:00:

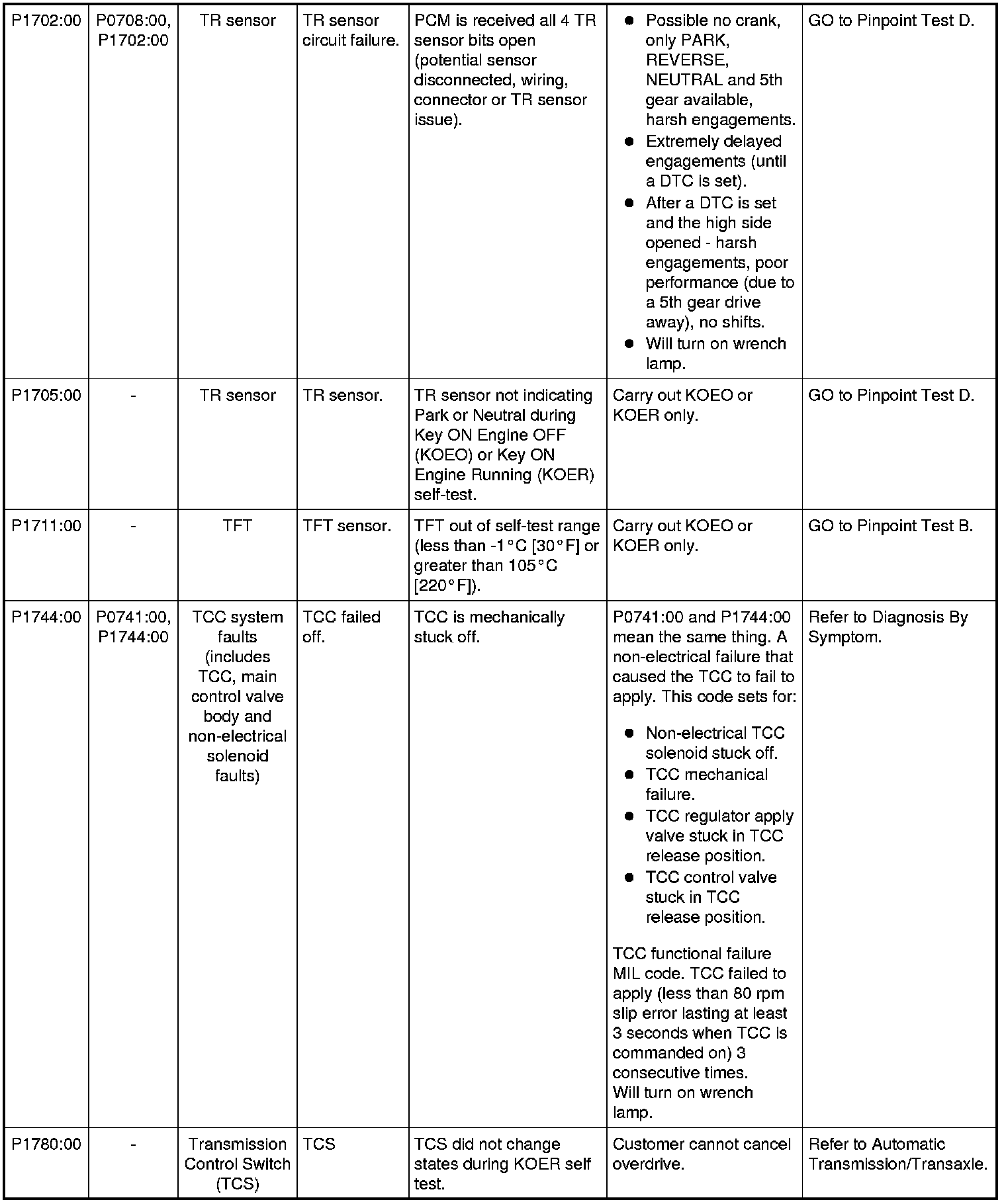

P1702:00-P1780:00:

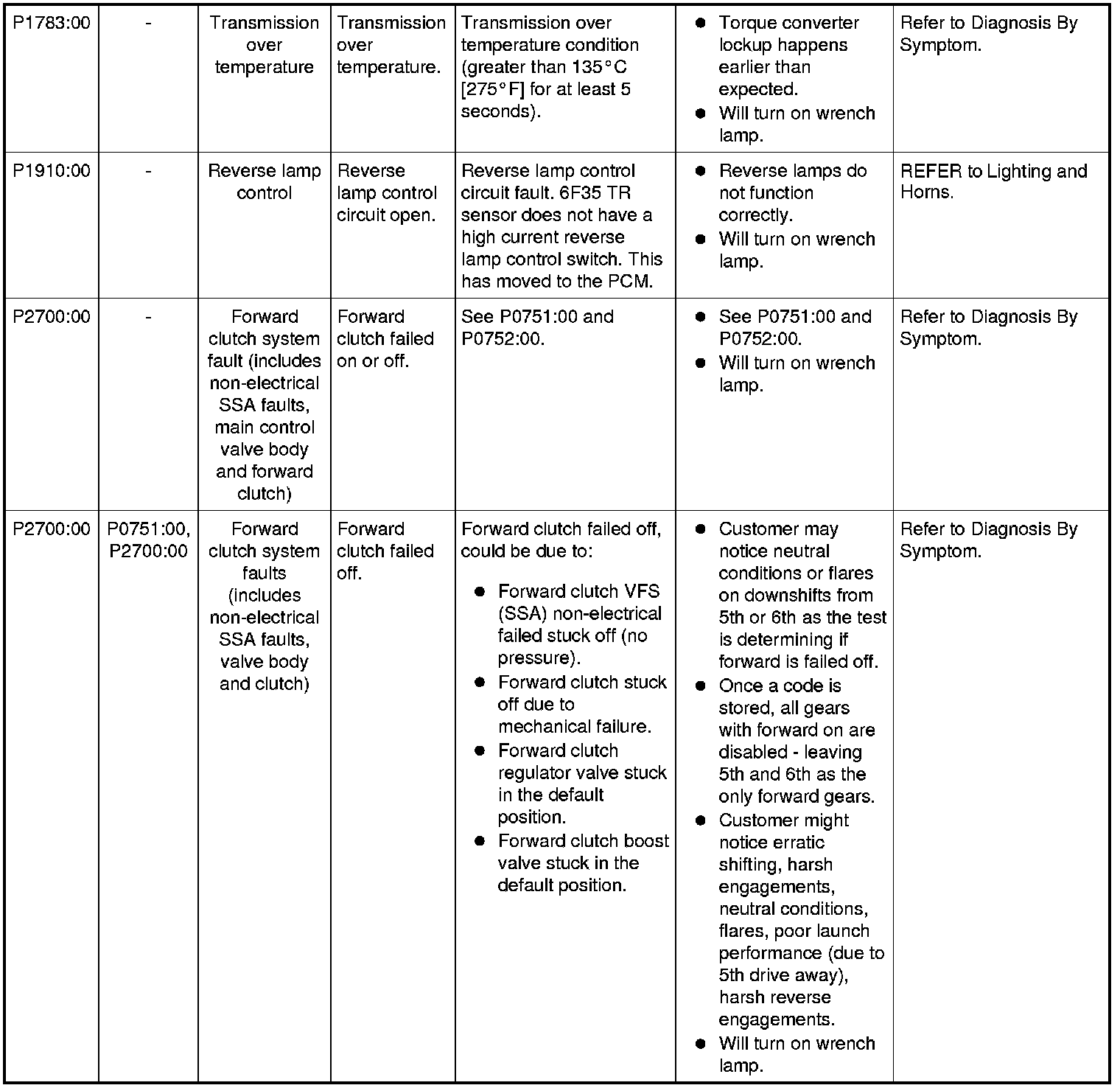

P1783:00-P2700:00:

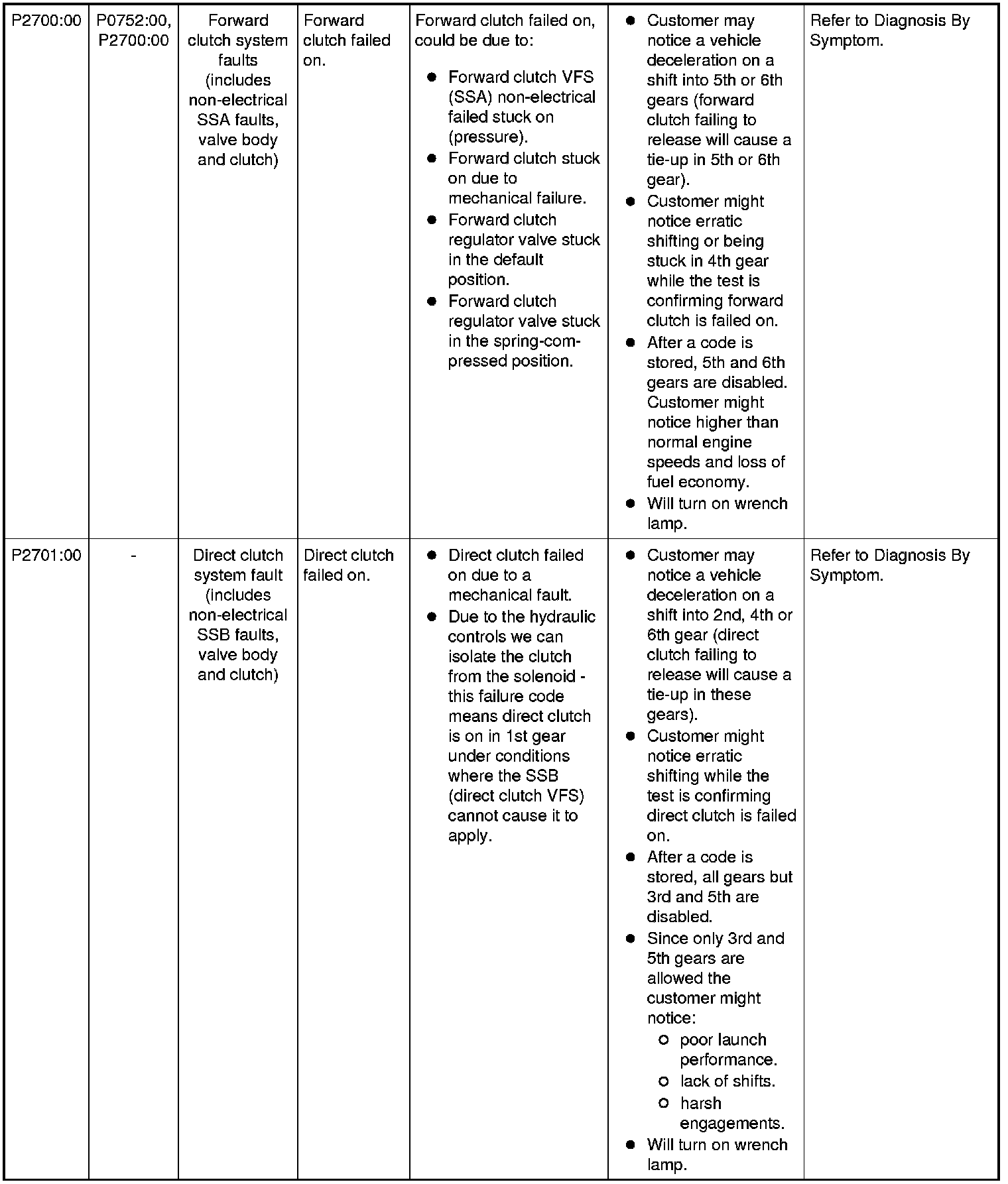

P2700:00-P2701:00:

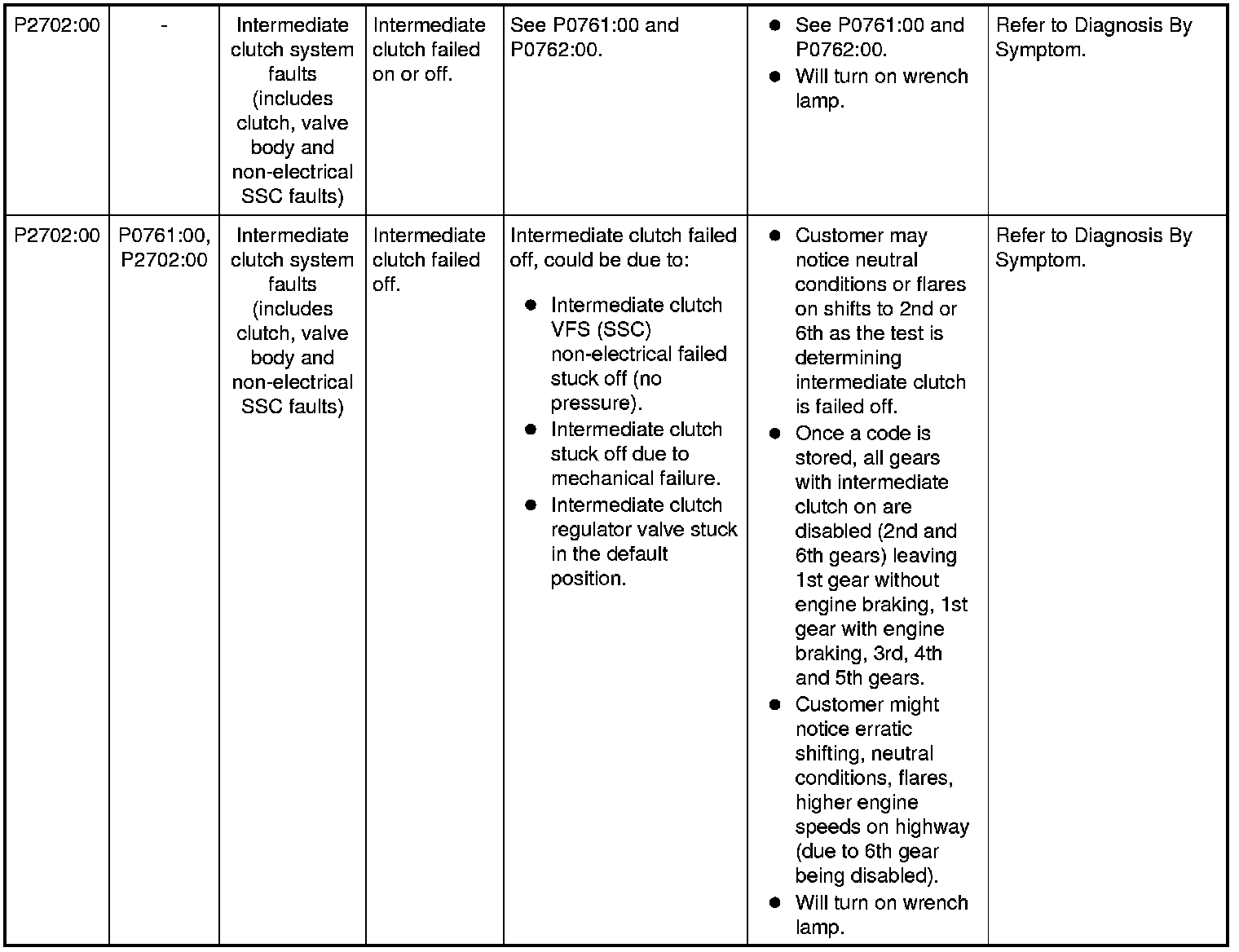

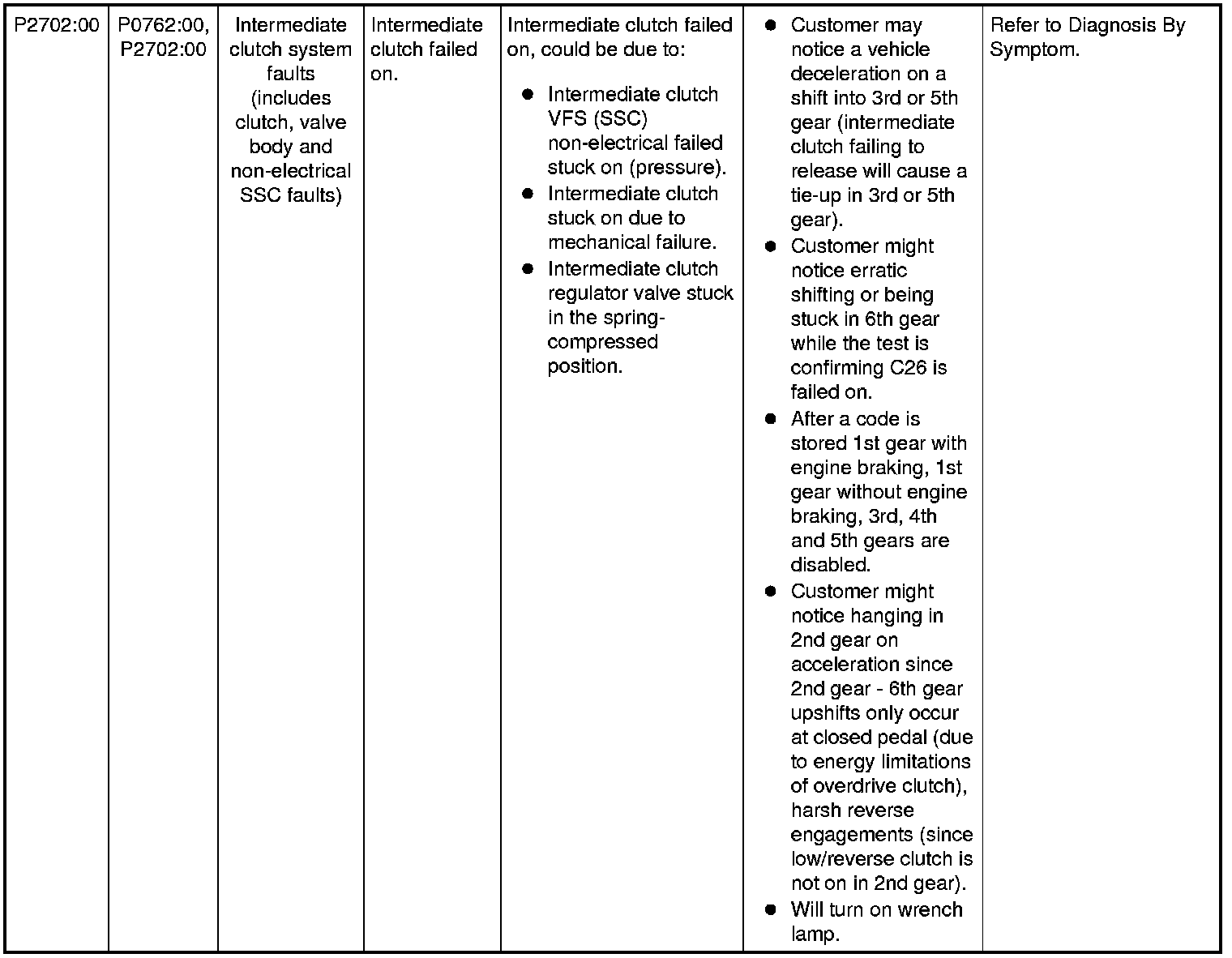

P2702:00:

P2702:00 (Continued):

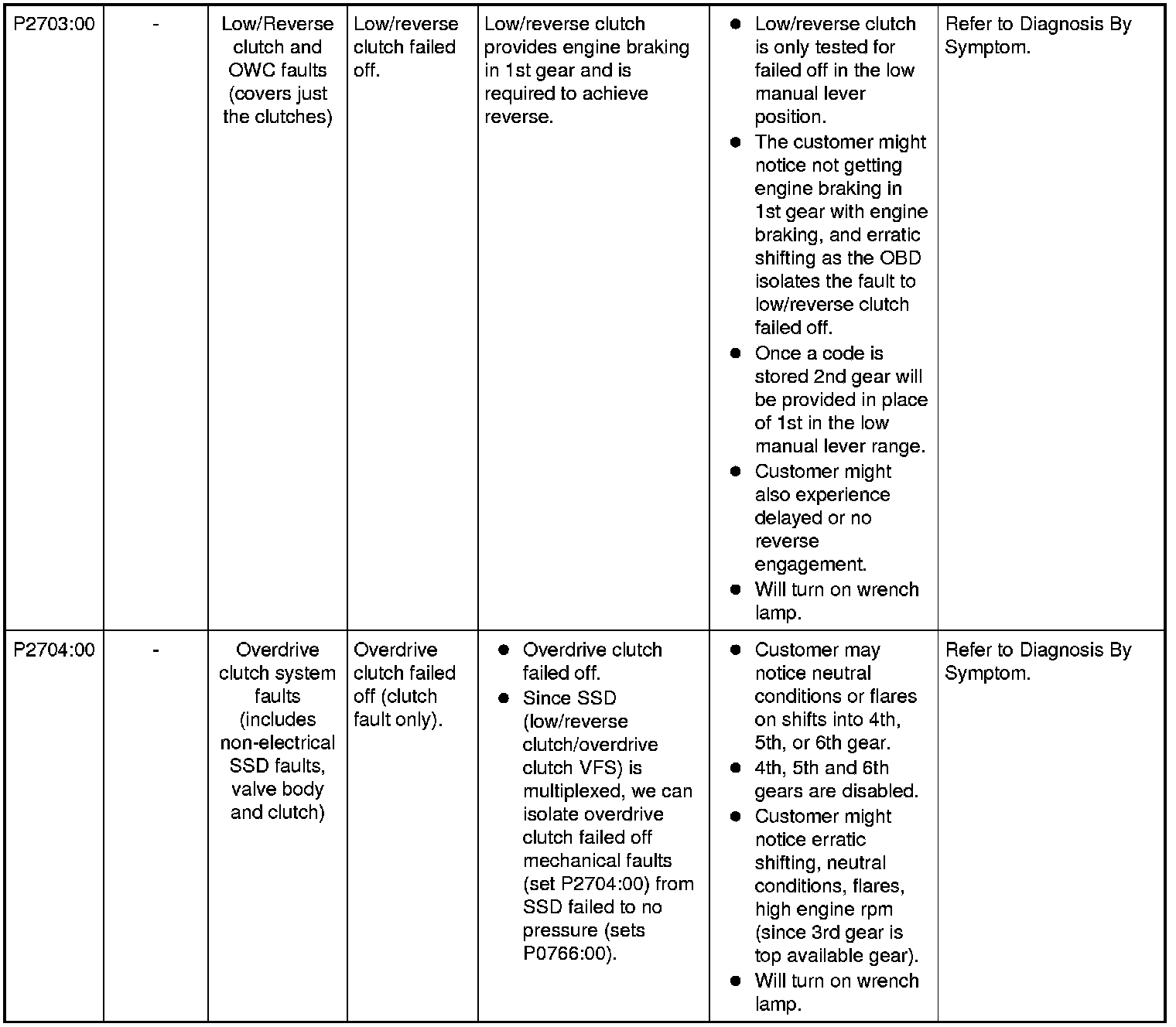

P2703:00-P2704:00:

P2705:00-P2783:00:
