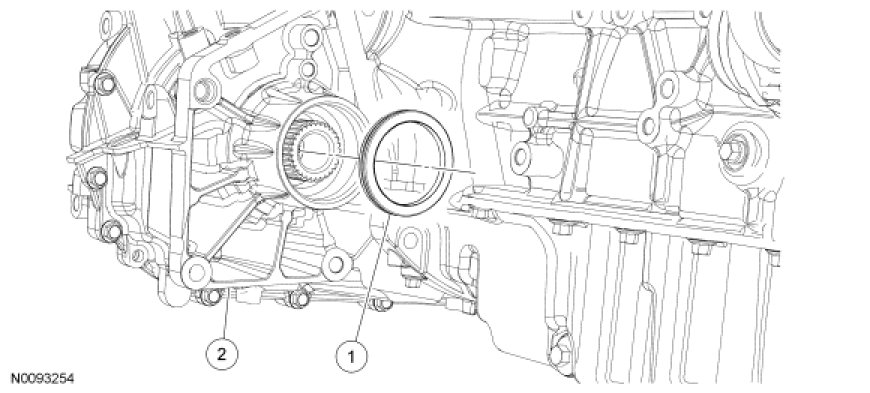

Halfshaft Seal - RH

Halfshaft Seal - RH, All Wheel Drive (AWD)

















Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the Power Transfer Unit (PTU). For additional information, refer to Transfer Case.

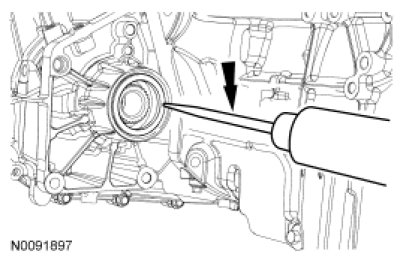

3. Using a suitable awl, poke a small hole in the RH transaxle differential seal.





4. Using a suitable dent puller, remove the halfshaft seal.





Installation

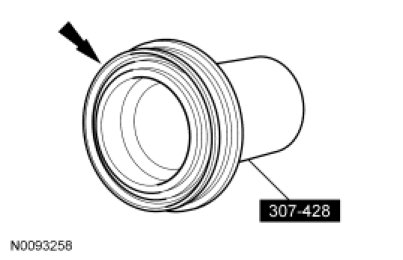

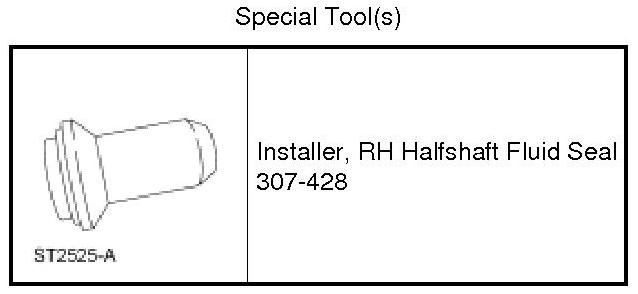

1. Install a new halfshaft seal on the RH Halfshaft Fluid Seal Installer.

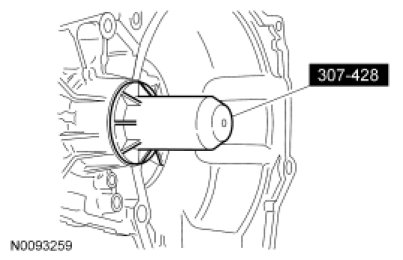

2. Using the RH Halfshaft Fluid Seal Installer, install the RH halfshaft seal.





3. Install the PTU. For additional information, refer to Transfer Case.

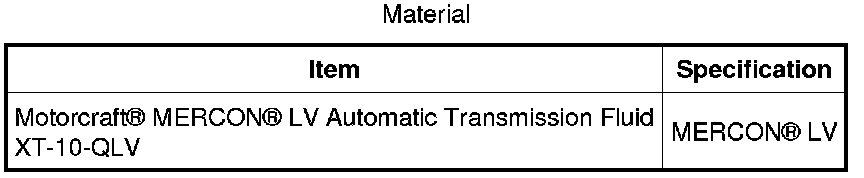

4. Fill the transaxle with clean transmission fluid.





5. Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Check the transmission fluid level, making sure that the transmission fluid is at the correct level.
