6F35

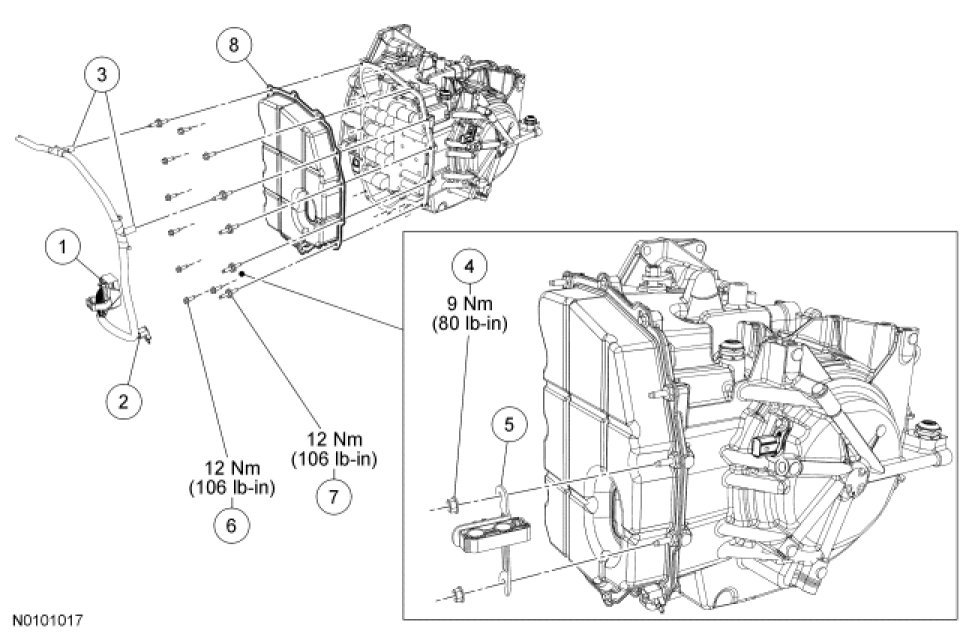

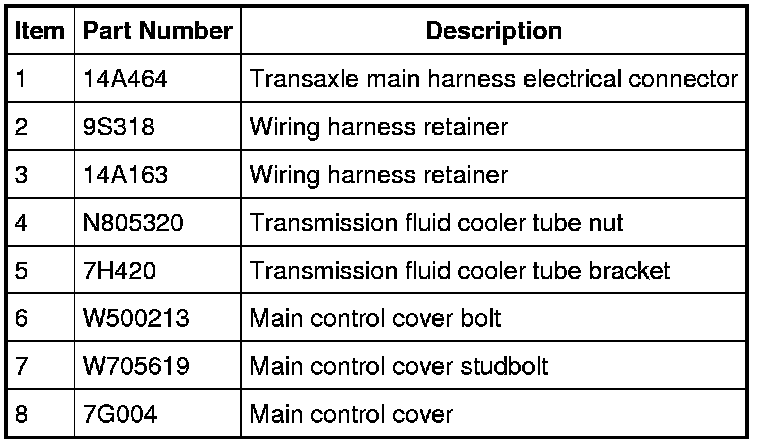

Main Control Cover













1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the screws and the underbody cover.





3. Remove the Air Cleaner (ACL) assembly. For additional information, refer to Fuel Delivery and Air Induction.

4. Remove the transmission fluid drain plug and allow the transmission fluid to drain.





5. Install the transmission fluid drain plug.
- Tighten to 12 Nm (106 lb-in).





6. Disconnect the transaxle electrical connector.





7. Remove the transaxle electrical wiring harness retainers from the main control cover stud bolts.





8. Remove the 2 nuts, pull the transmission fluid cooler tube bracket and tubes away from the transaxle and position it aside.





9. NOTE: Note the location of the stud bolts for assembly.

Remove the 8 bolts, 5 stud bolts and the main control cover.





Installation

1. Clean the main control cover sealing surface and inspect for damage.





2. Apply silicone to the main control sealing surface of the transaxle case.





3. Position the main control cover in place.





4. NOTICE: Inspect the main control-to-main control cover grommet to make sure that the seals is on the inside of the main control cover. Transmission fluid leak will occur.

NOTE: Install the stud bolts in the locations noted during disassembly.

Tighten the 8 main control cover bolts and 5 stud bolts.

- Tighten to 12 Nm (106 lb-in).





5. Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
- Tighten to 9 Nm (80 lb-in).





6. Connect the transaxle electrical wiring harness retainers to the main control cover stud bolts.





7. Connect the transaxle electrical connector.





8. Install the underbody cover and the screws.





9. Install the ACL assembly. For additional information, refer to
Fuel Delivery and Air Induction.

10. Fill the transaxle with clean transmission fluid.





11. Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Check the transmission fluid level, making sure that the transmission fluid is at the correct level.
