Throttle Body: Service and Repair

Throttle Body

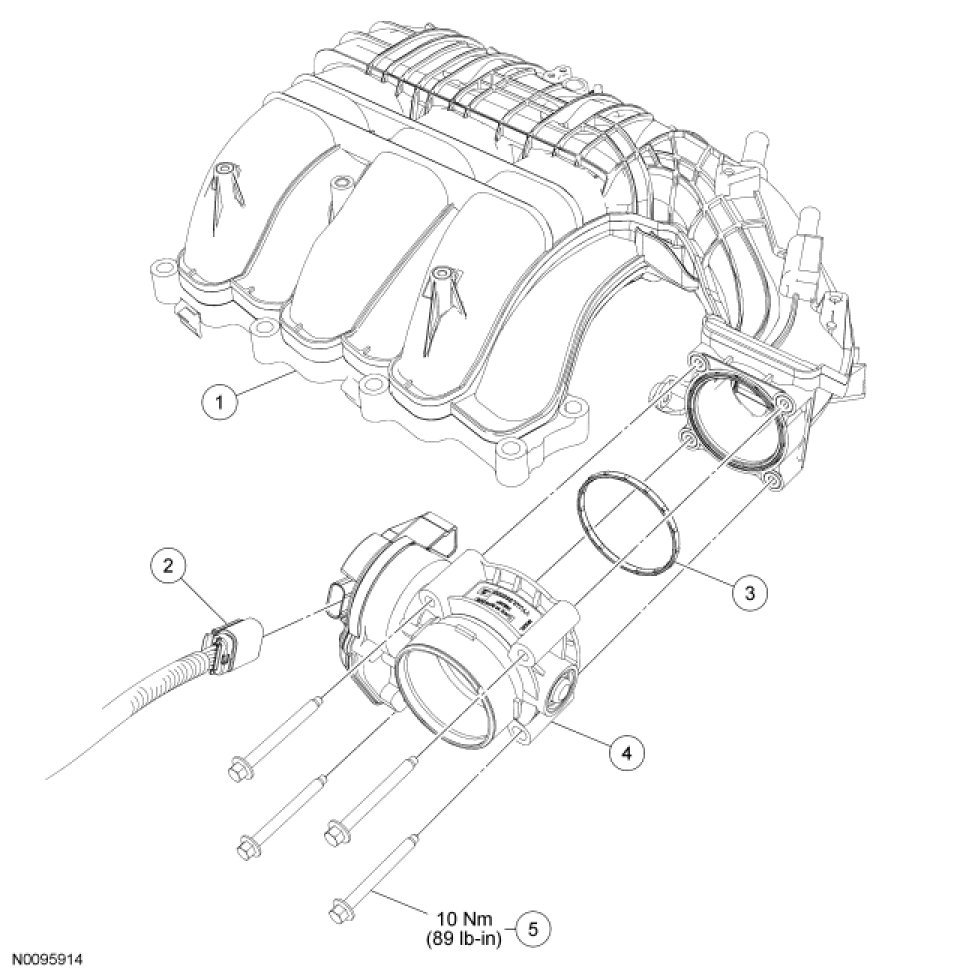

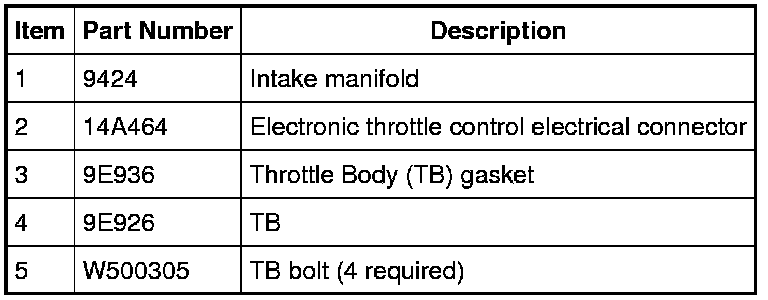

Removal and Installation

1. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

2. Disconnect the electronic throttle control electrical connector.

3. Remove the 4 bolts and the Throttle Body (TB).
- Discard the TB gasket.

- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Install a new TB gasket.

To install, reverse the removal procedure.
