Evaporative Emissions Hose: Service and Repair

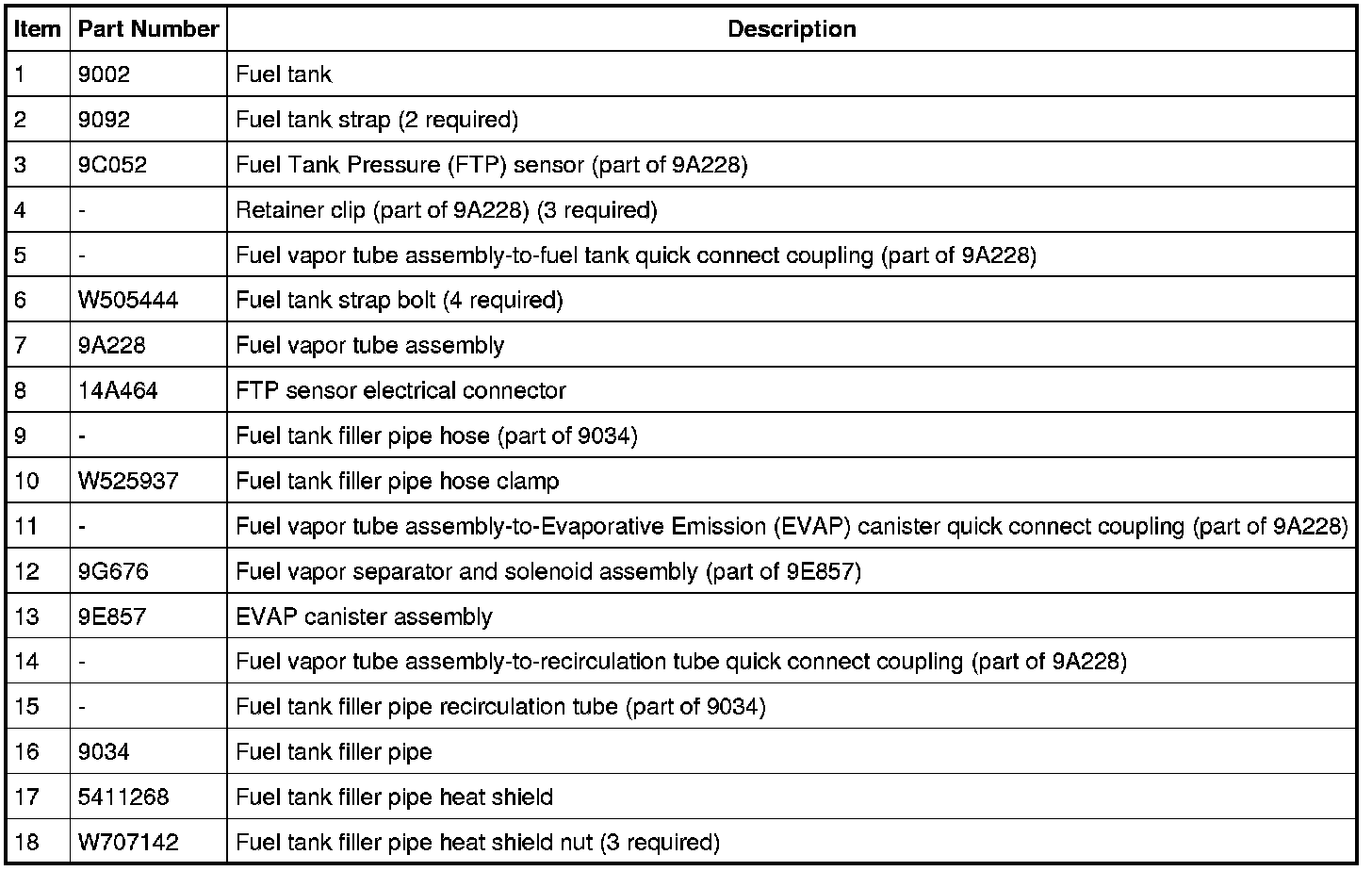

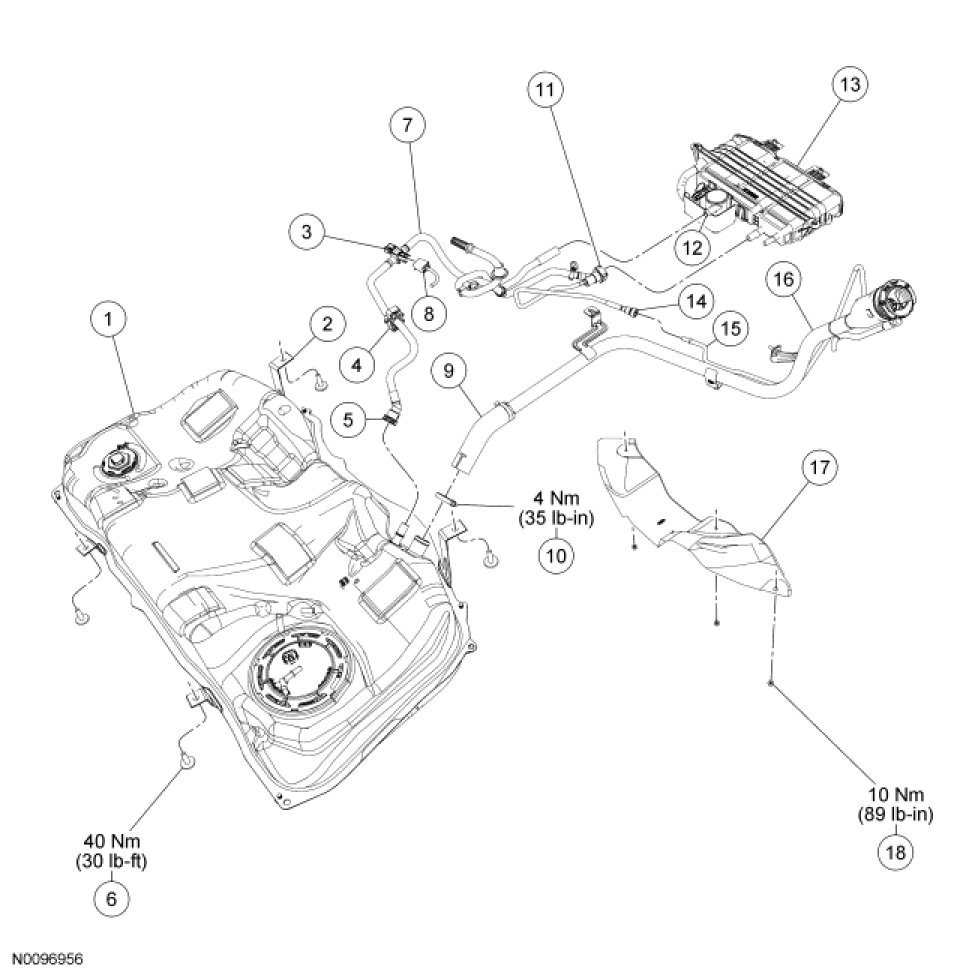

Fuel Vapor Tube Assembly - All Wheel Drive (AWD)













Removal and Installation

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Disconnect the battery ground cable. For additional information, refer to Battery.

3. NOTE: The supplemental refueling adapter is located in the luggage compartment.

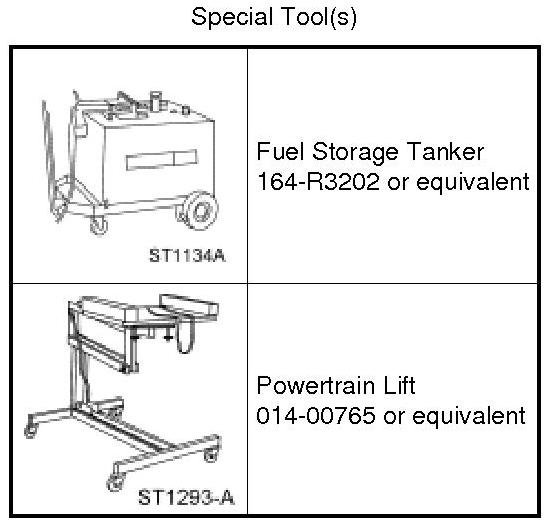

Using the supplemental refueling adapter and the Fuel Storage Tanker, drain any residual fuel from the fuel tank filler pipe.





4. Remove the 3 nuts and the fuel tank filler pipe heat shield.
- To install, tighten to 10 Nm (89 lb-in).

5. Disconnect the fuel vapor tube assembly-to-Evaporative Emission (EVAP) canister quick connect coupling. For additional information, refer to Fuel Delivery and Air Induction.

6. Disconnect the fuel vapor tube assembly from the fuel vapor separator and solenoid assembly.

7. Disconnect the fuel vapor tube assembly-to-recirculation tube quick connect coupling. For additional information, refer to Fuel Delivery and Air Induction.

8. Release the 3 retainer clips.

9. Install the Powertrain Lift under the fuel tank.

10. Remove the 4 bolts and the fuel tank straps.
- To install, tighten to 40 Nm (30 lb-ft).

11. Partially lower the fuel tank enough to access the fuel tank filler pipe hose clamp.

12. NOTE: Some residual fuel may remain in the fuel tank filler pipe. When removing the filler pipe, carefully drain the fuel into a suitable container.

Release the clamp and disconnect the fuel tank filler pipe hose from the fuel tank.

- To install, tighten to 4 Nm (35 lb-in).

13. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.

14. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. For additional information, refer to Fuel Delivery and Air Induction.

15. Remove the fuel vapor tube assembly.

16. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
