Test JF: Integrated Ignition Coil On Plug Coils A Through J Failure

PINPOINT TEST JF: INTEGRATED IGNITION COIL ON PLUG COILS A THROUGH J FAILURE

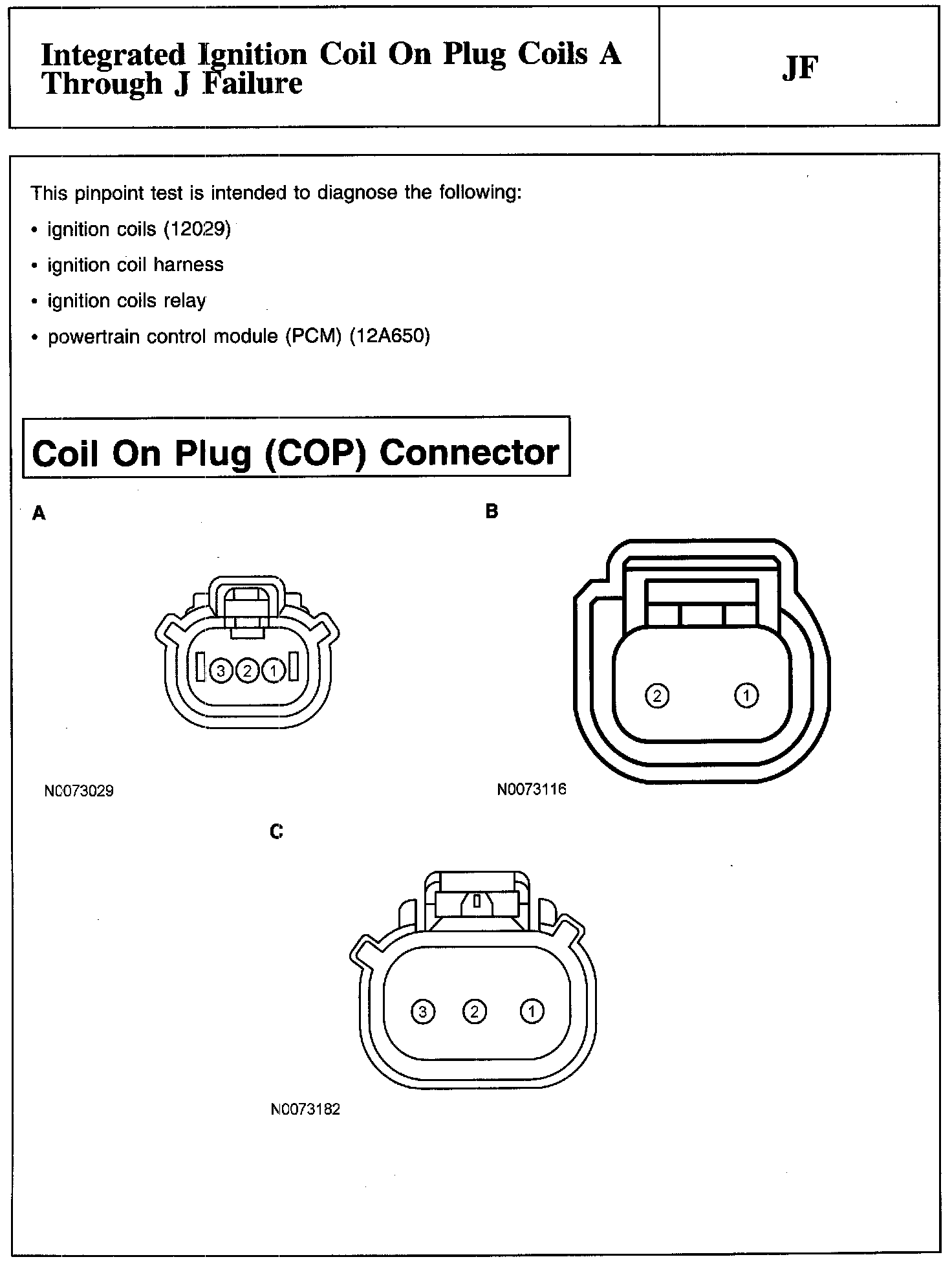

Coil On Plug (COP) Connector:

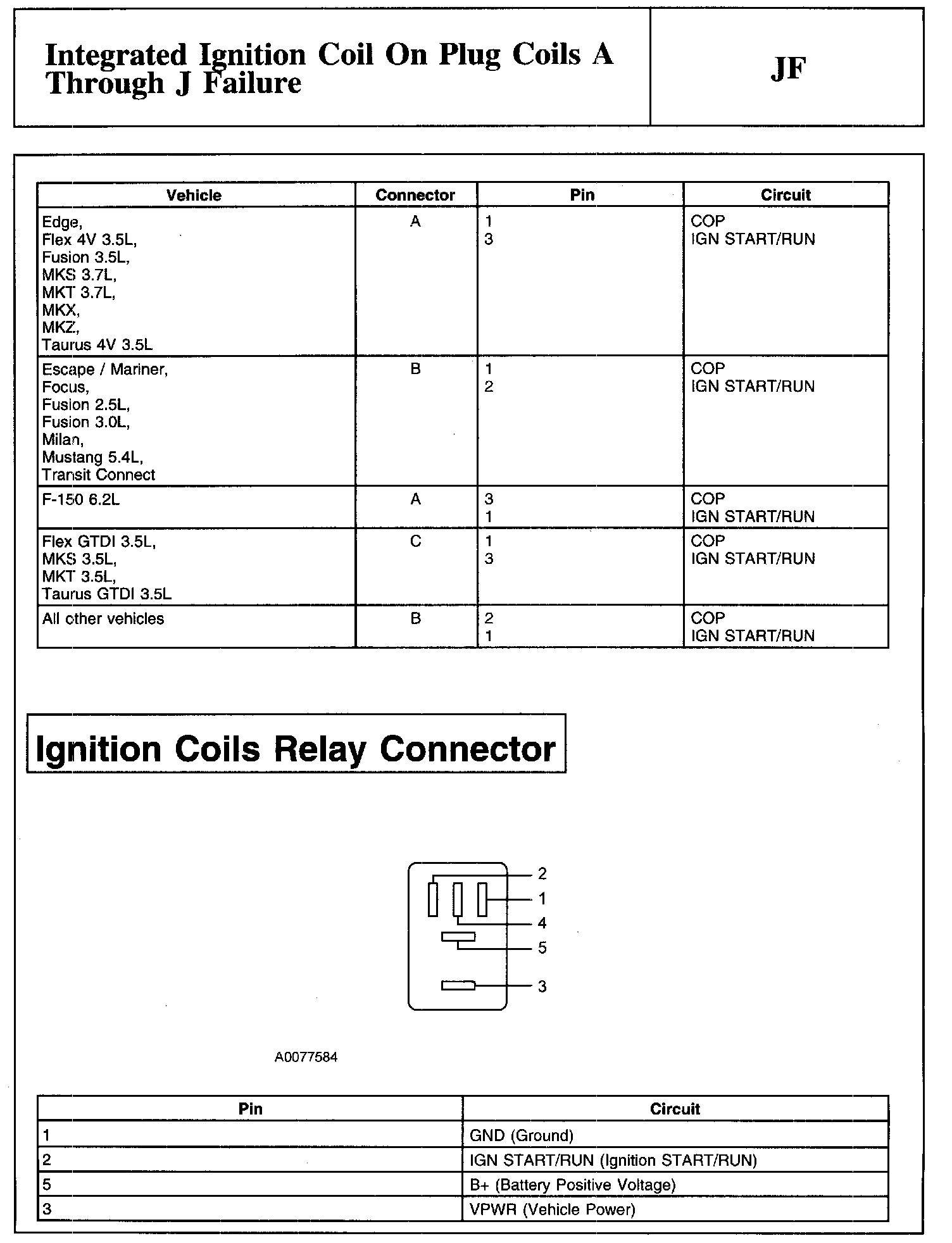

Coil On Plug (COP) Connector And Ignition Coils Relay Connector:

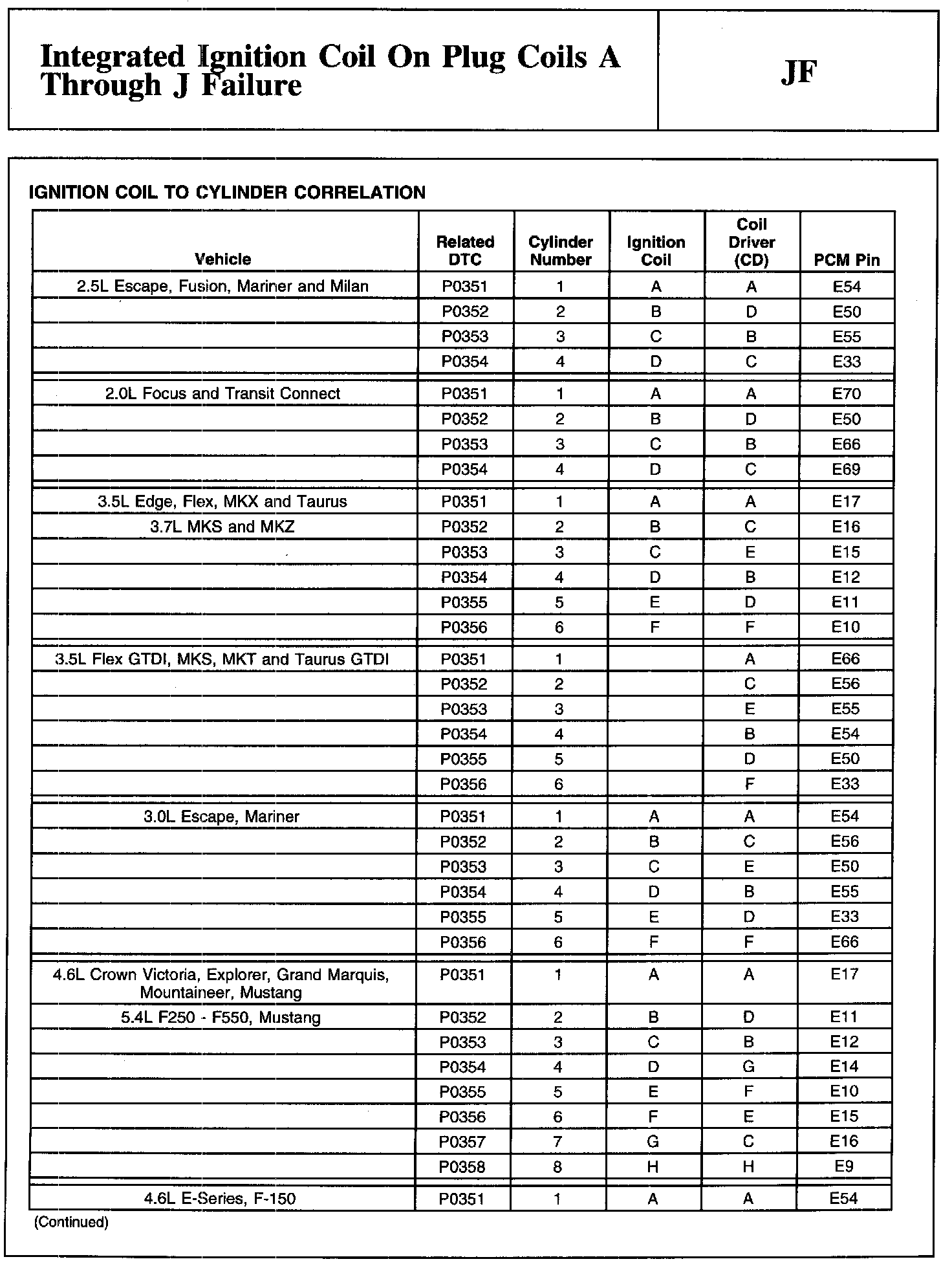

Ignition Coil To Cylinder Correlation:

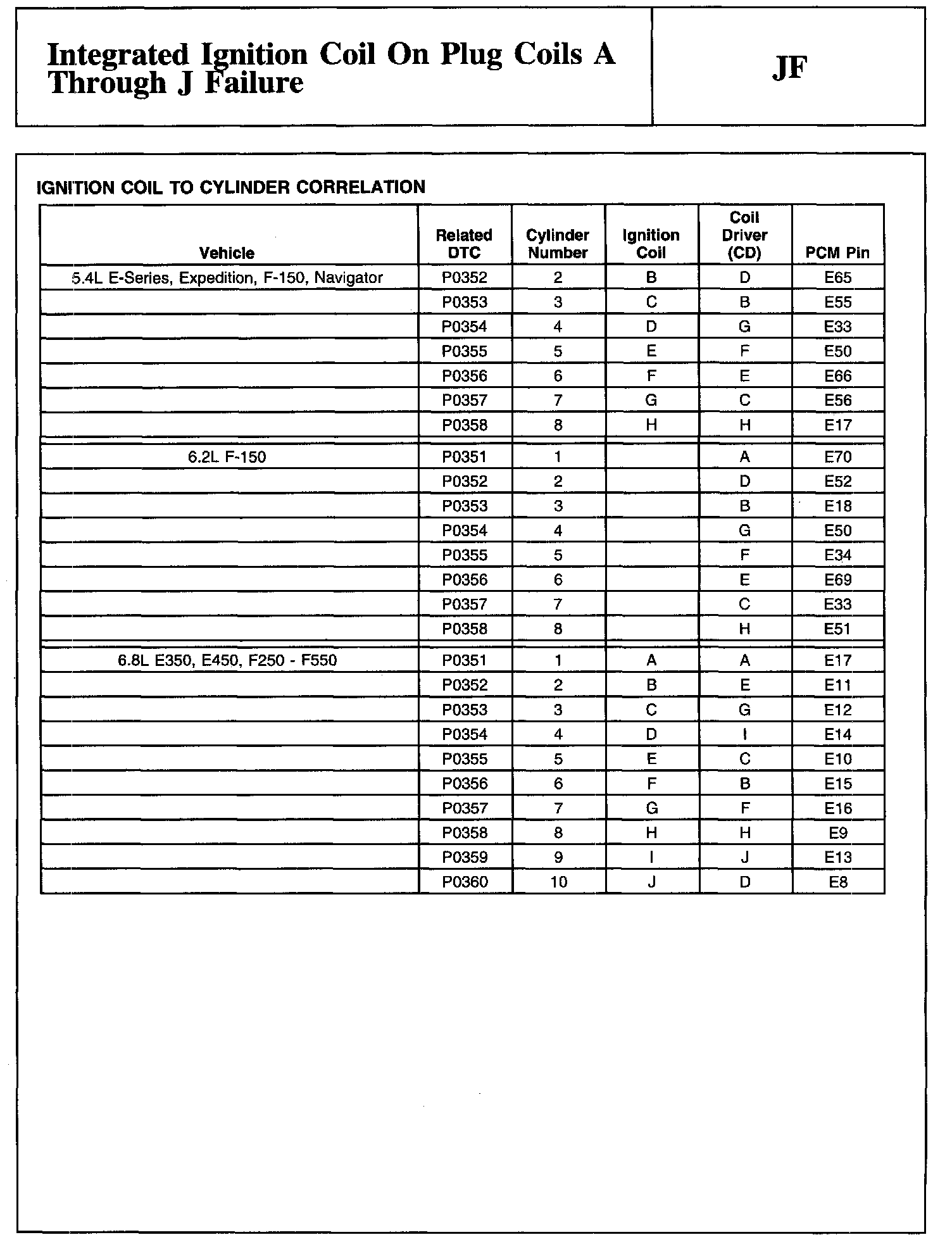

Ignition Coil To Cylinder Correlation:

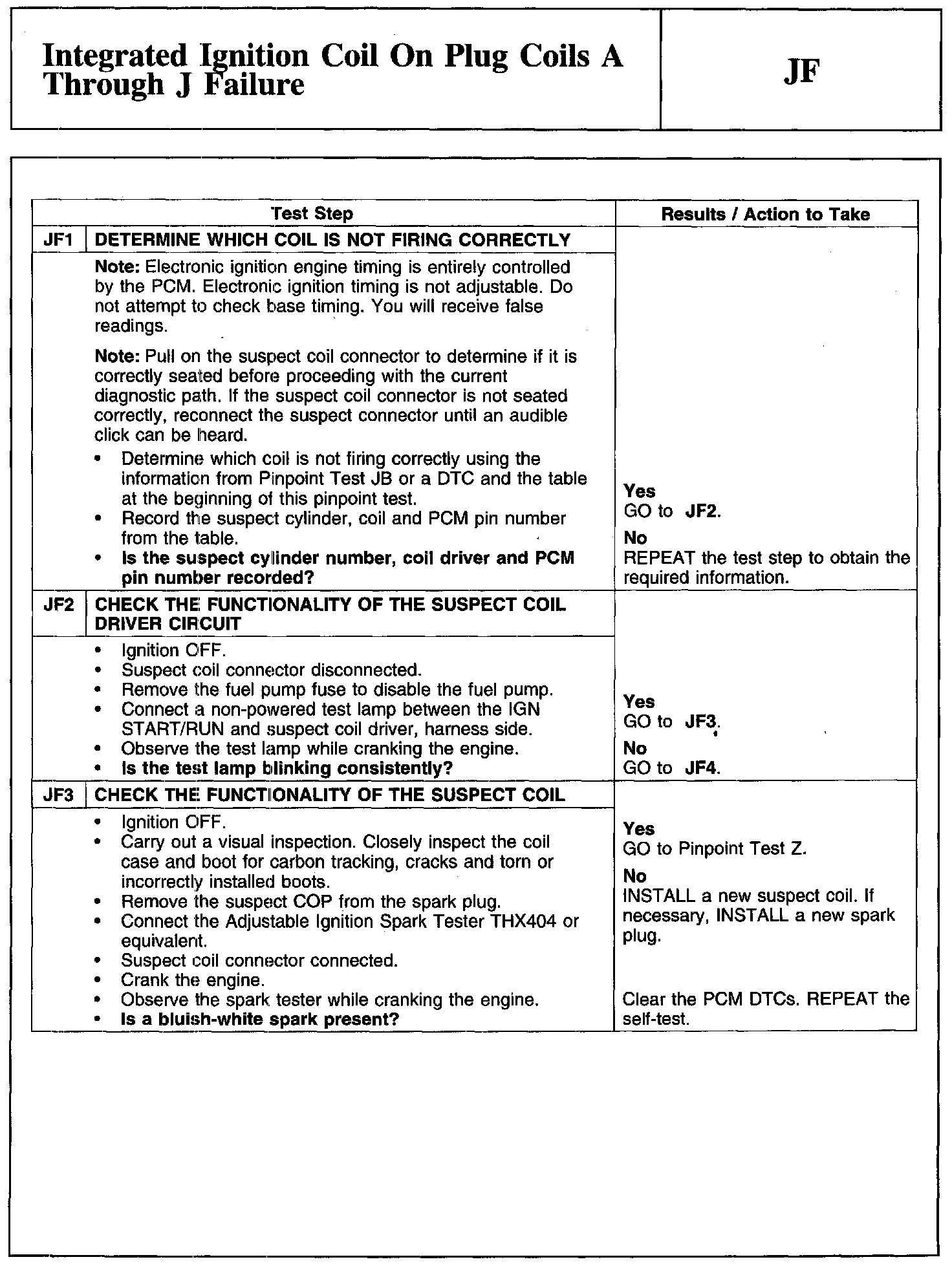

JF1-JF3:

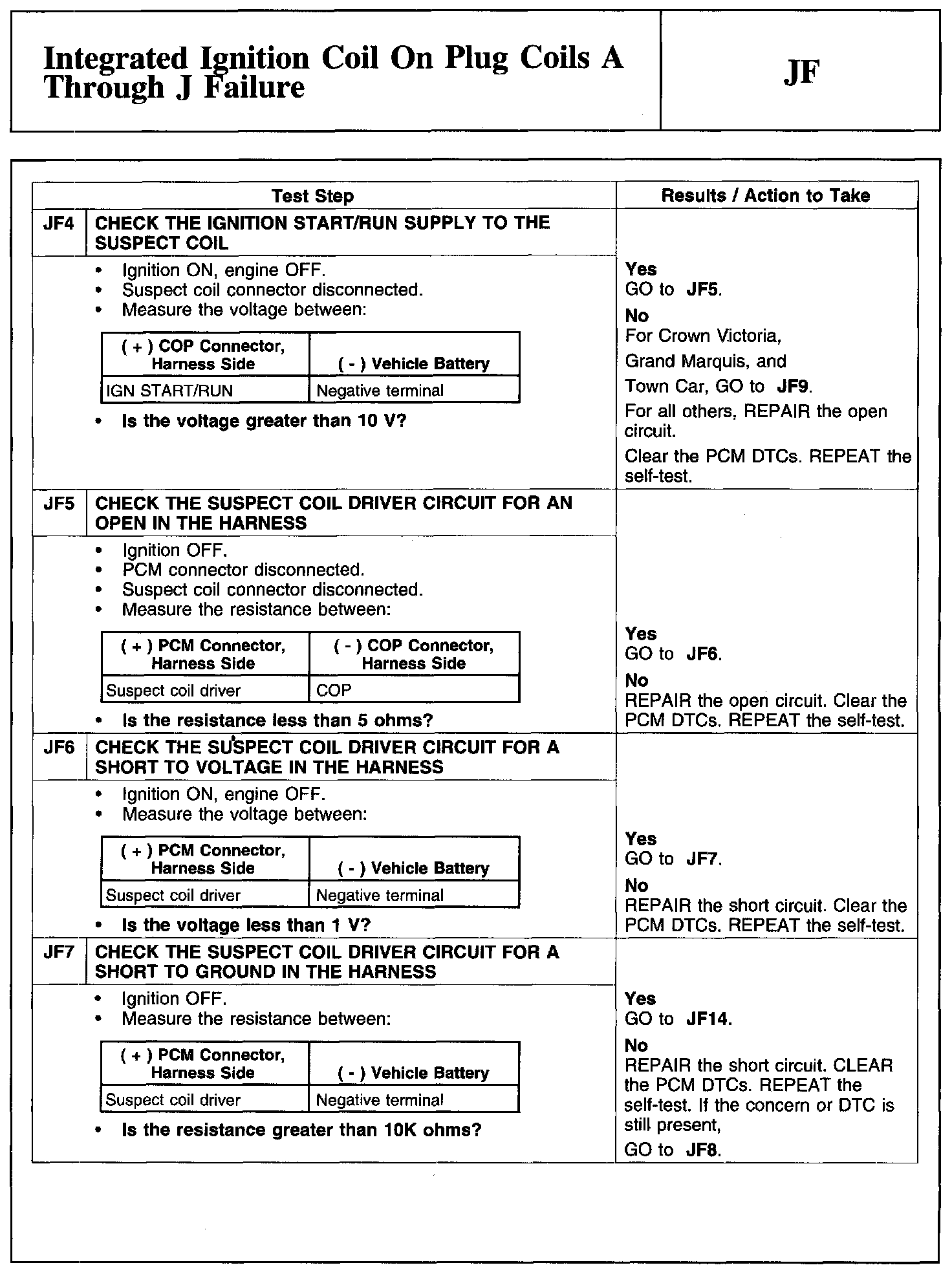

JF4-JF7:

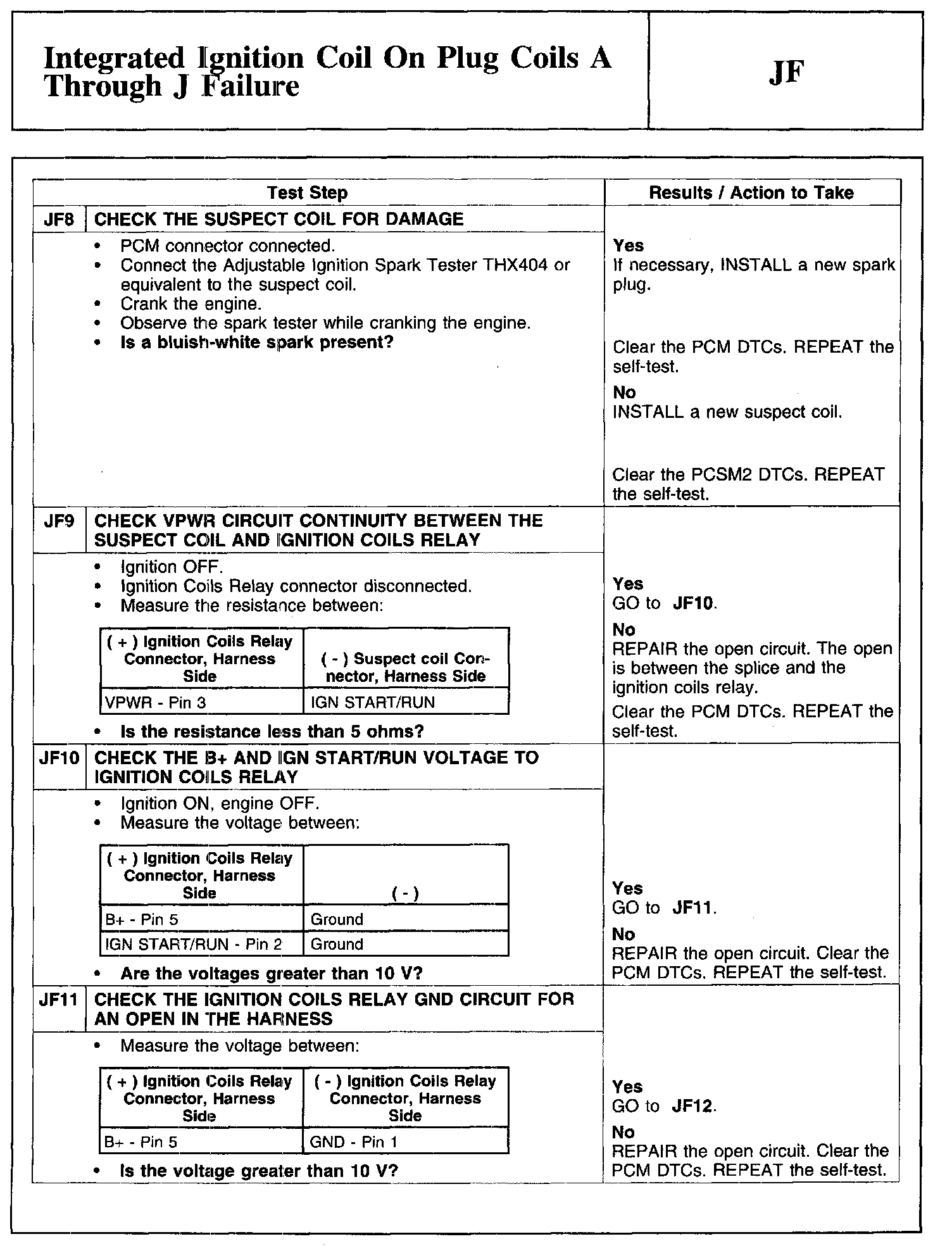

JF8-JF11:

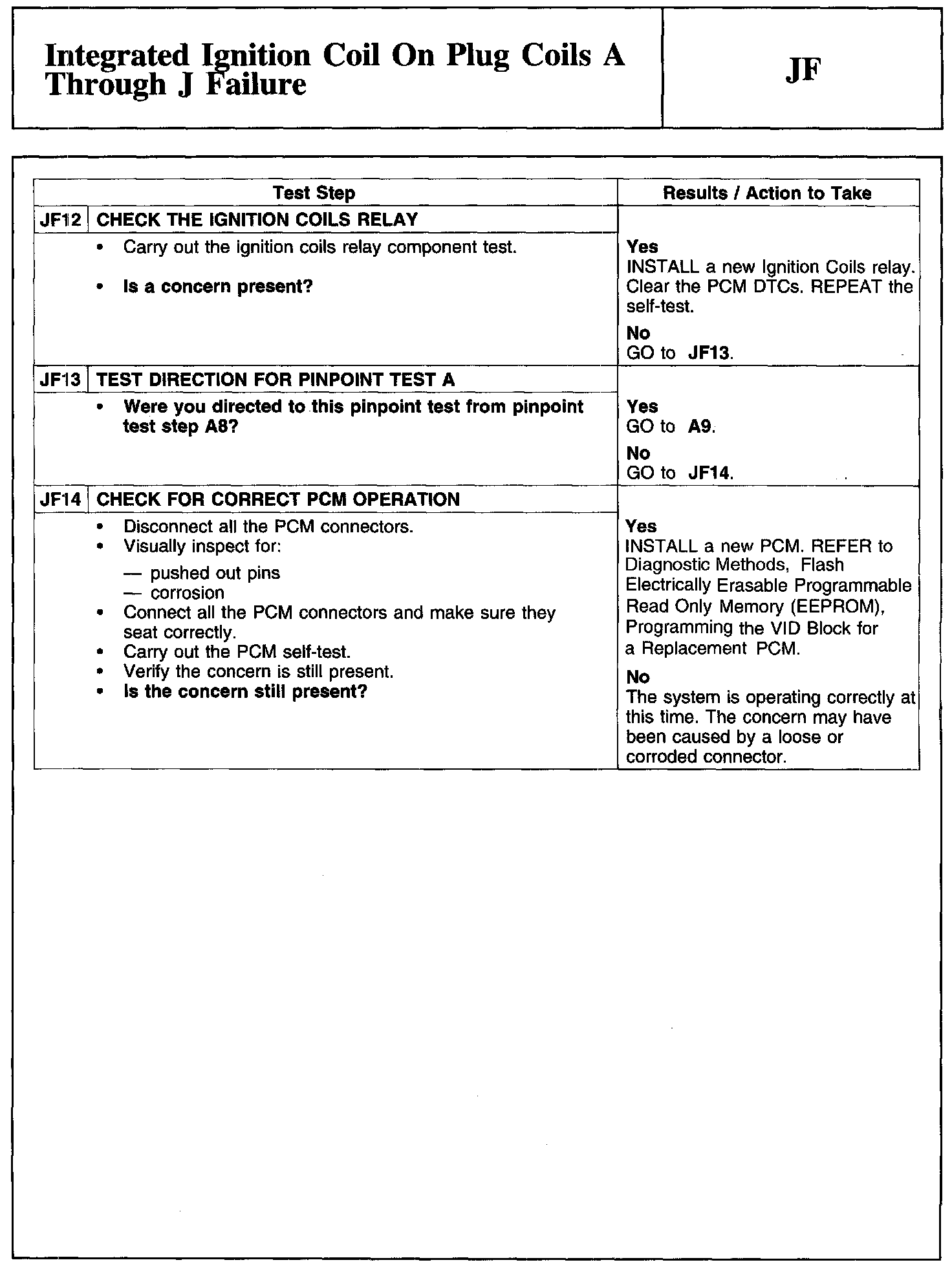

JF12-JF14:
