Test FD: Brake Pedal Inputs

PINPOINT TEST FD: BRAKE PEDAL INPUTS

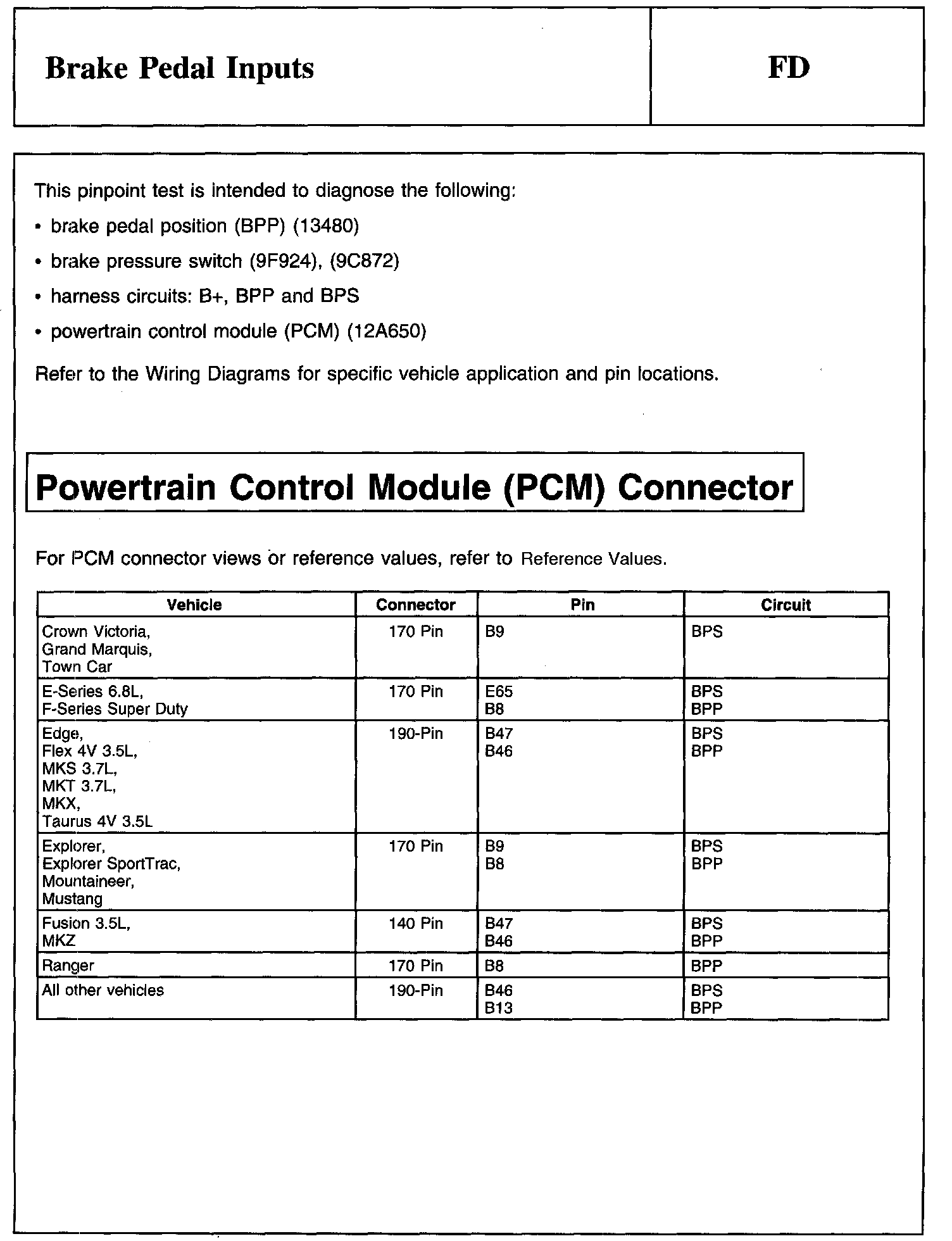

Powertrain Control Module (PCM) Connector:






FD1-FD3:

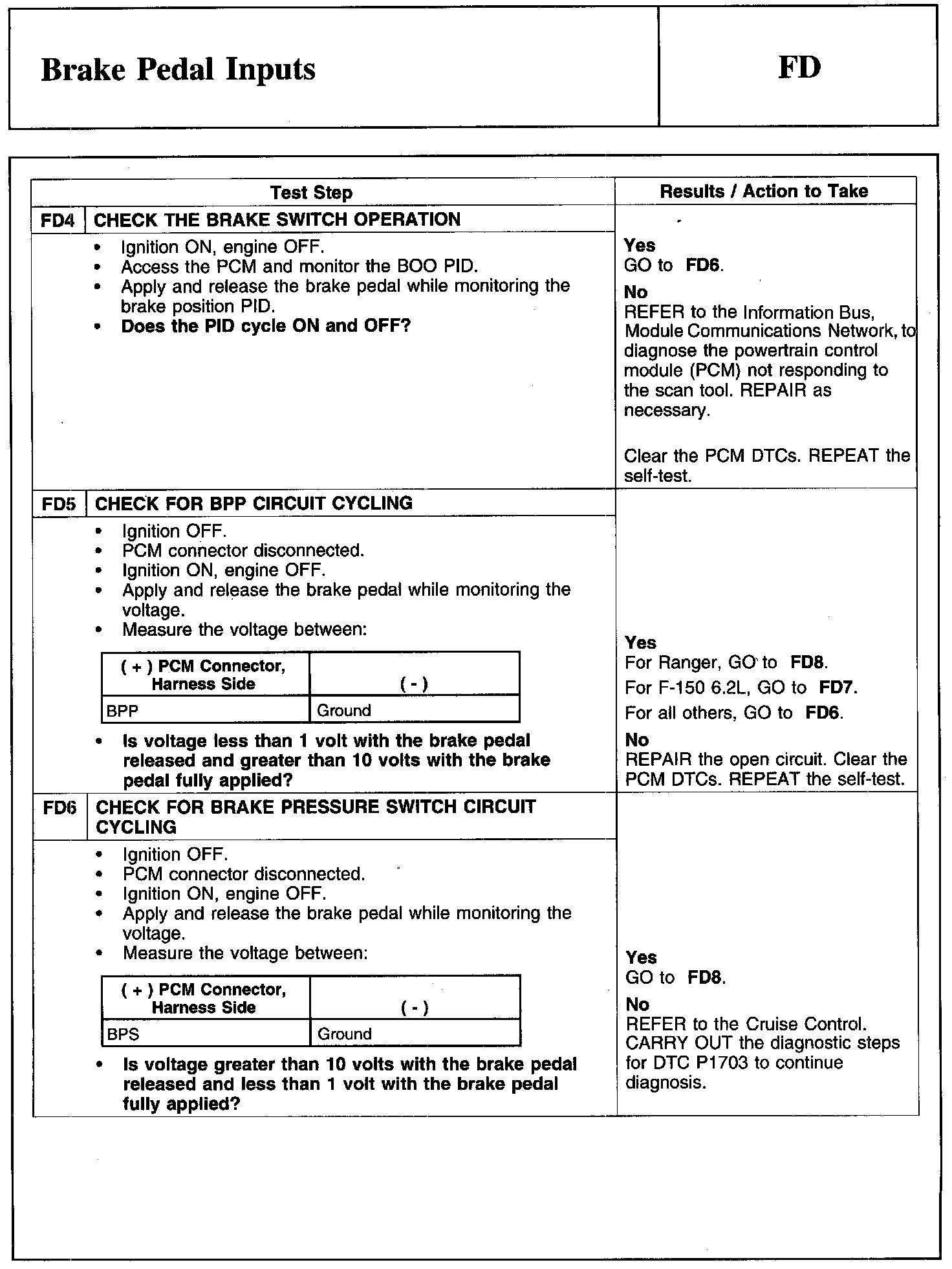

FD4-FD6:

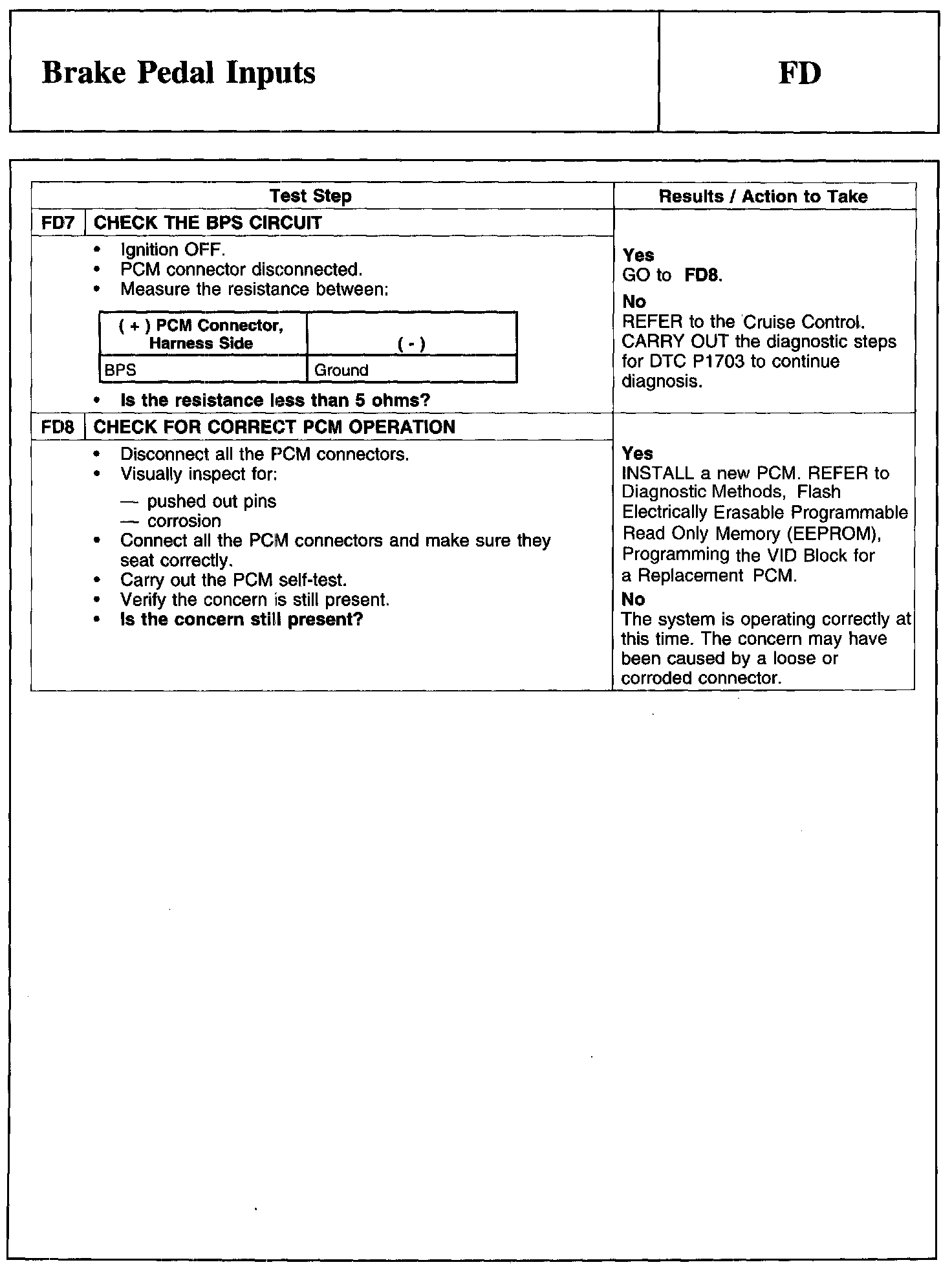

FD7-FD8:
