Front Suspension - Wheel Studs

Wheel Studs









Removal

1. Remove the wheel hub. For additional information, refer to Wheel Bearing and Wheel Hub Front Suspension - Wheel Bearing and Wheel Hub.

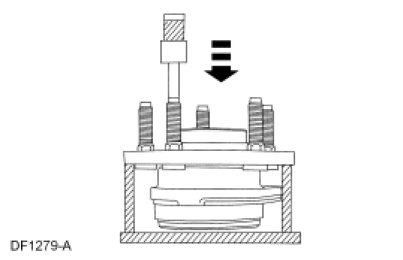

2. Using a press, remove the wheel stud from the wheel bearing and hub assembly.





Installation

1. Position the new wheel stud in the wheel hub, aligning the serrations in the wheel hub flange made by the original wheel stud.

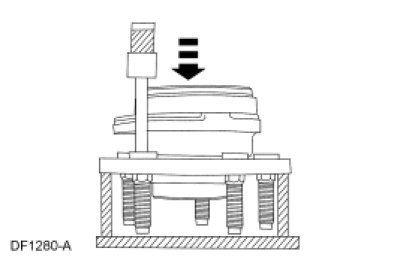

2. Using a press, install a new wheel stud.





3. Install the wheel hub. For additional information, refer to Wheel Bearing and Wheel Hub Front Suspension - Wheel Bearing and Wheel Hub.
