Instrumentation, Message Center and Warning Chimes

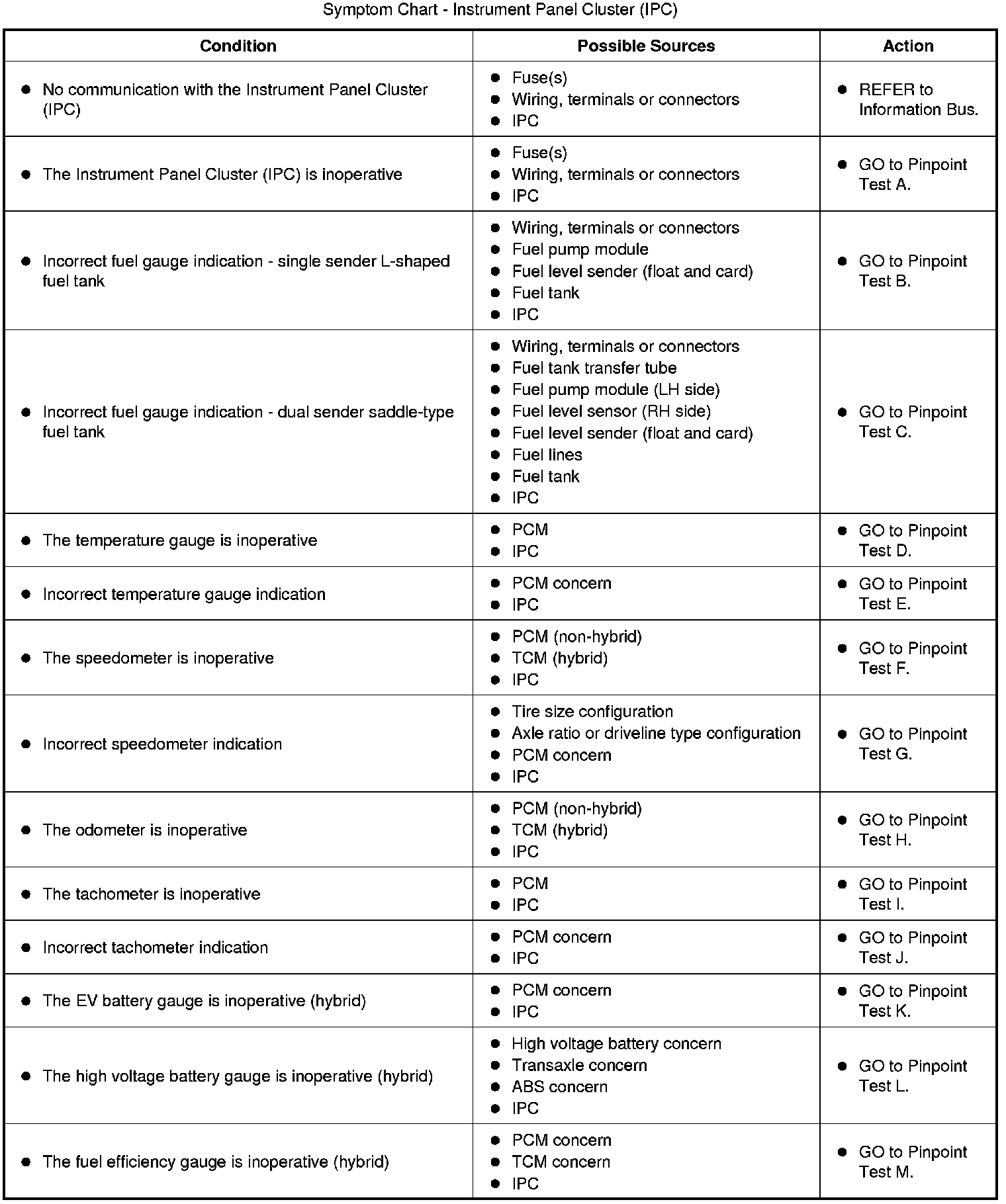

Symptom Chart - Instrument Panel Cluster (IPC) (Part 1):

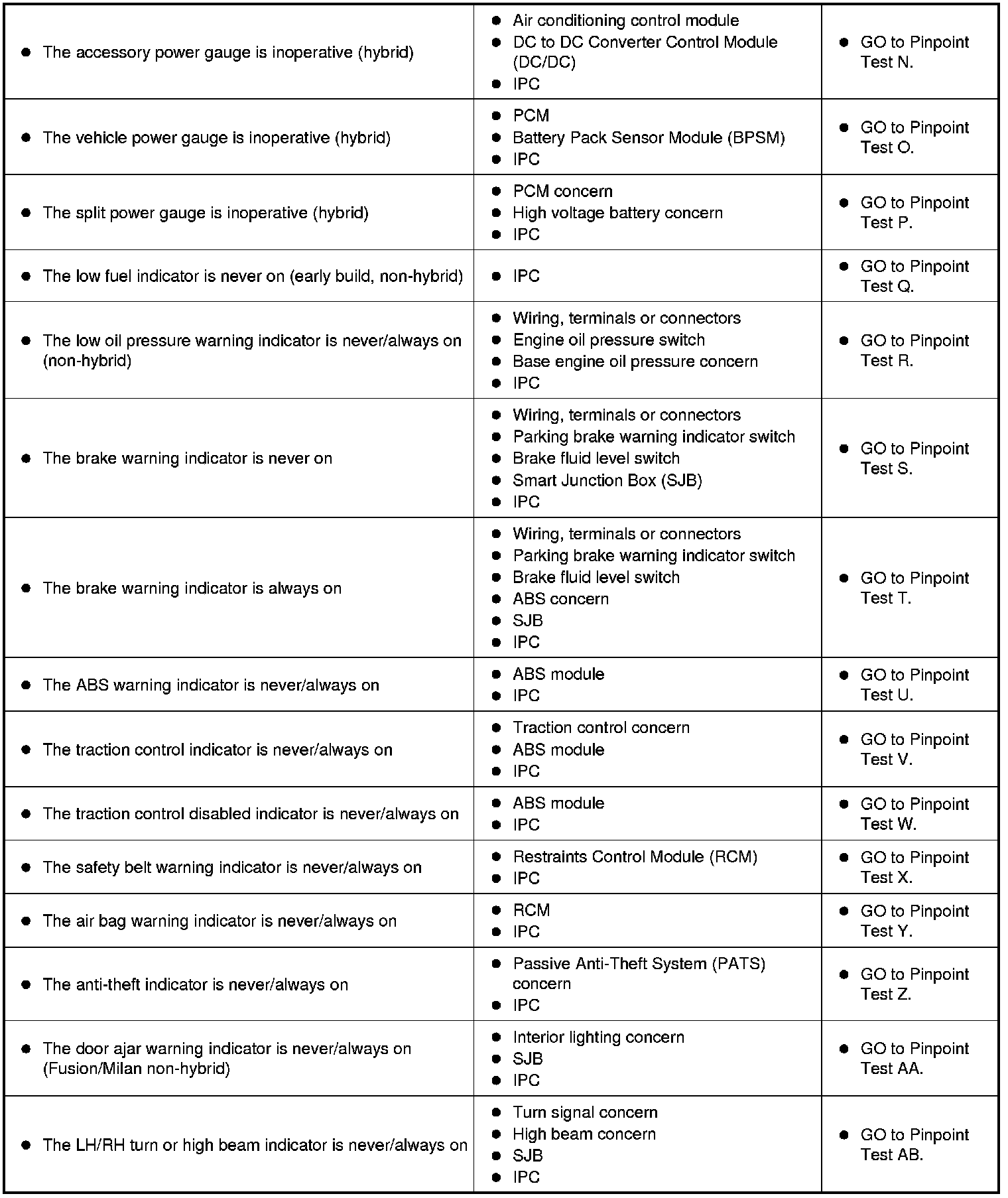

Symptom Chart - Instrument Panel Cluster (IPC) (Part 2):

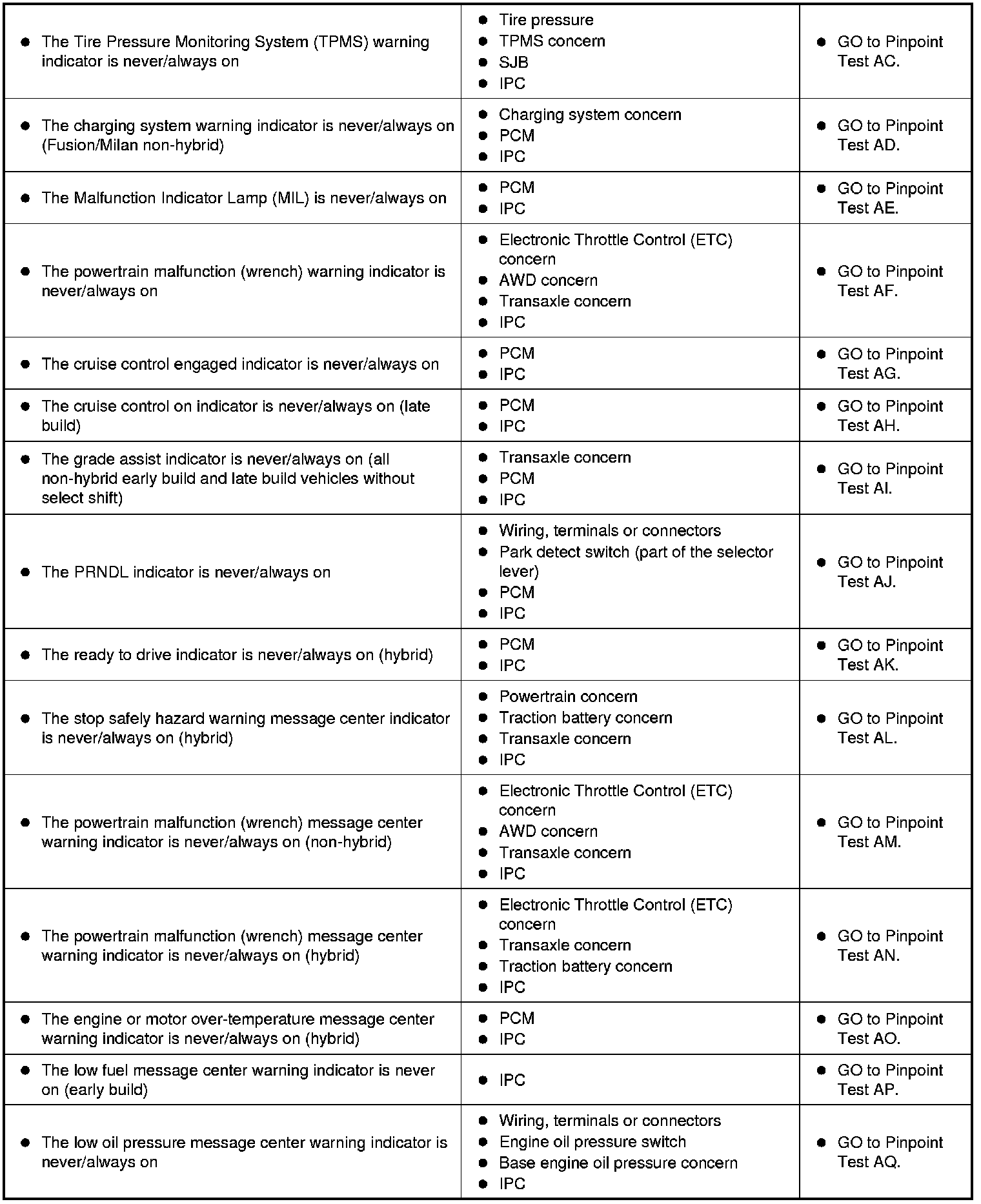

Symptom Chart - Instrument Panel Cluster (IPC) (Part 3):

Symptom Chart - Instrument Panel Cluster (IPC) (Part 4):

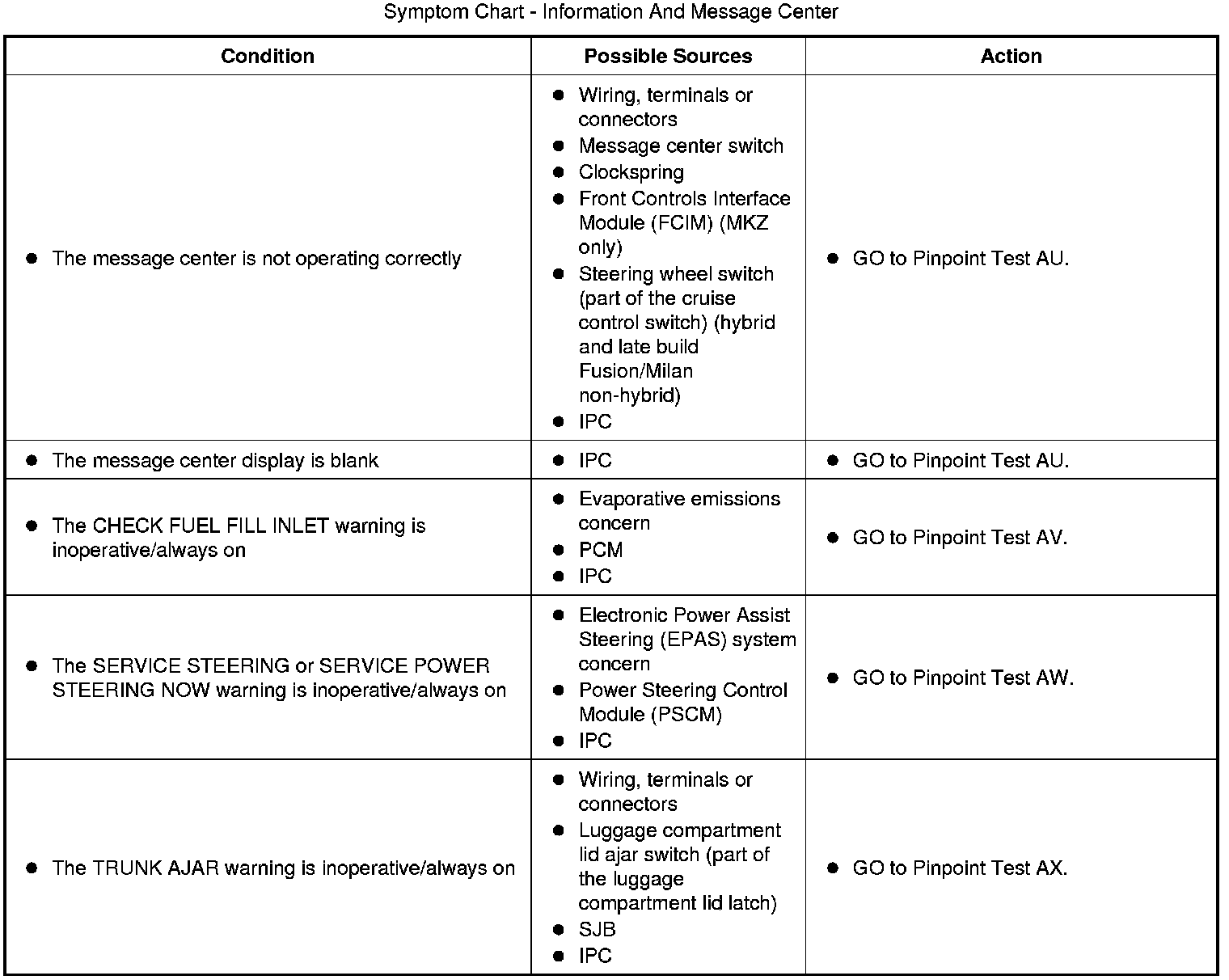

Symptom Chart - Information And Message Center (Part 1):

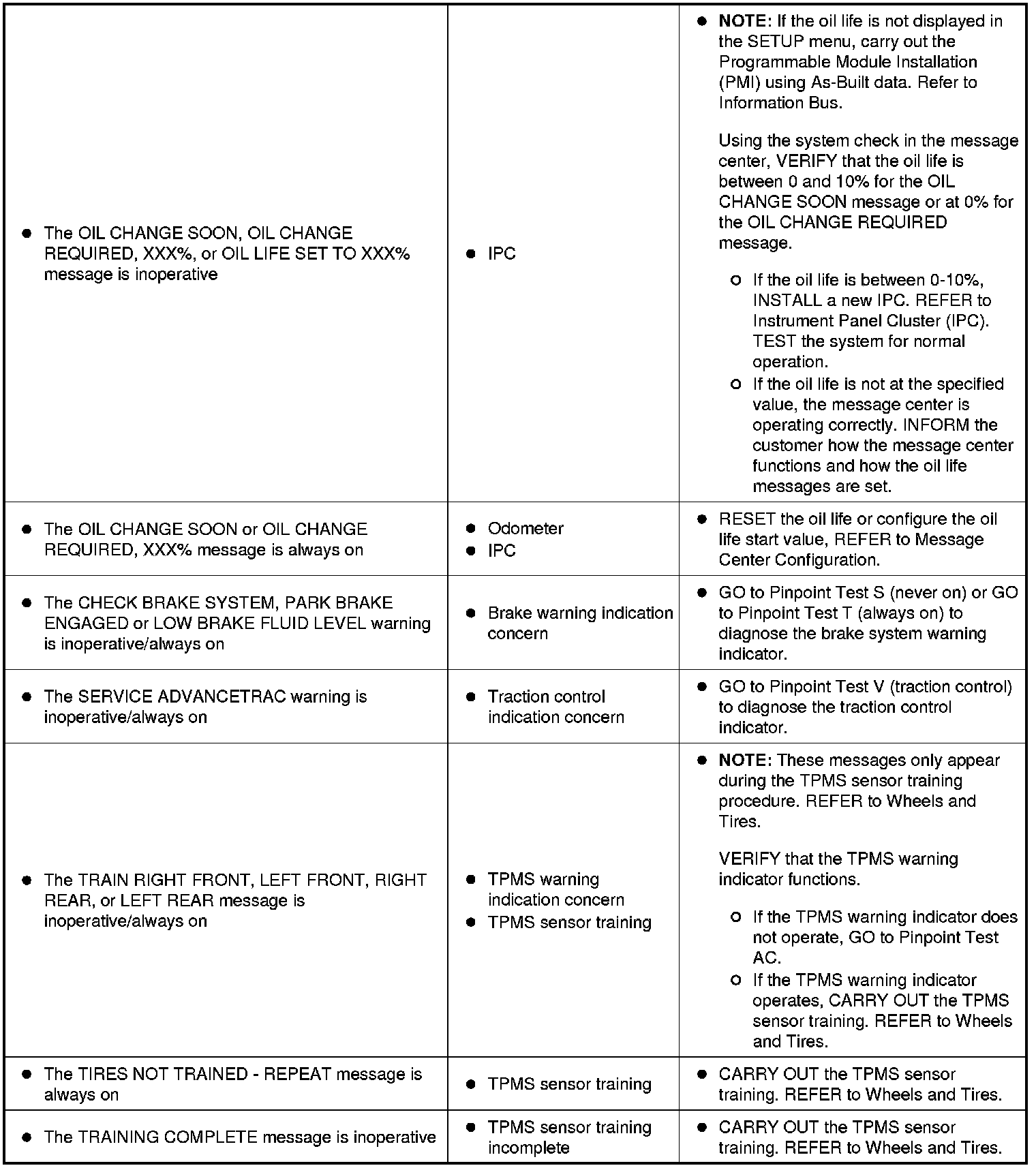

Symptom Chart - Information And Message Center (Part 2):

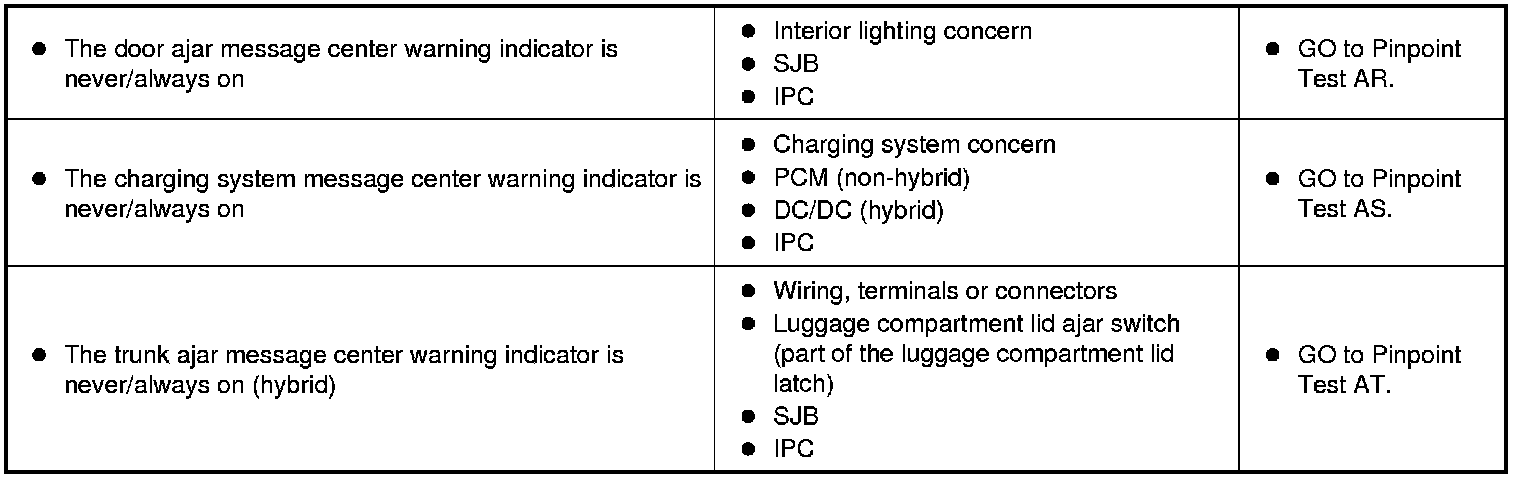

Symptom Chart - Information And Message Center (Part 3):

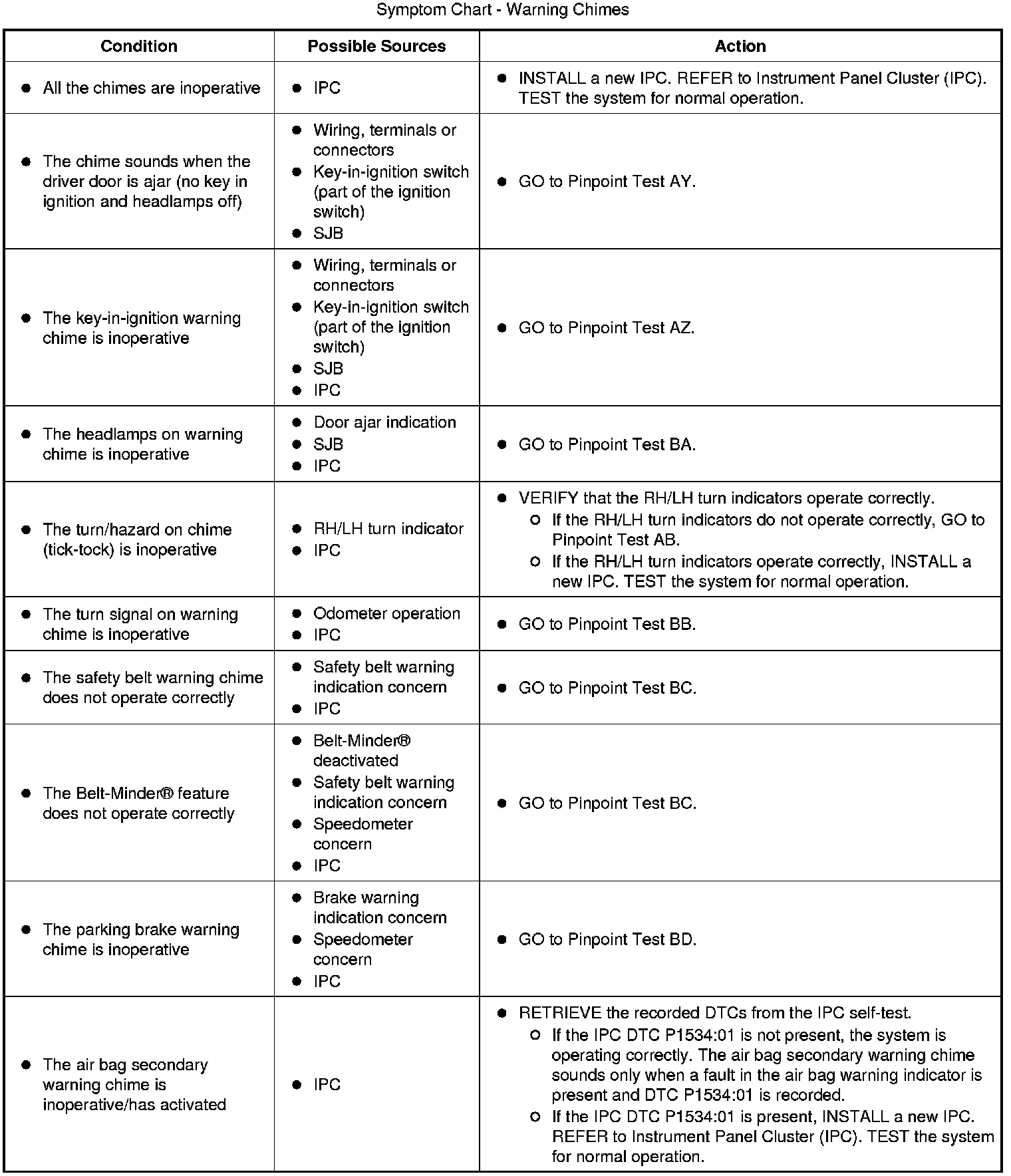

Symptom Chart - Warning Chimes (Part 1):

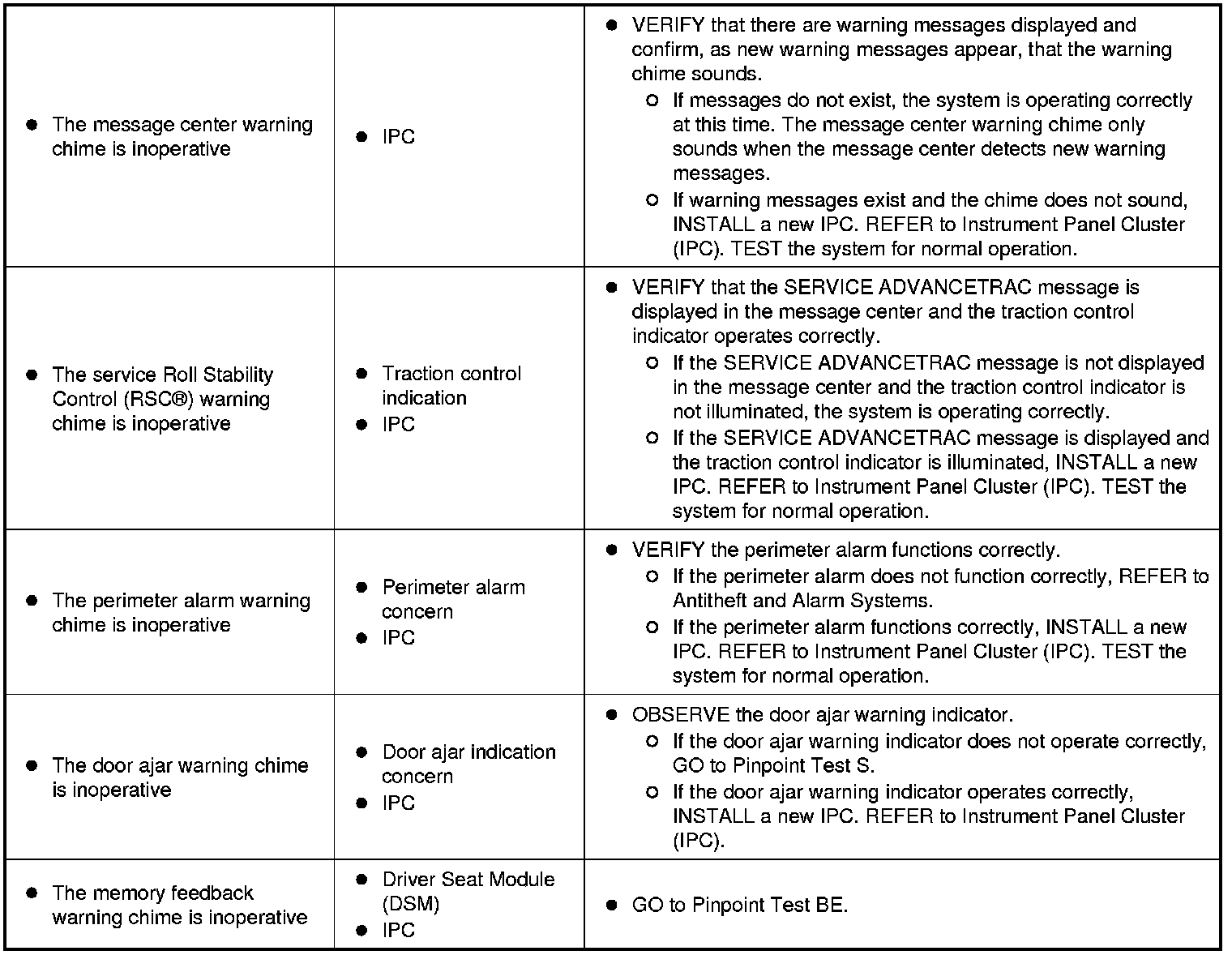

Symptom Chart - Warning Chimes (Part 2):
