Exhaust System - Exploded View

Exhaust System - Exploded View

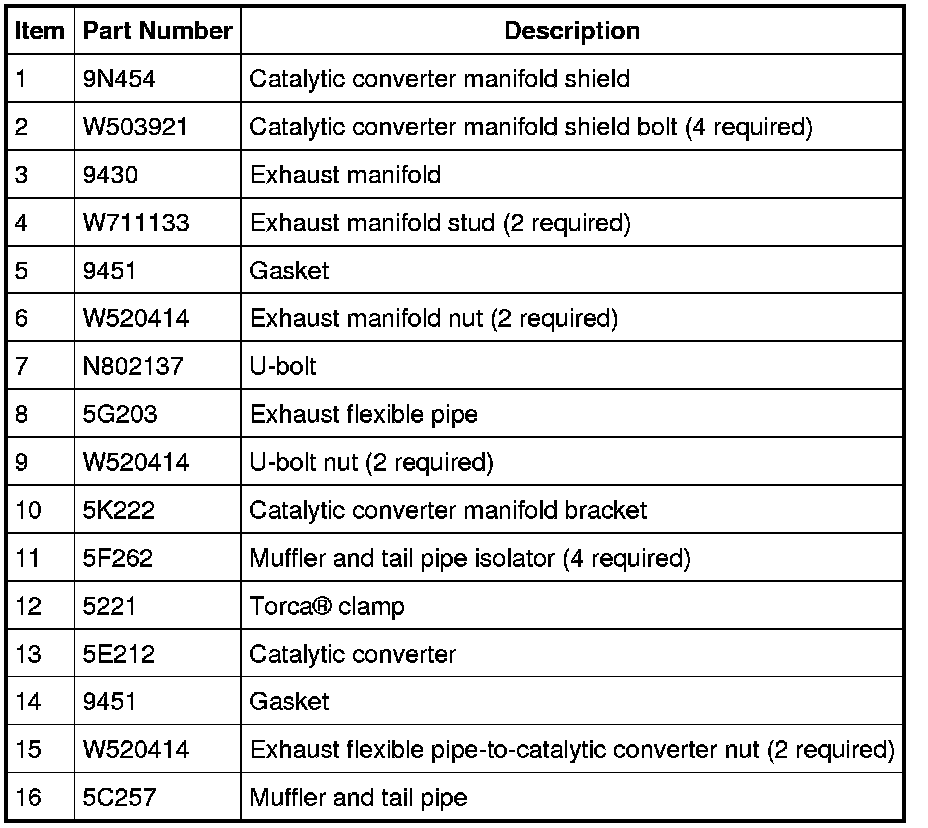

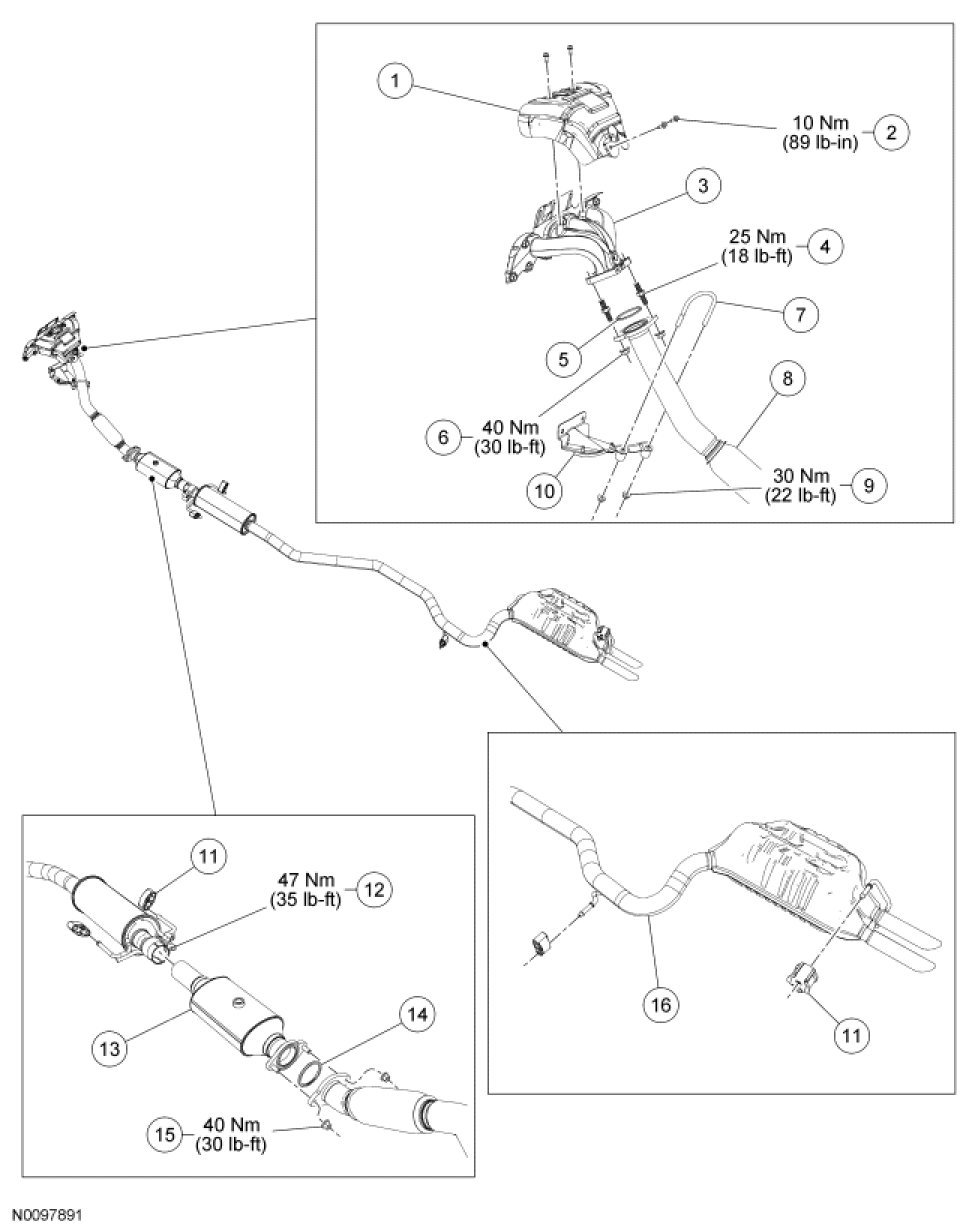

2.5L Hybrid

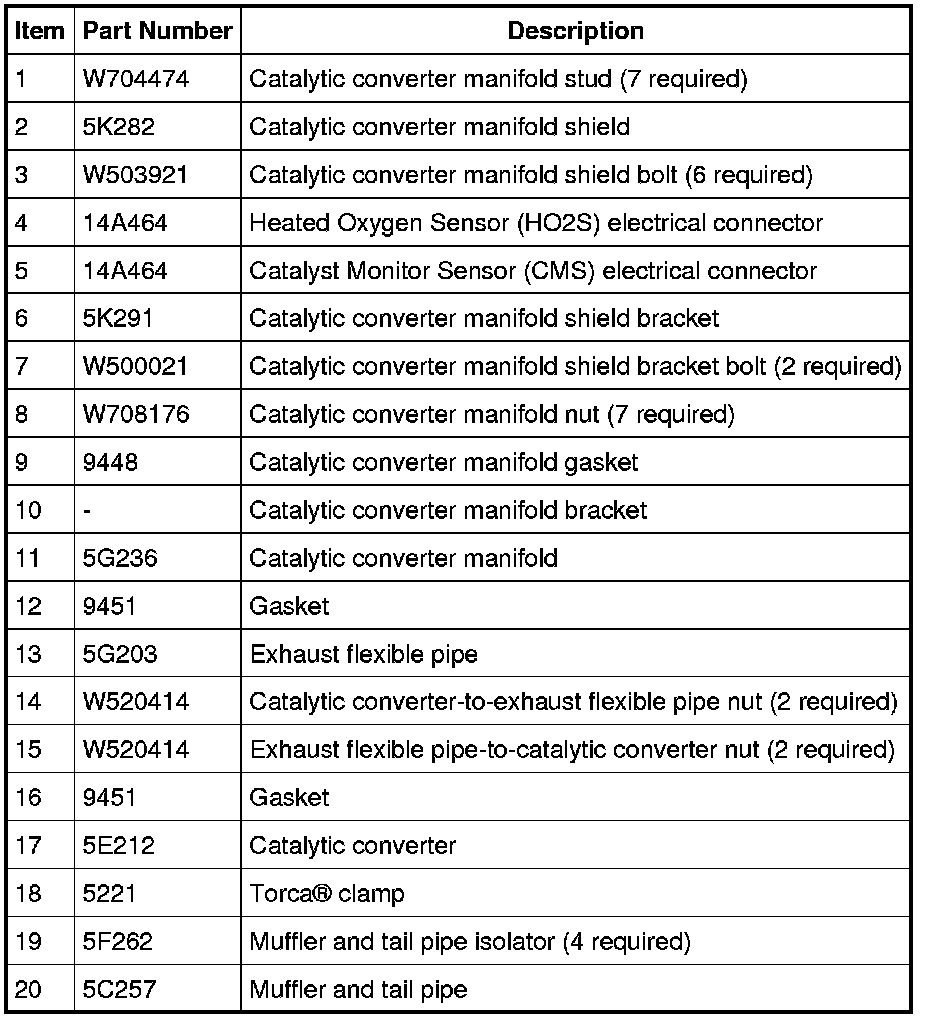

2.5L











3.0L Front Wheel Drive (FWD) (View 1 of 3)











3.0L, 3.5L (View 2 of 3)











3.0L All-Wheel Drive (AWD) (View 3 of 3)











3.5L (View 1 of 3)

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.













3.5L (View 2 of 3)

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.













3.5L (View 3 of 3)
