Removal and Replacement

Engine Mount













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Release the fuel system pressure. For additional information, refer to Fuel Delivery and Air Induction.

3. Remove the engine coolant degas bottle. For additional information, refer to Cooling System &/or Engine Block Heater.

4. Remove the lower intake manifold. For additional information, refer to Lower Intake Manifold Lower Intake Manifold.

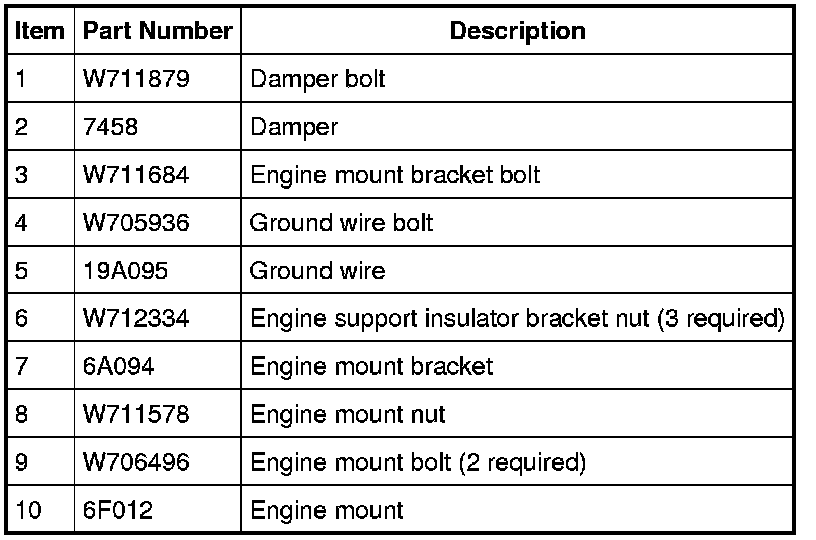

5. Remove the bolt and position aside the ground wire.
- To install, tighten to 10 Nm (89 lb-in).

6. Remove the bolt and damper.
- To install, tighten to 23 Nm (17 lb-ft).

7. Remove the engine support insulator bracket bolt.
- To install, tighten to 115 Nm (85 lb-ft).

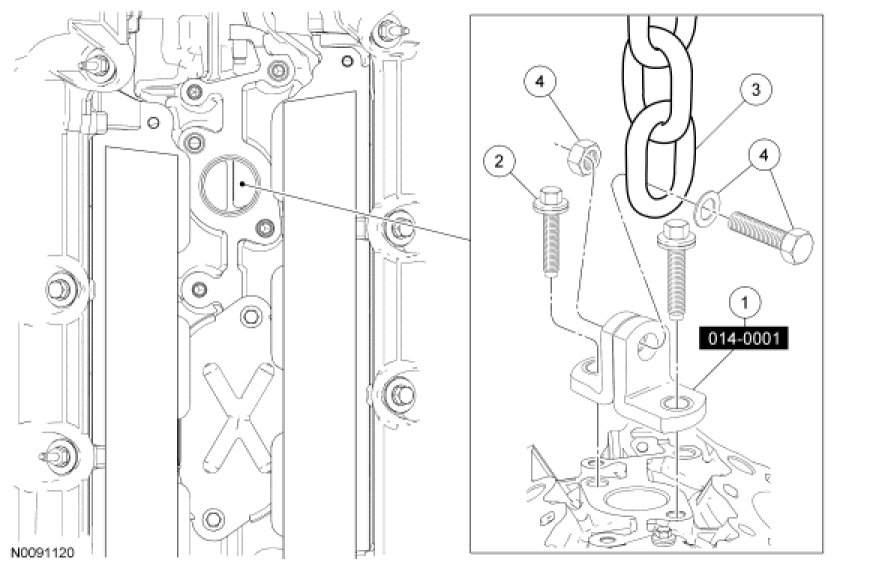

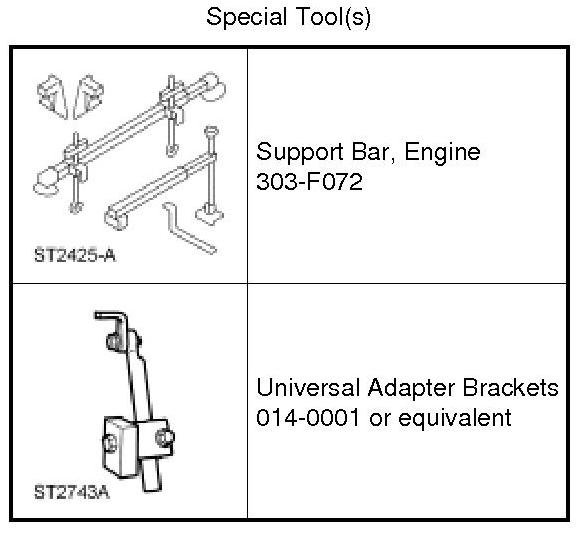

8. Install the Engine Support Bar, Universal Adapter Brackets and a suitable piece of chain.

1. Position the 2 Universal Adapter Brackets on top of the cylinder block.

2. Install 2 M8 x 1.25 x 36 mm (1.41 in) bolts and tighten to 10 Nm (89 lb-in).

3. Use a suitable piece of chain.

4. Fasten the chain to the 2 Universal Adapter Brackets with a suitable nut, washer and bolt.

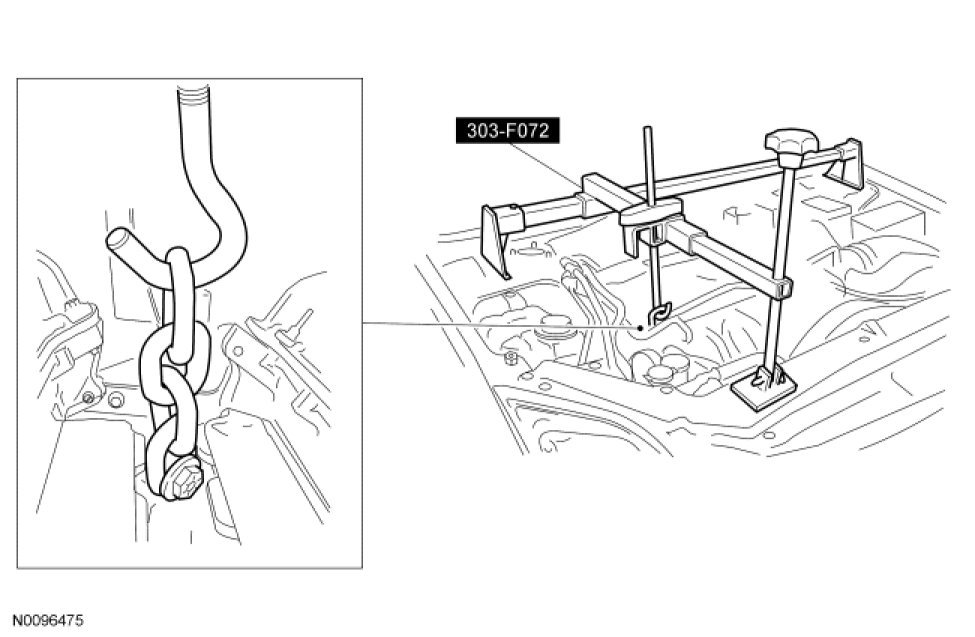

9. Using the Engine Support Bar, lift the engine 12 mm (0.47 in).





10. Remove the 3 nuts and the engine support insulator bracket.
- To install, tighten to 63 Nm (46 lb-ft).

11. Remove the nut, 2 bolts and the engine mount.
- To install, tighten to 55 Nm (41 lb-ft).

12. NOTE: If the engine mount bracket is to be removed, the engine must be lowered to avoid contact between the A/C tubes and the engine mount bracket.

Use the Engine Support Bar to lower the engine 25 mm (0.98 in).

- Remove the engine mount bracket.

13. To install, reverse the removal procedure.
