Valve Cover - LH

Valve Cover - LH

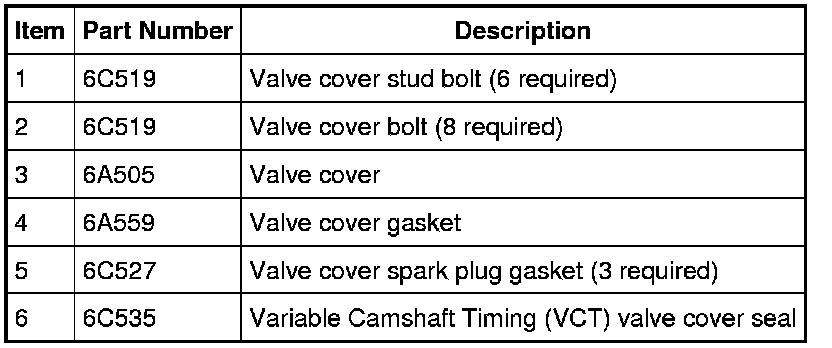

LH Valve Cover (View 1 of 2)









LH Valve Cover (View 2 of 2)









Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.

1. Remove the LH ignition coil-on-plugs. For additional information, refer to Ignition System.

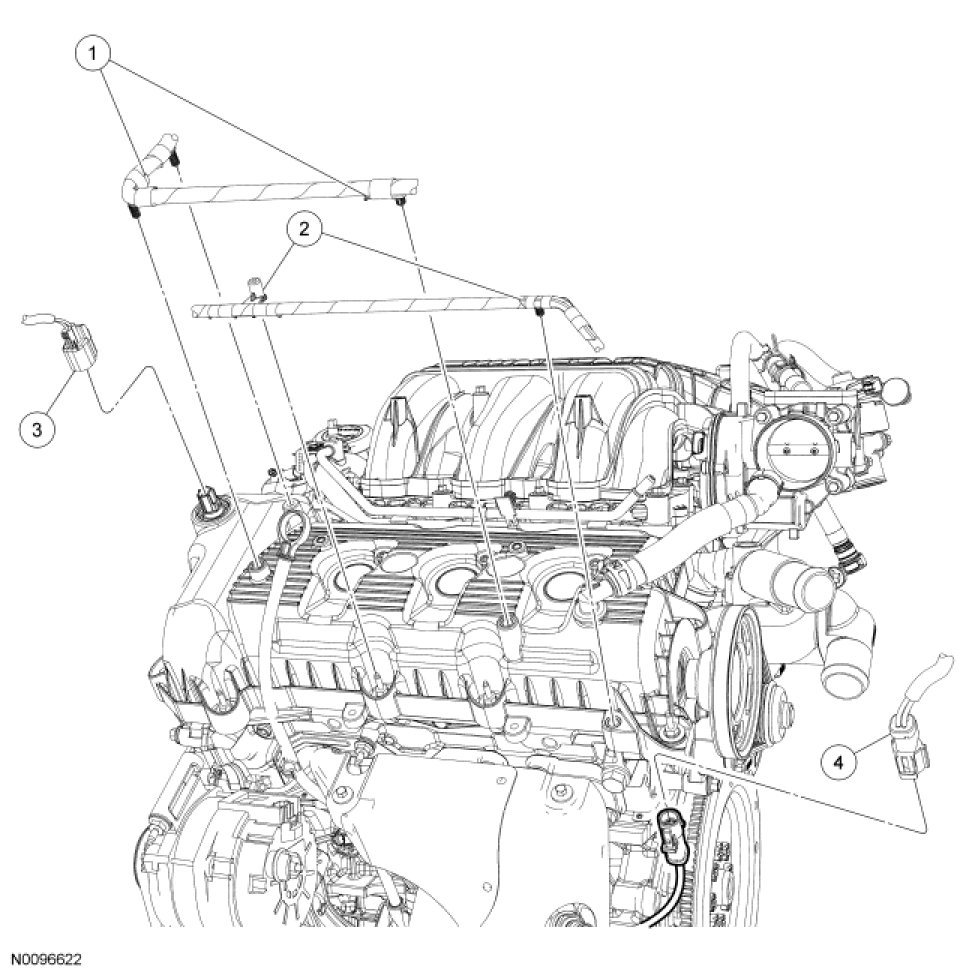

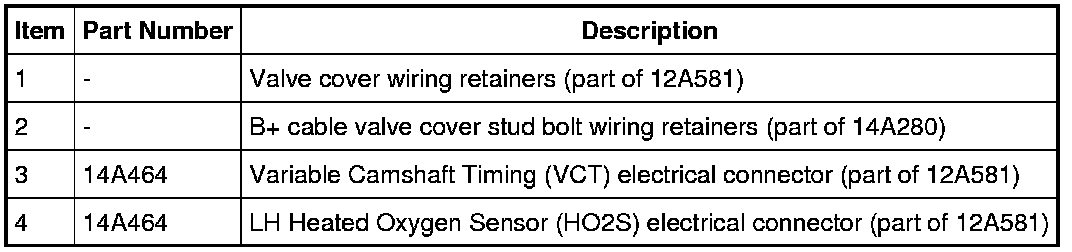

2. Detach the 3 wiring retainers from the valve cover.

3. Detach the wiring retainer from the valve cover stud bolt and 1 retainer from the valve cover.

4. Disconnect the Variable Camshaft Timing (VCT) electrical connector.

5. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.

6. NOTE: Inspect the crankcase ventilation tube and valve cover sealing area. If either a new valve cover or crankcase ventilation tube is required, both components must be installed new.

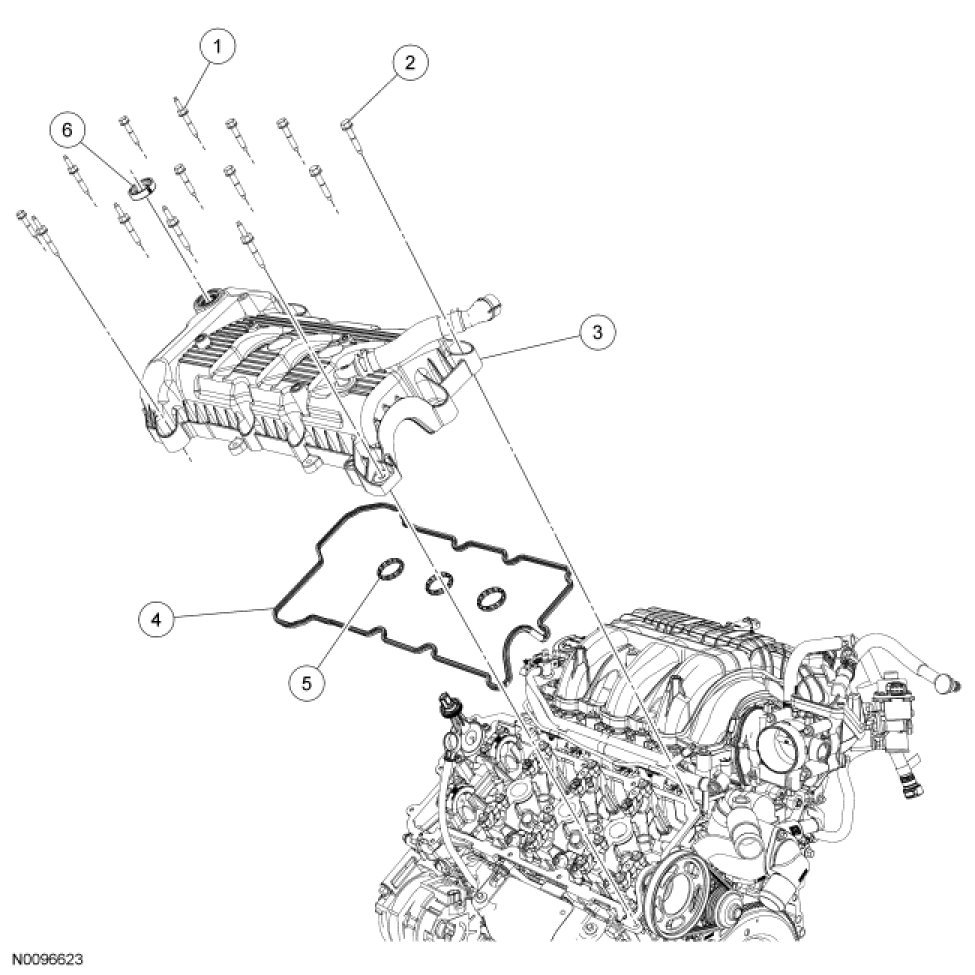

Remove the 9 bolts, 5 stud bolts and the valve cover.

- Remove and discard the gasket.

Installation

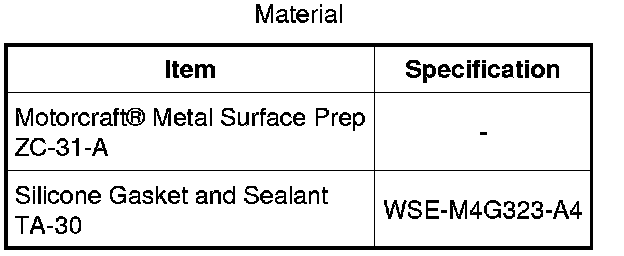

1. NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.

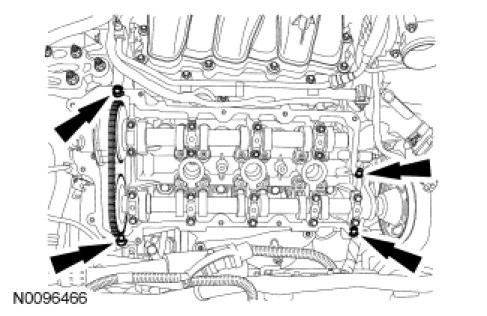

Apply a bead of silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head and the 2 places where the camshaft oil seal retainer meets the cylinder head.





2. Position the valve cover and install the bolts and stud bolts.
- Tighten in the sequence shown to 10 Nm (89 lb-in).





3. Position the wire harness and connect the HO2S electrical connector.

4. Connect the VCT electrical connector.

5. Attach the wiring retainer to the valve cover stud bolt and attach the pin-type wiring retainer to the valve cover.

6. Attach the 3 wiring retainers to the valve cover.

7. Install the LH ignition coil-on-plugs. For additional information, refer to Ignition System.
