Splices

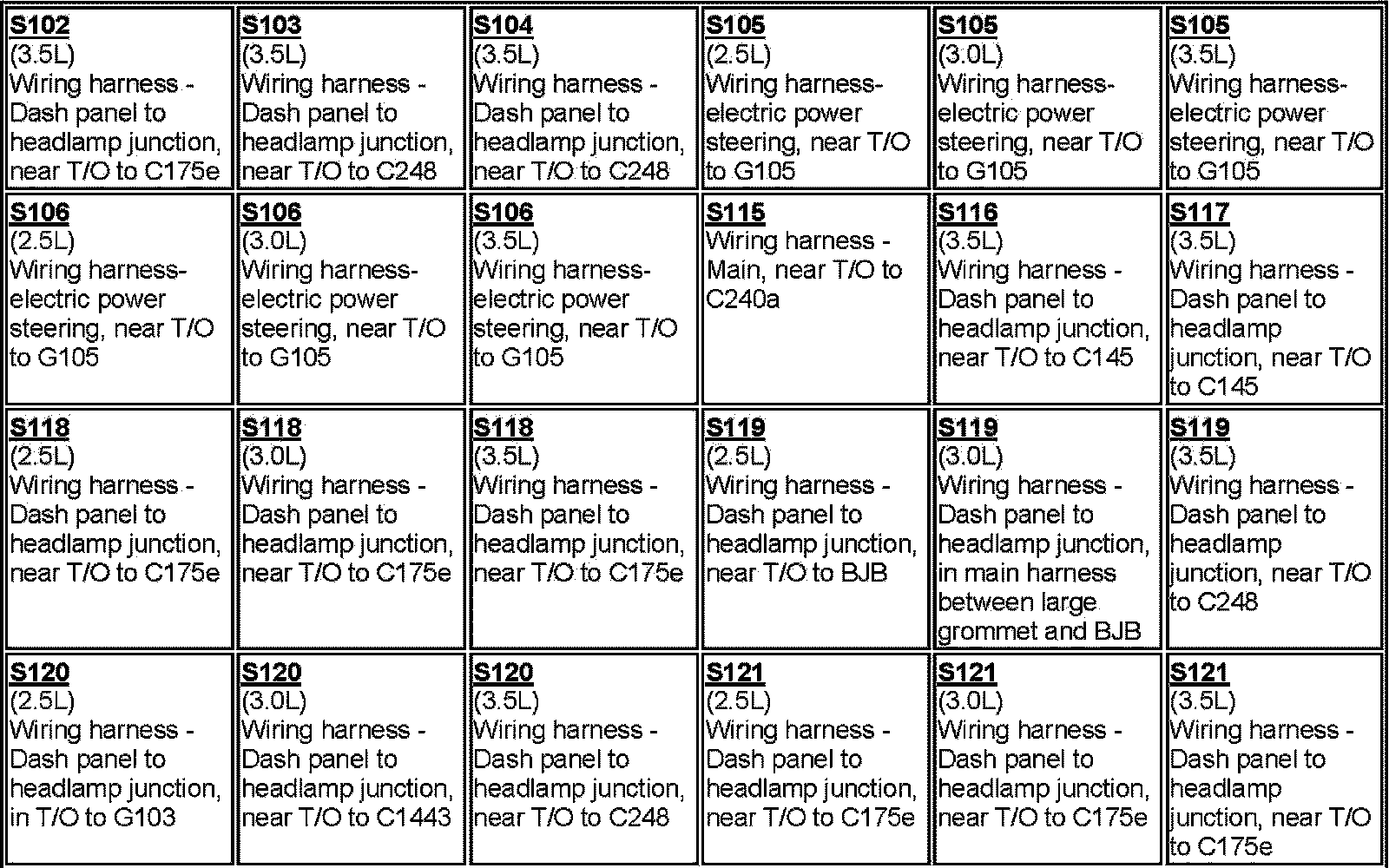

S102-S121:

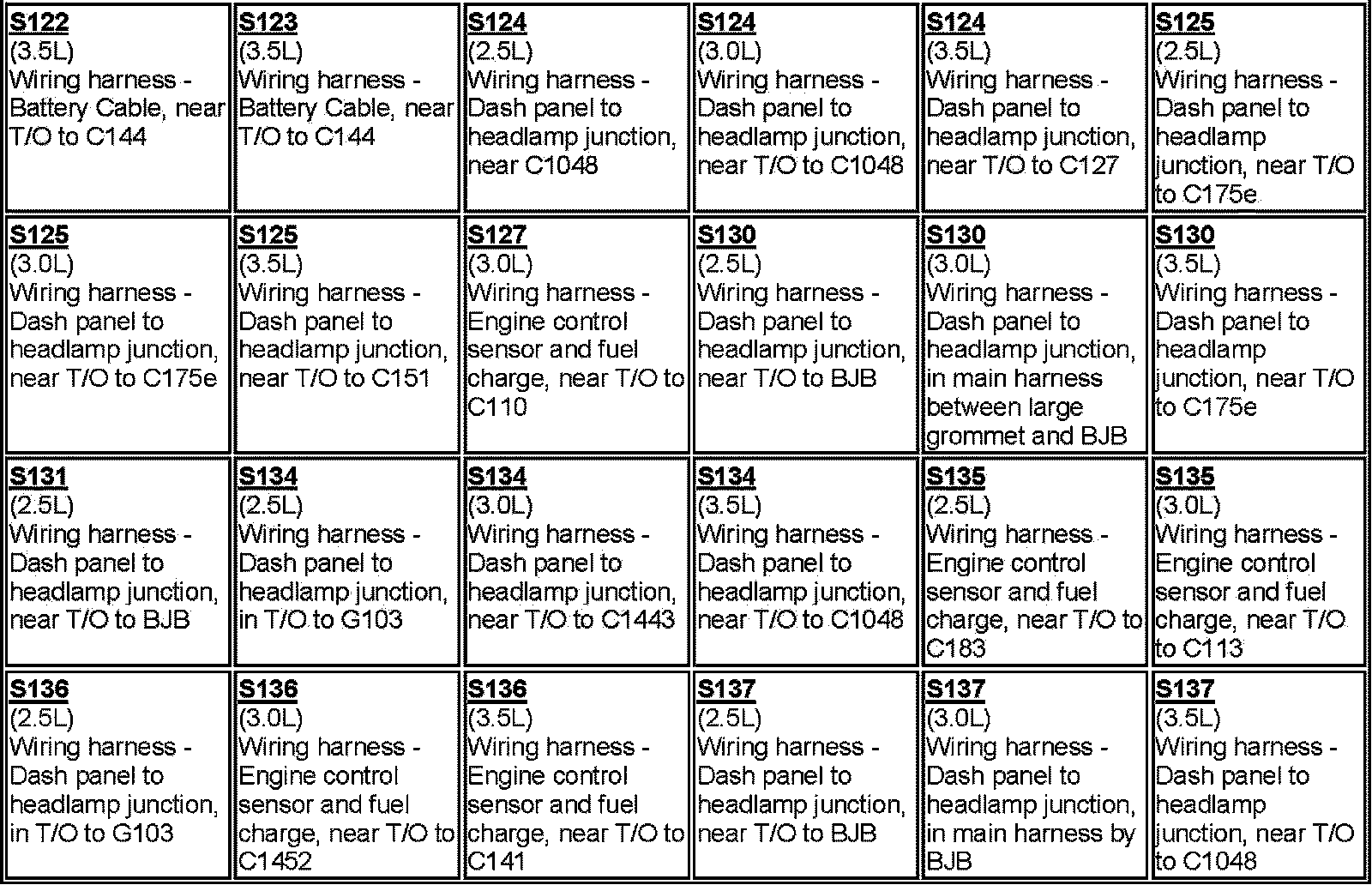

S122-S137:

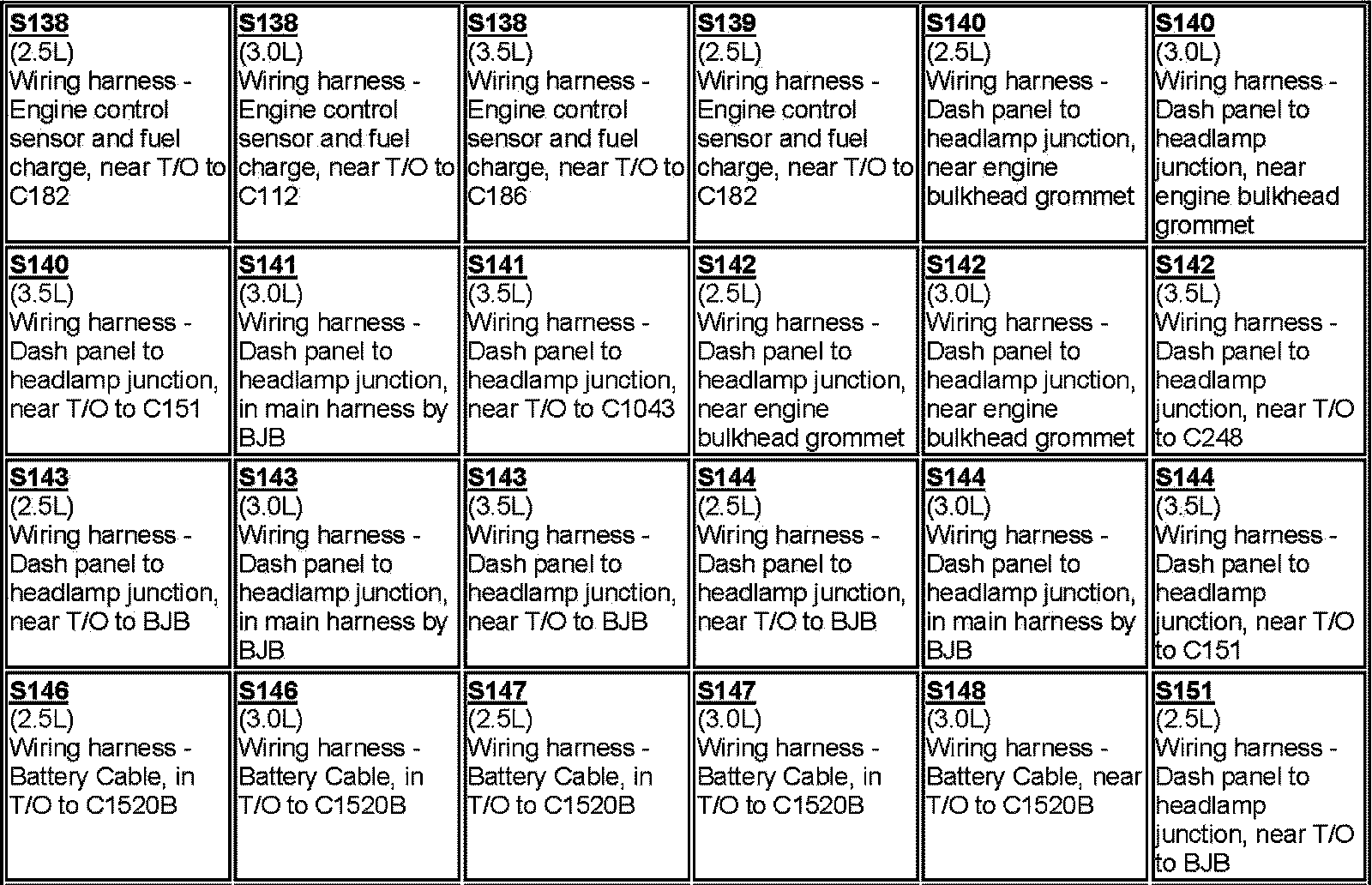

S138-S151:

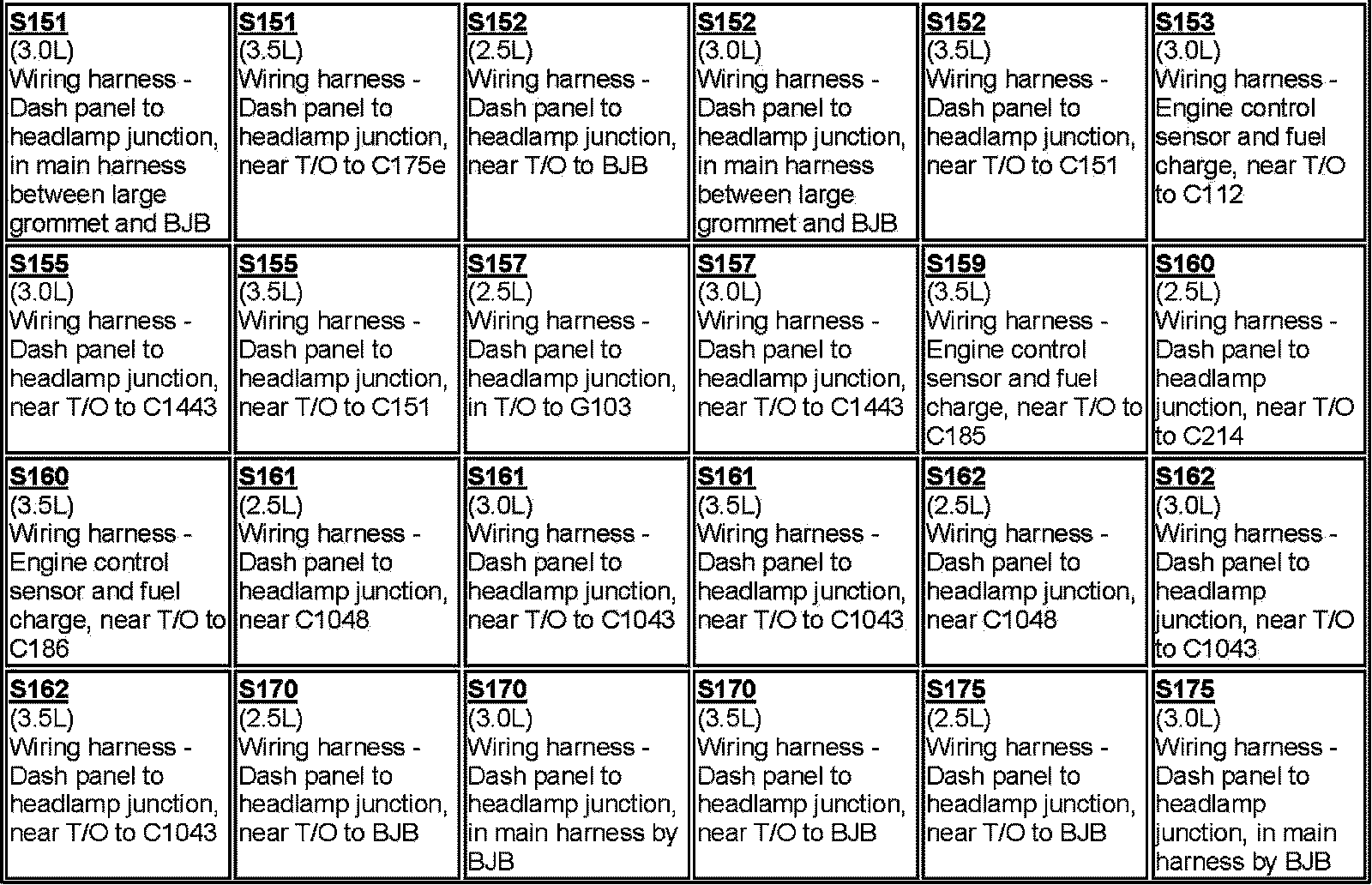

S151-S175:





S175-S241:

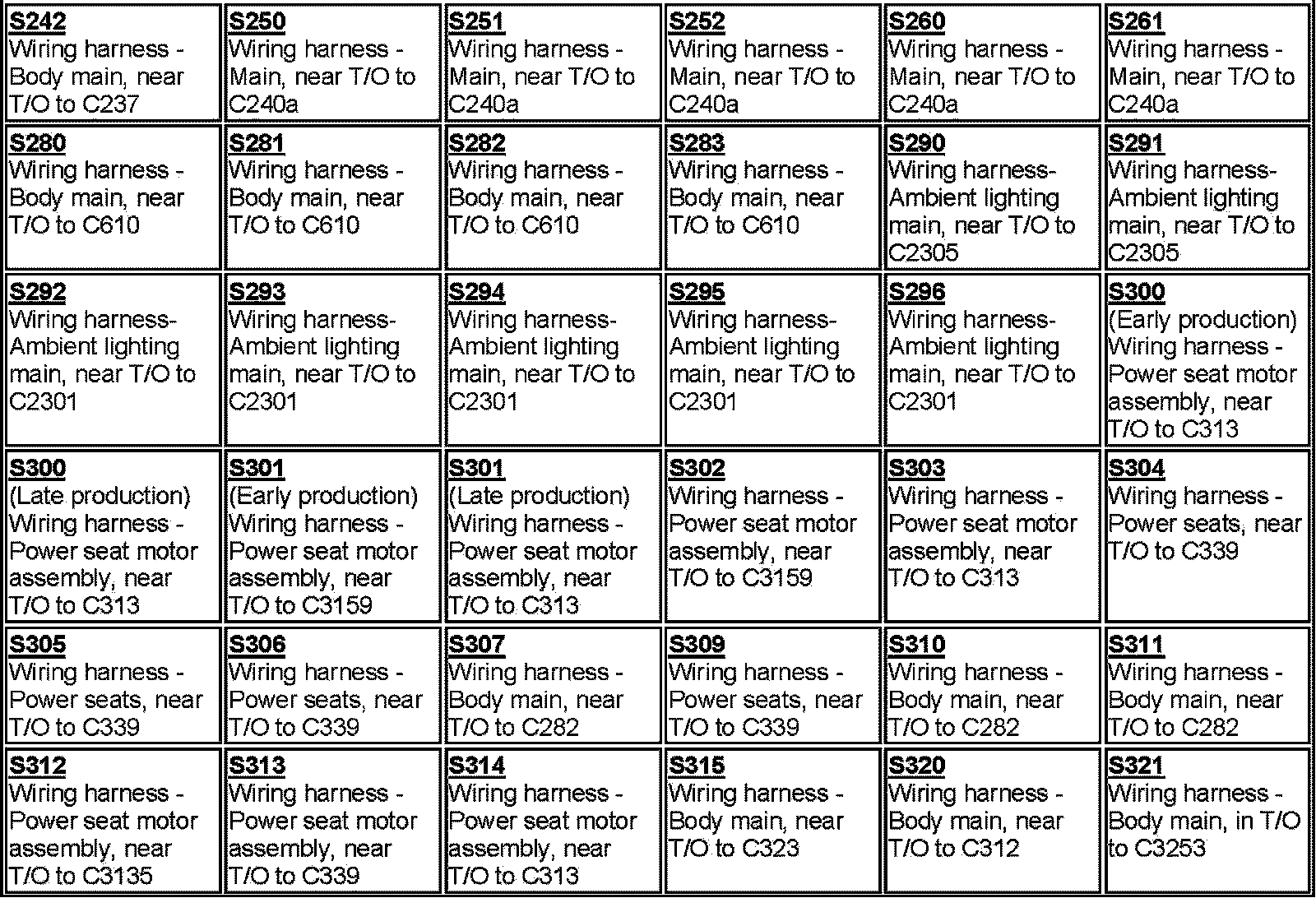

S242-S321:

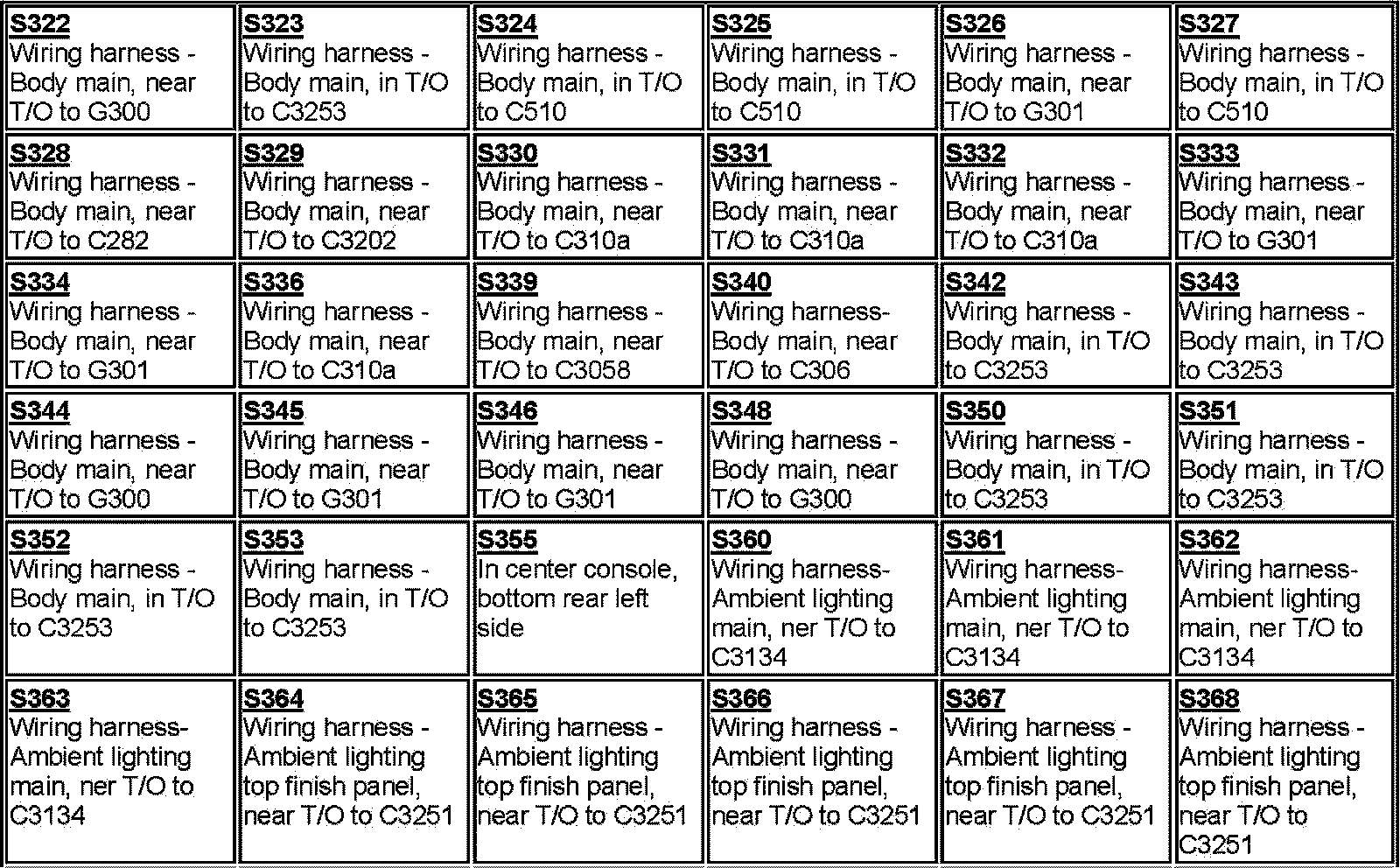

S322-S368:

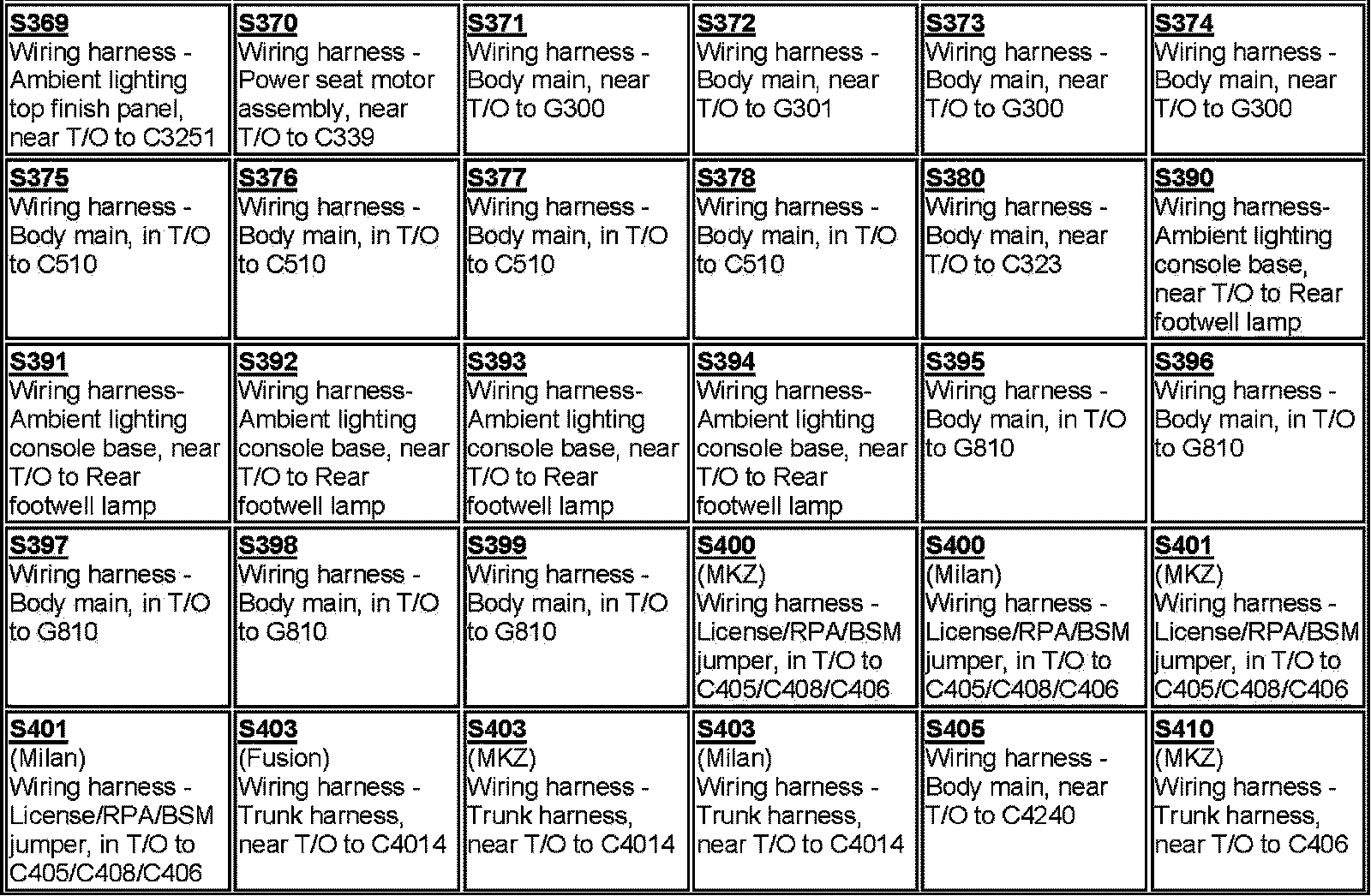

S369-S410:

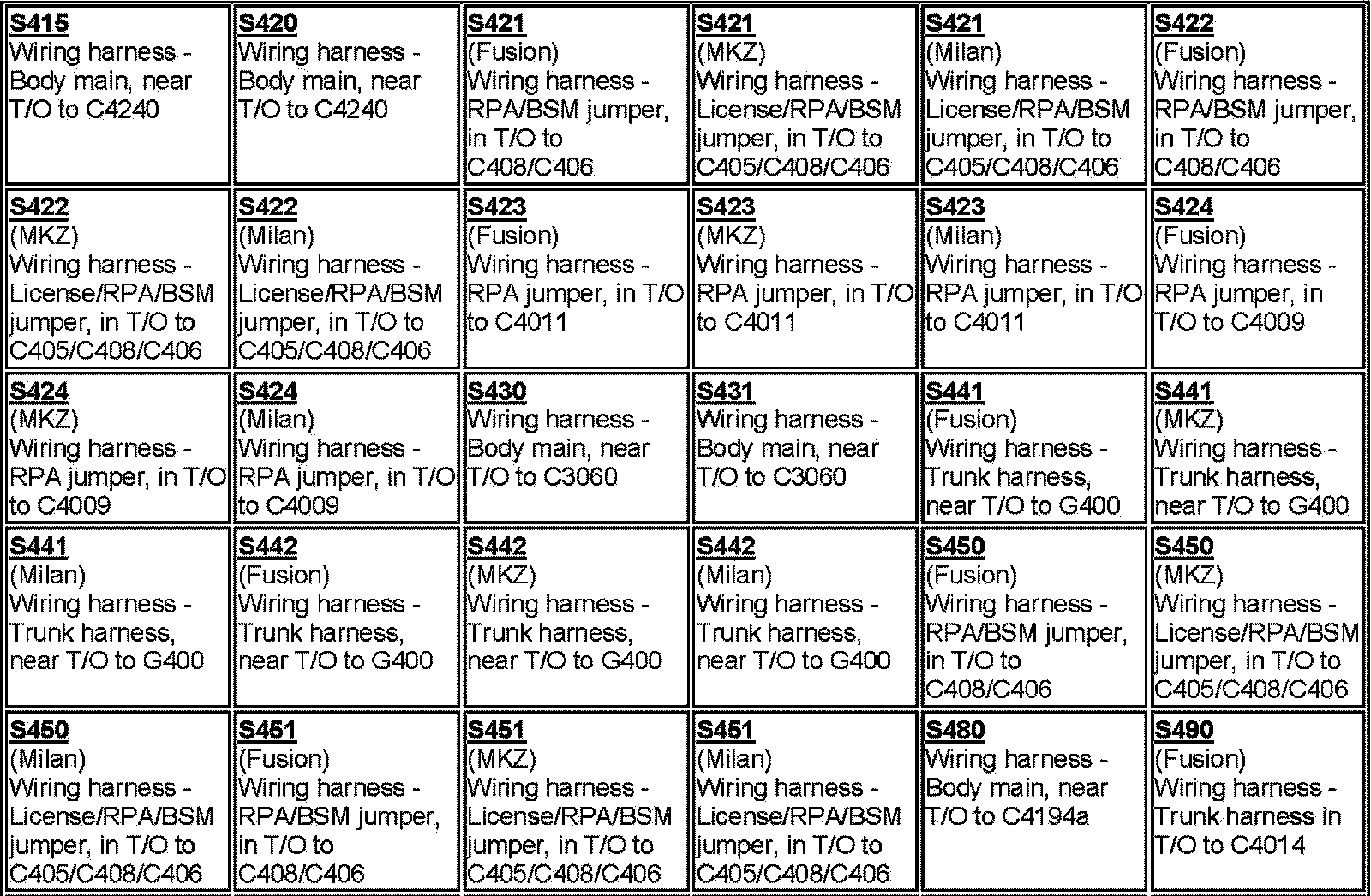

S415-S490:

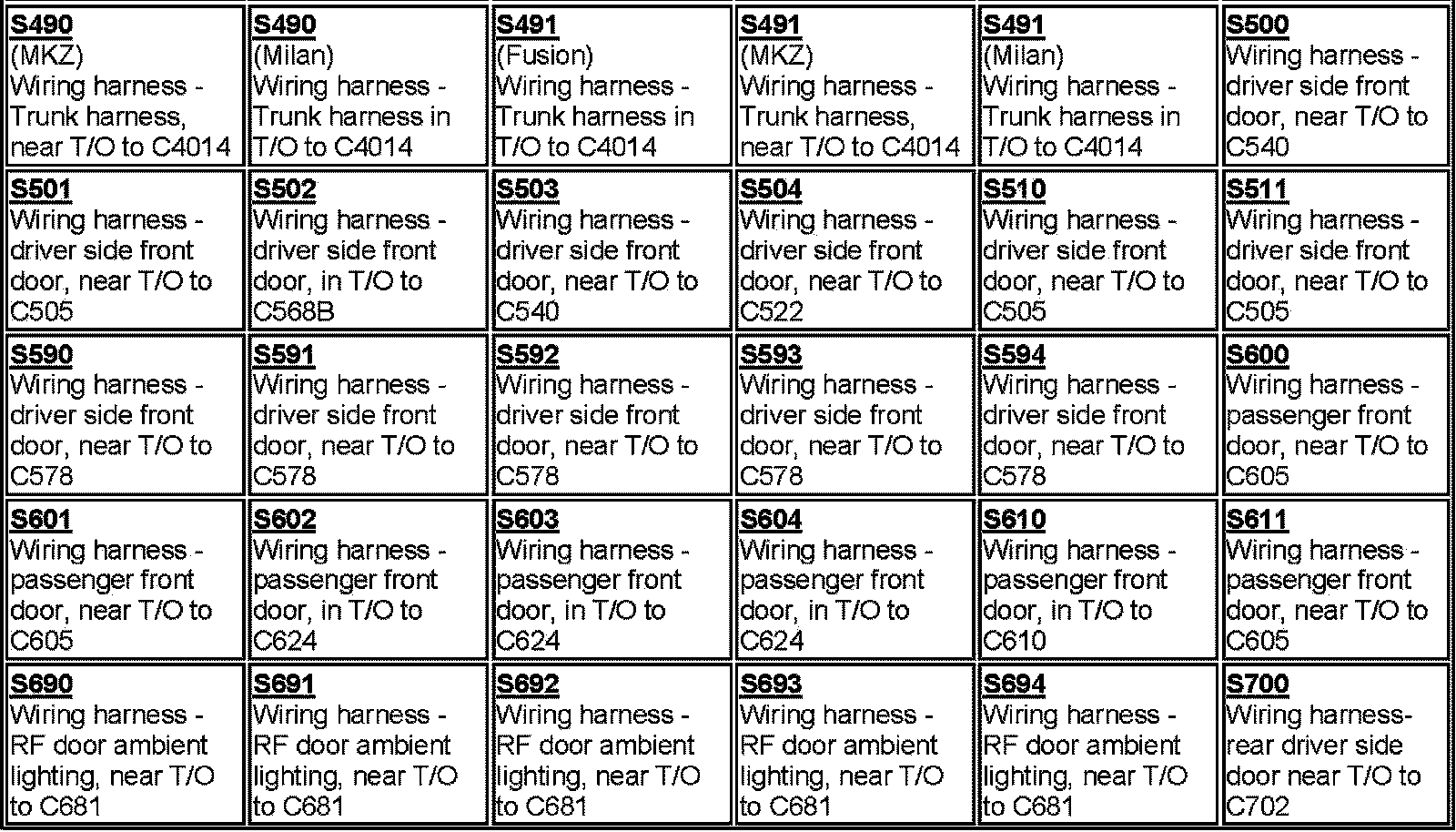

S490-S700:

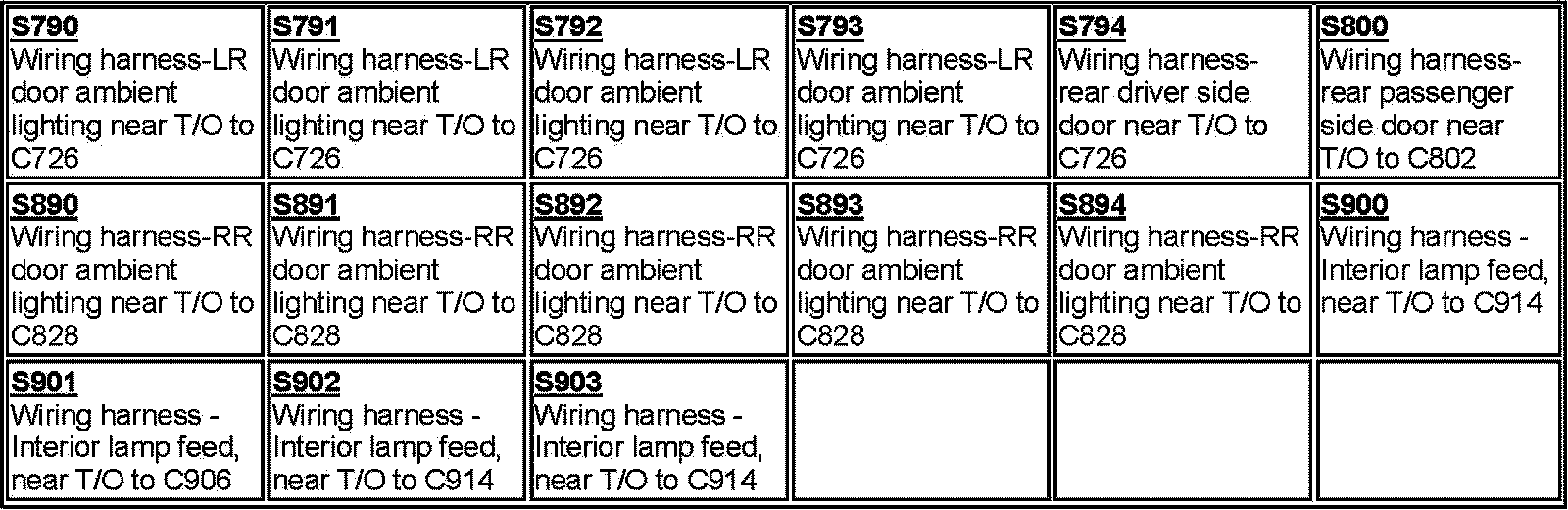

S790-S903:
