Symptom Related Diagnostic Procedures




Symptom Chart


Symptom Chart - Brake System (Non-Hybrid Vehicles)

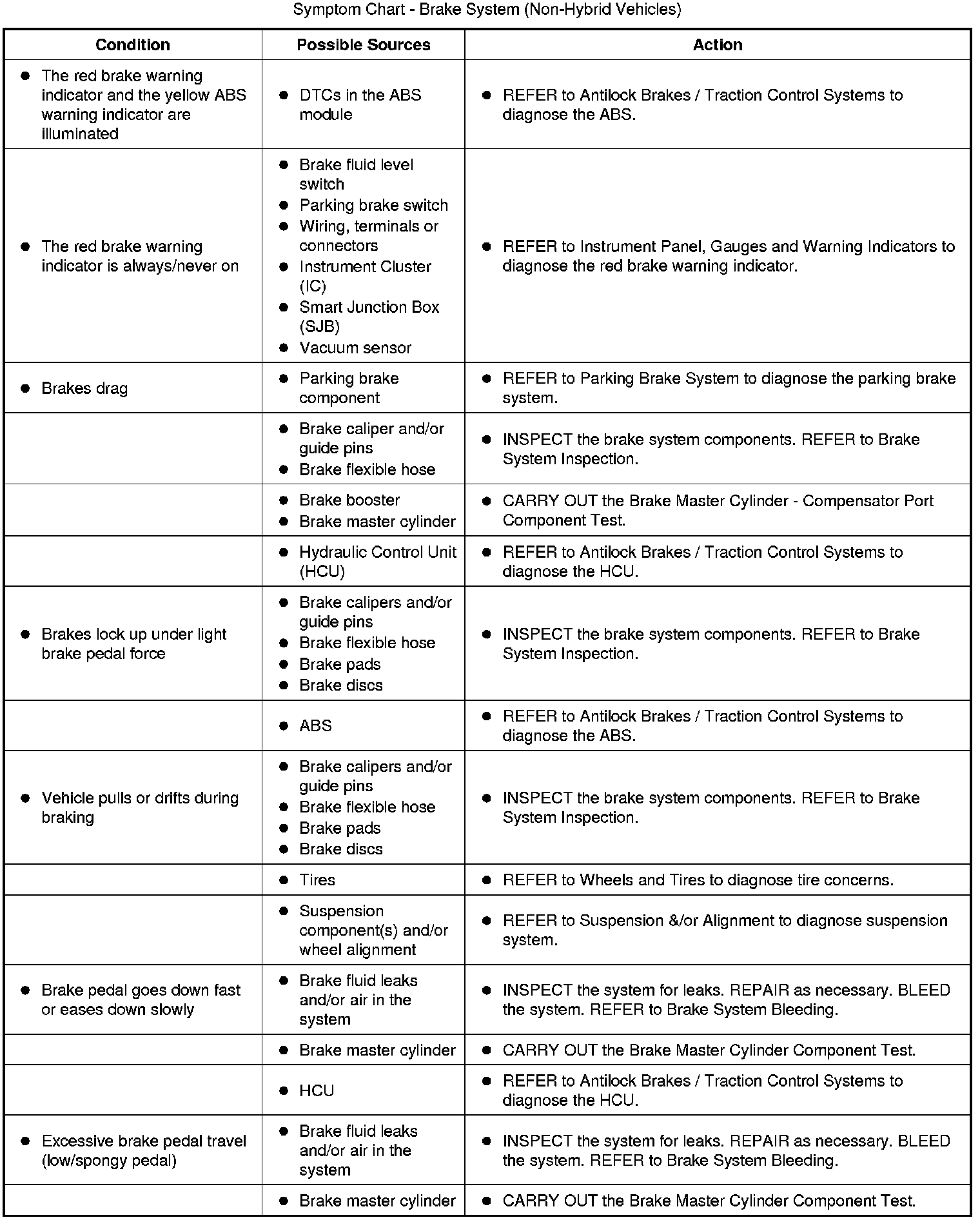

Symptom Chart - Brake System (Non-Hybrid Vehicles) (Part 1):

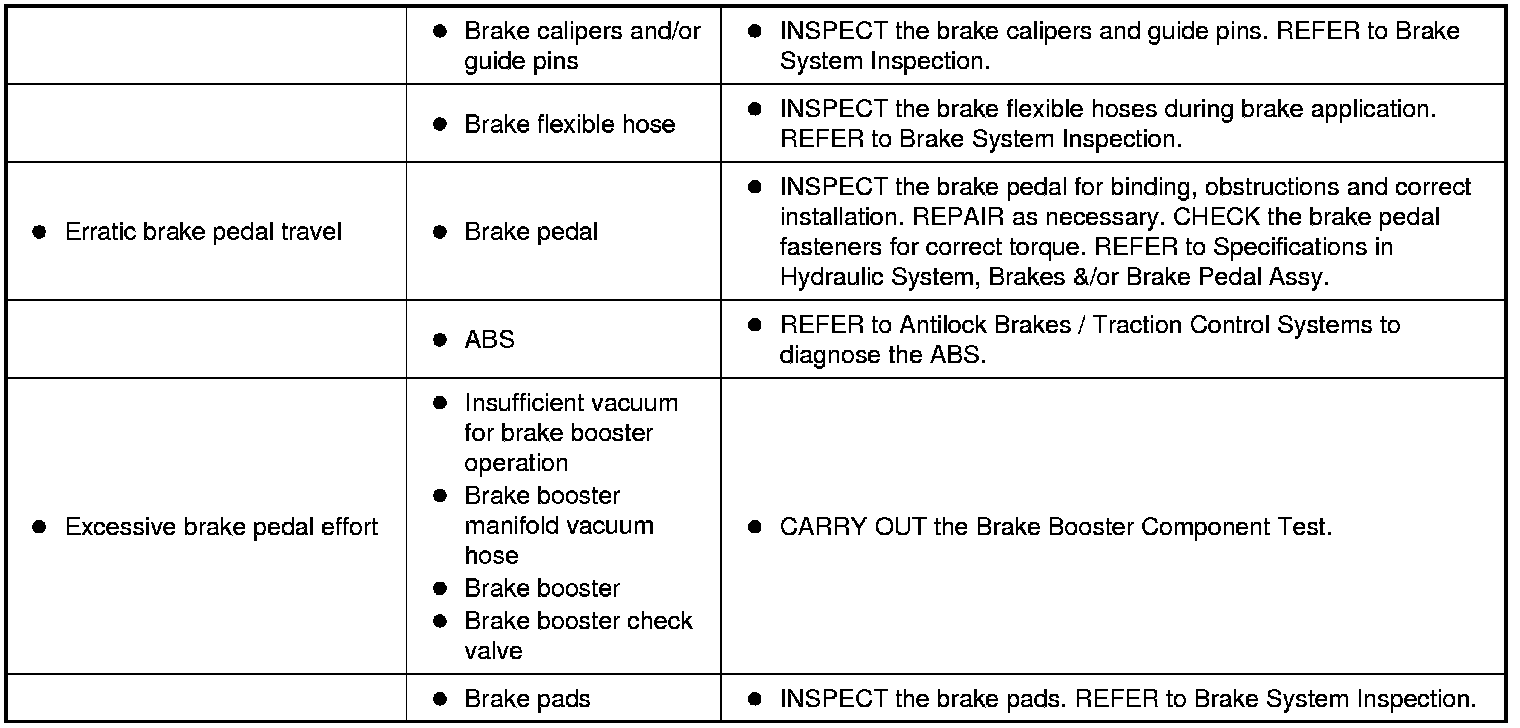

Symptom Chart - Brake System (Non-Hybrid Vehicles) (Part 2):

















Symptom Chart - NVH

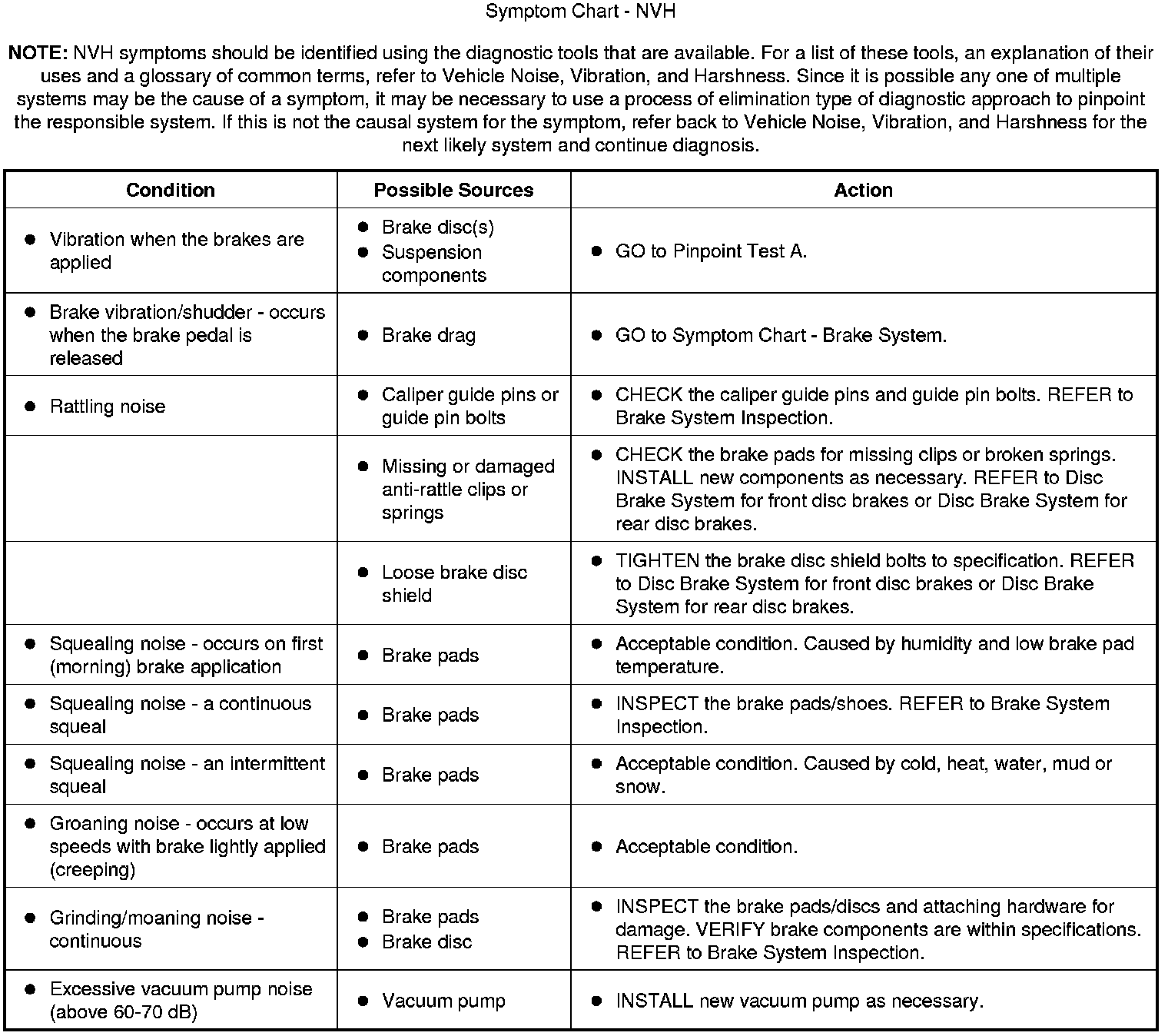

Symptom Chart - NVH:
