Pinpoint Test AH: DTC B19A6
Seats
Pinpoint Tests
Pinpoint Test AH: DTC B19A6
Refer to Wiring Diagram Set 119 (Fusion/Milan/MKZ, Fusion Hybrid/Milan Hybrid), Climate Controlled Seats for schematic and connector information. Diagrams By Number
Normal Operation
The Dual Climate Controlled Seat Module (DCSM) supplies a speed control signal voltage to the passenger seat backrest Thermo-Electric Device (TED) on circuit VHS21 (BU/WH). The TED blower is supplied operating voltage from DCSM output circuit CHS08 (BN/YE) and ground from DCSM output circuit RHS08 (VT/WH).
- DTC B19A6 (Passenger Seat Back Blower Speed Short to Ground) - If the passenger seat backrest blower speed circuit is shorted to ground, the DCSM will shut down the passenger seat system and set this DTC.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- TED and blower assembly
- DCSM
PINPOINT TEST AH: DTC B19A6
NOTICE: When taking measurements at Dual Climate Controlled Seat Module (DCSM) harness connectors, do not insert the electrical probes into the female connector pins. Inserting the probes into connector pins can cause intermittent or open electrical connections after reassembly resulting in Diagnostic Trouble Codes (DTCs) and system failure. Touching the tip of these connector pins is recommended instead.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
-------------------------------------------------
AH1 CHECK THE BACKREST TED BLOWER SPEED CONTROL CIRCUIT FOR A SHORT TO GROUND
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the
General Procedures portion of Restraint Systems.
- Disconnect: Passenger Seat Side Air Bag C313 .
- Disconnect: DCSM C3305c .
- Disconnect: Backrest TED C3311 .

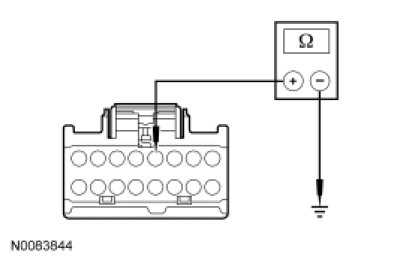

- Measure the resistance between DCSM C3305c-4, circuit VHS21 (BU/WH), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
GO to AH2.
No
REPAIR the circuit. REPEAT the self-test. CLEAR the DTCs.
CONNECT passenger seat side air bag module C313.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
AH2 CHECK THE BACKREST TED BLOWER MOTOR SPEED CONTROL AND BLOWER MOTOR GROUND CIRCUITS FOR A SHORT TOGETHER

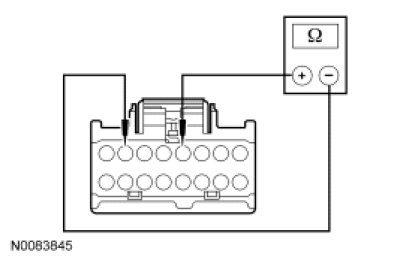

- Measure the resistance between DCSM C3305c-4, circuit VHS21 (BU/WH), harness side and C3305c-7, circuit RHS08 (VT/WH), harness side.
- Is the resistance greater than 10,000 ohms?
Yes
INSTALL a new backrest TED. REFER to Seat Backrest Thermo-Electric Device Seat Backrest Thermo-Electric Device. REPEAT the self-test. CLEAR the DTCs.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C313.
REPOWER the SRS. REFER to Restraint Systems.
No
REPAIR the circuits. REPEAT the self-test. CLEAR the DTCs.
CONNECT passenger seat side air bag module C313.
REPOWER the SRS. REFER to Restraint Systems.
------------------------------------------------
