Symptom Related Diagnostic Procedures




Handles, Locks, Latches and Entry Systems







Symptom Chart

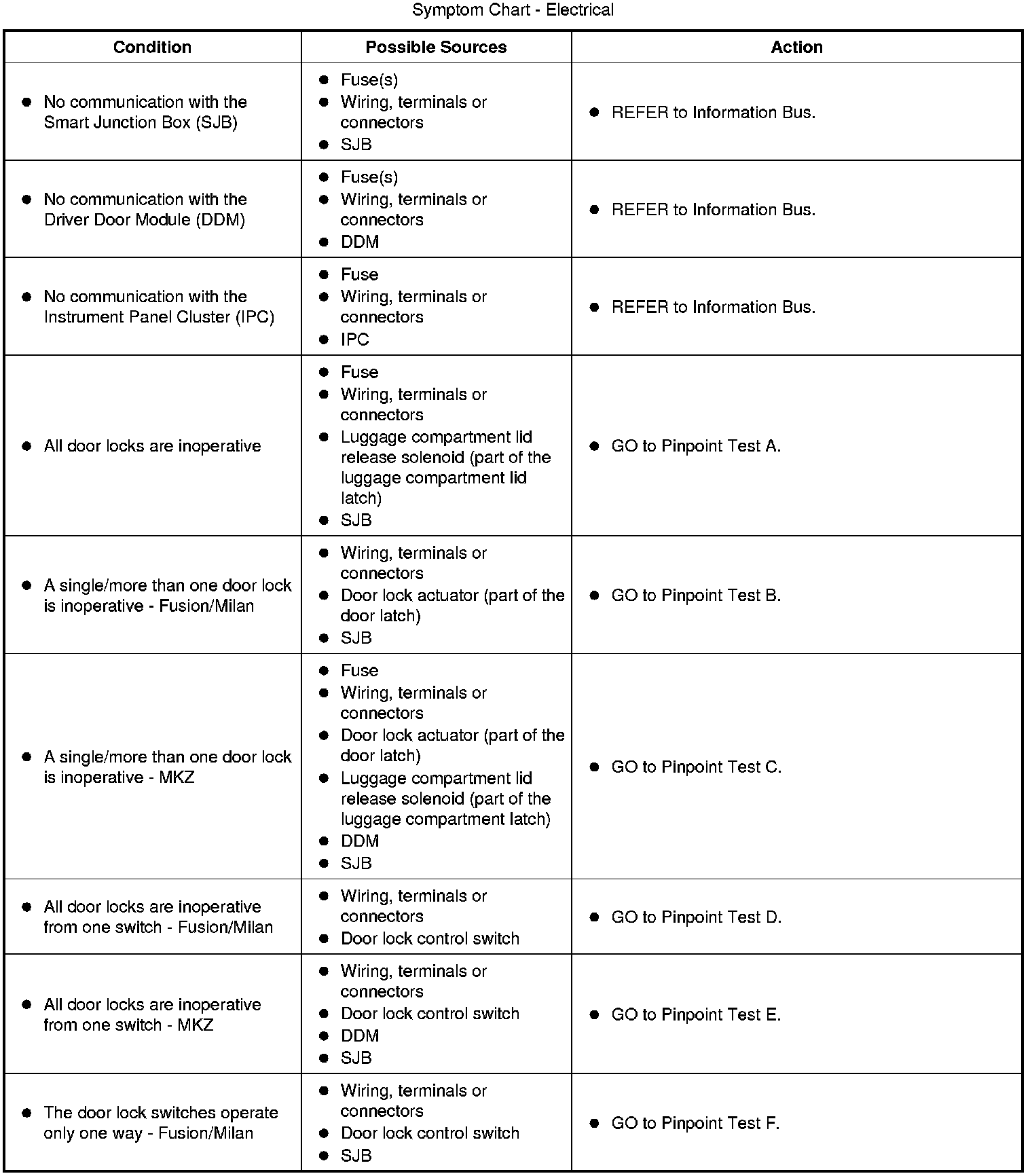

Symptom Chart - Electrical (Part 1):

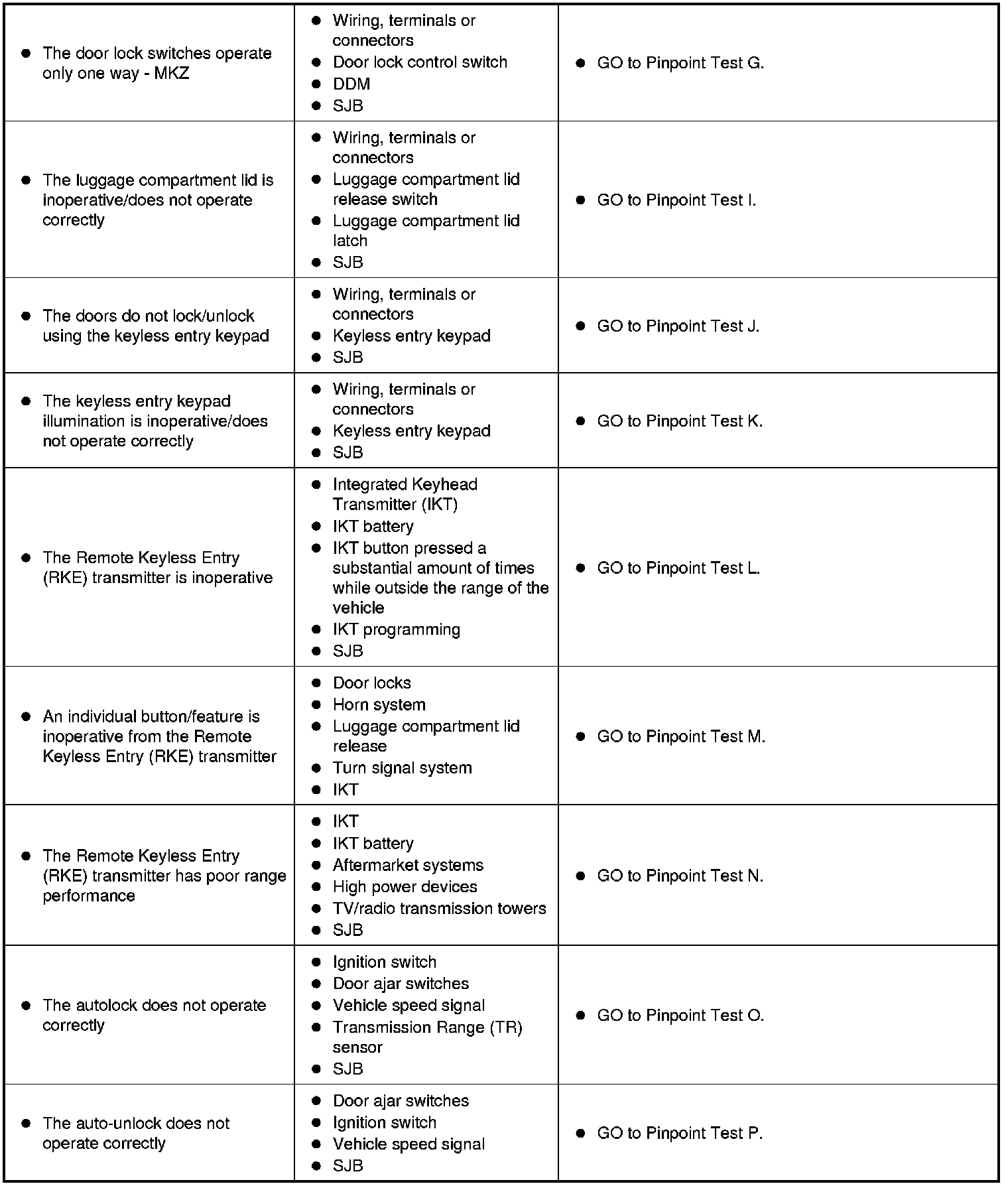

Symptom Chart - Electrical (Part 2):

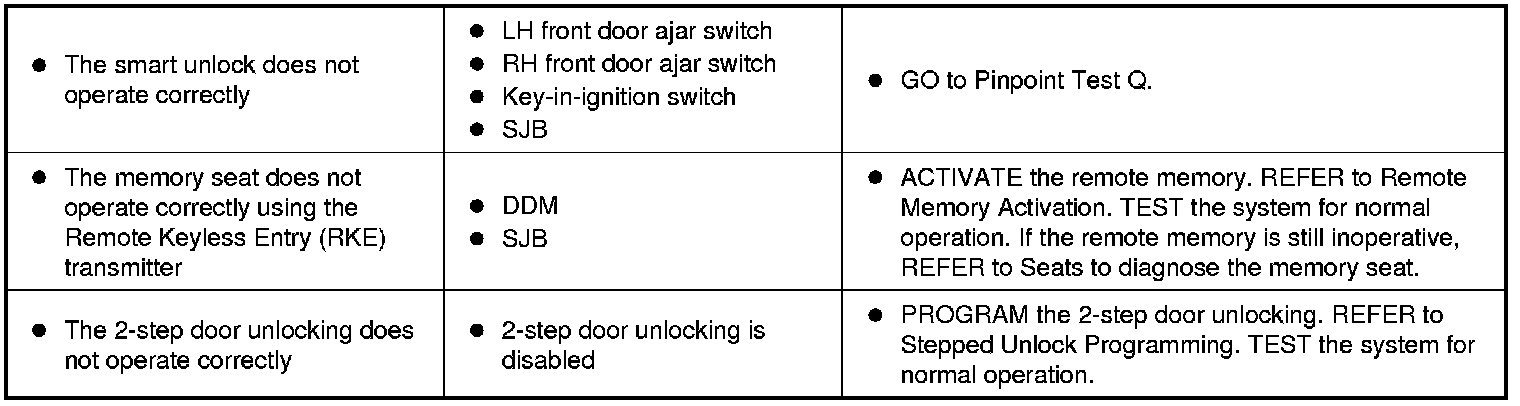

Symptom Chart - Electrical (Part 3):

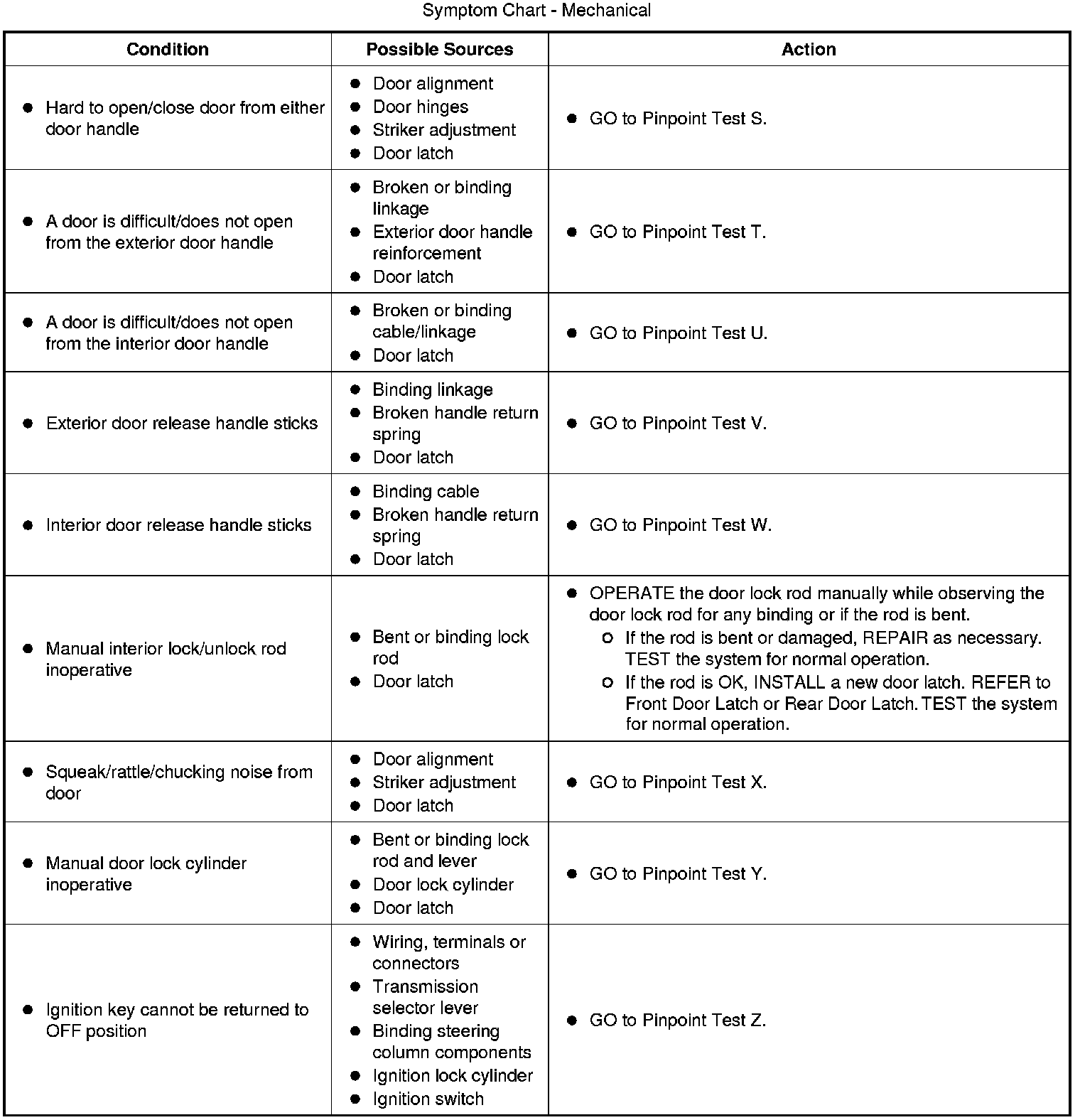

Symptom Chart - Mechanical:
