Rear Shelf: Service and Repair

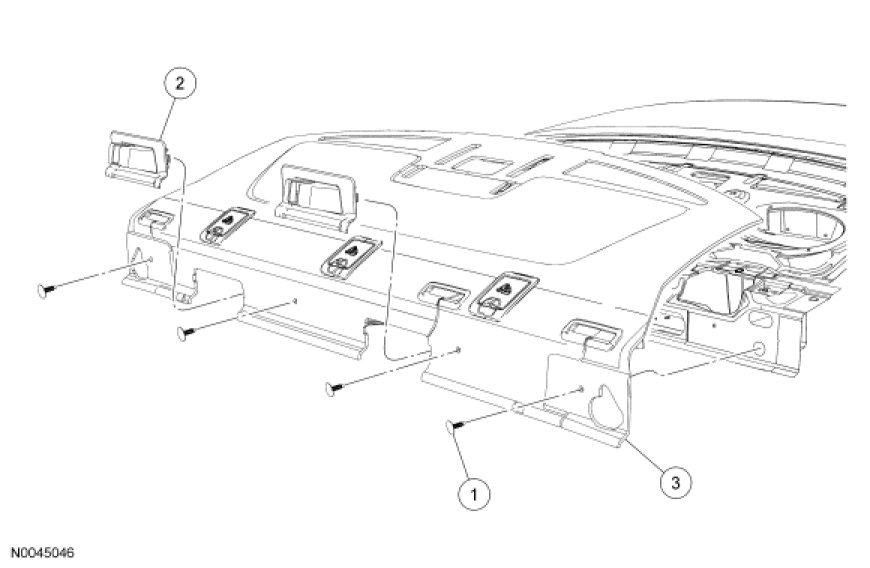

Parcel Shelf

NOTE: Fusion shown, Milan, MKZ and Hybrid similar.











Removal and Installation

1. Remove the C-pillar trim panels. For additional information, refer to C-Pillar Trim Panel C-Pillar Trim Panel.

2. Remove the rear seat bolsters. For additional information, refer to Seats.

3. Fold the rear seats down.

4. Pull the seat back latch covers forward and remove from the vehicle.

5. Remove the high mounted stoplamp.

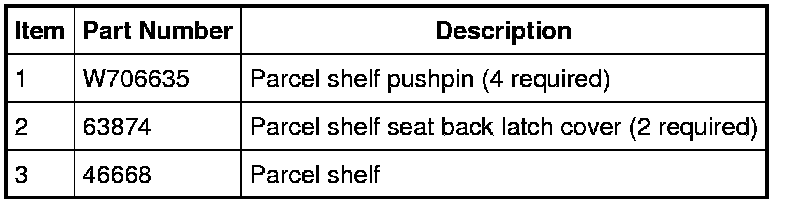

6. Remove the 4 pushpins.

7. Thread the seat belts through the guides.

8. To install, reverse the removal procedure.
