Radiator Grille

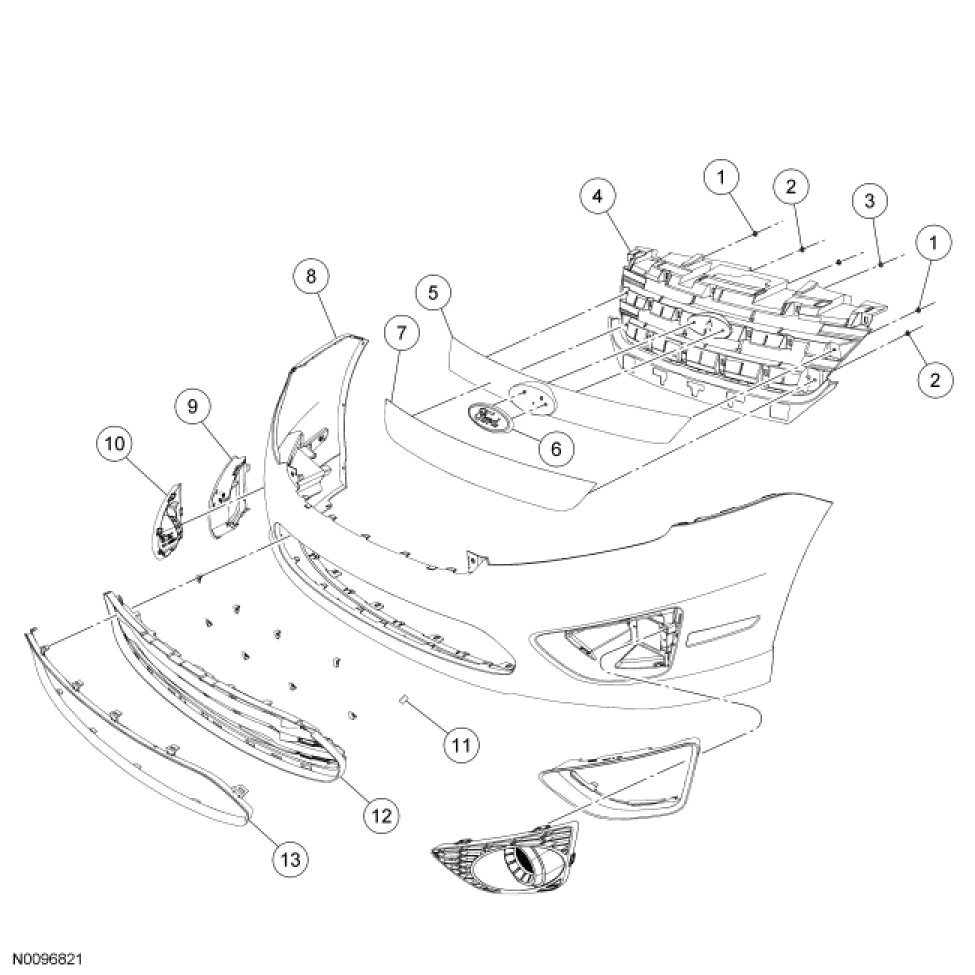

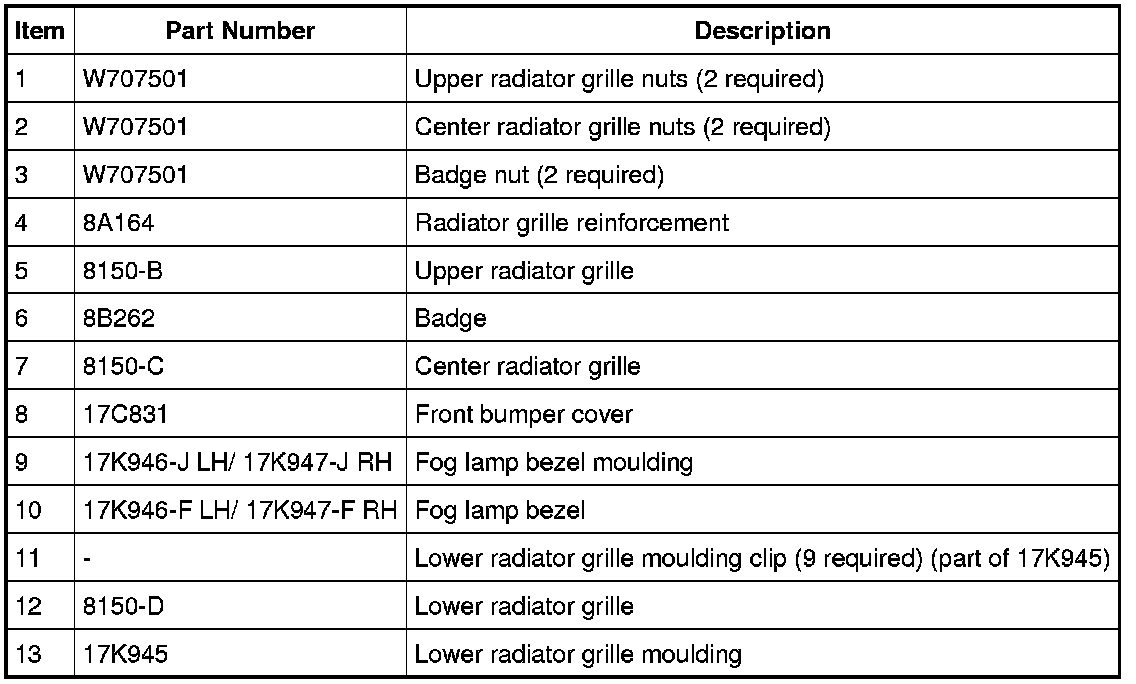

Radiator Grille - Fusion









All radiator grilles

1. Remove the front bumper cover. For additional information, refer to Bumper.

Upper and center radiator grilles

2. Press the tabs to release the radiator grille reinforcement and remove the radiator grille reinforcements.

Upper radiator grille

3. Remove the upper radiator grille nuts.

4. Remove the upper radiator grille.

Center radiator grille

5. Remove the center radiator grille nuts.

6. Remove the center radiator grille.

Lower radiator grille

7. Remove the lower radiator grille moulding clips.

8. Remove the lower radiator grille moulding.

9. Press the tabs to release the lower radiator grille from the front bumper cover.

10. Remove the lower radiator grille from the bumper cover.

All vehicles

11. To install, reverse the removal procedure.
