Symptom Chart - SYNC System
Symptom Chart - SYNC System
Information and Entertainment System
Symptom Chart - SYNC System

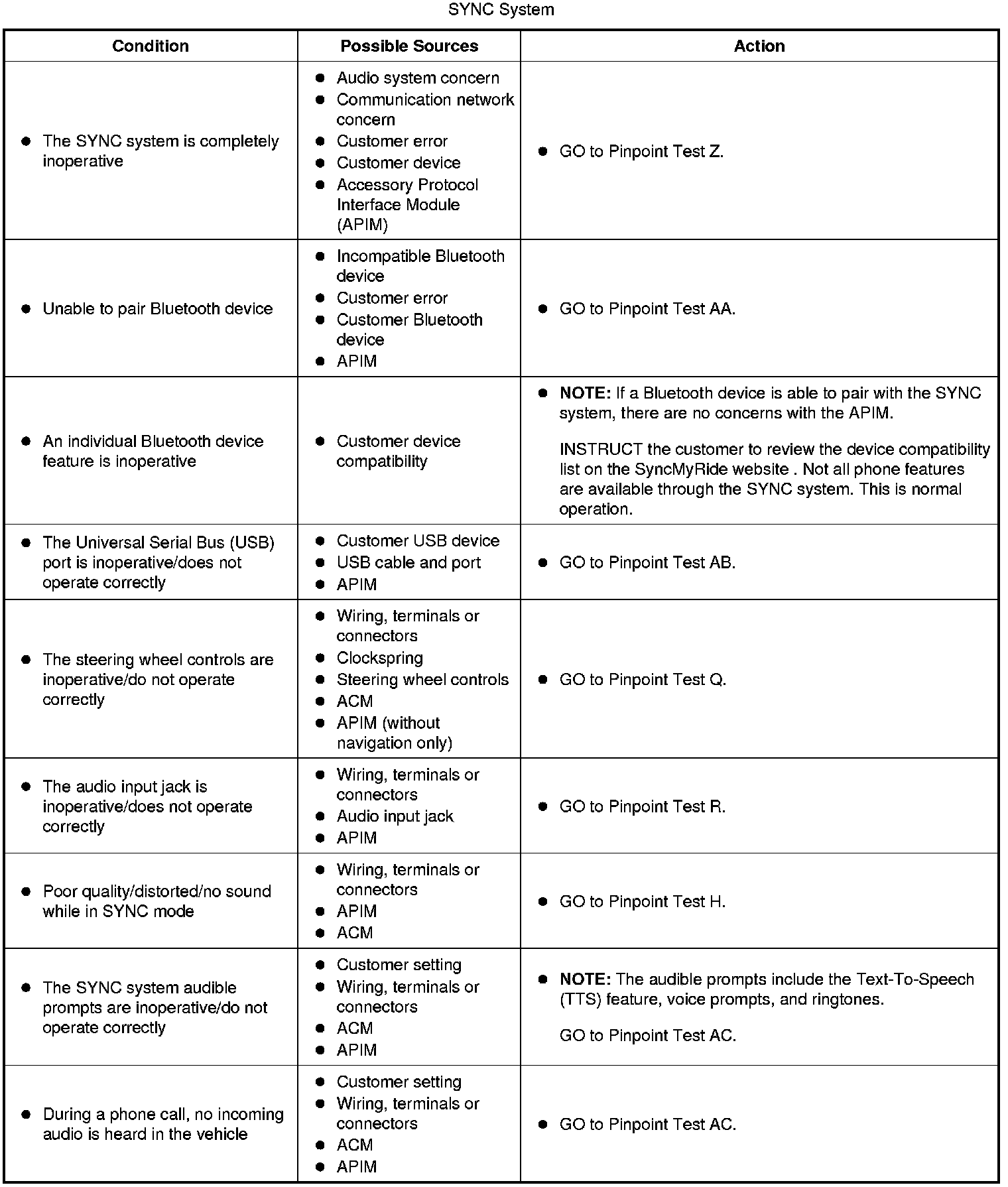

SYNC System (Part 1):

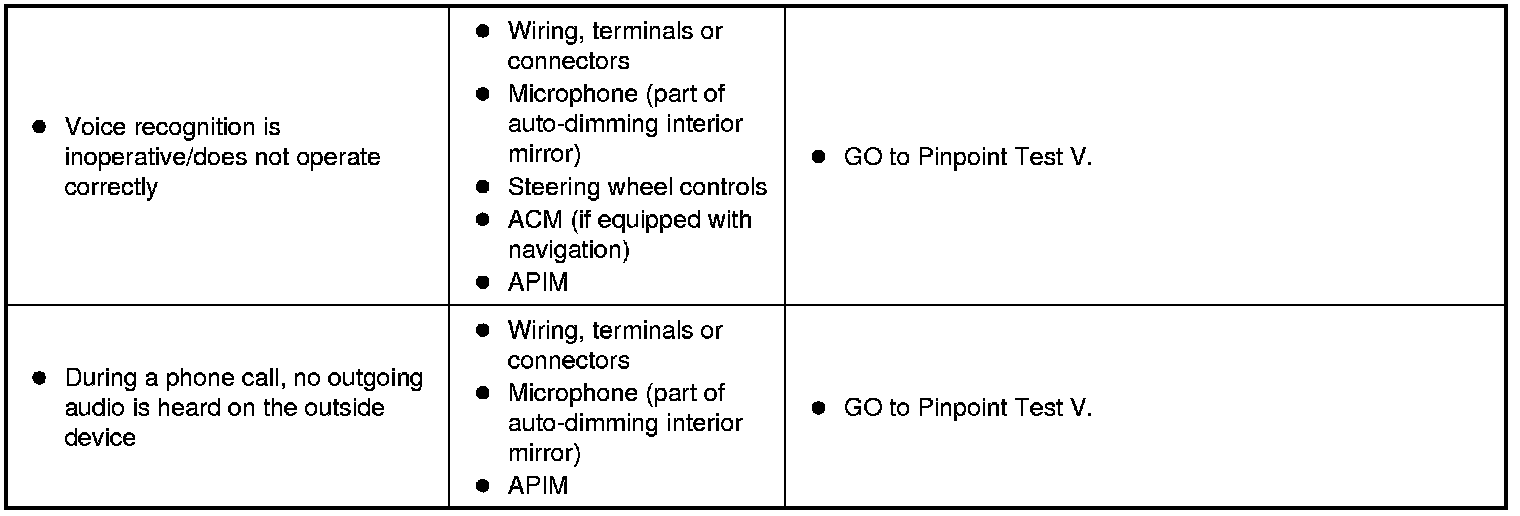

SYNC System (Part 2):
