Pinpoint Test F: DTC C1742 Or DTC C1743

Parking Aid

Pinpoint Tests

Pinpoint Test F: DTC C1742 or DTC C1743

Refer to Wiring Diagram Set 131 (Fusion/Milan/MKZ, Fusion Hybrid/Milan Hybrid), Parking Aid for schematic and connector information. Diagrams By Number

Normal Operation

When the parking aid sensors detect obstructions in the path behind the vehicle a variable rate warning tone is generated from a parking aid speaker. The parking aid speaker increases the warning tone rate as the vehicle gets closer to an obstacle. A fault condition occurs when the PAM detects an open, short to ground or short to voltage on the parking aid speaker circuits.

- DTC C1742 (Rear Sounder Circuit Failure) - sets when the sounder circuit is open or shorted to ground.
- DTC C1743 (Rear Sounder Circuit Short to Vbat) - sets when the sounder circuit is shorted to voltage.

This pinpoint test is intended to diagnose the following:

- Wiring, terminals or connectors
- PAM
- Parking aid speaker



PINPOINT TEST F: DTC C1742 OR DTC C1743

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

-------------------------------------------------
F1 CHECK THE DTCs FROM THE PAM SELF-TESTS


- Ignition ON.
- Retrieve the PAM DTCs from the continuous and on-demand self-tests.
- Are parking aid DTCs other than C1742 or C1743 present?

Yes
Diagnose other DTCs first. REFER to DTC Charts. Parking Aid

No
GO to F2.

-------------------------------------------------
F2 MEASURE THE PARKING AID SPEAKER RESISTANCE


- Disconnect: Parking Aid Speaker C4015.

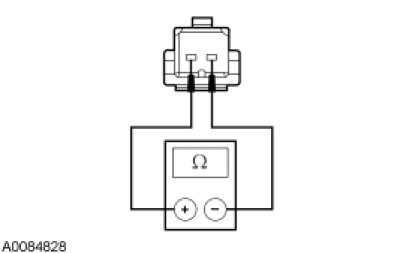

- Measure the resistance between the parking aid speaker pin 1, component side and the parking aid speaker pin 2, component side.




- Is the resistance between 40 and 60 ohms?

Yes
If DTC C1742 was recorded, GO to F3.

If DTC C1743 was recorded, GO to F7.

No
INSTALL a new parking aid speaker. REFER to Parking Aid Speaker Service and Repair. CLEAR the DTCs. REPEAT the self-test.

-------------------------------------------------
F3 CHECK THE PARKING AID SPEAKER (+) CIRCUIT FOR A SHORT TO GROUND


- Connect: Parking Aid Speaker C4015.
- Disconnect: PAM C4014.

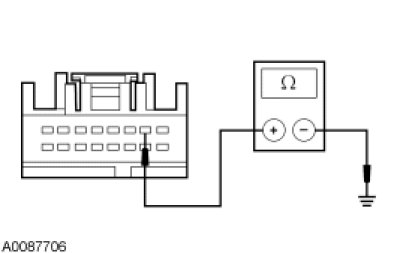

- Measure the resistance between the PAM C4014-2, circuit CMP09 (BN/BU), harness side and ground.




- Is the resistance greater than 10,000 ohms?

Yes
GO to F5.

No
GO to F4.

-------------------------------------------------
F4 CHECK THE PARKING AID SPEAKER (+) CIRCUIT FOR A SHORT TO GROUND WITH THE PARKING AID SPEAKER DISCONNECTED


- Disconnect: Parking Aid Speaker C4015.
- Measure the resistance between the PAM C4014-2, circuit CMP09 (BN/BU), harness side and ground.




- Is the resistance greater than 10,000 ohms?

Yes
REPAIR circuit RMP09 (BU/GN). CLEAR the DTCs. TEST the system for normal operation.

No
REPAIR circuit CMP09 (BN/BU). CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
F5 CHECK THE PARKING AID SPEAKER (+) CIRCUIT FOR AN OPEN


- Disconnect: Parking Aid Speaker C4015.

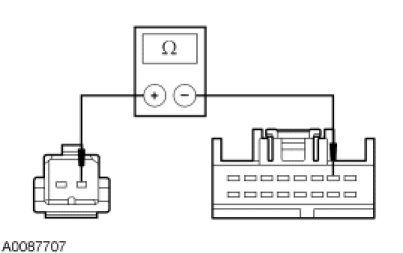

- Measure the resistance between the PAM C4014-2, circuit CMP09 (BN/BU), harness side and the parking aid speaker C4015-2, circuit CMP09 (BN/BU), harness side.




- Is the resistance less than 5 ohms?

Yes
GO to F6.

No
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
F6 CHECK THE PARKING AID SPEAKER (-) CIRCUIT FOR AN OPEN


- Measure the resistance between the PAM C4014-6, circuit RMP09 (BU/GN), harness side and the parking aid speaker C4015-1, circuit RMP09 (BU/GN), harness side.




- Is the resistance less than 5 ohms?

Yes
GO to F8.

No
REPAIR the circuit in question. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
F7 CHECK THE PARKING AID SPEAKER CIRCUITRY FOR SHORTS TO VOLTAGE


- Ignition ON.

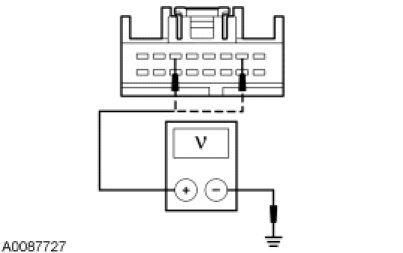

- Measure the voltage between the PAM C4014-2, circuit CMP09 (BN/BU), harness side and ground; and between the PAM C4014-6, circuit RMP09 (BU/GN), harness side and ground.




- Is any voltage present?

Yes
REPAIR the circuit in question. CLEAR the DTCs. TEST the system for normal operation.

No
GO to F8.

-------------------------------------------------
F8 CHECK FOR CORRECT PAM OPERATION


- Disconnect the PAM connector.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect the PAM connector and make sure it seats correctly.
- Operate the system and determine if the concern is still present.
- Is the concern still present?

Yes
INSTALL a new PAM. REFER to Parking Aid Module (PAM) Service and Repair. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the scan tool data link test.

No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.

-------------------------------------------------
