FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2010
>>
Fusion AWD V6-3.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
P Codes
>>
P2626
P2626

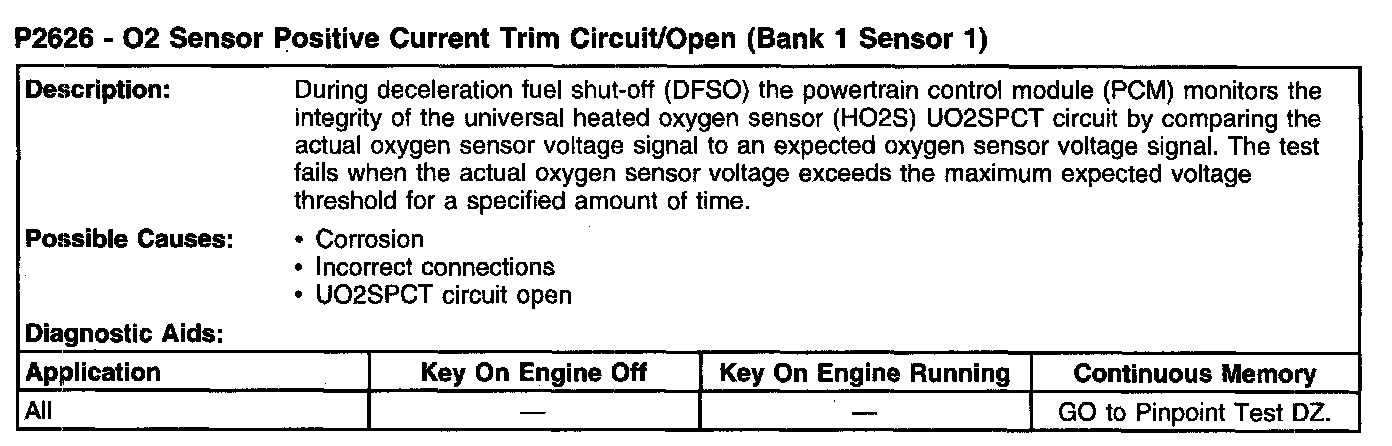

P2626 - O2 Sensor Positive Current Trim Circuit/Open (Bank 1 Sensor 1):
