Pinpoint Test B: DTC B1046, B1047, B1048, B1049, B1054, B1055, B1056, B1057, B1058, B1059, B2A3F And/Or B2A40




Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

Pinpoint Tests

Pinpoint Test B: DTC B1046, B1047, B1048, B1049, B1054, B1055, B1056, B1057, B1058, B1059, B2A3F and/or B2A40

Refer to Wiring Diagram Set 46, Supplemental Restraint System for schematic and connector information. Diagrams By Number

Normal Operation

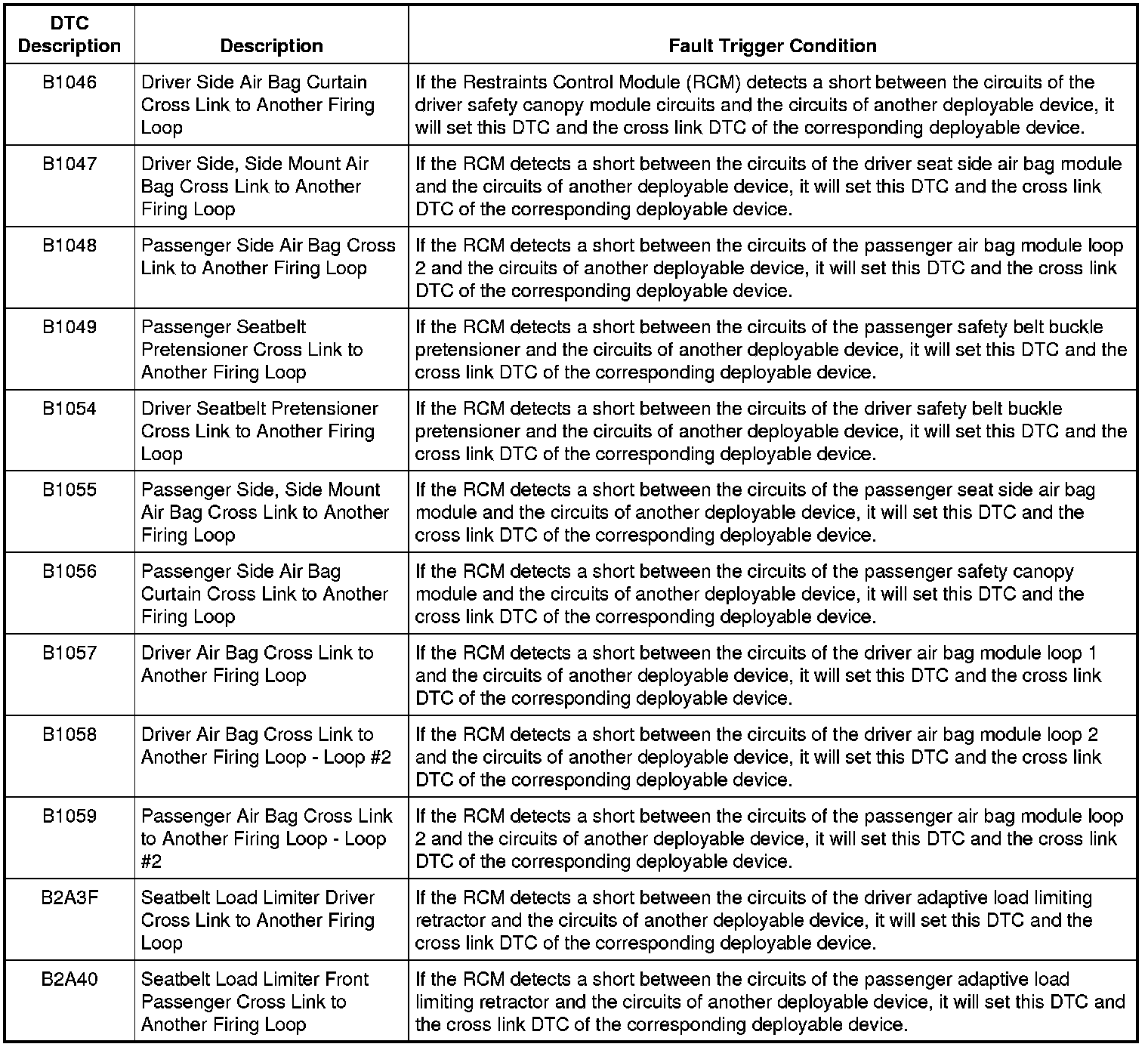

The Restraints Control Module (RCM) monitors all of the deployable device circuits for a cross link between circuits. If the RCM detects a short between the circuits of one deployable device and another deployable device, it will store a DTC for each of the cross linked loops in memory. The RCM sends a message to the Instrument Cluster (IC) module to flash a Lamp Fault Code (LFC) of the 2 cross link DTCs on the air bag warning indicator. When a normal loop fault is present (one loop is either shorted to battery/ground, has an open circuit or has low resistance), then cross link diagnostics will not be active. Once the normal loop fault is repaired, then the cross link diagnostics will resume.

B2A3F-B1059:





This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- RCM



PINPOINT TEST B: DTC B1046, B1047, B1048, B1049, B1054, B1055, B1056, B1057, B1058, B1059, B2A3F and/or B2A40

WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy(R) and cause serious personal injury or death.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

WARNING: Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.

NOTICE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer. Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test. Inspection and Verification

NOTE: SRS components should only be disconnected or reconnected when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.

-------------------------------------------------
B1 RETRIEVE RCM DTCs


- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- NOTE: Cross link DTCs will be retrieved in pairs, the highest priority along with the DTC of the component to which it is cross linked.
- Were any RCM cross link DTCs retrieved on-demand during the self-test?

Yes
This is a hard fault. The fault condition is still present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test. GO to B2.

No
This is an intermittent fault when present as a continuous memory DTC only (DTC not retrieved on-demand). The fault condition is not present at this time. GO to B4.

-------------------------------------------------
B2 CHECK DEPLOYABLE CIRCUITS FOR A CROSS LINK FAULT


- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: RCM C310a and C310b.
- Disconnect ALL of the affected deployable devices.
- NOTE: Most cross link faults are due to connector and/or wiring harness damage. Carry out a thorough inspection of connector(s) and/or wiring harness for damage.

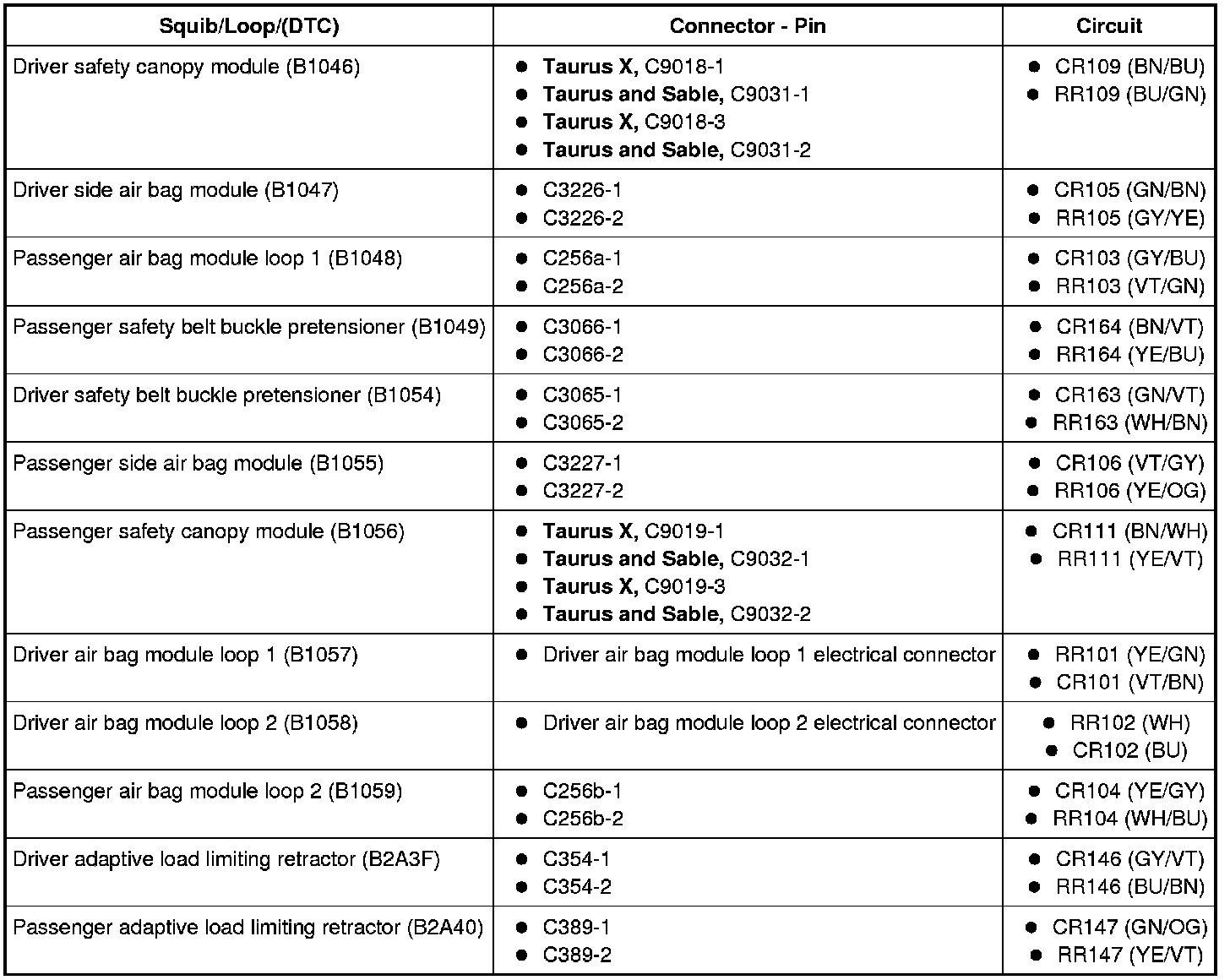

- Using the following table, measure the resistance between the circuits of the affected deployable devices.





- Are resistances greater than 10,000 ohms between the affected circuits?

Yes
GO to B3.

No
REPAIR the affected circuits. GO to B5.

-------------------------------------------------
B3 CONFIRM THE RCM FAULT


NOTE: Make sure all restraint system components, sensor electrical connectors and the RCM electrical connectors are connected before carrying out the on-demand self test. If not, erroneous DTCs will be recorded.

- Connect: All Previously Disconnected Restraint System Component(s).
- Connect: RCM C310a and C310b.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.

- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Were any RCM cross link DTCs retrieved on-demand during the self-test?

Yes
INSTALL a new RCM. REFER to Restraints Control Module (RCM) Service and Repair. GO to B5.

No
In the process of diagnosing the fault, the fault condition has become intermittent. CHECK for causes of the intermittent fault in the areas previously worked in, particularly the pins and terminals of electrical connectors that were disconnected. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition frequently. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test. REPAIR any intermittent wiring, terminal or connector concerns found. GO to B4.

-------------------------------------------------
B4 CHECK FOR AN INTERMITTENT FAULT


NOTE: Most cross link faults are due to connector and/or wiring harness damage. Carry out a thorough inspection of connector(s) and/or wiring harness for damage.

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect ALL of the affected deployable devices.

- Inspect the wiring harness(es) for any type of damage. Repair as necessary. Refer to Wiring Diagram Set 46, Supplemental Restraint System for schematic and connector information. Diagrams By Number

- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Were any RCM cross link DTCs retrieved on-demand during the self-test?

Yes
This is a hard fault. The fault condition is now present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test. GO to B2.

No
The fault is not present and cannot be recreated at this time.

CHECK for causes of the intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition frequently. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test. REPAIR any intermittent wiring, terminal or connector concerns found. GO to B5.

-------------------------------------------------
B5 CHECK FOR ADDITIONAL SRS DTCs


- Ignition OFF.
- WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
- Reconnect all SRS components (if previously disconnected).
- If previously directed to depower the SRS, repower the SRS. Do notprove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - Restraints.
- Are any RCM and/or OCSM DTCs retrieved indicating a fault?

Yes
Do not clear any DTCs until all DTCs have been resolved. GO to the DTC Charts for pinpoint test direction. [1][2]Diagnostic Trouble Code Descriptions

No
CLEAR all RCM and OCSM DTCs. PROVE OUT the SRS. Repair is complete. RETURN the vehicle to the customer.

-------------------------------------------------
