Seat - Exploded View, Second Row

Seat - Exploded View, Second Row, Taurus X

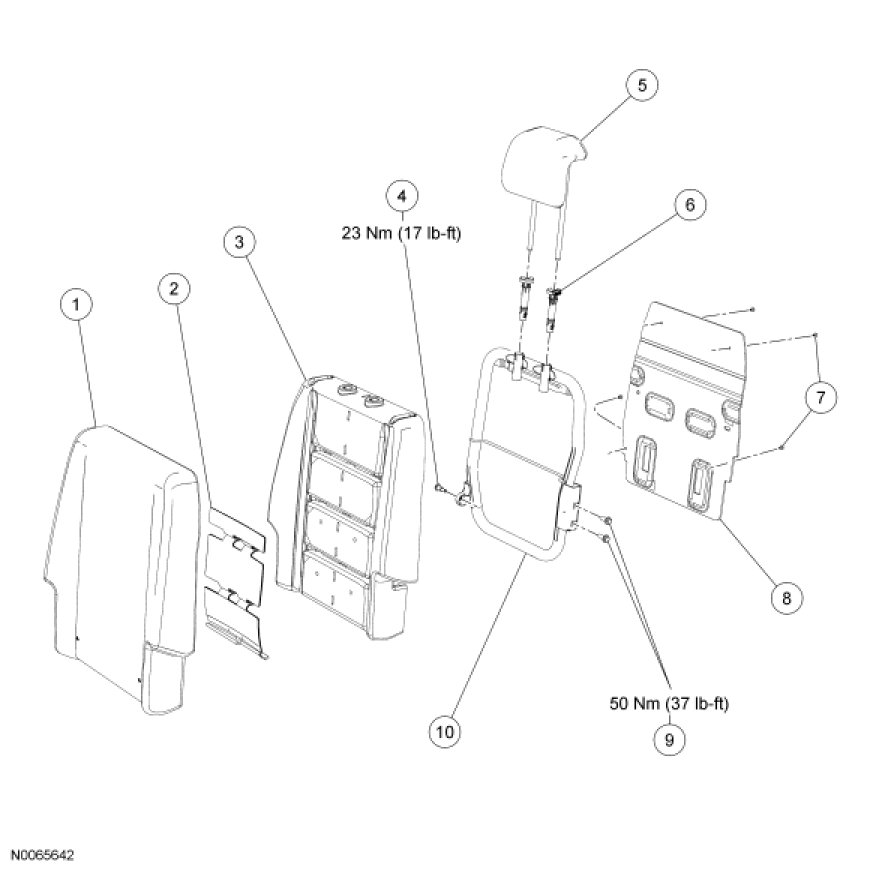

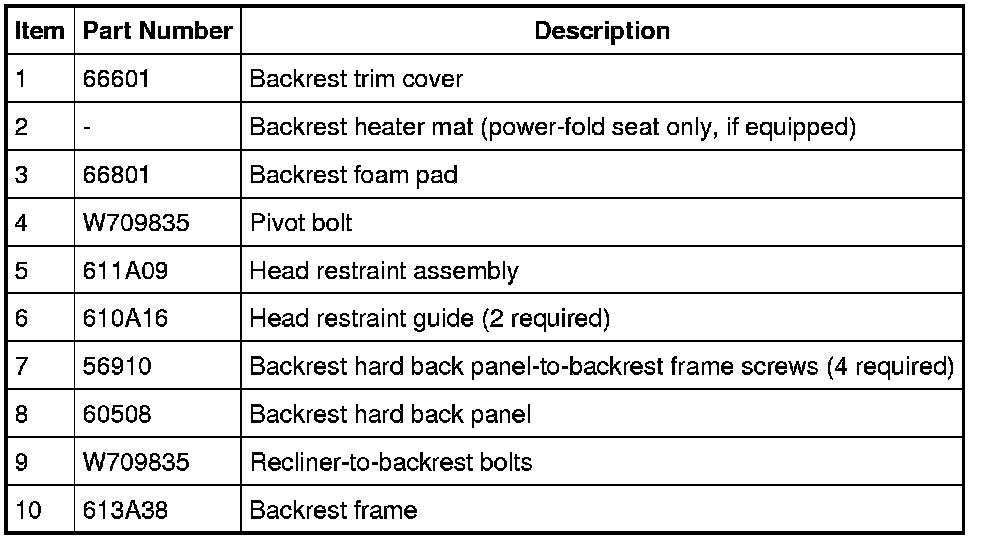

Taurus X Rear Seat Backrest, Second Row, 40 Percent

NOTE: Power-fold seat shown, manual 40 percent similar.

NOTE: LH shown, RH similar.

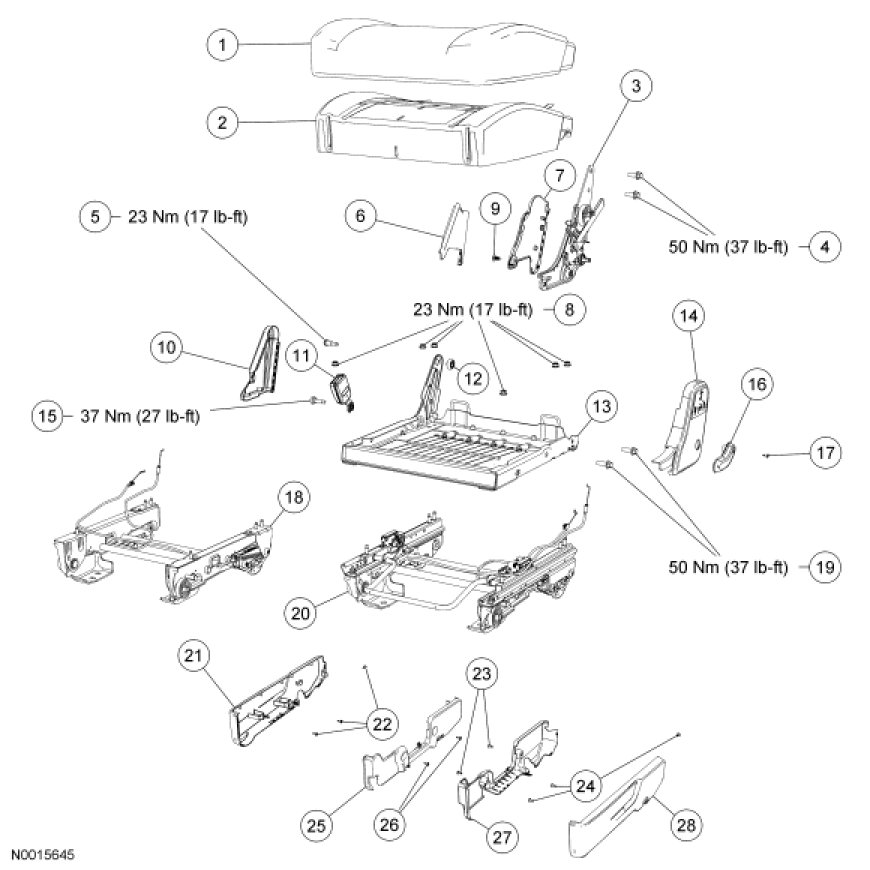

Taurus X Rear Seat Cushion, Second Row, Manual 40 Percent

NOTE: LH shown, RH similar.

NOTE: Both seat riser and seat track are shown.











Taurus X Rear Seat Cushion, Second Row, Power-Fold 40 Percent

NOTE: LH shown, RH similar.

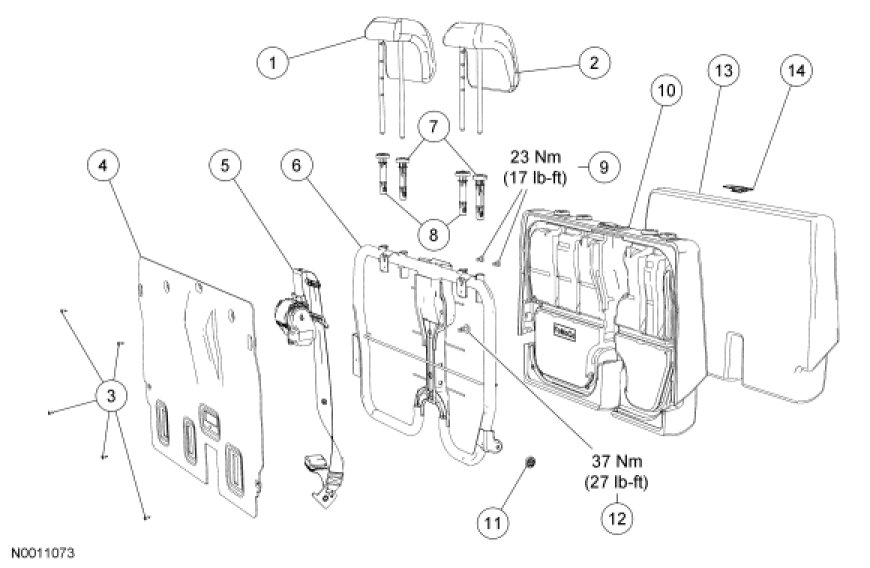

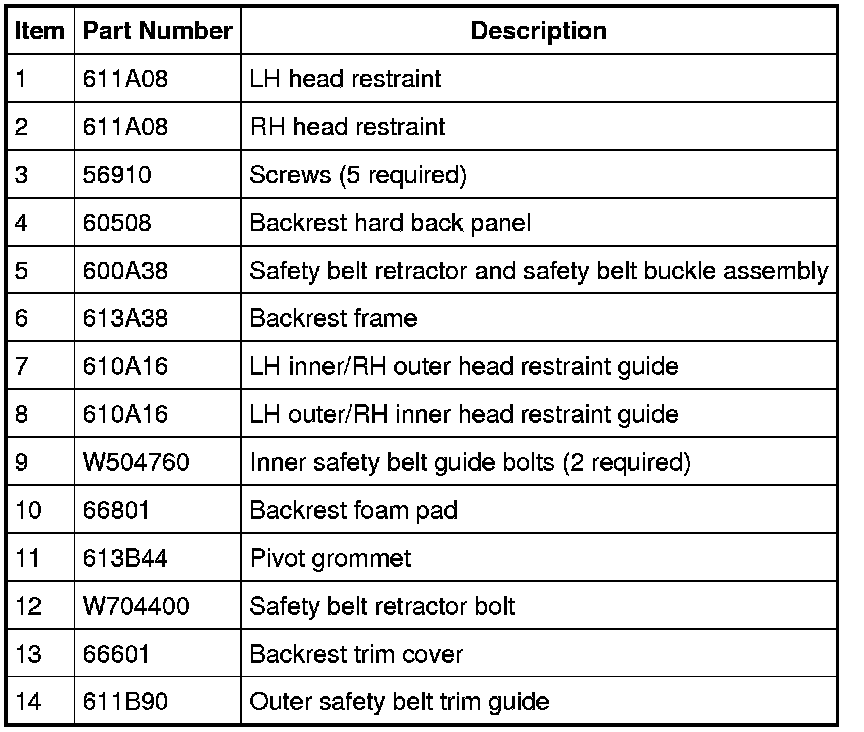

Taurus X Rear Seat Backrest, Second Row, 60 Percent

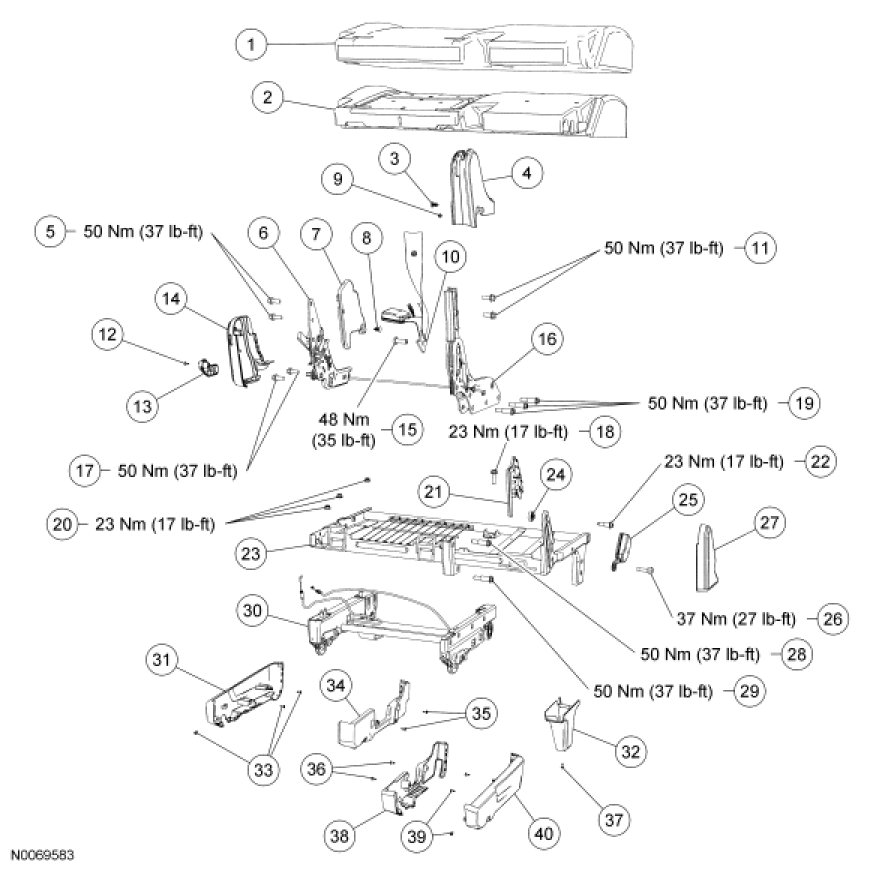

Taurus X Rear Seat Cushion, Second Row, 60 Percent













1. For additional information, refer to the procedures.
