Radiator Grille

Radiator Grille - Taurus X

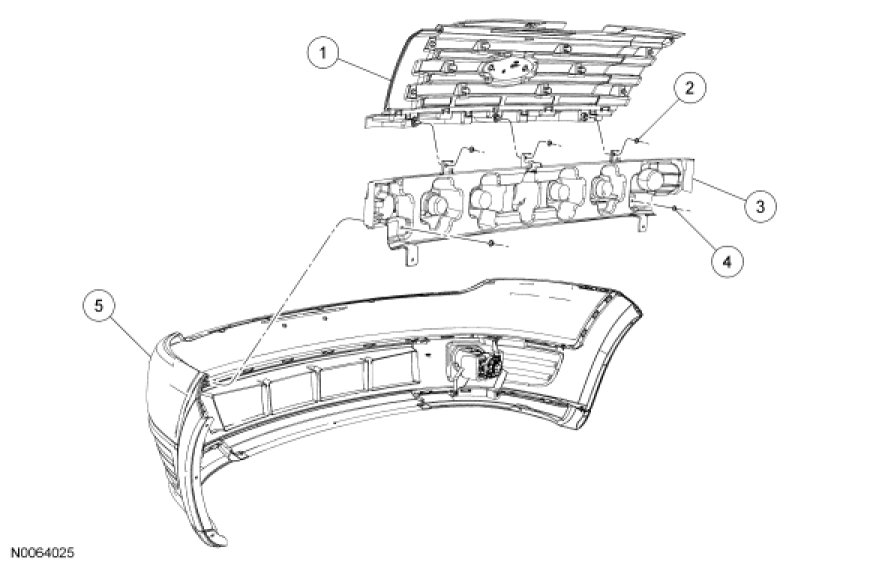

Removal and Installation

1. Remove the front bumper cover.

2. Remove the bumper cover reinforcement-to-bumper cover pushnuts.

3. Remove the bumper cover reinforcement-to-radiator grille pushnuts.

4. Remove the bumper cover reinforcement.

5. Release the bumper cover retaining clips from the radiator grille and remove the radiator grille.

6. To install, reverse the removal procedure.
