Blower Motor

Blower Motor

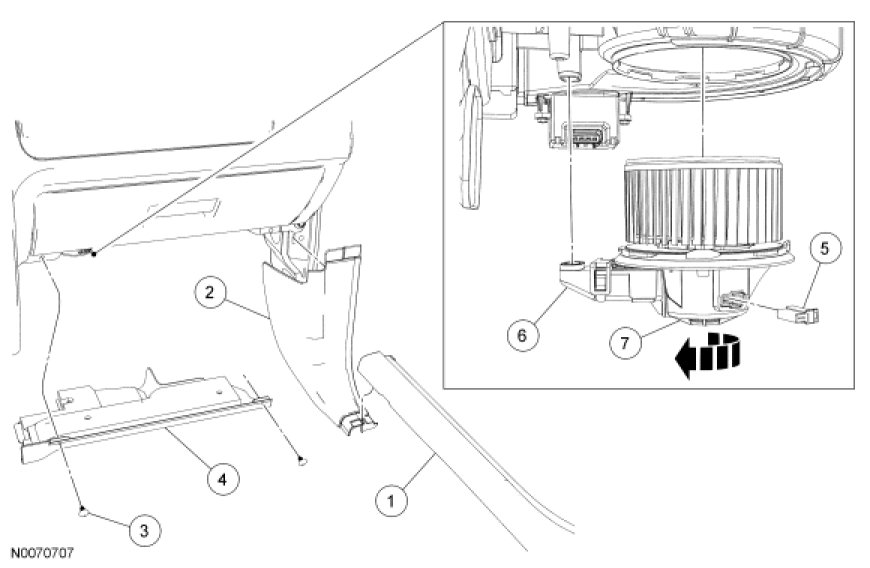

Removal and Installation

1. Detach the RH scuff plate trim panel from the RH cowl side trim panel.

2. Remove the RH cowl side trim panel.

3. Remove the 2 RH lower instrument panel insulator pin-type retainers and the RH lower instrument panel insulator.

4. Disconnect the blower motor electrical connector.

5. Release the 2 blower motor vent tube clips and detach the blower motor vent tube from the heater core and evaporator core housing.

6. Rotate the blower motor counterclockwise to disengage it from the housing and remove the blower motor.

7. To install, reverse the removal procedure.
