Pinpoint Test B: A Single Power Window Is Inoperative - Passenger Front
Glass, Frames and Mechanisms
Pinpoint Tests
Pinpoint Test B: A Single Power Window is Inoperative - Passenger Front
Refer to Wiring Diagram Set 100, Power Windows for schematic and connector information. Diagrams By Number
Normal Operation
During normal operation, battery voltage is provided to the passenger power window motor at all times through circuit 2033 (BN/LB). When the accessory delay relay is active, the passenger power window motor receives voltage through circuit 170 (RD/LB) and the passenger front window control switch receives voltage through circuit 984 (YE/LB). Ground is provided to the passenger power window motor through circuit 1205 (BK). Pulling the driver or passenger window control switch up provides voltage to the window motor through circuit 313 (WH/YE) to command the window up. Pressing the driver or passenger window control switch down provides voltage to the window motor through circuit 314 (TN/LB) to command the window down.
This pinpoint test is intended to diagnose the following:
- Fuse(s)
- Wiring, terminals or connectors
- Driver window control switch
- Front passenger window control switch
- Front passenger window motor
PINPOINT TEST B: A SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER FRONT
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
-------------------------------------------------
B1 CHECK THE OPERATION FROM THE DRIVER WINDOW CONTROL SWITCH
- Using the driver window switch, operate the passenger window in the up, down and auto positions.
- Does the passenger window operate for all positions?
Yes
GO to B12.
No
GO to B2.
-------------------------------------------------
B2 CHECK THE DRIVER WINDOW CONTROL SWITCH
- Ignition OFF.
- Disconnect: Driver Window Control Switch C504.
- Carry out the Master Window Adjust Switch component test.
- Did the driver window control switch pass the component test?
Yes
GO to B3.
No
INSTALL a new driver window control switch. REFER to Window Control Switch Service and Repair. TEST the system for normal operation.
-------------------------------------------------
B3 CHECK CIRCUIT 2033 (BN/LB) FOR VOLTAGE
- Disconnect: Front Passenger Window Motor C623.
- Ignition ON.

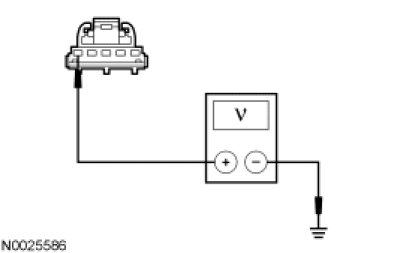

- Measure the voltage between front passenger window motor C623-7, circuit 2033 (BN/LB), harness side and ground.
- Is the voltage greater than 10 volts?
Yes
GO to B4.
No
VERIFY that bussed electrical center (BEC) fuse 7 (30A) is OK.
If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. TEST the system for normal operation.
-------------------------------------------------
B4 CHECK CIRCUIT 170 (RD/LB) FOR VOLTAGE
- Measure the voltage between front passenger window motor C623-2, circuit 170 (RD/LB), harness side and ground.
- Is the voltage greater than 10 volts?
Yes
GO to B5.
No
VERIFY that smart junction box (SJB) fuse 6 (5A) is OK. If OK, REPAIR the circuit.
If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. TEST the system for normal operation.
-------------------------------------------------
B5 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
- Ignition OFF.
- Measure the resistance between front passenger window motor C623-8, circuit 1205 (BK), harness side and ground.
- Is the resistance less than 5 ohms?
Yes
GO to B6.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
B6 CHECK CIRCUITS 313 (WH/YE) AND 314 (TN/LB) FOR A SHORT TO VOLTAGE
- Ignition ON.

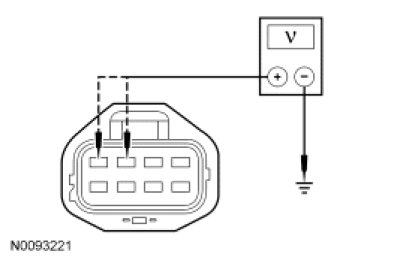

- Measure the voltage between ground and front passenger window motor:
- C623-3, circuit 313 (WH/YE), harness side.
- C623-4, circuit 314 (TN/LB), harness side.
- Is any voltage present?
Yes
GO to B7.
No
GO to B8.
-------------------------------------------------
B7 CHECK FOR A SHORTED FRONT PASSENGER WINDOW CONTROL SWITCH
- Ignition OFF.
- Disconnect: Front Passenger Window Control Switch C604.
- Ignition ON.
- Measure the voltage between ground and front passenger window motor:
- C623-3, circuit 313 (WH/YE), harness side.
- C623-4, circuit 314 (TN/LB), harness side.
- Is any voltage present?
Yes
REPAIR the circuit(s). TEST the system for normal operation.
No
INSTALL a new front passenger window control switch. REFER to Window Control Switch Service and Repair. TEST the system for normal operation.
-------------------------------------------------
B8 CHECK CIRCUIT 405 (VT/LB) FOR A SHORT TO GROUND
- Ignition OFF.
- Measure the resistance between front passenger window motor C623-1, circuit 405 (VT/LB), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
GO to B10.
No
GO to B9.
-------------------------------------------------
B9 CHECK FOR A SHORTED FRONT PASSENGER WINDOW CONTROL SWITCH
- Disconnect: Front Passenger Window Control Switch C604.
- Measure the resistance between front passenger window motor C623-1, circuit 405 (VT/LB), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
REPAIR the circuit(s). TEST the system for normal operation.
No
INSTALL a new front passenger window control switch. REFER to Window Control Switch Service and Repair. TEST the system for normal operation.
-------------------------------------------------
B10 CHECK FOR SHORT BETWEEN CIRCUITS 313 (WH/YE) AND 314 (TN/LB)
- Disconnect: Front Passenger Window Control Switch C604.
- Measure the resistance between front passenger window motor C623-3, circuit 313 (WH/YE), harness side and C623-4, circuit 314 (TN/LB), harness side.
- Is the resistance greater than 10,000 ohms?
Yes
GO to B11.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
B11 CHECK CIRCUITS 313 (WH/YE), 314 (TN/LB) AND 405 (VT/LB) FOR AN OPEN

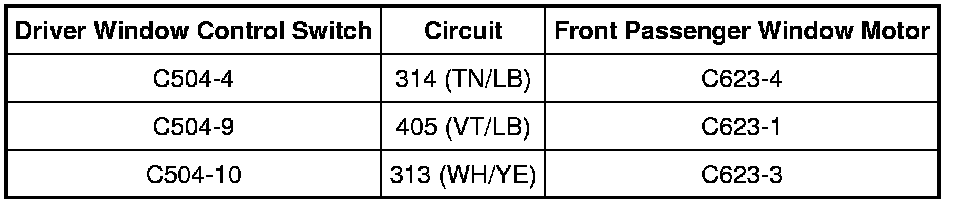

- Measure the resistance between driver window control switch C504, harness side and front passenger window motor C623, harness side using the following chart:
- Are the resistances less than 5 ohms?
Yes
INSTALL a new front passenger window motor. REFER to Window Regulator and Motor - Front Door Window Regulator and Motor - Front Door. TEST the system for normal operation.
No
REPAIR the circuit(s). TEST the system for normal operation.
-------------------------------------------------
B12 CHECK THE FRONT PASSENGER WINDOW CONTROL SWITCH
- Ignition OFF.
- Disconnect: Front Passenger Window Control Switch C604.
- Carry out the Window Adjust Switch, Passenger Side component test.
- Did the front passenger window control switch pass the component test?
Yes
GO to B13.
No
INSTALL a new front passenger window control switch. REFER to Window Control Switch Service and Repair. TEST the system for normal operation.
-------------------------------------------------
B13 CHECK CIRCUIT 984 (YE/LB) FOR VOLTAGE
- Measure the voltage between front passenger window control switch C604-5, circuit 984 (YE/LB), harness side and ground.
- Is the voltage greater than 10 volts?
Yes
GO to B14.
No
VERIFY that SJB fuse 6 (5A) is OK.
If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. TEST the system for normal operation.
-------------------------------------------------
B14 CHECK CIRCUITS 313 (WH/YE), 314 (TN/LB) AND 405 (VT/LB) FOR AN OPEN

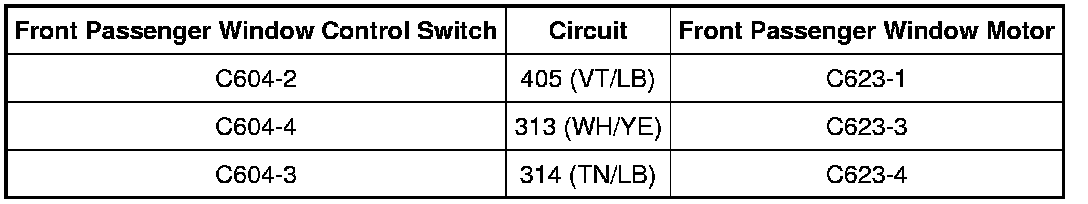

- Measure the resistance between front passenger window control switch C604, harness side and front passenger window motor C623, harness side using the following chart:
- Are the resistances less than 5 ohms?
Yes
INSTALL a new front passenger window motor. REFER to Window Regulator and Motor - Front Door Window Regulator and Motor - Front Door. TEST the system for normal operation.
No
REPAIR the circuit(s). TEST the system for normal operation.
-------------------------------------------------
