T5OD

Transmission Draining and Filling

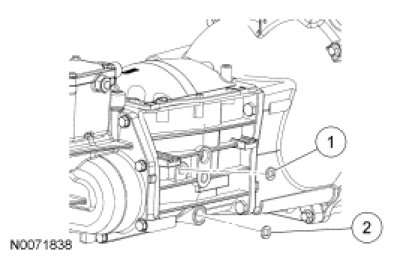

Drain Plug And Fill Plug (Part 1):

Drain Plug And Fill Plug (Part 2):

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: Drain the transmission while the transmission fluid is warm.

NOTE: Position a drain pan under the transmission.

Remove the drain plug and drain the fluid.

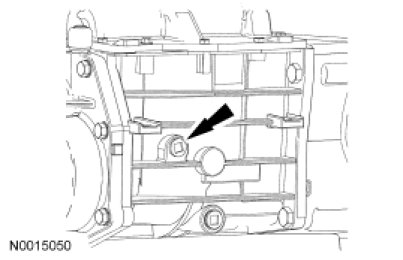

Drain Plug:

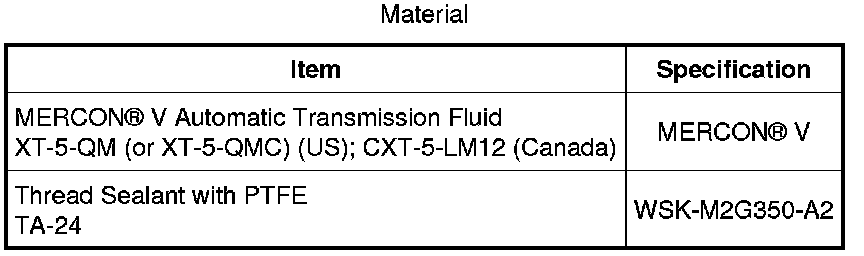

3. Clean the drain plug. Apply thread sealant and reinstall.
- Tighten to 18 Nm (159 lb-in).

4. NOTE: Prior to removal, clean the area around the fill plug.

Remove the fill plug.

Fill Plug:

5. NOTE: Do not overfill the transmission. This will cause transmission fluid to be forced out of the case.

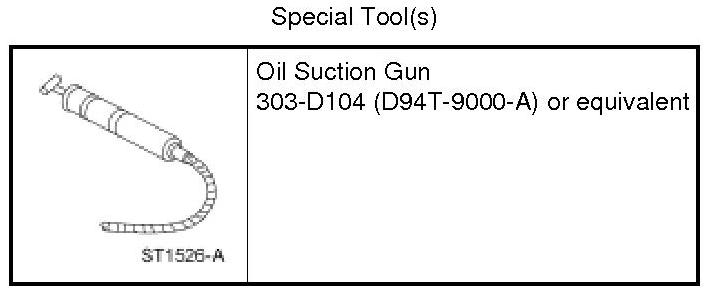

Using an Oil Suction Gun, fill the transmission with the recommended fluid.

- Transmission capacity is 2.6L (2.8 qt).





6. Clean the fill plug. Apply thread sealant and reinstall.
- Tighten to 18 Nm (159 lb-in).
