Input Shaft and Bearing

Input Shaft and Bearing





Disassembly and Assembly

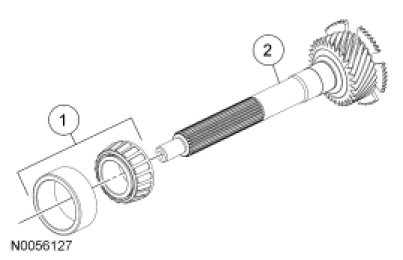

1. NOTE: Any wear or damage on the input shaft can prevent the clutch from operating correctly.

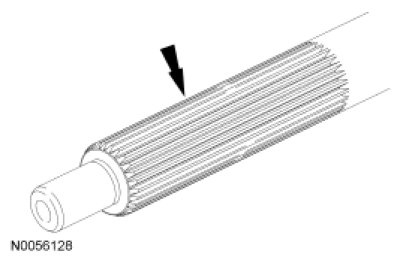

Inspect the splines on the input shaft for wear or damage. If worn or damaged, install a new input shaft.

- Use an emery cloth to remove small scratches.

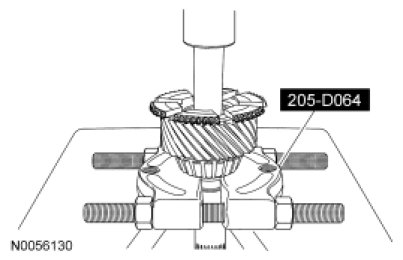

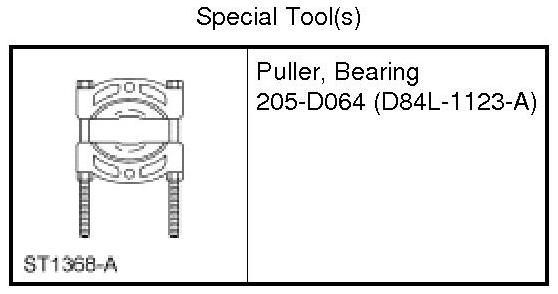

2. Using the Bearing Puller and a press, remove the input shaft front bearing.

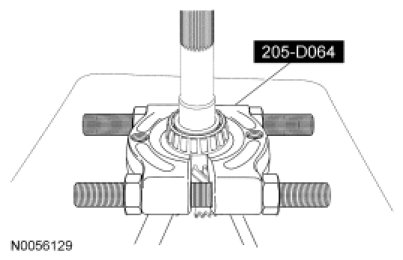

3. Using the Bearing Puller and a press, install a new input shaft bearing.
