Gearshift Rail Bushing




Gearshift Rail Bushing





Disassembly and Assembly

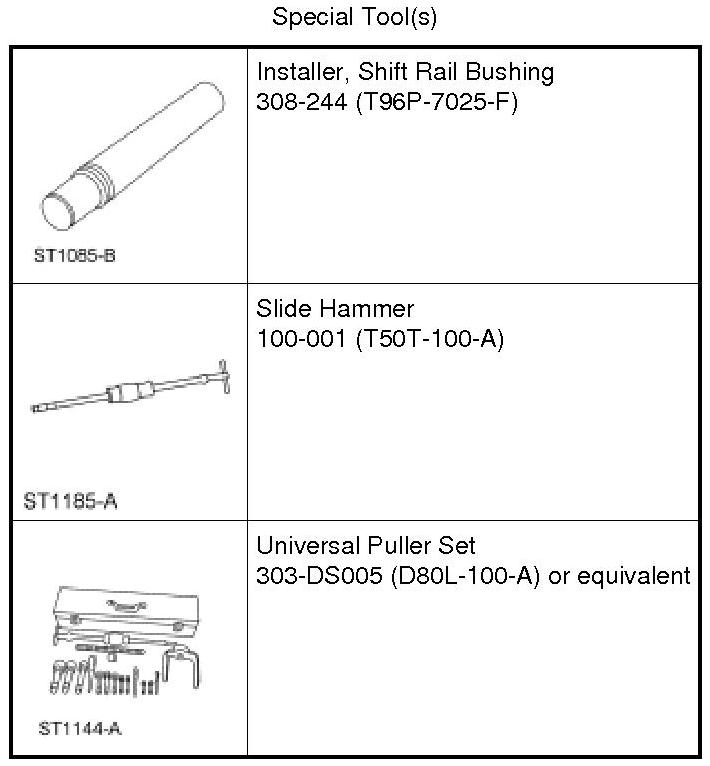

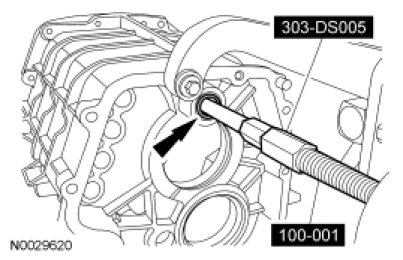

1. Using the Slide Hammer and Universal Puller Set, remove the gearshift rail bearing from the transmission case. Discard the bearing.

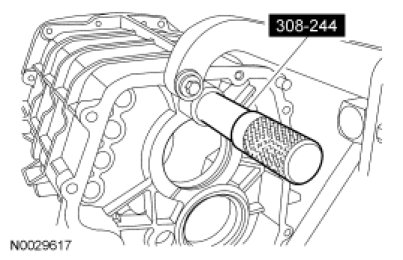

2. Using the Shift Rail Bushing Installer, install the main shift rail bearing.
