Countershaft Bearing

Countershaft Bearing

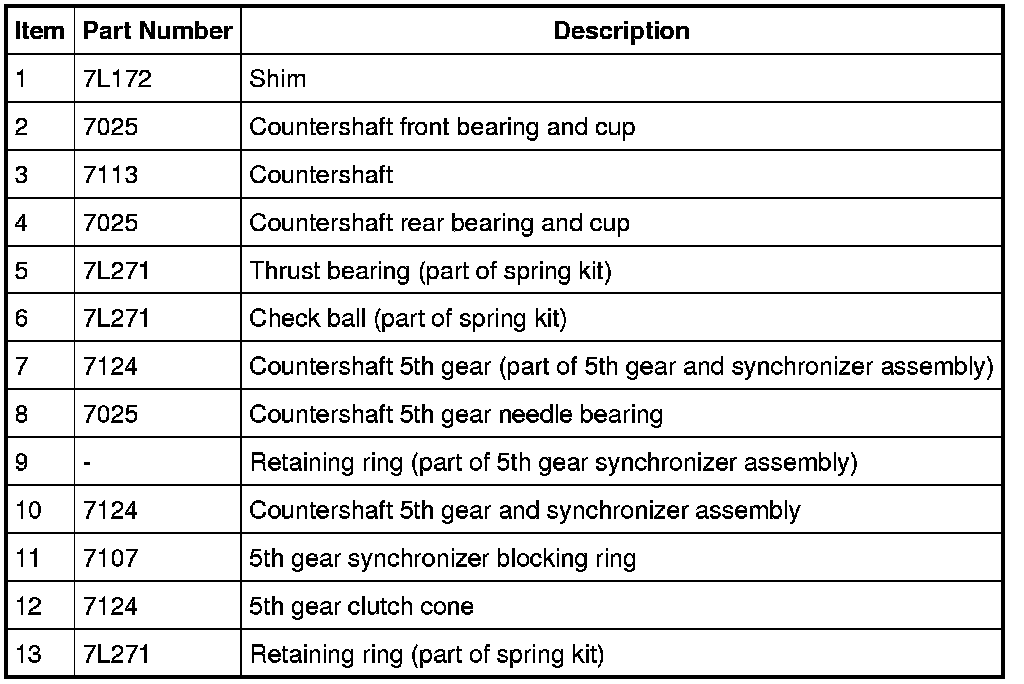

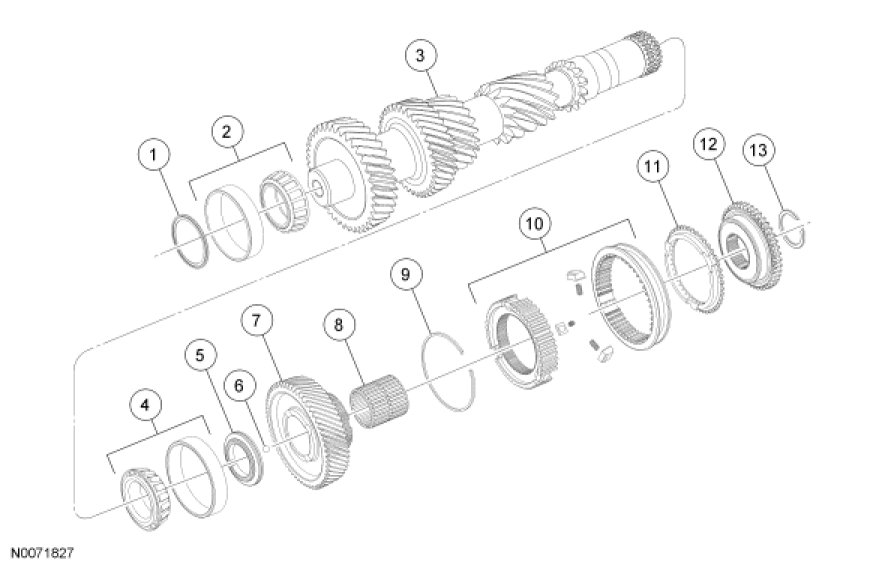

Transmission Internal Components - Countershaft Disassembled View









Disassembly and Assembly

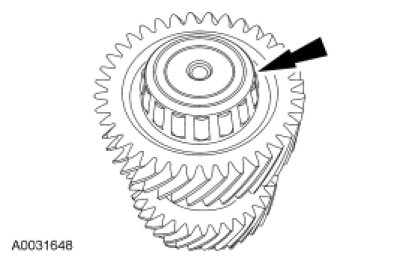

1. Using a suitable tool, cut the outer cage, then remove the outer cage and rollers.

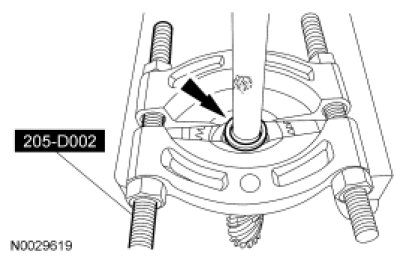

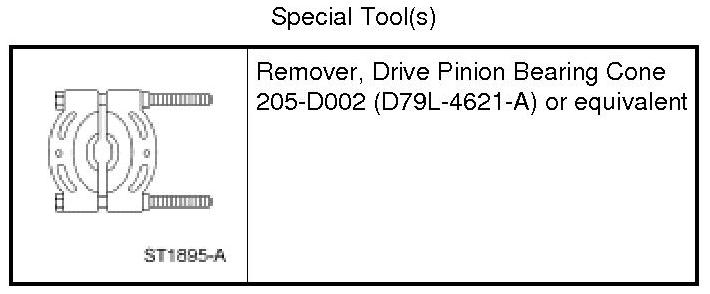

2. Using the Drive Pinion Bearing Cone Remover and a press, remove the inner bearing.

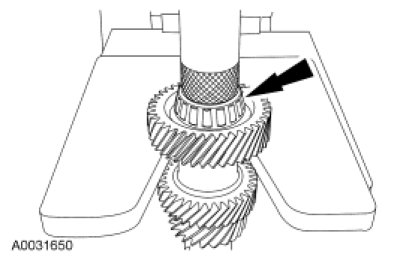

3. Using a suitable tool, install the new countershaft bearing.
