Transmission Speed Sensor: Service and Repair

TR3650

Output Shaft Speed (OSS) Sensor









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

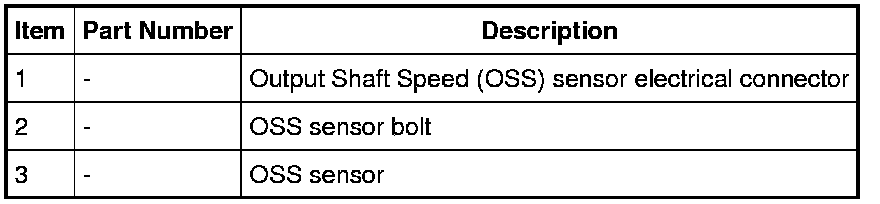

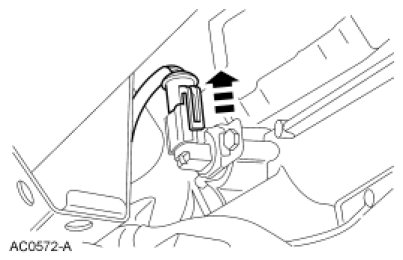

2. Disconnect the Output Shaft Speed (OSS) electrical connector.

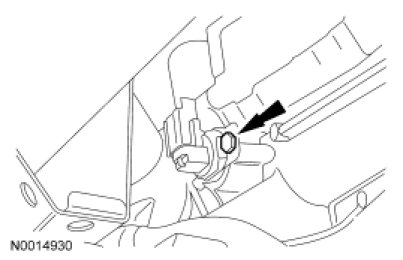

3. Remove the OSS sensor bolt, then remove OSS sensor.
- To install, tighten to 10 Nm (89 lb-in).





4. To install, reverse the removal procedure.
