TR6060

Transmission Draining and Filling

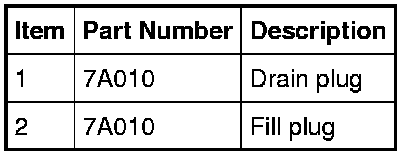

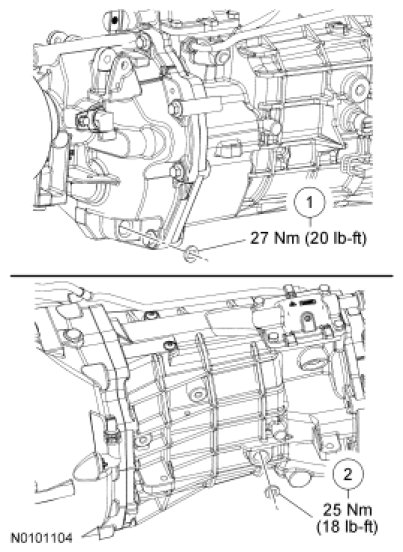

Drain Plug And Fill Plug (Part 1):

Drain Plug And Fill Plug (Part 2):

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: Position a suitable drain pan under the transmission.

Remove the drain plug and drain the transmission.

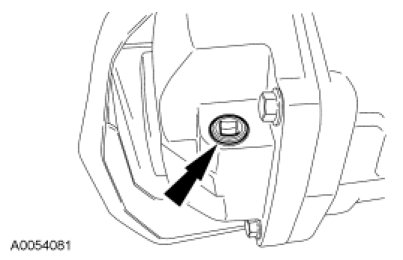

Drain Plug:

3. Clean the drain plug. Apply threadlock and sealer to the plug threads and install the drain plug.
- Tighten to 27 Nm (20 lb-ft).

4. NOTE: Before removing, clean the area around the fill plug.

Remove the fill plug.

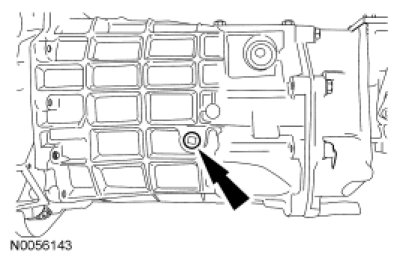

Fill Plug:

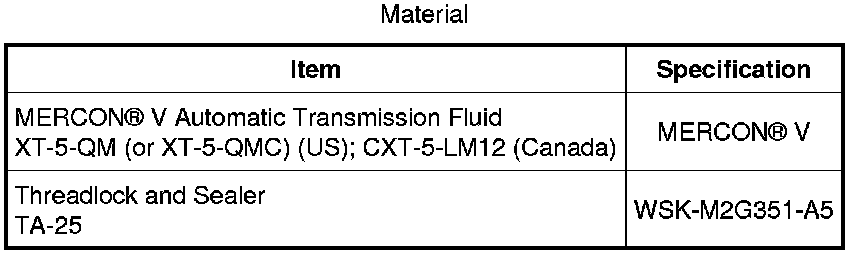

5. Using a suitable oil suction gun, fill the transmission to the correct level with the specified fluid.
- Transmission capacity is 3.46L (3.65 qt).

Fill Plug:

6. Apply threadlock and sealer to the plug threads and install the fill plug.
- Tighten to 25 Nm (18 lb-ft).
