Clutch Master Cylinder: Service and Repair

Clutch Master Cylinder













Removal and Installation

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

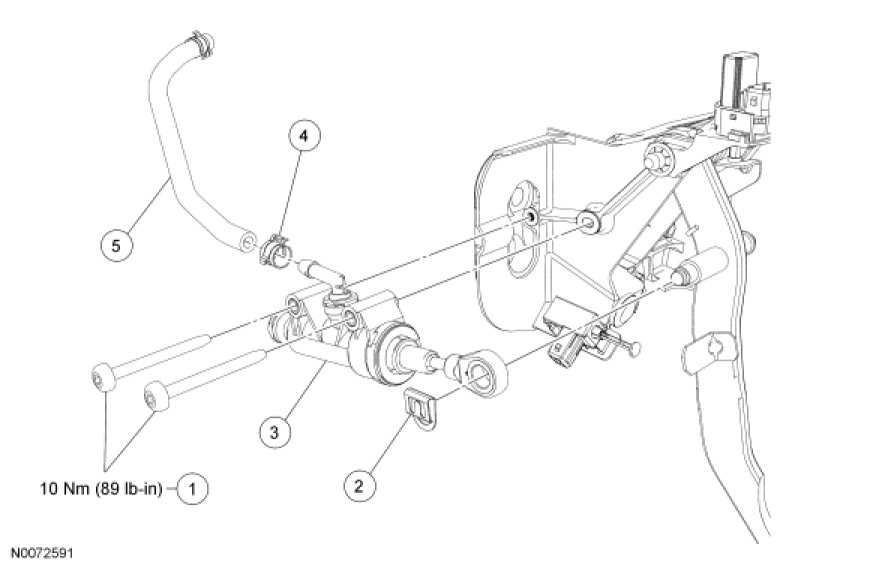

1. Remove the brake pedal and bracket assembly.

2. Remove the retaining clip from the clutch pedal pin.

3. Remove the 2 clutch master cylinder bolts, then disconnect the clutch master cylinder from the clutch pedal.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the reservoir hose from the clutch master cylinder.

5. To install, reverse the removal procedure.
- Install new hose clamps on the reservoir hose.

- Bleed the clutch hydraulic system.

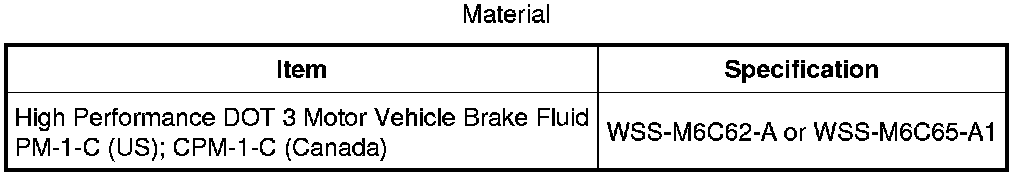

- Refill the brake and clutch reservoir with the specified fluid.

- Check the clutch for normal operation.
