Transmission Cooler: Description and Operation

Transmission Cooling

Vehicles with automatic transmissions are equipped with a transmission fluid cooler. The transmission fluid cooler transfers heat from the transmission fluid to the ambient air.

For Transmission Fluid Cooler Flow Test, refer to Transmission Control Systems. Testing and Inspection

For Transmission Fluid Cooler Backflushing and Cleaning, refer to Fluid - A/T. Fluid - A/T

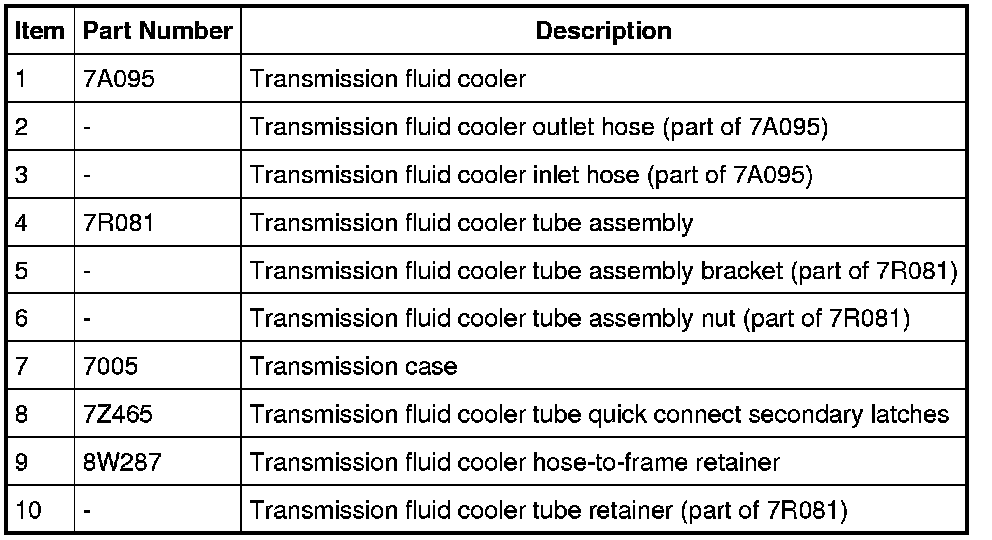

Transmission Fluid Cooler Tubes (4.6L Engine)










Transmission Fluid Cooler Tubes (4.0L Engine)
