Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Shift Concerns 210 - 275 >> 212, Timing Concerns - Early/Hunting (Some/All)

212, Timing Concerns - Early/Hunting (Some/All)




5R55S

Diagnostic Routines

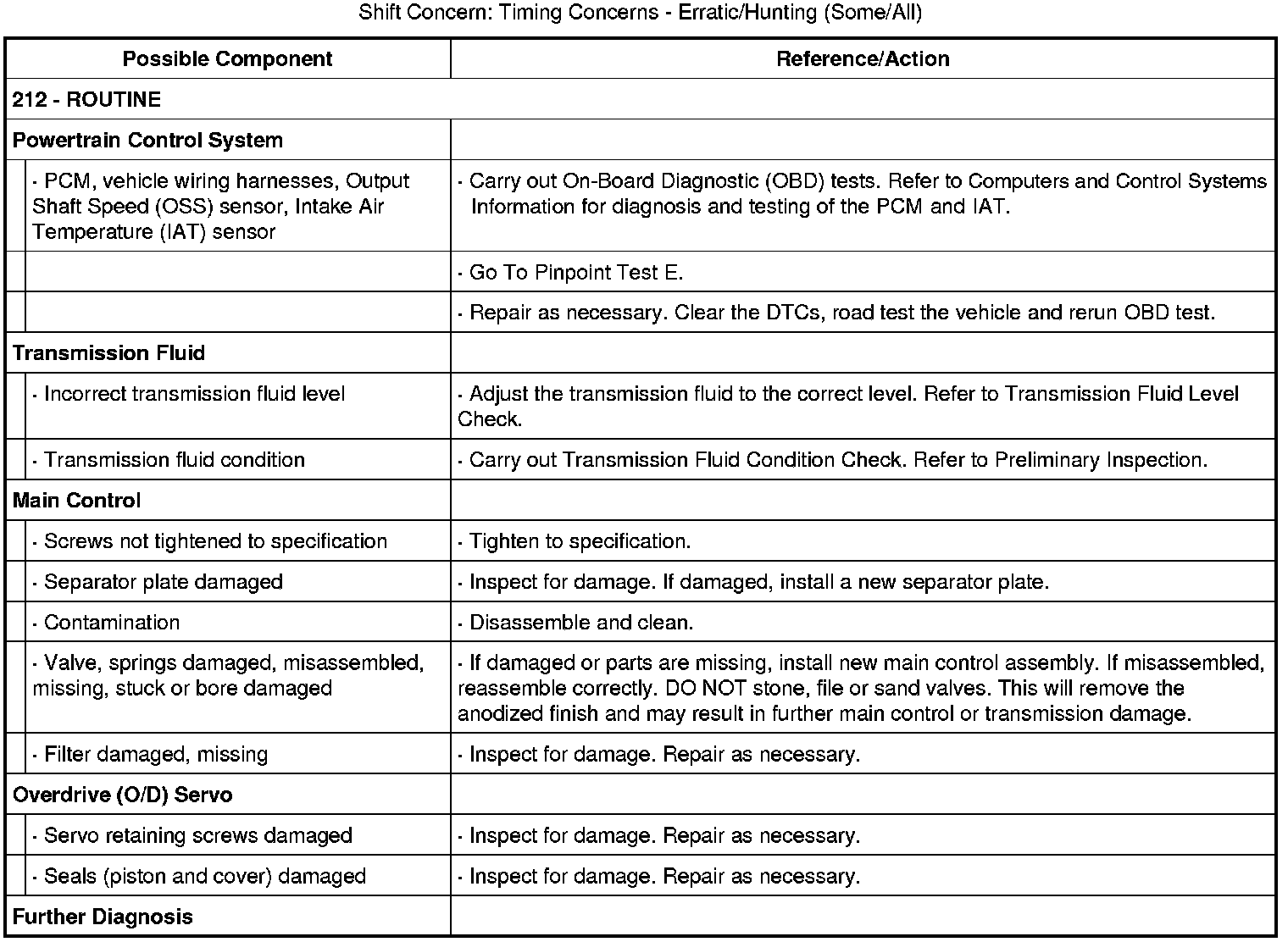

212, Timing Concerns - Early/Hunting (Some/All) (Part 1):

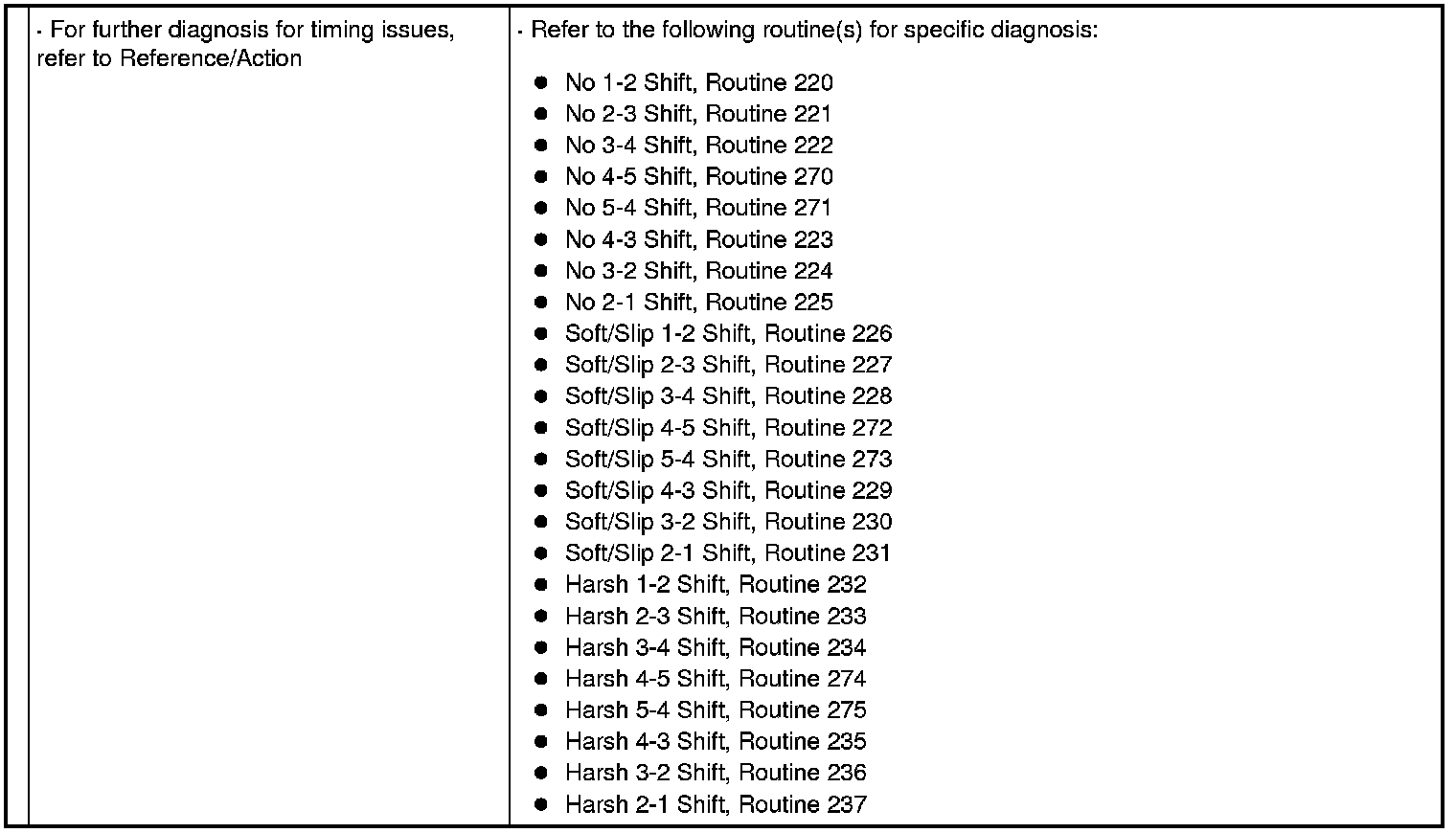

212, Timing Concerns - Early/Hunting (Some/All) (Part 2):
