Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Other Concerns 251 - 285 >> 255, Engine Will Not Crank

255, Engine Will Not Crank




5R55S

Diagnostic Routines

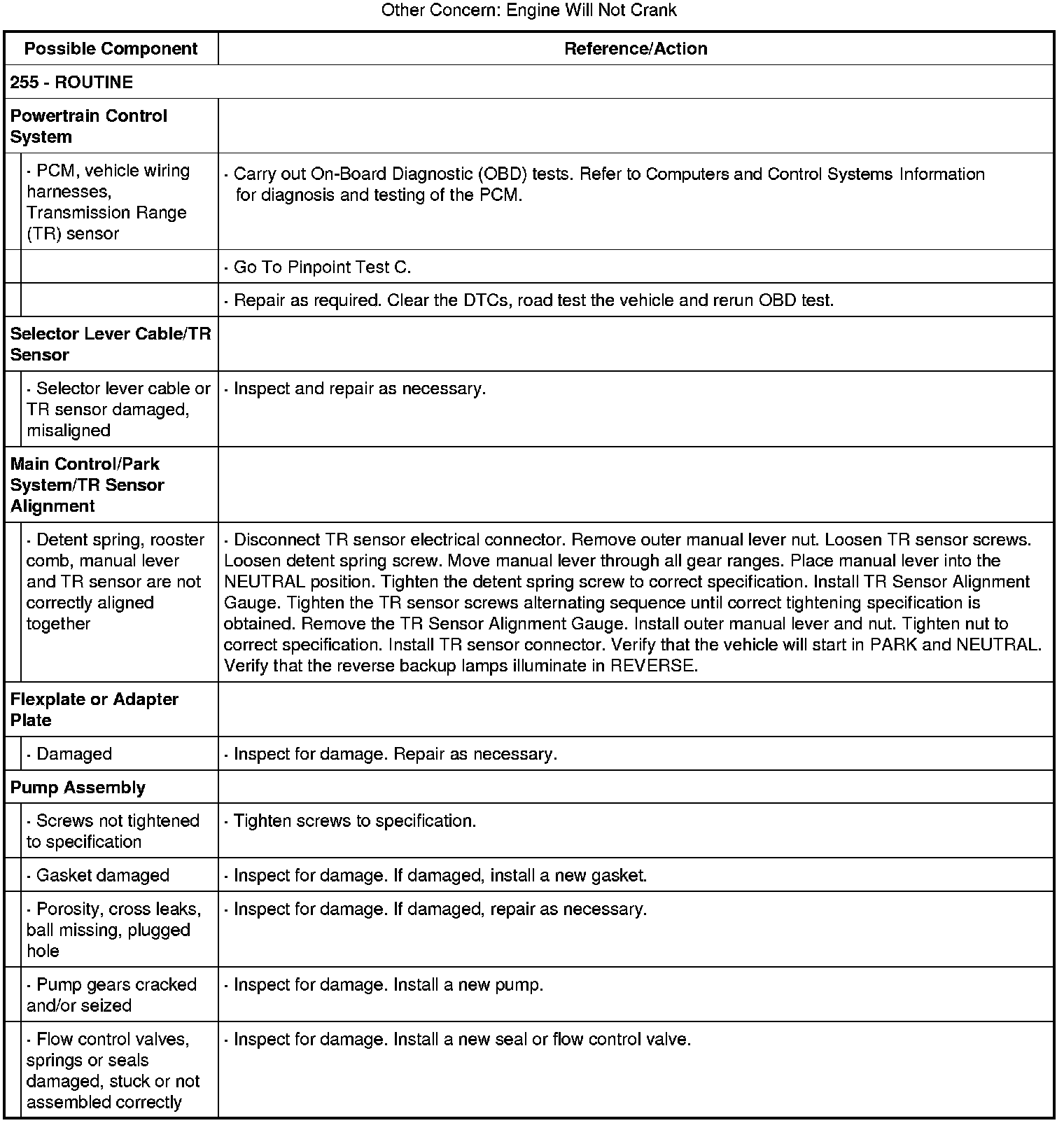

255, Engine Will Not Crank:
