Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Engagement Concerns 201A - 216 >> 209, Delayed Forward And Delayed Reverse

209, Delayed Forward And Delayed Reverse




5R55S

Diagnostic Routines

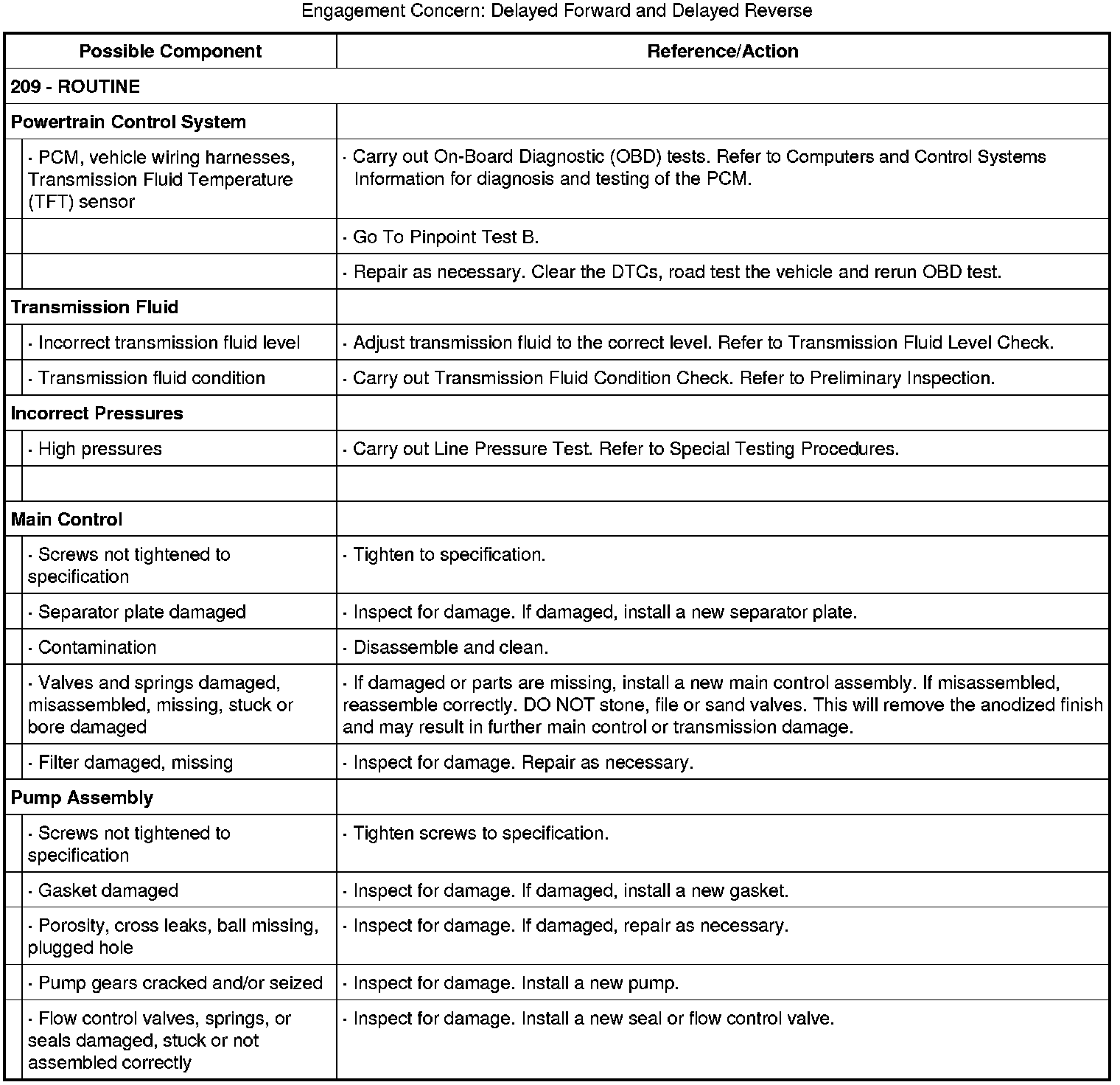

209, Delayed Forward And Delayed Reverse:
