Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Torque Specifications

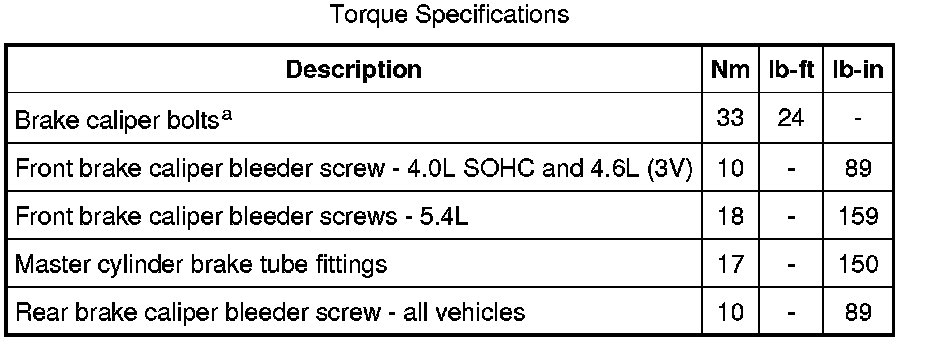

Torque Specifications









a The bolts retaining the front caliper halves together on 5.4L equipped vehicles are not serviceable.
